TeraFlex Falcon HD Rear Shock Skid Plate Kit for 2007-2018 Jeep Wrangler JK
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Heavy-duty shock armor: TeraFlex's HD answer for rear shock protection.
- 1/4" cold rolled steel: TeraFlex's stated plate material and thickness.
- Raw, weld-ready finish: Left bare for owners who want to weld it on.
- Welding optional: Not required; TeraFlex highly recommends it for extreme use.
- Falcon Series 3 or 2: For Series 3 Piggyback, also Series 2 Monotube.
- About two hours: TeraFlex's labor estimate for the job.
Description & Fitment

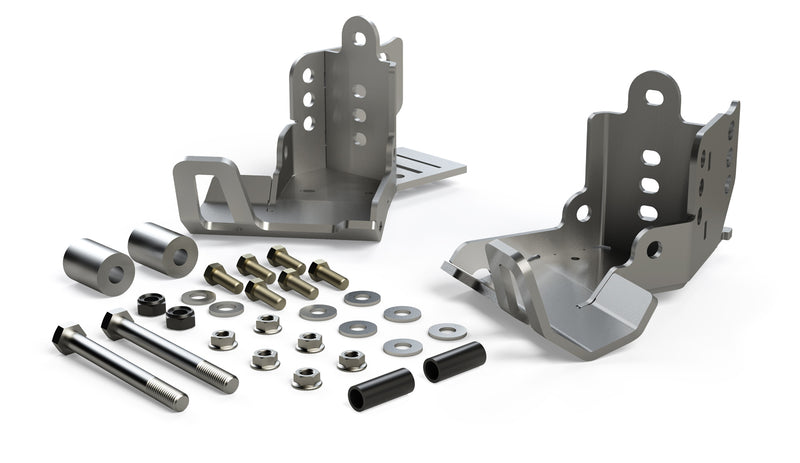

The HD version of TeraFlex's Falcon rear shock skid plates suits JK owners who plan to weld their shock armor in place. It covers each rear Falcon shock on a 2007-2018 Jeep Wrangler JK or JK Unlimited with 1/4" cold rolled steel plate and comes in a raw finish, so it can be welded in place. TeraFlex says welding is not required but highly recommended for extreme use. Plan on about two hours of labor; the shocks are not included.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; For Falcon rear shocks |
Check your Jeep: 2007-2018 Wrangler JK or JK Unlimited with TeraFlex Falcon Series 3 Piggyback or Series 2 Monotube rear shocks.
Not for: Buyers who want a bolt-on, painted part: see the Falcon Bolt-On Rear Shock Skid Plate Kit (36-07-01-200).
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Do I have to weld it?
No. TeraFlex says welding is not required, but it highly recommends welding for extreme use. The raw finish leaves bare steel for that.
Will it need paint?
It ships raw. TeraFlex's instruction sheet lists black spray paint among the tools and supplies.
Which shocks does it fit?
TeraFlex designs it for its JK Falcon Series 3 Piggyback rear shocks and lists Series 2 Monotube shocks as compatible. The shocks are sold separately.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and your engine, transfer case and the TeraFlex parts you already run, and we'll check it against TeraFlex's fitment information before it ships.
Do I need to read the instructions first?
Yes. TeraFlex asks you to read its instructions fully before you start, check the parts list against the box, and judge whether you have the experience to do the work yourself.
Installation
- 9/16" and 3/4" (or 19 mm) wrench or socket
- Ratchet
- 6 mm Allen wrench
- Large flat head screwdriver or pry bar
- 3/8" drill bit
- Rest on TeraFlex's tool list
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Pick the mounting level: Level 1 keeps the lower shock mount height, Level 2 raises it 13/16" and Level 3 1-5/8" (Levels 2-3 change axle travel, so the shocks can bottom before the bump stops or the springs can unseat at droop); Falcon shocks built after August 2020 need their stud bushing replaced with the provided 61-01-01-001 bushing, lubricated and pressed in.
- Chock the front wheels, lift the rear and support it on jack stands at the axle, remove the rear wheels, then free the lower shock ends: outer nuts (3/4" or 19mm), inner nuts and washers (6mm Allen on the studs), studs and spacers.
- One side at a time (never remove both rear lower control arms together), remove a lower control arm (21mm), unbolt the sway bar link from the axle (18mm), cut off the shock and sway bar brackets with a cut-off wheel or plasma cutter, and grind the control arm bracket flat and clean.
- Fit the skid plate at your level with the control arm bolt (without the arm) in the top hole and 3/8" bolts, washers and flange nuts in the rear holes, mark or punch the remaining holes, remove the plate, drill 3/8" holes, paint them and refit; for Levels 2-3 first trim the control arm brackets as the sheet shows (13/16" up for Level 2) and grind for fit if needed.
- Welding is optional (clean, tack, weld and paint); reinstall the lower control arm (bolts 125 ft-lbs), check the 3/8" bolts (45 ft-lbs), refit the sway bar link to the new bracket (75 ft-lbs) and repeat on the other side.
- Touch up bare metal with black paint, lube the lower shock bushings and fit the sleeves, mount the shock tops (37 ft-lbs), set the new spacer in the skid plate with the M12 x 120mm bolt and washer, compress the shock up into the plate, push the bolt through and fit the M12 washer and nut (56 ft-lbs); refit the wheels and torque the lug nuts per the service manual.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 36-07-01-300 |
| Product Type | Rear shock skid plate kit (HD) |
| Material | 1/4" cold rolled steel |
| Finish | Raw (unpainted) |
| Welding | Not required; recommended for extreme use |
| Shock Compatibility | TeraFlex JK Falcon Series 3 Piggyback; Series 2 Monotube |
| UPC | 843885041719 |
Warranty, shipping & returns
-
Warranty
TeraFlex's warranty list covers its skid plates for life and gives Falcon-branded products 1 year, so contact us and we will confirm which term applies to this Falcon shock skid plate before you order.- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Bumpers are heavy, large parts. Check the powder coat, welds and mounting tabs for freight damage before you sign for it if you can, match the hardware to the TeraFlex parts list, and contact us right away about any damage. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
