TeraFlex Front Sway Bar Quick Disconnect Kit (3"-6" Lift), Skin Pack for 1997-2006 Jeep Wrangler TJ & Wrangler Unlimited LJ
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Retail skin pack: Display packaging; the boxed kit is 1743090.
- For 3"-6" of lift: Link length sized for lifted TJ and LJ fronts.
- Quiet polyurethane top: TeraFlex says the upper ball needs zero maintenance.
- Stainless-steel pin: The lower end slides off for quick removal.
- Park the links up: Upper parking studs hold links clear when disconnected.
- Brake line brackets: Driver and passenger brake line extension brackets included.
Description & Fitment

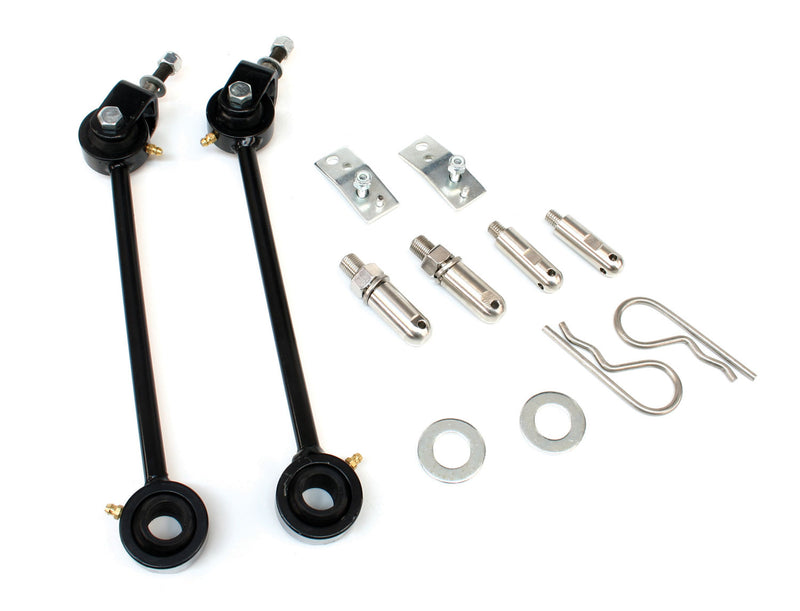

This is the skin pack version of the TeraFlex Front Sway Bar Quick Disconnect Kit for a 1997-2006 Jeep Wrangler TJ or LJ Unlimited lifted 3" to 6"; skin pack is TeraFlex's retail display packaging, and the same kit also comes boxed as 1743090. The TeraFlex parts list for the 3"-6" kit holds driver and passenger quick disconnect links, axle-side studs, upper parking studs, pins, washers, nuts, grease zerks and a pair of brake line extension brackets. Off-road, the links unhook in moments and fold up clear, so the axle can flex freely.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ/LJ; 3"-6" lift |
Check your Jeep: Wrangler TJ or Wrangler Unlimited LJ 1997-2006 with a 3"-6" lift.
Not for: 0"-2" lift (see 1743092); YJ, JK.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Is it different from 1743090?
Only the packaging. TeraFlex sells this one in a skin pack for retail display and 1743090 boxed; the instruction sheet gives both the same 3"-6" parts list.
What lift does it suit?
TeraFlex lists it for TJ and LJ models with 3" to 6" of lift. For 0"-2" choose the 8" kit, 1743092.
How long does it take to fit?
TeraFlex estimates about 1 hour.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and trim, plus your lift height and sway bar, and we'll check it against TeraFlex's fitment information before it ships.
How is sway bar link length measured?
TeraFlex measures its sway bar link lengths center-to-center, from the middle of one mounting point to the middle of the other.
Installation
- Basic mechanics tool set
- 3/8"-16 tap and handle
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Turn the tires for access (the Jeep can stay on the ground), remove the upper link nuts (15mm) and strike the sway bar near the link with a hammer to free the taper (ball joint separator if needed), then remove the lower bolt (18mm and T55 Torx).
- Install the stud into the axle bracket from the inside at 60 ft-lbs, with the pin oriented for easy access.
- Identify the left and right links (bolt head points away from the frame), fit them with the washer and nut at 45 ft-lbs (9/16"), and slide the polyurethane bushing over the bullet, securing it with the washer and pin.
- Using the connected link as a guide, mark the frame for the parking stud, tap it 3/8"-16 and install the provided link pin with thread locker; repeat on the other side.
- On kits with brake line brackets, remove the factory frame bracket (T40 Torx), bolt the new bracket to the frame holes at 25 ft-lbs and secure the factory bracket to it with the supplied 1/4" bolt and nut.
- Always disconnect both links together off-road, and grease the joints every 3,000 miles or after water crossings.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1743010 |
| Product Type | Front sway bar quick disconnect kit |
| Lift Range | 3"-6" |
| Position | Front |
| Packaging | Skin pack (boxed version 1743090) |
| UPC | 843885023036 |
Warranty, shipping & returns
-
Warranty
TeraFlex covers its sway bars and links for life against defects in materials and workmanship. Its warranty list names no term for sway bar mounts or the universal tube disconnect plate, so contact us before ordering one of those and we will confirm that coverage.- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Match every bar, arm, link, bushing, air line and hardware bag to the TeraFlex part list before you start, and contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
