TeraFlex High Steer Sway Bar Mount Kit for 1997-2006 Jeep Wrangler TJ/LJ, 1994-1995 Wrangler YJ, 1984-2001 Cherokee XJ, 1993-1998 Grand Cherokee ZJ & 1986-1992 Comanche MJ
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Clears high steer parts: Lifts the front sway bar above high steer components.
- Relocated bar mounts: Raises and moves the sway bar mounting points.
- 3/8" steel mounts: Laser-cut 3/8" steel, formed to shape.
- For 4"-6" lifts: Listed for high steer builds lifted 4" to 6".
- Five Jeep platforms: TJ/LJ, YJ, XJ, ZJ and MJ listed by TeraFlex.
- Driver and passenger: A full kit; single mounts are sold as 4959101.
Description & Fitment

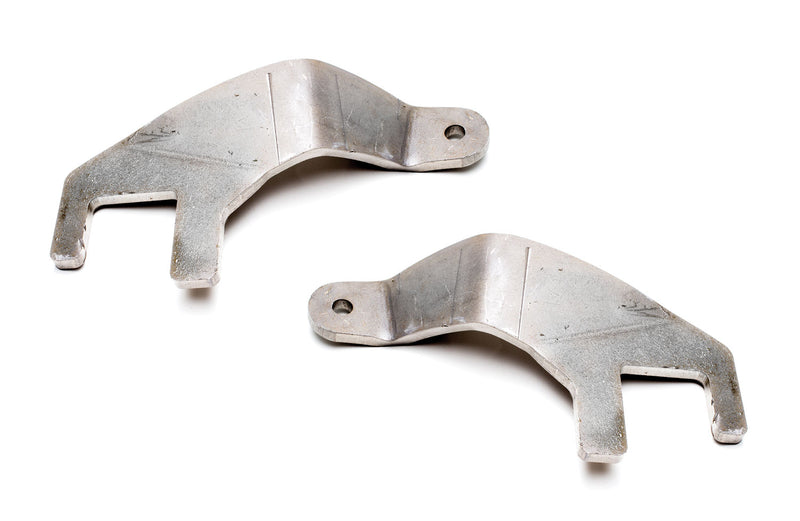

The TeraFlex High Steer Sway Bar Mount Kit raises and relocates the front sway bar mounts so the bar clears high steer steering parts. TeraFlex lists it for 4" to 6" lifted, high steer equipped 1997-2006 Wrangler TJ and LJ (Dana 30 or Rubicon Dana 44 front axle), 1994-1995 Wrangler YJ with a Dana 30, Cherokee XJ, Grand Cherokee ZJ and Comanche MJ. The mounts are 3/8" steel, laser cut and then formed. TeraFlex estimates 4 to 5 hours to fit them.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ/LJ; 4"-6" lift; Dana 30 or Rubicon Dana 44 front axle; high steer | |
| 1994-1995 | Wrangler | YJ; 4"-6" lift; Dana 30 front axle; high steer | |
| 1984-2001 | Cherokee | XJ; 4"-6" lift; high steer | |
| 1993-1998 | Grand Cherokee | ZJ; 4"-6" lift; high steer | |
| 1986-1992 | Comanche | MJ; 4"-6" lift; high steer |
Check your Jeep: High steer equipped, 4"-6" lifted: Wrangler TJ/LJ 1997-2006 (Dana 30 or Rubicon Dana 44), Wrangler YJ 1994-1995 (Dana 30), Cherokee XJ 1984-2001, Grand Cherokee ZJ 1993-1998, Comanche MJ 1986-1992.
Not for: Factory (non high steer) steering; JK/JL.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Do I need high steer for this?
Yes. It exists to clear high steer steering components; TeraFlex lists it only for high steer builds lifted 4"-6".
Which front axles does it fit on a Wrangler?
On the TJ/LJ, the Dana 30 or Rubicon Dana 44 front axle; on the 1994-1995 YJ, the Dana 30.
How long does it take to fit?
TeraFlex estimates 4 to 5 hours.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and trim, plus your lift height and sway bar, and we'll check it against TeraFlex's fitment information before it ships.
How is sway bar link length measured?
TeraFlex measures its sway bar link lengths center-to-center, from the middle of one mounting point to the middle of the other.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Cut the stock sway bar mounts off where they join the spring pad bracket, grind the area smooth and paint it against rust.
- Clean all grease and rust off the knuckle so the new mount can be welded properly.
- Set the new sway bar mount vertical on the inner knuckle, tack weld it, check the position and then final weld (professional welding required).
- Attach the sway bar link to the new mount; the relocated mount needs a shorter link (TeraFlex QD132-4, not included).
- Repeat on the other side, and after 500 miles check all bolts and re-torque if needed.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 4959100 |
| Product Type | High steer sway bar mount kit |
| Material | 3/8" steel, laser cut and formed |
| Lift Range | 4"-6" |
| Position | Front |
| UPC | 843885026600 |
