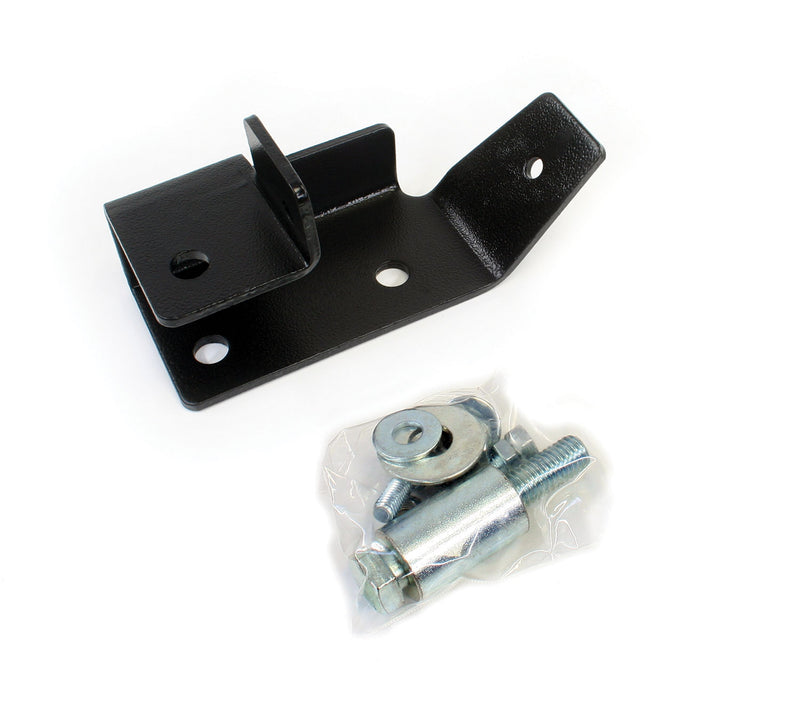

TeraFlex Rear Track Bar Axle Bracket Kit (3"-6" Lift) for 1997-2006 Jeep Wrangler TJ & Wrangler Unlimited LJ
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Re-centers the rear axle: Moves the track bar mount to center the axle after a lift.
- Corrects roll center: TeraFlex says it reduces body roll and tail wag.
- Restores handling: Brings back factory-like handling on a lifted TJ.
- Bolt-on bracket: Mounts to the rear axle without welding.
- Optimized for 3": Works up to 6" with the 1744000 adjustable rear track bar.
- TJ and LJ: Not for TeraFlex Pro LCG long arm systems.
Description & Fitment
The TeraFlex Rear Track Bar Axle Bracket Kit bolts to the rear axle of a 1997-2006 Jeep Wrangler TJ or LJ Unlimited to re-center the axle after a lift. TeraFlex says it corrects roll center, reduces body roll, stops tail wag and restores factory handling. It is optimized for a 3" lift and works up to 6" when used with TeraFlex's HD Adjustable Rear Track Bar (1744000), which is required from 3.5". It is not compatible with Pro LCG long arm systems.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ/LJ; Not for TeraFlex Pro LCG long-arm systems; 3"-6" lift |
Check your Jeep: Wrangler TJ 1997-2006 or Unlimited LJ 2004-2006, 3"-6" lift (1744000 track bar from 3.5").
Not for: TeraFlex Pro LCG long arm systems; JK or JL models.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Do I need an adjustable track bar?
On a 3.5"-6" lift, yes: TeraFlex requires its HD Adjustable Rear Track Bar 1744000.
Will it work with Pro LCG?
No. TeraFlex says it is not compatible with Pro LCG long arm systems.
Is welding required?
No, TeraFlex lists it as a bolt-on bracket that mounts to the rear axle.
What warranty does TeraFlex give?
TeraFlex covers its track bars for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. Contact us to confirm coverage on your part or to start a claim.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Contact us with your VIN or year, model and trim, lift height and steering setup, and we'll check it against TeraFlex's fitment information before it ships.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Raise and support the vehicle at the factory service manual support points, and remove and discard the factory dust cover.
- Remove the track bar nut and bolt at the axle with a T55 Torx and keep them for reuse.
- Set the new bracket against the factory bracket and fit the 5/16" bolts in the top and lower holes with lock nuts loose; the factory 5/16" holes may need drilling to fit.
- Fit the 1/2" bolt through the center hole and the factory hole with the spacer between, then torque the 5/16" hardware to 30 ft-lbs and the 1/2" bolt to 75 ft-lbs; tack-welding the bracket to the factory bracket is optional extra security.
- Lower the vehicle, set the track bar in the new bracket with the factory nut and bolt, and torque it to 75 ft-lbs.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1944000 |
| Product Type | Rear track bar axle bracket kit |
| Lift Range | 3"-6" (optimized for 3") |
| Requires | HD Adjustable Rear Track Bar 1744000 on 3.5"-6" lifts |
| Not For | TeraFlex Pro LCG long arm systems |
| UPC | 843885024491 |
