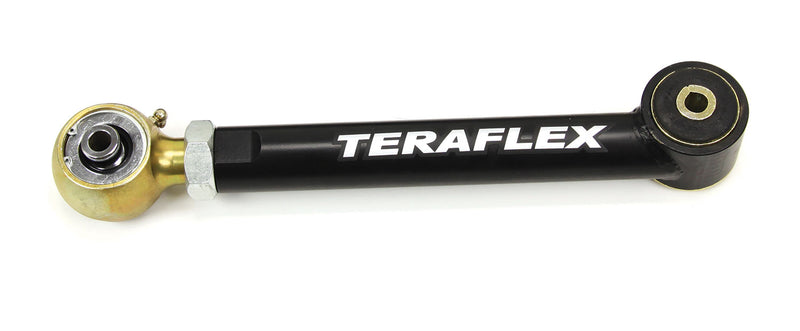

TeraFlex Short Control Arm, Lower, Front Or Rear (0"-4" Lift) on a white background

TeraFlex Short Control Arm, Lower, Front or Rear (0"-4" Lift) for 1997-2006 Jeep Wrangler TJ/LJ, 1984-2001 Cherokee XJ, 1993-1998 Grand Cherokee ZJ & 1986-1992 Comanche MJ

$216.99
FREE SHIPPINGNo sales tax Only 1 leftIn stock now  Estimated delivery
Verify fitment with your vehicle
GO
Clear
  • Guaranteed FitmentTeam-confirmed fit or money back
  • No Sales TaxZero sales tax on every order
  • 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Prestige Truck customer support

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

Features

  • One lower arm: A single adjustable lower arm, sold individually.
  • Front or rear: Fits either lower position on the TJ/LJ, ZJ and MJ.
  • XJ front lower: On the XJ Cherokee it fits the front lower position.
  • 1.75" x 0.25" DOM: Heavy-wall DOM tube, per TeraFlex.
  • Bolt-in: Uses the factory control arm brackets.
  • Re-centers the axle: Adjust length to center the axle in the wheel well.

Description & Fitment

This is a single TeraFlex Short Control Arm, Lower, sold individually, for the front or rear lower position of a 1997-2006 Jeep Wrangler TJ or LJ Unlimited, a 1993-1998 Grand Cherokee ZJ or a 1986-1992 Comanche MJ, or the front lower of a 1984-2001 Cherokee XJ, with 0"-4" of lift. It is an adjustable 1.75" x 0.25" wall DOM arm that bolts to the factory brackets, handy as a spare or to replace one damaged arm. An alignment is required after install.

Fitment & Compatibility

Jeep
Years Model Bed Notes
1997-2006 Wrangler TJ/LJ; Front or rear lower; 0"-4" lift
1984-2001 Cherokee XJ; Front lower only; 0"-4" lift
1993-1998 Grand Cherokee ZJ; 0"-4" lift
1986-1992 Comanche MJ; 0"-4" lift

Check your Jeep: TJ/LJ 1997-2006, ZJ 1993-1998 or MJ 1986-1992 front or rear lower; XJ 1984-2001 front lower; 0"-4" lift.

Not for: XJ rear; JK or JL models. Kit: 1615700.

About TeraFlex

TERAFLEX.

TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.

The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.

Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.

Frequently Asked Questions

Is this a pair?

No. It is one lower arm. The lower arm kit is 1615700.

Does it fit the XJ rear?

No. TeraFlex lists the XJ Cherokee for the front lower position only.

Is an alignment required?

Yes, after installing any adjustable control arm TeraFlex calls for an alignment.

What warranty does TeraFlex give?

TeraFlex covers its control arms for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. Contact us to confirm coverage on your part or to start a claim.

How quickly does it ship?

Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.

Can you confirm it's the right part before I order?

Yes. Contact us with your VIN or year, model and trim and what's on the Jeep now, and we'll check it against TeraFlex's fitment information before it ships.

Installation

Install time 2 hours
TypeBolts to factory bracketsAlignment required
What's involvedSwap the factory lower control arms one at a time for FlexArms set to their starting lengths, bushing end at the frame and flex joint at the axle. Torque the bolts on the ground, get a four-wheel alignment and grease the flex joints monthly.
ToolsBasic mechanics tool set

Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.

  1. Raise and support the front of the vehicle, unclip the ABS sensor wire from the inboard side of the arm if fitted, and work on one arm at a time.
  2. Remove the frame-side bolt and the axle-side cam bolt and nut (21mm), then take out the factory lower arm.
  3. Set the FlexArm to its starting length (TJ, LJ and ZJ 15-3/4", XJ front 16-1/4"), snug the jam nut with a 1-1/4" wrench and grease the flex joint.
  4. Fit the bushing end in the frame bracket and the flex-joint end in the axle bracket on the cam bolt turned fully forward, all finger tight; do the other side, lower the vehicle and torque the cam bolts to 85 ft-lbs and the frame-side bolts to 130 ft-lbs.
  5. Rear: raise and support the rear, swap one arm at a time set to its starting length (TJ and LJ 15-3/4", ZJ 16-11/16") with the bushing end at the frame and the flex joint at the axle, then lower the vehicle and torque all bolts to 130 ft-lbs.
  6. Have a four-wheel alignment done (the cam bolt no longer sets alignment) and grease the flex joints once a month.

Stuck on a step? Ask our install experts

Specifications

BrandTeraFlex
Part Number1615710
Product TypeAdjustable short control arm
PositionLower, front or rear (XJ: front lower only)
Lift Range0"-4"
Tube1.75" x 0.25" wall DOM
SoldIndividually (one arm)
UPC843885022596
