TeraFlex Steering Stabilizer Relocation Kit for 2007-2018 Jeep Wrangler JK
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Raises it nearly 2.5": Lifts the stabilizer up out of harm's way on the trail.
- Less shaft damage: A higher stabilizer is less exposed to rocks and ledges.
- 6061-T6 aluminum clamp: Machined clamp grips the tie rod to hold the new mount.
- Forged 10.9 stud: High-grade stud carries the relocated stabilizer end.
- Reduces tie rod roll: TeraFlex says it removes the dead spot that roll creates.
- Two tie rod sizes: 1-3/8" stock or 1-5/8" heavy-duty tie rod versions.
Description & Fitment

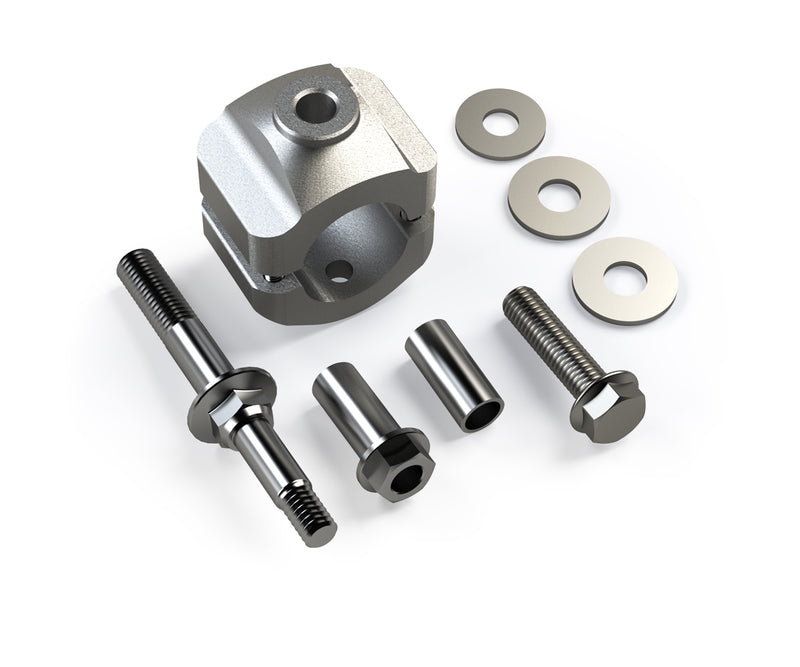

The TeraFlex Steering Stabilizer Relocation Kit raises the steering stabilizer on a 2007-2018 Jeep Wrangler JK or JK Unlimited by nearly 2.5", moving the shaft and body up and away from rocks and trail damage. A 6061-T6 aluminum clamp and a forged grade 10.9 stud reposition the stabilizer, which TeraFlex says cuts the tie rod roll that leaves a dead spot of unresisted steering movement. Choose the version for a 1-3/8" stock tie rod or a 1-5/8" heavy-duty tie rod. The kit relocates your existing stabilizer; no stabilizer is included.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 0-6" lift |
Check your Jeep: Wrangler JK or JK Unlimited 2007-2018, stock height up to a 6" lift, with a 1-3/8" stock or 1-5/8" HD tie rod.
Not for: Falcon Nexus EF stabilizers (either version) or FOX ATS stabilizers (1-5/8" version); JL/JT or TJ.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it work with a Falcon Nexus EF stabilizer?
No. TeraFlex says neither version works with Falcon Nexus EF steering stabilizers, and the 1-5/8" version also does not work with FOX ATS stabilizers.
Which version do I need?
Measure your tie rod: 1123140 fits the 1-3/8" stock JK tie rod, 1123160 fits a 1-5/8" heavy-duty tie rod.
Is a stabilizer included?
No. The kit moves the stabilizer you already run; it does not include one.
What warranty does TeraFlex give on this relocation kit?
TeraFlex's warranty list names no term for stabilizer relocation brackets, and this kit is not a Falcon product. Paint and powder coat finishes carry 90 days against defects. Contact us and we'll confirm the coverage before you order.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Contact us with your VIN or year, model and trim, plus your tie rod and lift, and we'll check it against TeraFlex's fitment information before it ships.
Installation
- Jack
- Jack stands
- Basic mechanics tool set
- Pry bar
- Blue Loctite
- Rest on TeraFlex's tool list
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Chock the rear tires, raise the front of the Jeep until the tires are off the ground and support it at the axle (this helps line up the track bar bolt).
- Remove the steering stabilizer (18mm) and the bolt and nut from the factory stabilizer tie rod clamp (15mm), pry the factory mount open with a large pry bar and slide it toward the passenger-side tie rod end to take it off.
- Remove the axle-side track bar bolt (21mm) and replace it with the supplied track bar bolt/stabilizer stud, using the factory nut torqued to 125 ft-lbs.
- Fit the 7/16" washer on the new stud, remove both metal sleeves from the stabilizer and press the supplied 1/2" sleeve into the piston side, then fit the stabilizer's body end on the stud with the sleeve nut through the eye, loosely.
- With the tires straight, collapse the stabilizer to its centered position (use a tape measure), mark the tie rod where the eyelet lines up, loosely fit the clamp on that mark with Blue Loctite on the M6 cap screws (snug the four bolts in a cross pattern), and bolt the other stabilizer end to the top of the clamp with the 1/2" bolt and two washers, Blue Loctite, 47 ft-lbs (3/4").
- Torque the sleeve nut to 47 ft-lbs (18mm); have a helper turn the steering slowly lock to lock to confirm clearance, then tighten the four clamp bolts in a cross pattern to 6 ft-lbs (5mm hex bit) and the two set screws to 15 ft-lbs.
- 999240 JK Steering Stabilizer Relocation Kit Instructions (PDF)
- 999241 JK Steering Stabilizer Relocation Kit for 1.625in Steering Instructions (PDF)
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Product Type | Steering stabilizer relocation kit |
| Relocation | Nearly 2.5" higher |
| Clamp | 6061-T6 aluminum |
| Stud | Forged grade 10.9 |
| Lift Range | 0-6" |
| Part number | 1123140 |
| UPC | 843885036210 |
| Part # | Tie Rod | UPC |
|---|---|---|
| 1123140 | 1-3/8" Stock | 843885036210 |
| 1123160 | 1-5/8" HD | 843885036203 |
