TeraFlex Transfer Case Shift Linkage Adapter Kit for 1997-2002 Jeep Wrangler TJ
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Fixes stock linkage trouble: Cures slop from body and drivetrain movement.
- Bolts to the drivetrain: Mounts to the transmission and transfer case.
- Heavy-duty adapter: TeraFlex says it shifts reliably in extreme use.
- Easy low-range shifts: Simple shifting into every low-range position.
- Adjustable torque shaft rod: Included for fine tuning the linkage.
- About two hours: TeraFlex's labor estimate for the job.
Description & Fitment

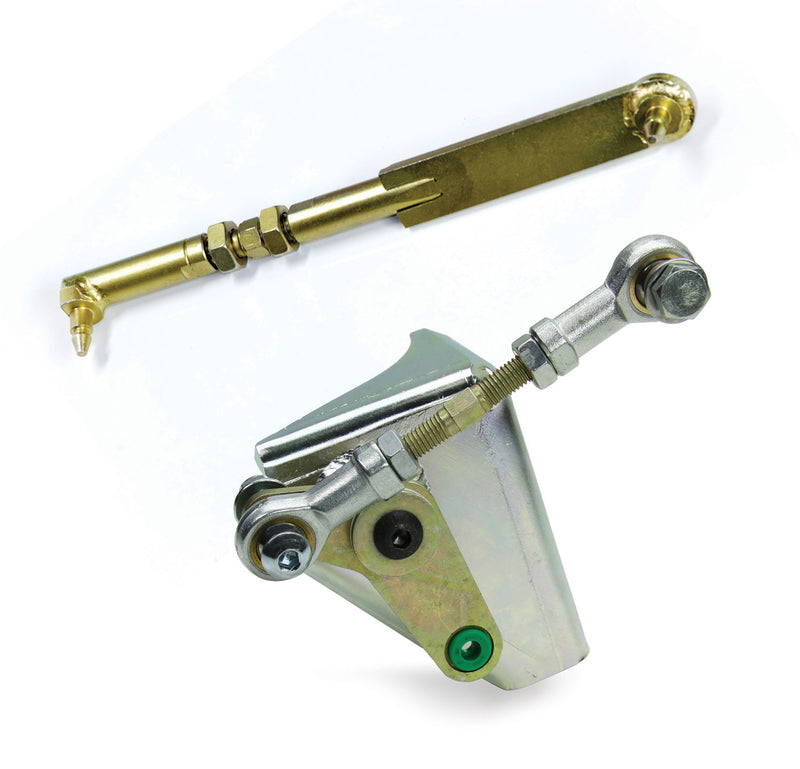

On a 1997-2002 Jeep Wrangler TJ with an automatic transmission and the 231 transfer case, the factory shift linkage can be hard to keep in adjustment because the body and drivetrain move independently. This TeraFlex kit replaces it with a heavy-duty adapter bracket that bolts to the transmission and transfer case, so shifting into every low-range position stays simple. An adjustable torque shaft rod is included for fine tuning. TeraFlex lists about two hours of labor.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2002 | Wrangler | TJ; Automatic transmission; Not for Rubicon |
Check your Jeep: 1997-2002 Wrangler TJ (short wheelbase) with an automatic transmission and the 231 transfer case.
Not for: 2003-2006 TJs, LJ Unlimited and Rubicon models; manual transmissions without modification.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it fit a 2003-2006 TJ or a Rubicon?
No. TeraFlex lists all 1997-2002 TJ Wrangler models with automatic transmission and says it does not fit 2004-2006 TJ Wrangler/Unlimited or Rubicon models.
I have a manual transmission. Will it work?
TeraFlex designs it for automatics but says it can be modified for manual transmissions; the AX-15 needs extensive modification.
Do I need the longer rod?
TeraFlex highly recommends its extra-long 5.5" Adjustable Shift Linkage Rod (947105, sold separately) for longer linkage adjustment.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and your transfer case, transmission and driveshaft type, and we'll check it against TeraFlex's fitment information before it ships.
Do I need to read the instructions first?
Yes. TeraFlex asks you to read its instruction sheet fully before you start, check the parts list against the box, and judge whether you have the experience to do the work yourself.
Installation
- Basic mechanics tool set
- Thread locker
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Park on level ground, set the parking brake and put the transfer case in neutral; safely support the Jeep and use a jack to hold the transfer case and transmission at stock height.
- Remove the four transmission mount nuts (13mm) and, with a jack or a helper steadying the heavy skid plate, the six mounting bolts (3/4").
- Remove the stock linkage: pull back the carpet on the driver's side of the tunnel to reach the bracket bolts below the shifter, and remove the plastic bushing from the shift lever.
- Fit the new bracket to the transfer case with the supplied flange nuts and connect the shift linkage to the factory lever, replacing the plastic bushing with the metal one; TeraFlex recommends thread locker on the linkage fasteners.
- Starting from neutral, set the new lower link to about the factory link's length, install it and check operation; adjust the upper link with the transfer case at its operating height (trim the threaded rod carefully if needed) and tighten the jam nuts.
- Reinstall the skid plate with the transmission mount studs lined up, torque the skid plate bolts to 33 ft-lbs and the transmission nuts to 26 ft-lbs.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 4947100 |
| Product Type | Transfer case shift linkage adapter kit |
| Transfer Case | NP231 |
| Transmission | Automatic (manual with modification) |
| Includes | Adapter bracket, adjustable torque shaft rod |
| UPC | 843885027744 |
