TeraFlex Universal RotopaX Hi-Lift Jack Mount Kit
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

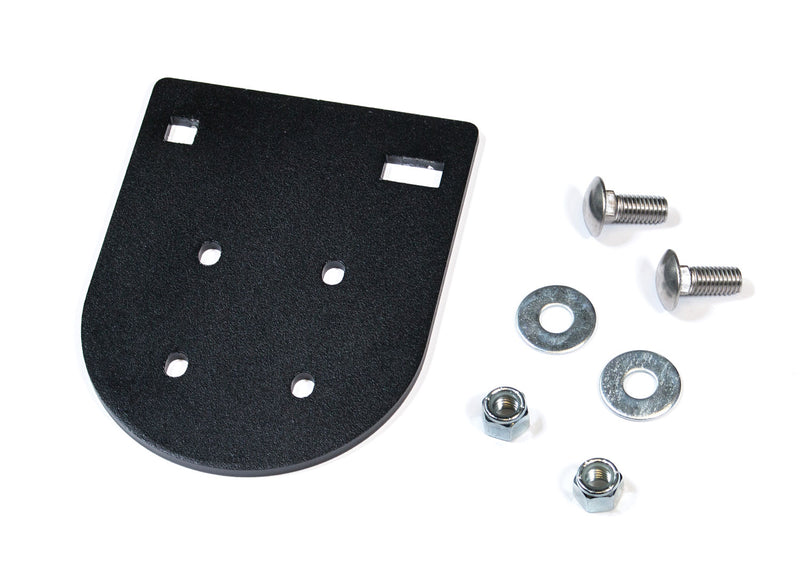

- Universal jack fit: Bolts to the leg of a Hi-Lift jack.
- One 2-gallon pack: Or two 1-gallon RotopaX containers.
- Pairs with Alpha mount: Also fits the Alpha Hi-Lift Jack Mount Kit.
- Simple bracket: A straightforward bolt-on piece.
- Pack mount separate: Needs the RotopaX pack mount, not included.
- Short install: TeraFlex rates it at about 0.5 hours.
Description & Fitment
This universal TeraFlex bracket bolts to the leg of a Hi-Lift jack and carries RotopaX fuel containers: one 2-gallon pack or two 1-gallon packs. On a JK with the TeraFlex Alpha Hi-Lift Jack Mount it can also mount to that bracket. The proprietary RotopaX pack mount is not included. TeraFlex lists about half an hour to fit it.
Fitment & Compatibility
Check your Jeep: A Hi-Lift jack, plus a RotopaX pack mount and RotopaX containers (not included).
Fitment: Universal (Hi-Lift jack leg)
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it fit my vehicle?
It is a universal bracket: it bolts to the Hi-Lift jack leg rather than to the vehicle, and can also mount to the TeraFlex Alpha Hi-Lift Jack Mount Kit (4838250).
How many RotopaX containers does it hold?
TeraFlex says one 2-gallon container or two 1-gallon containers.
Is everything needed included?
No. It requires the proprietary RotopaX pack mount, which is not included, and the containers are not included.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and trim, plus your bumper, spare tire size and any carrier you already run, and we'll check it against TeraFlex's fitment information before it ships.
Do I need to read the instructions first?
Yes. TeraFlex publishes an instruction sheet for each kit; read it through before you start and check that every listed part is in the box.
Installation
- Basic mechanic's tool set
- 3/4" wrench or socket (x2)
- 5/16" Allen wrench or socket
- Ratchet for sockets
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Remove the spare tire and anything in the carrier's three 1/2" holes (and any TeraFlex badge); with a 12mm socket remove the upper right M8 carrier bolt and loosen the one to its left so the nut plate inside the tailgate can float.
- Set the mount in place and start the M8 bolt and washer in its upper left hole with the aluminum spacer between mount and carrier, leaving it loose.
- Fit the 1/2" Allen bolts in the remaining holes with anti-seize (if the top one won't line up, loosen the upper left M8 bolt and shift the mount), then torque the M8 bolt to 15 ft-lbs and the Allen bolts to 55 ft-lbs.
- Pass the two 1/2" x 3" bolts with washers through the outermost holes, add a washer and threaded spacer on each, finger-tighten the top bolt and torque the bottom one.
- With the Hi-Lift jack fully collapsed, push it onto the bolts, slide the top bolt in its slot to line up, start the washers and nuts loosely, torque the top bolt to the spacer at 65 ft-lbs, then tighten both nuts and check the jack base clears the body with the tailgate fully open.
- RotopaX mount: fit it with two 1/2" x 1.75" carriage bolts through its square holes and the jack (or two 1/2" x 1.25" carriage bolts straight into the Hi-Lift mount's top outer holes), a washer and nut on each tightened to 55 ft-lbs; re-torque all hardware after the first 400-500 miles.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 4838255 |
| Product Type | RotopaX Hi-Lift jack mount bracket |
| Capacity | One 2-gallon or two 1-gallon RotopaX containers |
| Requires | RotopaX pack mount (not included) |
| UPC | 843885040347 |
