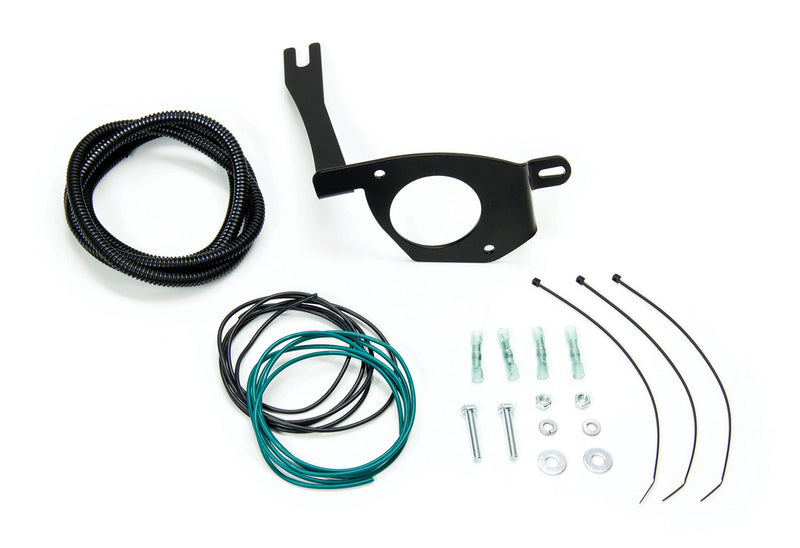

TeraFlex Vacuum Pump Relocation Mount Bracket Kit for 2012-2018 Jeep Wrangler JK 3.6L
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Clears the winch area: Moves the pump away from an aftermarket winch.
- Into the engine bay: Relocates the pump off the front crossmember.
- Secure mounting: Holds the vacuum pump firmly in its new spot.
- 3.6L Pentastar only: For 2012-2018 JKs with the 3.6L V6.
- RockGuard Epic ready: TeraFlex lists it as required for those bumpers.
- About one hour: TeraFlex's labor estimate for the job.
Description & Fitment
On a 2012-2018 Jeep Wrangler JK or JK Unlimited with the 3.6-liter Pentastar V6, some aftermarket front bumpers and winches need the vacuum pump moved off the front crossmember. This TeraFlex bracket kit relocates it into the engine bay, safely out of the way of a winch. Expect some vacuum tube re-routing; TeraFlex lists the kit as required for its RockGuard Epic front bumpers and estimates about an hour of labor.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2012-2018 | Wrangler | JK; 3.6L only |
Check your Jeep: 2012-2018 JK or JK Unlimited with the 3.6L Pentastar V6, fitting an aftermarket front bumper or winch.
Not for: 2007-2011 JKs (3.8L V6); JL Wranglers.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it fit a 2007-2011 JK?
No. TeraFlex lists 2012-2018 JK Wrangler and JK Unlimited models with the 3.6L Pentastar V6 only.
When do I need it?
When an aftermarket front bumper or winch needs the vacuum pump moved from the front crossmember. TeraFlex lists it as required for RockGuard Epic front bumpers.
Is any modification needed?
TeraFlex says some vacuum tube re-routing is required.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and doors, plus your top (hardtop or soft top) and the TeraFlex parts you already run, and we'll check it against TeraFlex's fitment information before it ships.
Do I need to read the instructions first?
Yes. TeraFlex asks you to read its instructions fully before you start and recommends installation by a certified mechanic.
Installation
- 10mm socket
- Wire strippers/crimpers
- 10mm box wrench
- Ratchet
- 13mm deep socket
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Disconnect the electrical connector, vacuum connector and small intake hose from the auxiliary vacuum pump, remove the two nuts holding it to the frame bracket and take the pump out.
- Fit the relocation bracket to the pump so the pump's nipple will point roughly at the coolant reservoir cap once installed, and fasten it with the 6mm bolts, washers, lock washers and nuts.
- Remove the fender bolt (10mm), loosen the 13mm nut on the driver's side brake booster stud, slide the bracket's slot behind that nut with its hole over the fender hole, refit the fender bolt through the bracket and tighten the booster nut.
- Cut the ties holding the pump hose and pull it up into the engine bay; separate the vacuum hose at the joint near the front of the driver's cylinder head and move the 90-degree connector, short hose and check valve onto the hose still attached to the intake manifold.
- Route the new hose assembly under the brake master cylinder to the pump, refit the small intake hose and run it across the firewall beside the wire loom, secured with the supplied zip ties.
- Cut the green and black wires (not the red and white) to free the factory connector, extend them with the supplied green and black wires using the heat-shrink butt connectors (strip 3/8", match colors, shrink with a heat gun), sleeve them in the loom, plug the connector into the pump harness and fix it with a new 3/16" hole beside the existing one.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 4403100 |
| Product Type | Vacuum pump relocation bracket |
| Engine | 3.6L Pentastar V6 |
| Modification | Some vacuum tube re-routing |
| UPC | 843885028826 |
