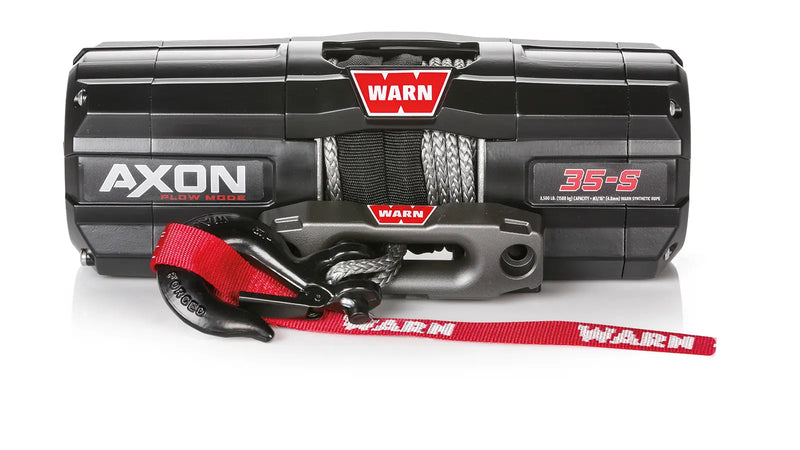

The AXON 35-S is the smallest winch in Warn's flagship powersports line, and it is the only 3,500 lb winch on the market that reports back to you while it works. The Rockerbar digital control switch shows motor temperature, load and battery condition rather than just running the motor, and the Motactor combines motor and contactor into one sealed unit so there is no separate control box to find space for. It carries 50' of 3/16" Spydura synthetic rope through an Epic hawse fairlead, is sealed to IP68 and IP69K, and includes Plow Mode for programmable blade control.
What's Included:
Warn AXON 35-S powersports winch, rated at 3,500 lb
50' of 3/16" (4.8mm) Spydura synthetic rope, factory spooled on the drum
Epic hawse fairlead
Black forged hook with Warn hook strap

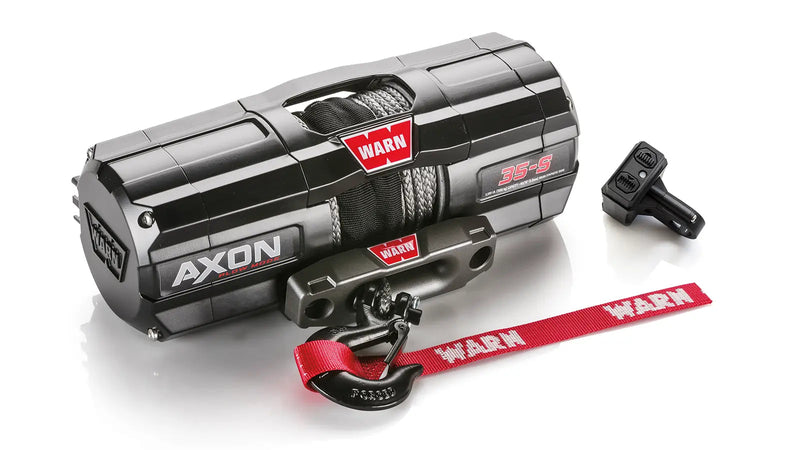

Rockerbar digital control switch with handlebar mount adaptor
Wiring harness and terminal hardware
<li>HUB Wireless Receiver NOT included, sold separately (required for Plow Mode and phone control)</li>
Warn installation and operating instructions
Vehicle-specific winch mount kit NOT included, sold separately
Features

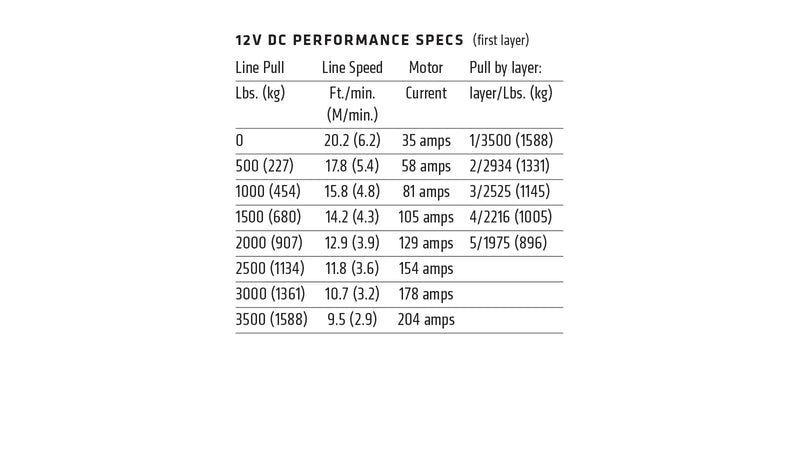

3,500 lb of Rated Pull for ATVs and UTVs Warn rates the AXON 35-S at 3,500 lb on the first layer of the drum and publishes what happens as the drum fills rather than hiding it: 3,500 lb on layer 1, 2,934 lb on layer 2, 2,525 lb on layer 3, 2,216 lb on layer 4, 1,975 lb on layer 5. Warn positions this capacity for ATVs and UTVs. Pull enough rope off to work on the lower layers for a hard recovery, or rig a snatch block and halve the load on the line.
50' of 3/16" Spydura synthetic rope on a epic hawse fairlead This is the synthetic-rope build. 50' of 3/16" (4.8mm) Spydura synthetic rope runs through a epic hawse fairlead, which is the correct pairing because synthetic must never run over rollers. Against steel of the same rating it saves real weight at the very front of the machine, it does not develop the broken strands that make used steel line unpleasant to handle, and if it parts under load it drops instead of whipping. That last point is the one worth paying for.
The Smallest Winch With Warn's Digital Control System At 3,500 lb the AXON 35-S is the entry point to Warn's flagship powersports platform, and everything that makes AXON different is present at this size: the Motactor combining motor and contactor into one sealed unit, the Rockerbar switch reporting load and motor temperature back to you, the one-piece tie plate and IP69K wash-down sealing. It fits the compact 13.31" body and the narrow bolt pattern, so it goes on machines the bigger AXONs will not. The one thing to budget for is the HUB receiver, which is not in this box.
Plow Mode: Travel Limits and One-Touch Blade Control Plow Mode turns the AXON 35-S into a proper plow lift instead of a winch you are using as one. You program an upper and a lower travel limit, and the winch will not run the blade past either, which is what stops you from over-raising into the rack or dropping the blade further than the linkage wants to go. The one-touch Auto Move option runs the blade to a limit on its own, so you are not holding a control down with one hand while steering with the other. Plow Mode runs through the Warn app and needs a HUB Wireless Receiver and a smartphone to work; on the AXON 35 and 35-S the HUB receiver is sold separately.
Motactor: Motor and Contactor in One Sealed Unit Combining the motor and the contactor into a single sealed assembly is the AXON's most practical piece of engineering. It shortens the install because there is no control box to mount and wire, and it removes the pair of exposed high-current terminals that sit between motor and contactor on an ordinary winch. Fewer connections in the weather is fewer things to fail.
Digital Control With Real Feedback The AXON's control system is digital rather than a simple polarity switch. The rockerbar switch reports motor temperature, load information and vehicle battery condition, so you can see the winch working hard before it stops working. On a long or repeated pull that is the difference between backing off for a minute and cooking a motor.
One-Piece Tie Plate for Structural Rigidity AXON uses a single-piece tie plate rather than separate tie bars. It resists the twisting that a hard off-center pull puts through a winch body, which keeps the gear train and drum in alignment under exactly the loads that would otherwise start opening a housing up.
IP68 and IP69K Sealing IP68 covers continuous immersion. IP69K adds high-pressure, high-temperature wash-down, which is the rating that actually matters to most owners, because more winches are killed by a pressure washer held too close than by a water crossing. Between the two ratings there is very little an ATV or side-by-side winch encounters that is outside the specification.
Designed, Engineered, Tested and Assembled in the USA Warn designs, engineers, tests and assembles the AXON line in the United States. The AXON 35-S is covered by Warn's limited lifetime warranty on mechanical components and a three year warranty on electrical components.
Fitment & Compatibility
Machine
Fit
Large ATVs and two-seat UTVs
✓ Yes, this is what Warn rates the AXON 35-S for
Smaller ATVs and quads
● Works, and gives you useful headroom over a 2,500 lb winch
Full-size and four-seat UTVs
● Consider a 4,500 lb or larger model instead
Full-size trucks and SUVs
✗ No. This is a powersports winch. Warn builds a separate truck and SUV winch line for those vehicles
Any machine without a winch mount fitted
● Requires a vehicle-specific mount kit, which is sold separately. The AXON 35-S bolts to a 3.0" x 4.87" (76.2mm x 123.7mm) pattern
Fit guidance: This is a universal-fit powersports winch, not a vehicle-specific part, so there is no year, make and model lookup for it. You size it by machine and by how hard you expect the winch to work: Warn rates the AXON 35-S at 3,500 lb and positions it for ATVs and UTVs. A winch running near its rating draws its highest current, runs its hottest and moves the line slowest, so buying a size up is buying margin rather than bragging rights. The fitment question that actually decides whether you can use this winch is the mount. Powersports winches bolt to a vehicle-specific mount kit that is sold separately, and the mount has to match both the bolt pattern (3.0" x 4.87" (76.2mm x 123.7mm), 4 holes) and the physical space behind your bumper. Confirm the mount kit for your machine before ordering. Do not use this winch to recover a full-size truck or SUV; it is not rated for that and Warn builds a separate line for it.
Specifications
Model: AXON 35-S
Part Number: 110230
Vehicle Class: Powersports, ATV and UTV. Not a truck or SUV winch
Rated Line Pull: 3,500 lb (1,588 kg) single line, first layer
Motor: 12V DC, permanent magnet
Gear Train: All-metal three-stage planetary
Rope: 50' of 3/16" (4.8mm) Spydura synthetic rope
Fairlead: Epic hawse fairlead
Hook: Black forged hook
Brake: Automatic load-holding mechanical brake
Clutch: Free spooling, clutch based on Warn's 4WD hub-lock design
Controls Included: Rockerbar digital control switch with handlebar mount adaptor
Motor and Contactor: Warn Motactor, motor and contactor combined in one unit
Plow Mode: Programmable upper and lower blade travel limits with one-touch Auto Move. Requires a HUB Wireless Receiver and a smartphone; the HUB receiver is sold separately for the AXON 35 and 35-S
Waterproof Rating: IP68/IP69K
Finish: Satin black powder coat with stainless steel fasteners
Mount Type: Fixed mount. A vehicle-specific winch mount kit is required and sold separately
Line Speed, No Load: 20.2 ft/min (6.2 m/min), 35 amps
Line Speed at Rated Pull: 9.5 ft/min (2.9 m/min), 204 amps

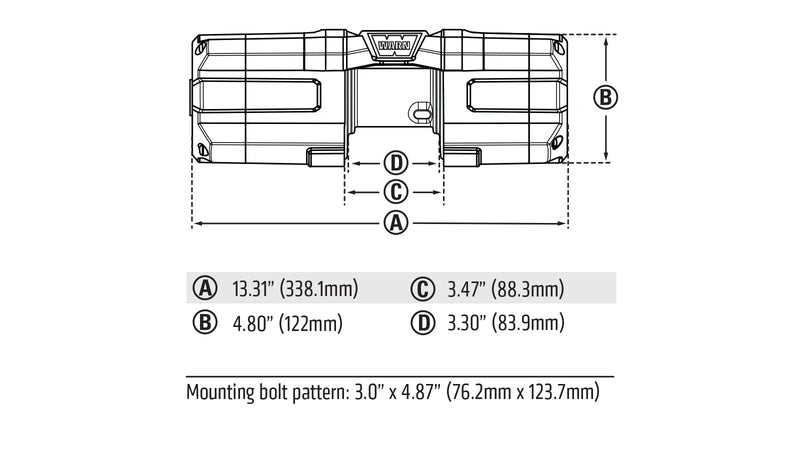

Dimensions: A 13.31" (338.1mm), B 4.80" (122mm), C 3.47" (88.3mm), D 3.30" (83.9mm), lettered as on Warn's drawing
Mounting Bolt Pattern: 3.0" x 4.87" (76.2mm x 123.7mm), 4 holes
Country of Origin: USA, designed, engineered, tested and assembled in the United States
Shipping Weight: 26.5 lb
UPC: 012748121701
Warranty: Limited lifetime mechanical, 3 year electrical
Installation
Type: Bolt-in to a vehicle-specific powersports winch mount kit, plus a battery connection · Time: About 1 to 2 hours, most of it the mount and the wiring · Tools: Metric sockets and wrenches, a torque wrench, and wire cutters or crimpers for routing the battery leads · Difficulty: Straightforward for anyone comfortable working on their own machine
The winch itself is four bolts. The work is the mount and the wiring. Fit the vehicle-specific mount kit for your machine first, then bolt the AXON 35-S to it on the 3.0" x 4.87" (76.2mm x 123.7mm), 4 holes pattern and torque the fasteners to Warn's specification. Route the power leads to the battery away from moving suspension, hot exhaust and steering components, and keep the run as short and as well supported as you can. Mount the Rockerbar switch where you can reach it without taking your eyes off the machine. Before you rely on it, disengage the clutch and pull the rope out by hand, then power it back in under a light load so the first layer beds evenly on the drum. A winch spooled loose from the factory will bury its own line into the lower layers on the first hard pull.
Resources
Everything you need for your Warn AXON 35-S Powersports Winch, in one place.
VRX & AXON Winch Operator's Manual (PDF), Warn's operator manual for the VRX and AXON families, covering mounting, electrical connections, first time operation, rigging and maintenance.
Warranty. Warn limited lifetime warranty on mechanical components and a three year warranty on electrical components.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has built vehicle recovery gear since 1948, starting with Arthur Warn's locking hub for surplus military Jeeps and growing into the winch brand that off-roaders, ranchers, utility crews and rescue teams reach for by name. The company designs and engineers in Clackamas, Oregon, and the AXON is designed, engineered, tested and assembled in the United States.
AXON is the top of Warn's powersports range and the place where the company puts its newer thinking. The Motactor combines the motor and the contactor into a single sealed unit, which removes a separate control box from the install and shortens the wiring run. The control system is digital rather than a simple polarity switch, so the winch reports motor temperature, load and battery condition back to you instead of just running until something gives. Sealing is rated IP68 and IP69K, which covers high-pressure, high-temperature wash-down as well as immersion. Plow Mode, the feature this generation is named for, turns the same winch into a plow lift with programmable travel limits. The mechanical warranty runs for the life of the product.
Prestige Truck is an authorized Warn dealer. Every winch we ship is new and factory boxed, carries the full Warn factory warranty, and is supported through Warn's own dealer and service network.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWarn AXON 35-S Powersports Winch, 3,500 lb, 50' 3/16" Synthetic Rope and Epic Hawse Fairlead (110230)
Plowing Just Got Easier: Introducing WARN AXON Plow Mode
Warn's own walkthrough of Plow Mode, the feature this generation of AXON is named for.
It shows how you set the upper and lower travel limits so the blade cannot be raised or dropped past the point where it damages something, and how the one-touch Auto Move option runs the blade to either limit without you holding a control through the whole travel.
WARN AXON And VRX Powersports Winches
Warn's side-by-side look at its two US-assembled powersports lines.
Useful if you are weighing the digital control system and Motactor of the AXON against the simpler, less expensive VRX, because it lays out what each line is actually built for rather than just listing features.
Powersports Basic Guide To Winching
Warn's own primer for anyone new to running a winch on an ATV or side-by-side. It covers the parts of the winch, what the recovery accessories are for, and how to rig a pull without hurting yourself or the machine.
This is a general technique guide from Warn, not an installation walkthrough for this part.
Frequently Asked Questions
Straight answers on specs, fit and support
Do I need to buy anything else to use Plow Mode?
Yes. Plow Mode runs through the Warn app on your phone and needs a HUB Wireless Receiver to talk to the winch. On the AXON 45, 55 and 45RC the HUB receiver is in the box. On the AXON 35 and 35-S it is sold separately, so budget for it if plowing is why you are buying this winch. Without the HUB the winch works normally through the Rockerbar switch; you just do not get Plow Mode or phone control.
What does the AXON 35-S give me over the VRX 35-S?
The mechanical hardware is comparable, so what you are paying for is the electronics and the sealing. AXON adds the Motactor combined motor and contactor, the digital control system with load and temperature feedback, the one-piece tie plate, Plow Mode, and IP69K wash-down sealing on top of IP68. The AXON also uses Warn's Spydura rope and Epic hawse fairlead rather than the VRX's standard synthetic and hawse. If you winch often or plow, that is a real difference. If the winch is occasional insurance, the VRX 35-S is the value pick.
Do I need anything else to fit this winch to my machine?
Yes, a mount. Powersports winches are universal in the sense that they are not tied to one model, but they bolt to a vehicle-specific winch mount kit that is made for your machine and sold separately. The AXON 35-S uses a 3.0" x 4.87" (76.2mm x 123.7mm), 4 holes bolt pattern, so the mount has to match that pattern and there has to be room behind your bumper for a winch of this size. Confirm the mount kit for your year, make and model before ordering, and check the electrical connection to the battery while you are at it.
How do I look after the synthetic rope?
Keep it clean and keep it off sharp edges. Grit worked into the fibres is what wears synthetic rope from the inside, so rinse it if it has been through mud or sand and let it dry before it goes away wet for a long period. Spool it back on under light tension rather than letting it pile up loose, because a loose wrap buries into the layers underneath on the next hard pull. Watch for fuzzing and cut fibres near the hook end, which is where the wear concentrates, and never run synthetic rope over a roller fairlead. This winch ships with a epic hawse fairlead, which is the correct pairing.
How waterproof is it really?
IP68 and IP69K together. The first says you can submerge it; the second says you can pressure wash it. The second is the one that saves more winches in practice, because a jet washer held close to a seal generates far higher local pressure than sitting under a foot of water ever does, and it is something almost every owner does to their machine regularly.
Does it really pull its full rating no matter how much rope is out?
No, and Warn publishes the honest numbers instead of only the headline. The 3,500 lb rating is on the first layer of the drum. As the drum fills, leverage drops: 3,500 lb on layer 1, 2,934 lb on layer 2, 2,525 lb on layer 3, 2,216 lb on layer 4, 1,975 lb on layer 5. For a hard pull, spool out enough rope to work on the lower layers, or rig a snatch block, which halves the load on the line and doubles what the winch can move.
