Warn AXON 35 Powersports Winch, 3,500 lb, 50' 7/32" Steel Rope and Roller Fairlead (110235)
Free gift included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Plow Mode with travel limits: Plow Mode lets you program an upper and a lower stop for your plow blade, so the winch will not lift or drop it past either point. Auto Move then sends the blade to a stop with one touch. It runs through the HUB Wireless Receiver and a smartphone; the HUB is in the box with the 45, 45RC and 55 models and bought separately for the 35 and 35-S.
- Motactor: motor plus contactor: Warn builds the motor and the contactor into one sealed unit it calls the Motactor. With no separate contactor box to mount and wire, Warn says it saves space and cuts install time.
- Digital control with feedback: Every AXON comes with Warn's Rockerbar digital dash switch, which runs the winch and reports back while it works. Add the HUB receiver and a phone, and you get gauges for motor temperature, load and vehicle battery, plus wireless control that Warn rates past 100'.
- One-piece tie plate: Where many winches use separate tie bars, the AXON frame is joined by a single-piece tie plate. Warn uses it to add structural rigidity across the whole winch.
- IP68 and IP69K sealing: Warn rates the AXON at IP68 and IP69K. The first covers the winch sitting under water; the second covers close-range, high-pressure, hot-water washing, so river crossings and a hard clean-up stay inside the rating.
- Built and tested in USA: Warn designs, engineers, tests and assembles every AXON in the United States. It backs the mechanical parts for the life of the winch and the electrical parts for 3 years.
Description & Fitment

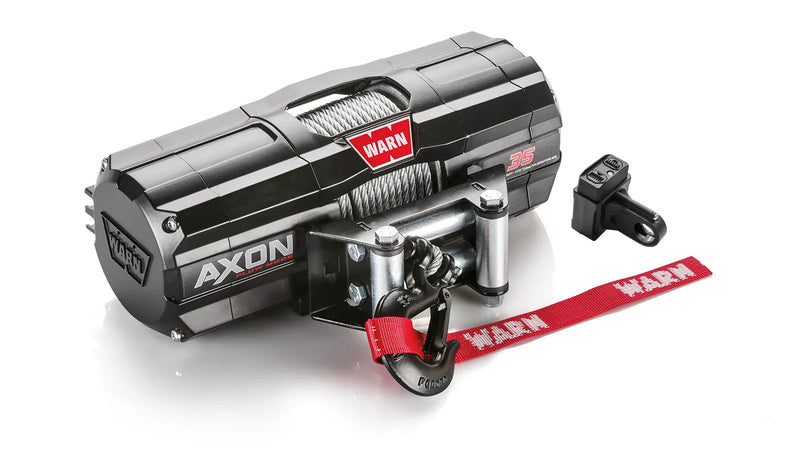

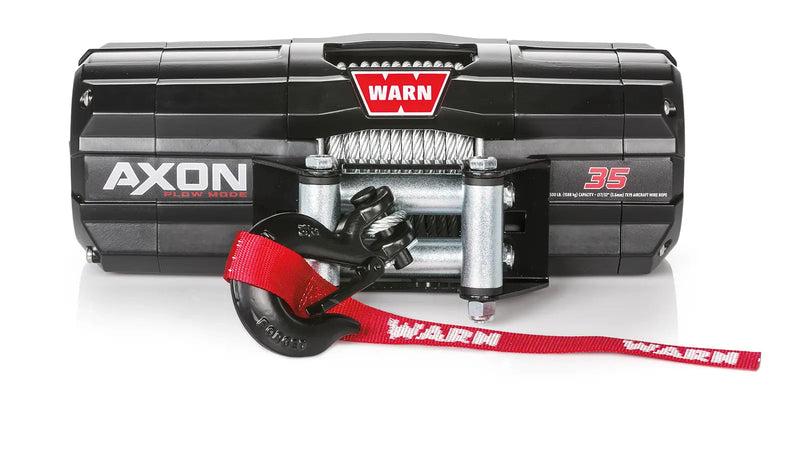

Part 110235 is the steel-rope AXON 35: a 3,500 lb powersports winch carrying 50' of 7/32" 7x19 aircraft wire rope through a roller fairlead. It uses the compact AXON body, 13.31" long on Warn's drawing, on a 3" x 4.87" four-bolt pattern. The Rockerbar digital switch comes with an adaptor so it can live on the handlebar, and the HUB Wireless Receiver is a separate purchase for this model.
Fitment & Compatibility
Choose the right version: this is the steel-rope AXON 35. With synthetic rope and an Epic hawse: AXON 35-S (110230). Same compact body rated 4,500 lb with 27' of synthetic: AXON 45RC (110340). More capacity on the long drum: AXON 45 (110245) or AXON 55 (110255).
Not included: the HUB Wireless Receiver (Warn's AXON version is part 103940) and the vehicle-specific winch mount kit, both sold separately. The AXON 35 models have no corded remote socket.
About Warn
Warn Industries is a winch and recovery equipment maker headquartered in Clackamas, Oregon. Its range covers truck and SUV winches such as ZEON and the Heavyweight series, the AXON, VRX and R-Series powersports winches, the HUB Wireless Receiver and the portable Drill Winch.
Warn bills the AXON as its top powersports winch, built around Plow Mode, the Motactor and digital control. Warn says AXON design, engineering, testing and assembly all happen in the USA, and it offers the line at 3,500 lb, 4,500 lb and 5,500 lb with steel or synthetic rope.
Buying Warn from Prestige Truck. Warn asks for proof of purchase, a dated sales receipt showing the Warn product, with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Can the switch go on the handlebar?
Yes. The AXON 35 ships with an adaptor for the Rockerbar switch, so you can mount it on the handlebar instead of the dash.
What gear ratio does it use?
168:1, per Warn's AXON 35 specifications.
Do I need a winch mount?
Yes. An AXON bolts to a vehicle-specific winch mount kit, sold separately. Warn calls for class 8.8 metric (grade 5) or better bolts and says never to weld the mounting bolts.
What does the HUB receiver add?
Phone control that Warn rates past 100', live gauges for motor temperature, load and battery, and Plow Mode. It is included with the AXON 45, 45-S, 45RC, 55 and 55-S and sold separately for the 35 and 35-S.
Can it go through deep water?
Warn rates the AXON IP68 for submersion and IP69K for close-range, high-pressure washing. Follow Warn's manual for rope and drum care after a muddy or wet pull.
What does the warranty cover?
Warn covers the mechanical parts for the life of the winch and the electrical parts for 3 years from purchase, for the original buyer. Wire rope, synthetic rope and finish are excluded. Contact us to start a claim.
Installation
Here's the short version. Follow Warn's install sheet (below) for the exact positions and hardware.
- Read Warn's instructions and pick a mounting spot strong enough for the winch's full rated pull, with the fairlead warning label on top.
- Bolt the winch to the mount through its 3" x 4.87" short-drum pattern with class 8.8 metric (grade 5) or better hardware, torqued to 24.5 Nm (18 ft. lbs.). Never weld the mounting bolts, and finish the winch and hook before any wiring.
- Disconnect the vehicle battery, negative cable first, before touching any wiring.
- Mount the Rockerbar switch on the handlebar with the supplied adaptor or on the dash, clear of every vehicle control, and check full handlebar travel before tying the cable down.
- Wire the winch to the AXON 35 diagram, fitting the supplied terminal boots and keeping cables away from sharp edges, hot parts, battery terminals and moving parts.
- Run Warn's system check: fasteners tight and torqued, every connection correct and tight, no bare wire or damaged insulation.
- Warn VRX/AXON winch installation and operator's guide (PDF)
- Warn VRX/AXON winch rope installation instructions (PDF)
Stuck on a step?
Specifications
| Brand | Warn |
|---|---|
| Part Number | 110235 |
| Line | AXON powersports winch |
| Vehicle class | ATV and UTV, as Warn rates it; not a truck or SUV winch |
| Voltage | 12V DC |
| Motor | Permanent magnet |
| Motor and contactor | Warn Motactor, combined in one sealed unit |
| Gear train | All-metal three-stage planetary |
| Brake | Automatic load-holding mechanical brake |
| Clutch | Free spooling, based on Warn's 4WD hub-lock design |
| Hook | Black forged hook |
| Control | Rockerbar digital control switch |
| Plow Mode | Programmable upper and lower blade limits with one-touch Auto Move; needs a HUB Wireless Receiver and a smartphone |
| Waterproof rating | IP68/IP69K |
| Finish | Satin black powder coat, stainless steel fasteners |
| Mount type | Fixed mount on a vehicle-specific winch mount kit, sold separately |
| Mounting hardware | Class 8.8 metric (grade 5) or better, per Warn |
| Country of origin | USA: designed, engineered, tested and assembled |
| Model | AXON 35 |
| Rated line pull | 3,500 lb (1,588 kg) single line, first layer |
| Rope | 50' of 7/32" (5.6mm) 7x19 aircraft wire rope |
| Fairlead | Roller fairlead |
| Controls included | Rockerbar digital control switch with handlebar mount adaptor |
| Line speed no load | 20.2 ft/min (6.2 m/min), 35 amps |
| Line speed at rated pull | 9.5 ft/min (2.9 m/min), 204 amps |
| Pull by layer | Layer 1: 3,500 lb · Layer 2: 2,934 lb · Layer 3: 2,525 lb · Layer 4: 2,216 lb · Layer 5: 1,975 lb |

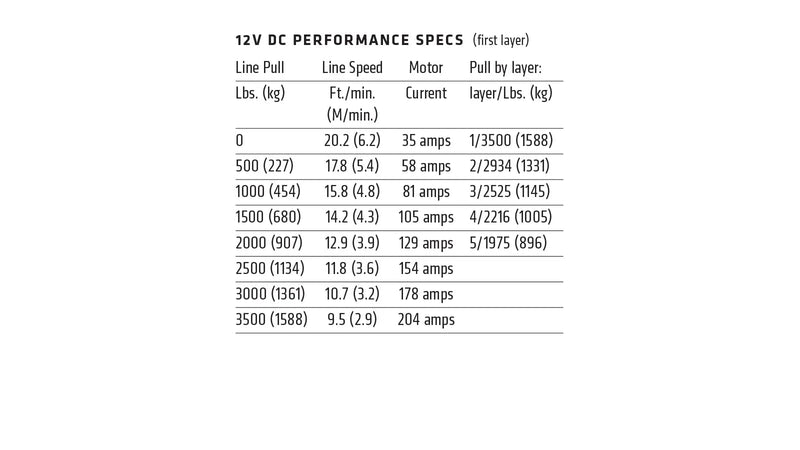

| Performance 12v | 0 lb: 20.2 ft/min (6.2 m/min), 35 amps · 500 lb: 17.8 ft/min (5.4 m/min), 58 amps · 1,000 lb: 15.8 ft/min (4.8 m/min), 81 amps · 1,500 lb: 14.2 ft/min (4.3 m/min), 105 amps · 2,000 lb: 12.9 ft/min (3.9 m/min), 129 amps · 2,500 lb: 11.8 ft/min (3.6 m/min), 154 amps · 3,000 lb: 10.7 ft/min (3.2 m/min), 178 amps · 3,500 lb: 9.5 ft/min (2.9 m/min), 204 amps |

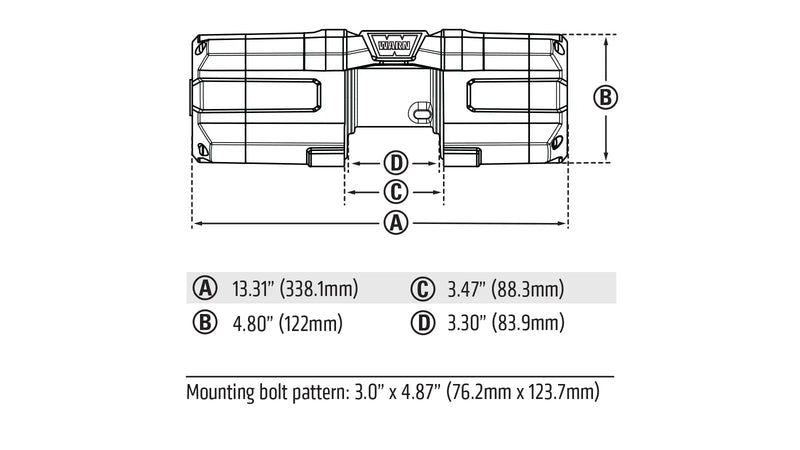

| Dimensions | A 13.31" (338.1mm), B 4.80" (122mm), C 3.47" (88.3mm), D 3.30" (83.9mm), lettered as on Warn's drawing |
| Mounting bolt pattern | 3" x 4.87" (76.2mm x 123.7mm), 4 holes |
| Shipping weight | 31.5 lb |
| Gear ratio | 168:1 |
| Warranty | Limited lifetime mechanical, 3 years electrical |
| UPC | 012748121718 |
