Warn Heavy-Duty Snatch Block for Winches up to 9,000 lb (15640)
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Two WLL ratings: WLL 18,000 lb for vehicle recovery and non-overhead pulling (2:1, BS 7901); 9,000 lb for general rigging and lifting (4:1, ASME B30.26).
- 36,000 lb breaking strength: Warn lists a minimum breaking strength of 36,000 lb.
- Wire rope only: Warn specifies the 15640 block for wire rope only.
- Nearly 2x pull: Rigged for a double-line pull it can increase a winch's pulling ability by nearly 2x (Warn).
- Less heat and amp draw: Reduces heat build-up and amp draw, and changes the pull direction without damaging the rope.
- Red, greaseable: Red painted side plates for visibility, a steel pulley and a grease port.
Description & Fitment

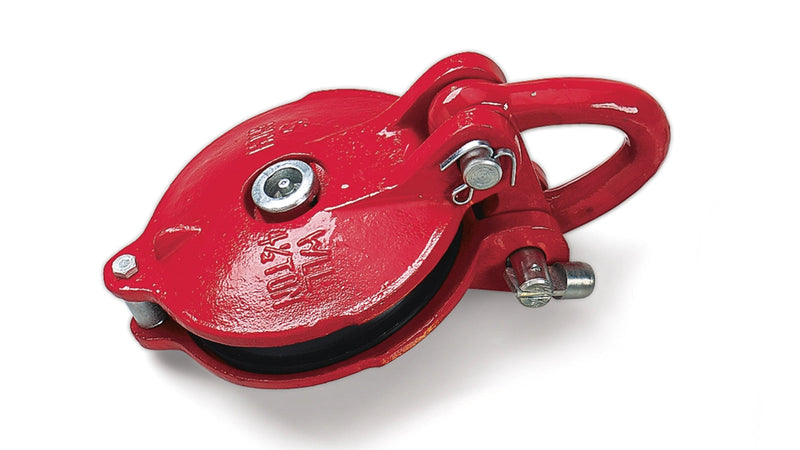

The Warn Heavy-Duty Snatch Block (15640) is a red, all-metal block for wire rope only, with a max recommended winch capacity of 9,000 lb. Warn gives a minimum breaking strength of 36,000 lb and a working load limit of 18,000 lb for vehicle recovery (2:1, BS 7901) or 9,000 lb for general rigging and lifting (4:1, ASME B30.26). Rigged for a double-line pull, it can increase a winch's pulling ability by nearly 2x and change the pull direction without damaging the rope. It also reduces heat build-up and amp draw, and its steel pulley has a grease port.
Fitment & Compatibility
Fit: universal; no vehicle-specific fit applies. Wire rope only; Warn max recommended winch capacity 9,000 lb (rating text).
Fits: Universal: winch rigging, wire rope only
About Warn
Warn Industries is a winch and recovery equipment maker headquartered in Clackamas, Oregon. Its range covers truck and SUV winches such as ZEON and the Heavyweight series, the AXON, VRX and R-Series powersports winches, the HUB Wireless Receiver and the portable Drill Winch.
Warn builds vehicle-specific steel bumpers in several lines: the Ascent and heavier Ascent HD front bumpers for full-size and mid-size pickups, the Elite series, and low-profile Semi-Hidden winch mounts. Warn says every one of its bumpers goes through field and pull testing for rigidity, and most are designed, tested and built in the USA.
Buying Warn from Prestige Truck. Warn asks for proof of purchase, a dated sales receipt showing the Warn product, with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Which winch capacity is it for?
Warn's product name says winch capacities up to 12,000 lb, while its rating text gives a max recommended winch capacity of 9,000 lb. We follow the lower figure; contact us if your winch is above 9,000 lb.
Can I use it with synthetic rope?
No. Warn specifies this heavy-duty snatch block for wire rope only.
What is it made of?
Warn uses all-metal construction with a steel pulley and red painted side plates for visibility. It has a grease port.
How does it help my winch?
Rigged for a double-line pull, Warn says it can increase a winch's pulling ability by nearly 2x. It also reduces heat build-up and amp draw, and changes the pull direction without damaging the rope.
What working load limit applies?
Warn gives two: 9,000 lb at a 4:1 safety factor for general rigging and lifting (ASME B30.26), and 18,000 lb at a 2:1 safety factor for vehicle recovery and non-overhead pulling (BS 7901). Its minimum breaking strength is 36,000 lb.
Can I return it?
Contact us before returning so we can confirm the item is unused and complete.
Specifications
| Brand | Warn |
|---|---|
| Part Number | 15640 |
| Wll | 18,000 lb (2:1, vehicle recovery, BS 7901); 9,000 lb (4:1, general rigging and lifting, ASME B30.26) |
| Breaking strength | 36,000 lb minimum |
| Max winch capacity | 9,000 lb recommended (Warn rating text) |
| Pulley | Steel, grease port |
| Finish | Red painted side plates |
| UPC | 012748156406 |
