Warn M8274-S Self-Recovery Winch, 10,000 lb, 150' Spydura Synthetic Rope (106175)
$40 OFFOrders $500+
Apply at checkout. One use per customer.
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

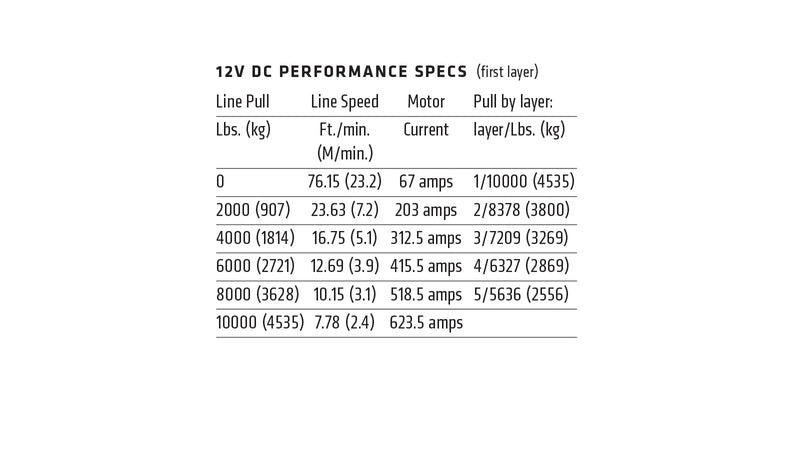

- 6 hp series-wound motor: A 6 hp series-wound motor drives the M8274, and Warn credits it with keeping line speed up under load. Warn's chart shows 76.15 ft/min with no load and still 7.78 ft/min at the full 10,000 lb.
- 10,000 lb rated line pull: The rating is 10,000 lb on the first wrap. Warn's chart then steps down to 8,378 lb on layer 2, 7,209 lb on layer 3, 6,327 lb on layer 4 and 5,636 lb on layer 5.
- IP68 Albright contactor pack: Switching runs through an Albright contactor that Warn rates IP68 waterproof, carried in a high-strength polymer control pack mounted on the winch.
- Oilite bushings on the pinion: Warn fits a pair of Oilite bushings to the pinion gear assembly to resist wear in the spur gear drive train.
- Bolt-secured brake shaft: The brake shaft is secured with a bolt and washer, a detail Warn added for long-term durability.
- Lifetime mechanical warranty coverage: Warn covers the mechanical parts for the life of the winch and the electrical parts for 7 years, both as limited warranties. Your Prestige Truck receipt is the proof of purchase Warn asks for.
Description & Fitment

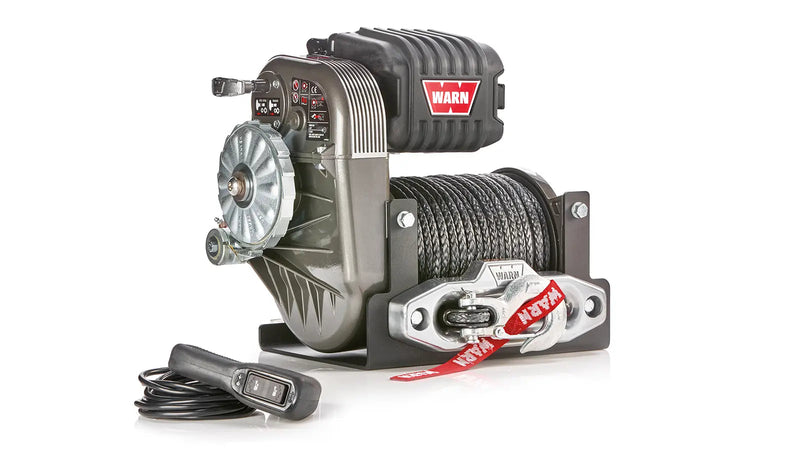

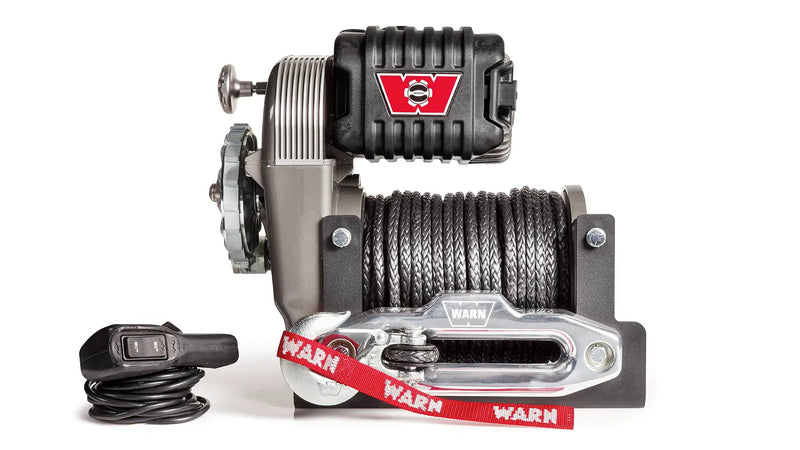

Warn's M8274-S (106175) carries 150' of 3/8" (9.5mm) Spydura synthetic rope, the longest line in this group, guided by a 6061-T6 billet aluminum hawse fairlead. Under it is the same 10,000 lb, 6 hp spur-gear M8274 with a wired remote and IP68 Albright contactor.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1976-1986 | C30 | — | |
| 1988-1999 | K1500 | — | |
| 1981-1986 | K20 | — | |
| 1977-1986 | K30 | — | |
| 1988-1999 | K3500 | — | |
| 2014-2027 | Silverado 1500 | — | |
| 2001-2006 | Silverado 1500 HD | — | |
| 2007-2027 | Silverado 3500 HD | — | |
| 1987 | V10 | — | |
| 1987-1988 | V30 | — | |
| 1989-1990 | V3500 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1994-2010 | 1500 | — | |
| 2003-2005 | 2500 | — | |
| 2003-2005 | 3500 | — | |
| 1957-1974 | D100 | — | |
| 1957-1974 | D100 Pickup | — | |
| 1980-1993 | D150 | — | |
| 1990-1993 | D350 | — | |
| 1957-1980 | W100 | — | |
| 1957-1974 | W100 Pickup | — | |
| 1980-1993 | W150 | — | |
| 1957-1980 | W200 | — | |
| 1957-1974 | W200 Pickup | — | |
| 1981-1993 | W250 | — | |
| 1990-1993 | W350 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1984-2027 | F-150 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1981-1986 | C1500 | — | |
| 1981-1986 | C2500 | — | |
| 1981-1986 | C3500 | — | |
| 1981-1999 | K2500 | — | |
| 1981-1999 | K3500 | — | |
| 1987 | R1500 | — | |
| 1987 | R2500 | — | |
| 1987 | R3500 | — | |
| 1988-2027 | Sierra 1500 | — | |
| 2001-2007 | Sierra 1500 HD | — | |
| 2001-2027 | Sierra 2500 HD | — | |
| 2007 | Sierra 2500 HD Classic | — | |
| 2007 | Sierra 3500 Classic | — | |
| 2007-2027 | Sierra 3500 HD | — | |
| 1987-1991 | V1500 | — | |
| 1987-1991 | V2500 | — | |
| 1987-1991 | V3500 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1969-1970 | 1000D | — | |
| 1969-1970 | 1100D | — | |
| 1969-1970 | 1200D | — | |
| 1969-1970 | 1300D | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1962-1972 | Gladiator | — | |
| 2020-2027 | Gladiator | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1994-1997 | B2300 | — | |
| 2001-2009 | B2300 | — | |
| 1994-2007 | B3000 | — | |
| 1994-2009 | B4000 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1998-2027 | Frontier | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2011-2027 | 1500 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1995-2027 | Tacoma | — |
Choose the right version: this is the M8274-S with synthetic rope. Steel rope (125') with a roller fairlead: M8274 (106170).
Not included: the winch mount or mounting plate and the vehicle battery, both sold separately; 1.75" bolts for a 1/2" plate are not supplied, per Warn's guide.
About Warn
Warn Industries is a winch and recovery equipment maker headquartered in Clackamas, Oregon. Its range covers truck and SUV winches such as ZEON and the Heavyweight series, the AXON, VRX and R-Series powersports winches, the HUB Wireless Receiver and the portable Drill Winch.
Warn files the M8274 with its classic winches and still makes it at home: Warn says it is designed, engineered and assembled in the USA, at its plant in Clackamas, Oregon.
Buying Warn from Prestige Truck. Warn asks for proof of purchase, a dated sales receipt showing the Warn product, with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
When should the rope go on?
Warn's M8274 guide says that on the M8274-S you install the winch completely and confirm it runs before installing the rope.
How much pull is left on layer 5?
Warn's chart gives 5,636 lb on layer 5, down from 10,000 lb on layer 1, with 8,378 lb, 7,209 lb and 6,327 lb in between.
What bolts and torque are specified?
Warn's M8274 guide calls for 7/16-14 class 8.8 metric (grade 5) or better bolts at 45-50 ft. lbs. (61-68 Nm). Bolt length goes by plate thickness: 1.5" for a 1/4" or 3/8" plate, 1.75" for a 1/2" plate, which Warn notes is not supplied.
Why does it stand so tall?

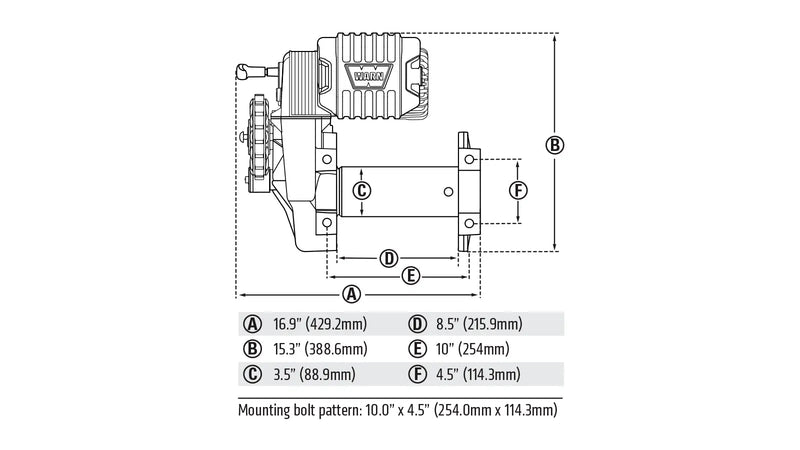

The M8274 is an upright design. Warn's drawing gives 16.9" of length and 15.3" of height, so check grille, hood and bumper clearance before you order. It still uses the common 10" x 4.5" pattern.
When does the wiring go on?
After the winch is fully bolted down and the hook is attached, Warn says. Route the cables away from sharp edges, heat and moving parts, and cover every terminal with the supplied boots.
How old is the M8274 design?
Warn traces its roots to the company's first winches of the late 1950s. Today's version adds the IP68 Albright contactor, Oilite pinion bushings and a bolt-secured brake shaft.
Installation
Stuck on a step?
Specifications
| Brand | Warn |
|---|---|
| Part Number | 106175 |
| Series | M8274 |
| Voltage | 12V DC |
| Rated line pull | 10,000 lb (4,536 kg) single line, first layer |
| Motor | 12V DC, 6 hp series wound |
| Drive train | Spur gear |
| Electrical controls | IP68 waterproof Albright contactor in a high-strength polymer control pack |
| Remote control | Wired remote |
| Clutch | Manual free-spool, stainless steel T-handle |
| Drum diameter | 3.5" |
| Line speed, no load | 76.15 ft/min (23.2 m/min), 67 amps |
| Line speed at 10,000 lb | 7.78 ft/min (2.4 m/min), 623.5 amps |
| Pull by layer | Layer 1: 10,000 lb · Layer 2: 8,378 lb · Layer 3: 7,209 lb · Layer 4: 6,327 lb · Layer 5: 5,636 lb |
| Overall dimensions | 16.9" x 15.3" (429.2mm x 388.6mm), upright profile |
| Mounting bolt pattern | 10" x 4.5" (254mm x 114.3mm) |
| Mounting hardware | 7/16-14 class 8.8 metric (grade 5) or better, 45-50 ft. lbs. (61-68 Nm) |
| Country of origin | USA, built in Clackamas, Oregon |
| Model | M8274-S |
| Rope | 150' (45.7m) of 3/8" (9.5mm) Spydura synthetic rope |
| Fairlead | 6061-T6 billet aluminum hawse |
| Shipping weight | 98.3 lb |
| Warranty | Limited lifetime mechanical, limited 7 year electrical |
| UPC | 012748083115 |
