Warn VRX 25 Powersports Winch, 2,500 lb, 50' 3/16" Steel Rope and Roller Fairlead (101025)

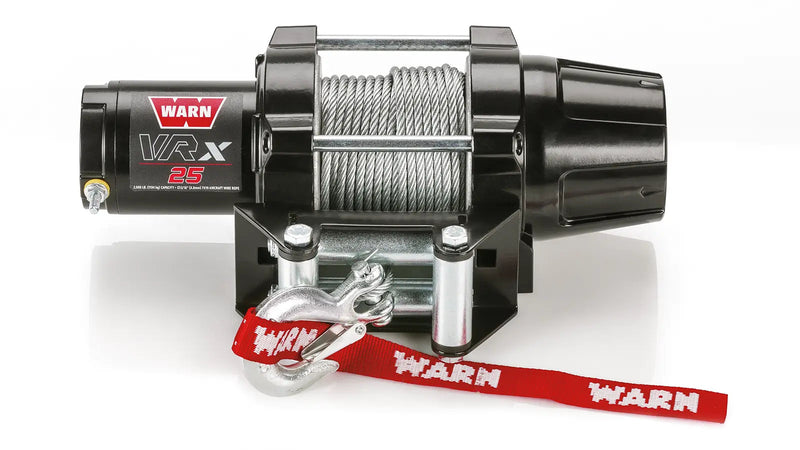

The VRX 25 is the least expensive way onto a US-assembled Warn powersports winch, and it gets there on rope choice rather than on hardware. The winch itself is the full VRX: all-metal construction, an all-metal three-stage planetary gear train, IP68 waterproof sealing and a free-spool clutch built on Warn's 4WD hub-lock engineering. What it carries is 50' of 3/16" 7x19 aircraft wire rope running over a roller fairlead, with a zinc-plated clevis hook and a handlebar-mounted mini-rocker switch. At 2,500 lb it is aimed squarely at ATVs.

What's Included:

• Warn VRX 25 powersports winch, rated at 2,500 lb
• 50' of 3/16" (4.8mm) 7x19 aircraft wire rope, factory spooled on the drum
• Roller fairlead
• Zinc-plated clevis hook with Warn hook strap

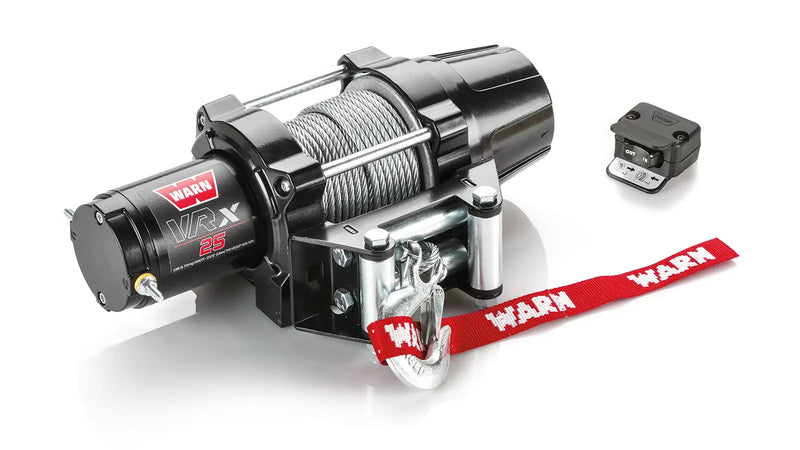

• Handlebar-mounted mini-rocker switch
• Wiring harness and terminal hardware
• Warn installation and operating instructions
• Vehicle-specific winch mount kit NOT included, sold separately

Features

2,500 lb of Rated Pull for ATVs
Warn rates the VRX 25 at 2,500 lb on the first layer of the drum and publishes what happens as the drum fills rather than hiding it: 2,500 lb on layer 1, 2,141 lb on layer 2, 1,872 lb on layer 3, 1,663 lb on layer 4, 1,496 lb on layer 5. Warn positions this capacity for ATVs and quads. Pull enough rope off to work on the lower layers for a hard recovery, or rig a snatch block and halve the load on the line.

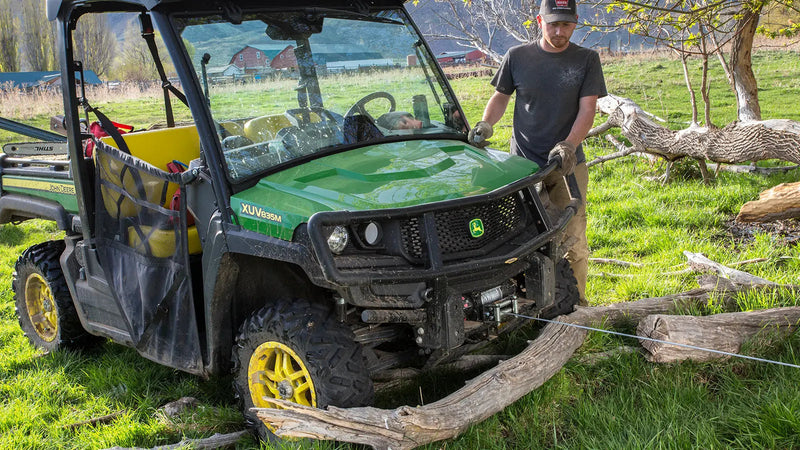

50' of 3/16" Steel Wire Rope on a Roller Fairlead
This is the steel-rope build. 50' of 3/16" (4.8mm) 7x19 aircraft wire rope runs over a roller fairlead, which is the combination that survives being dragged across rock, gravel and stumps without you having to think about the line. It costs less than synthetic and it is far more tolerant of abrasion and heat. The trade is weight and the broken strands steel eventually develops, so wear gloves once the rope has some seasons on it.

The Cheapest US-Assembled Warn You Can Buy
Every Warn winch below this price is engineered in Oregon but manufactured offshore. The VRX 25 is the entry point to the US-assembled range, and it gets there by carrying steel rope rather than by thinning out the winch. That is a genuinely different proposition from a budget winch: you are getting the IP68 sealing, the lifetime mechanical warranty and the American assembly, and paying for them by handling a heavier line.

All-Metal Construction, Not Just an All-Metal Claim
The housing, the tie plate and the three-stage planetary gear train are all metal. There is no plastic in the load path, which is the difference between a winch that survives a season of being packed with mud and hosed off and one that develops play. The VRX 25 carries a semi-gloss black powder coat over the castings and stainless steel fasteners throughout, so the corrosion resistance holds up after the powder coat gets chipped.

IP68 Sealing, Sealed Rather Than Gasketed
Full IP68 waterproof sealing means the winch is rated for continuous immersion rather than splash resistance. On a quad the winch sits low and forward, ahead of the radiator and below the axle line, so it goes through every puddle, creek and drift before the rest of the machine does. That is a harsher environment than the front of a truck, and it is why the sealing spec is the first number worth checking on a powersports winch.

Clutch Built on Warn's Hub-Lock Engineering
The free-spool clutch is derived from the 4WD hub-lock design Warn has been refining since the 1940s. Disengaging it lets you pull rope out by hand rather than powering it out, which is faster to rig and saves the battery. It engages positively rather than by feel, so you know the drum is locked before you take up load.

Load-Holding Mechanical Brake
An automatic mechanical brake takes the load the instant you release the switch, so the drum holds instead of creeping back. That is what makes it safe to stop halfway through a pull, walk forward and look at how the strap is sitting, or re-rig a snatch block, without the machine sliding back down while you do it.

Designed, Engineered and Assembled in the USA
Warn designs, engineers and assembles the VRX line in the United States, and backs the VRX 25 with a limited lifetime warranty on mechanical components and a three year warranty on electrical components.

Fitment & Compatibility

Specifications

• Model: VRX 25
• Part Number: 101025
• Vehicle Class: Powersports, ATV and UTV. Not a truck or SUV winch
• Rated Line Pull: 2,500 lb (1,134 kg) single line, first layer
• Motor: 12V DC, permanent magnet
• Gear Train: All-metal three-stage planetary
• Rope: 50' of 3/16" (4.8mm) 7x19 aircraft wire rope
• Fairlead: Roller fairlead
• Hook: Zinc-plated clevis hook
• Brake: Automatic load-holding mechanical brake
• Clutch: Free spooling, clutch based on Warn's 4WD hub-lock design
• Controls Included: Handlebar-mounted mini-rocker switch
• Waterproof Rating: IP68
• Finish: Semi-gloss black powder coat with stainless steel fasteners
• Mount Type: Fixed mount. A vehicle-specific winch mount kit is required and sold separately
• Line Speed, No Load: 17.5 ft/min (5.3 m/min), 20 amps
• Line Speed at Rated Pull: 6.8 ft/min (2.1 m/min), 159 amps
• Pull by Layer: Layer 1: 2,500 lb · Layer 2: 2,141 lb · Layer 3: 1,872 lb · Layer 4: 1,663 lb · Layer 5: 1,496 lb

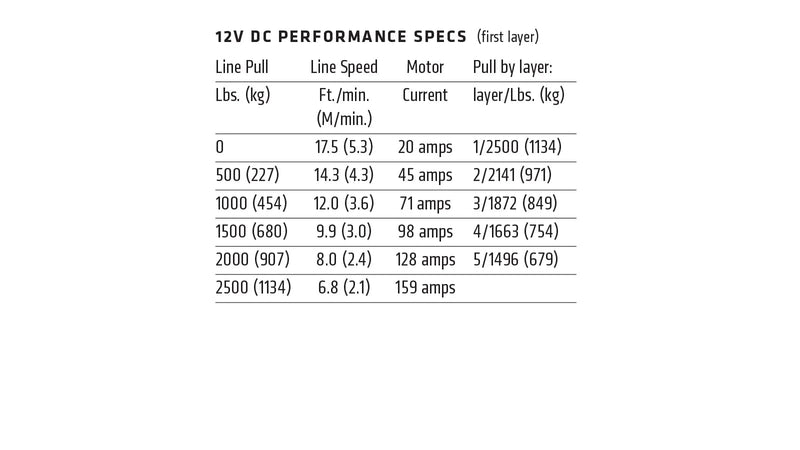

• 12V DC Performance: 0 lb: 17.5 ft/min (5.3 m/min), 20 amps · 500 lb: 14.3 ft/min (4.3 m/min), 45 amps · 1,000 lb: 12.0 ft/min (3.6 m/min), 71 amps · 1,500 lb: 9.9 ft/min (3.0 m/min), 98 amps · 2,000 lb: 8.0 ft/min (2.4 m/min), 128 amps · 2,500 lb: 6.8 ft/min (2.1 m/min), 159 amps

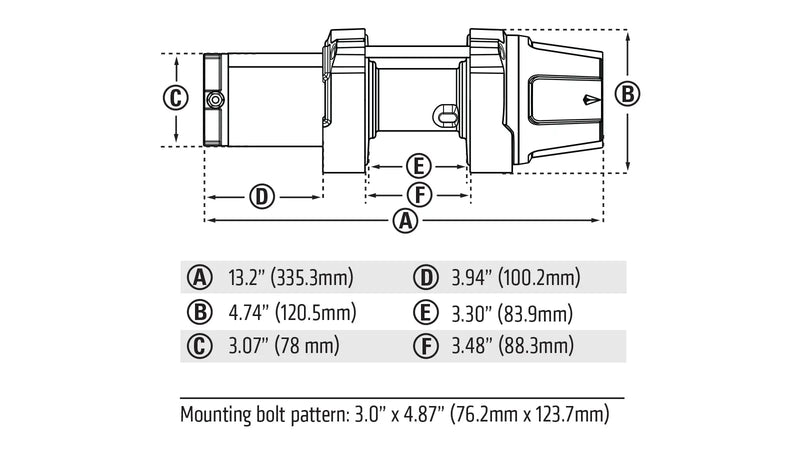

• Dimensions: A 13.2" (335.3mm), B 4.74" (120.5mm), C 3.07" (78mm), D 3.94" (100.2mm), E 3.30" (83.9mm), F 3.48" (88.3mm), lettered as on Warn's drawing
• Mounting Bolt Pattern: 3.0" x 4.87" (76.2mm x 123.7mm), 4 holes
• Country of Origin: USA, designed, engineered and assembled in the United States
• Shipping Weight: 27 lb
• UPC: 012748055976
• Warranty: Limited lifetime mechanical, 3 year electrical

Installation

Type: Bolt-in to a vehicle-specific powersports winch mount kit, plus a battery connection  ·  Time: About 1 to 2 hours, most of it the mount and the wiring  ·  Tools: Metric sockets and wrenches, a torque wrench, and wire cutters or crimpers for routing the battery leads  ·  Difficulty: Straightforward for anyone comfortable working on their own machine

The winch itself is four bolts. The work is the mount and the wiring. Fit the vehicle-specific mount kit for your machine first, then bolt the VRX 25 to it on the 3.0" x 4.87" (76.2mm x 123.7mm), 4 holes pattern and torque the fasteners to Warn's specification. Route the power leads to the battery away from moving suspension, hot exhaust and steering components, and keep the run as short and as well supported as you can. Mount the control switch where you can reach it without taking your eyes off the machine. Before you rely on it, disengage the clutch and pull the rope out by hand, then power it back in under a light load so the first layer beds evenly on the drum. A winch spooled loose from the factory will bury its own line into the lower layers on the first hard pull.

Resources

Everything you need for your Warn VRX 25 Powersports Winch, in one place.

• VRX & AXON Winch Operator's Manual (PDF), Warn's operator manual for the VRX and AXON families, covering mounting, electrical connections, first time operation, rigging and maintenance.
• VRX & AXON Winch Rope Installation Instructions (PDF), the manufacturer's instructions for fitting a replacement winch rope to a VRX or AXON drum.

Warranty, Shipping & Returns

Warranty. Warn limited lifetime warranty on mechanical components and a three year warranty on electrical components.

Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About Warn

Warn Industries has been building vehicle recovery equipment since 1948, when Arthur Warn started converting surplus military Jeeps for civilian roads with a locking hub of his own design. Those hubs led to winches, and the winches made Warn the name that shows up on the front of working machines rather than show machines. The company is headquartered in Clackamas, Oregon, and the VRX line is designed, engineered and assembled in the United States.

The VRX exists because Warn refused to answer the value end of the powersports market with a thinner product. It keeps the all-metal construction and the all-metal three-stage planetary gear train from the expensive winches, it is sealed to IP68 rather than merely gasketed, and its free-spool clutch is derived from the same 4WD hub-lock engineering Warn has been refining since the 1940s. What you give up against the AXON is the digital control system, not the mechanical hardware. That is a deliberate choice, and it is why the mechanical side of the warranty runs for the life of the product.
