The VRX 35-S sits in the middle of Warn's VRX range and is the one most large-ATV and two-seat UTV owners end up on. The extra 1,000 lb over the VRX 25 is not really about pulling a heavier machine out; it is about how hard the winch has to work to do the same job, and a winch that is not at its limit runs cooler and lasts longer. This is the synthetic build, with 50' of 3/16" Warn synthetic rope through a hawse fairlead and a handlebar-mounted rocker switch. Warn publishes a 153:1 gear ratio for this model, and its full pull-by-layer table is in the specifications below.
What's Included:
Warn VRX 35-S powersports winch, rated at 3,500 lb
50' of 3/16" (4.8mm) Warn synthetic rope, factory spooled on the drum
Hawse fairlead
Zinc-plated clevis hook with Warn hook strap

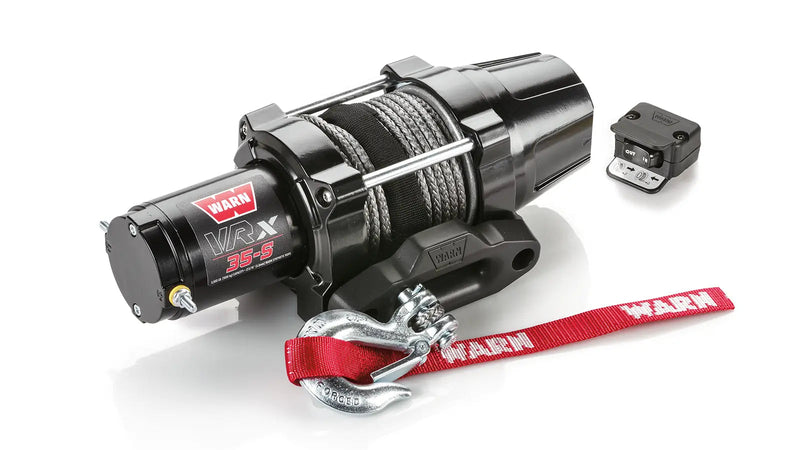

Handlebar-mounted rocker switch
Wiring harness and terminal hardware
Warn installation and operating instructions
Vehicle-specific winch mount kit NOT included, sold separately
Features

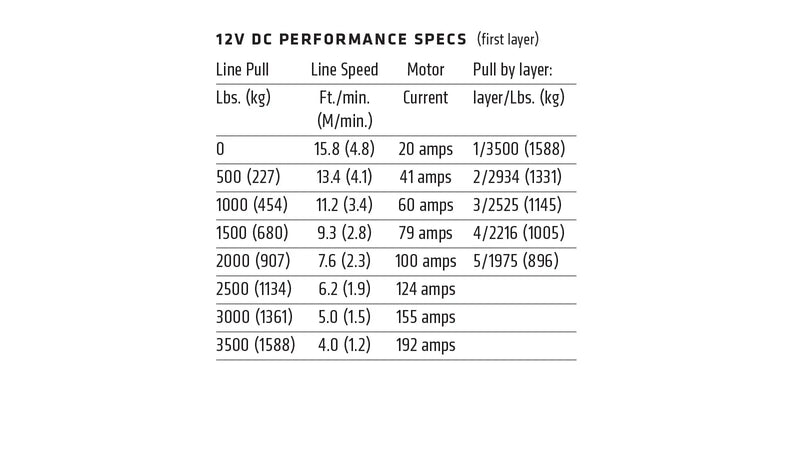

3,500 lb of Rated Pull for Large ATVs or two-seat UTVs Warn rates the VRX 35-S at 3,500 lb on the first layer of the drum and publishes what happens as the drum fills rather than hiding it: 3,500 lb on layer 1, 2,934 lb on layer 2, 2,525 lb on layer 3, 2,216 lb on layer 4, 1,975 lb on layer 5. Warn positions this capacity for large ATVs and two-seat UTVs. Pull enough rope off to work on the lower layers for a hard recovery, or rig a snatch block and halve the load on the line.

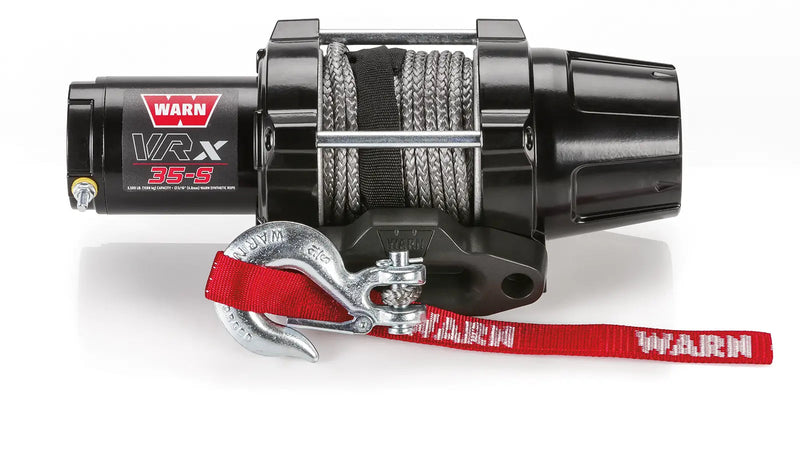

50' of 3/16" Warn synthetic rope on a hawse fairlead This is the synthetic-rope build. 50' of 3/16" (4.8mm) Warn synthetic rope runs through a hawse fairlead, which is the correct pairing because synthetic must never run over rollers. Against steel of the same rating it saves real weight at the very front of the machine, it does not develop the broken strands that make used steel line unpleasant to handle, and if it parts under load it drops instead of whipping. That last point is the one worth paying for.
The Size Most People Actually Need The 2,500 lb winches sell on price and the 4,500 lb winches sell on headline capacity, but the 3,500 lb slot is where most machines land once you weigh them with a rider, fuel and gear aboard. The VRX 35-S has enough margin that a routine self-recovery is not a full-effort pull for the winch, which is what keeps motor temperature down and gets you moving again sooner. It is also the largest VRX that still uses the compact 13.36" body and the narrow bolt pattern, so it fits mounts the VRX 45 will not.
All-Metal Construction, Not Just an All-Metal Claim The housing, the tie plate and the three-stage planetary gear train are all metal. There is no plastic in the load path, which is the difference between a winch that survives a season of being packed with mud and hosed off and one that develops play. The VRX 35-S carries a semi-gloss black powder coat over the castings and stainless steel fasteners throughout, so the corrosion resistance holds up after the powder coat gets chipped.
IP68 Sealing, Sealed Rather Than Gasketed IP68 is a continuous-immersion rating, and Warn applies it to the whole VRX assembly rather than to the motor alone. That matters because the usual failure path on a cheap winch is not the motor drowning, it is water sitting in the gear case and turning the grease. Sealed to this standard, the VRX tolerates the water crossings, wet snow and pressure washing that are ordinary use for a working machine.
Clutch Built on Warn's Hub-Lock Engineering The free-spool clutch is derived from the 4WD hub-lock design Warn has been refining since the 1940s. Disengaging it lets you pull rope out by hand rather than powering it out, which is faster to rig and saves the battery. It engages positively rather than by feel, so you know the drum is locked before you take up load.
Load-Holding Mechanical Brake An automatic mechanical brake takes the load the instant you release the switch, so the drum holds instead of creeping back. That is what makes it safe to stop halfway through a pull, walk forward and look at how the strap is sitting, or re-rig a snatch block, without the machine sliding back down while you do it.
Designed, Engineered and Assembled in the USA Warn designs, engineers and assembles the VRX line in the United States, and backs the VRX 35-S with a limited lifetime warranty on mechanical components and a three year warranty on electrical components.
Fitment & Compatibility
Machine
Fit
Large ATVs and two-seat UTVs
✓ Yes, this is what Warn rates the VRX 35-S for
Smaller ATVs and quads
● Works, and gives you useful headroom over a 2,500 lb winch
Full-size and four-seat UTVs
● Consider a 4,500 lb or larger model instead
Full-size trucks and SUVs
✗ No. This is a powersports winch. Warn builds a separate truck and SUV winch line for those vehicles
Any machine without a winch mount fitted
● Requires a vehicle-specific mount kit, which is sold separately. The VRX 35-S bolts to a 3.0" x 4.87" (76.2mm x 123.7mm) pattern
Fit guidance: This is a universal-fit powersports winch, not a vehicle-specific part, so there is no year, make and model lookup for it. You size it by machine and by how hard you expect the winch to work: Warn rates the VRX 35-S at 3,500 lb and positions it for large ATVs and two-seat UTVs. A winch running near its rating draws its highest current, runs its hottest and moves the line slowest, so buying a size up is buying margin rather than bragging rights. The fitment question that actually decides whether you can use this winch is the mount. Powersports winches bolt to a vehicle-specific mount kit that is sold separately, and the mount has to match both the bolt pattern (3.0" x 4.87" (76.2mm x 123.7mm), 4 holes) and the physical space behind your bumper. Confirm the mount kit for your machine before ordering. Do not use this winch to recover a full-size truck or SUV; it is not rated for that and Warn builds a separate line for it.
Specifications
Model: VRX 35-S
Part Number: 101030
Vehicle Class: Powersports, ATV and UTV. Not a truck or SUV winch
Rated Line Pull: 3,500 lb (1,588 kg) single line, first layer
Motor: 12V DC, permanent magnet
Gear Train: All-metal three-stage planetary
Gear Ratio: 153:1
Rope: 50' of 3/16" (4.8mm) Warn synthetic rope
Fairlead: Hawse fairlead
Hook: Zinc-plated clevis hook
Brake: Automatic load-holding mechanical brake
Clutch: Free spooling, clutch based on Warn's 4WD hub-lock design

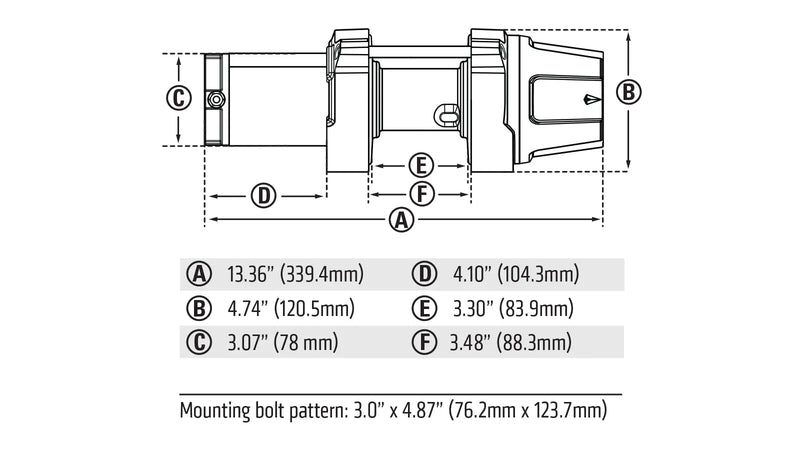

Dimensions: A 13.36" (339.4mm), B 4.74" (120.5mm), C 3.07" (78mm), D 4.10" (104.3mm), E 3.30" (83.9mm), F 3.48" (88.3mm), lettered as on Warn's drawing
Mounting Bolt Pattern: 3.0" x 4.87" (76.2mm x 123.7mm), 4 holes
Country of Origin: USA, designed, engineered and assembled in the United States
Shipping Weight: 25 lb
UPC: 012748055983
Warranty: Limited lifetime mechanical, 3 year electrical
Installation
Type: Bolt-in to a vehicle-specific powersports winch mount kit, plus a battery connection · Time: About 1 to 2 hours, most of it the mount and the wiring · Tools: Metric sockets and wrenches, a torque wrench, and wire cutters or crimpers for routing the battery leads · Difficulty: Straightforward for anyone comfortable working on their own machine
The winch itself is four bolts. The work is the mount and the wiring. Fit the vehicle-specific mount kit for your machine first, then bolt the VRX 35-S to it on the 3.0" x 4.87" (76.2mm x 123.7mm), 4 holes pattern and torque the fasteners to Warn's specification. Route the power leads to the battery away from moving suspension, hot exhaust and steering components, and keep the run as short and as well supported as you can. Mount the control switch where you can reach it without taking your eyes off the machine. Before you rely on it, disengage the clutch and pull the rope out by hand, then power it back in under a light load so the first layer beds evenly on the drum. A winch spooled loose from the factory will bury its own line into the lower layers on the first hard pull.
Resources
Everything you need for your Warn VRX 35-S Powersports Winch, in one place.
VRX & AXON Winch Operator's Manual (PDF), Warn's operator manual for the VRX and AXON families, covering mounting, electrical connections, first time operation, rigging and maintenance.
Warranty. Warn limited lifetime warranty on mechanical components and a three year warranty on electrical components.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has been building vehicle recovery equipment since 1948, when Arthur Warn started converting surplus military Jeeps for civilian roads with a locking hub of his own design. Those hubs led to winches, and the winches made Warn the name that shows up on the front of working machines rather than show machines. The company is headquartered in Clackamas, Oregon, and the VRX line is designed, engineered and assembled in the United States.
The VRX exists because Warn refused to answer the value end of the powersports market with a thinner product. It keeps the all-metal construction and the all-metal three-stage planetary gear train from the expensive winches, it is sealed to IP68 rather than merely gasketed, and its free-spool clutch is derived from the same 4WD hub-lock engineering Warn has been refining since the 1940s. What you give up against the AXON is the digital control system, not the mechanical hardware. That is a deliberate choice, and it is why the mechanical side of the warranty runs for the life of the product.
Prestige Truck is an authorized Warn dealer. Every winch we ship is new and factory boxed, carries the full Warn factory warranty, and is supported through Warn's own dealer and service network.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWarn VRX 35-S Powersports Winch, 3,500 lb, 50' 3/16" Synthetic Rope and Hawse Fairlead (101030)
Warn's side-by-side look at its two US-assembled powersports lines.
Useful if you are weighing the digital control system and Motactor of the AXON against the simpler, less expensive VRX, because it lays out what each line is actually built for rather than just listing features.
Powersports Basic Guide To Winching
Warn's own primer for anyone new to running a winch on an ATV or side-by-side. It covers the parts of the winch, what the recovery accessories are for, and how to rig a pull without hurting yourself or the machine.
This is a general technique guide from Warn, not an installation walkthrough for this part.
Frequently Asked Questions
Straight answers on specs, fit and support
What is the difference between the VRX 35-S and the VRX 45-S?
Capacity and physical size. The 35-S pulls 3,500 lb, runs 3/16" synthetic rope, measures 13.36" overall and bolts to a 3.0" x 4.87" pattern. The 45-S pulls 4,500 lb on 1/4" rope, is nearly 15" long and needs the wider 3.0" x 6.59" bolt pattern. Warn aims the 35 at large ATVs and two-seat UTVs and the 45 at full UTVs. Check your mount kit's bolt pattern before you assume the bigger one will drop in.
How much does the pull drop as the drum fills?
Warn publishes the numbers rather than just the headline figure. On the VRX 35-S it is 3,500 lb on the first layer, 2,934 lb on the second, 2,525 lb on the third, 2,216 lb on the fourth and 1,975 lb on the fifth. If you are set up for a hard pull, spool out enough rope to get down to the first or second layer, or use a snatch block to halve the load on the line.
Do I need anything else to fit this winch to my machine?
Yes, a mount. Powersports winches are universal in the sense that they are not tied to one model, but they bolt to a vehicle-specific winch mount kit that is made for your machine and sold separately. The VRX 35-S uses a 3.0" x 4.87" (76.2mm x 123.7mm), 4 holes bolt pattern, so the mount has to match that pattern and there has to be room behind your bumper for a winch of this size. Confirm the mount kit for your year, make and model before ordering, and check the electrical connection to the battery while you are at it.
How do I look after the synthetic rope?
Keep it clean and keep it off sharp edges. Grit worked into the fibres is what wears synthetic rope from the inside, so rinse it if it has been through mud or sand and let it dry before it goes away wet for a long period. Spool it back on under light tension rather than letting it pile up loose, because a loose wrap buries into the layers underneath on the next hard pull. Watch for fuzzing and cut fibres near the hook end, which is where the wear concentrates, and never run synthetic rope over a roller fairlead. This winch ships with a hawse fairlead, which is the correct pairing.
How waterproof is it really?
IP68 is the highest immersion rating in the IP scale, and Warn applies it to the whole VRX assembly rather than to the motor alone. That is the important detail, because the usual way a winch dies is not the motor drowning, it is water sitting in the gear case and spoiling the grease over a season or two. Crossings, mud and washing down are all normal use for this winch.
Does it really pull its full rating no matter how much rope is out?
No, and Warn publishes the honest numbers instead of only the headline. The 3,500 lb rating is on the first layer of the drum. As the drum fills, leverage drops: 3,500 lb on layer 1, 2,934 lb on layer 2, 2,525 lb on layer 3, 2,216 lb on layer 4, 1,975 lb on layer 5. For a hard pull, spool out enough rope to work on the lower layers, or rig a snatch block, which halves the load on the line and doubles what the winch can move.
