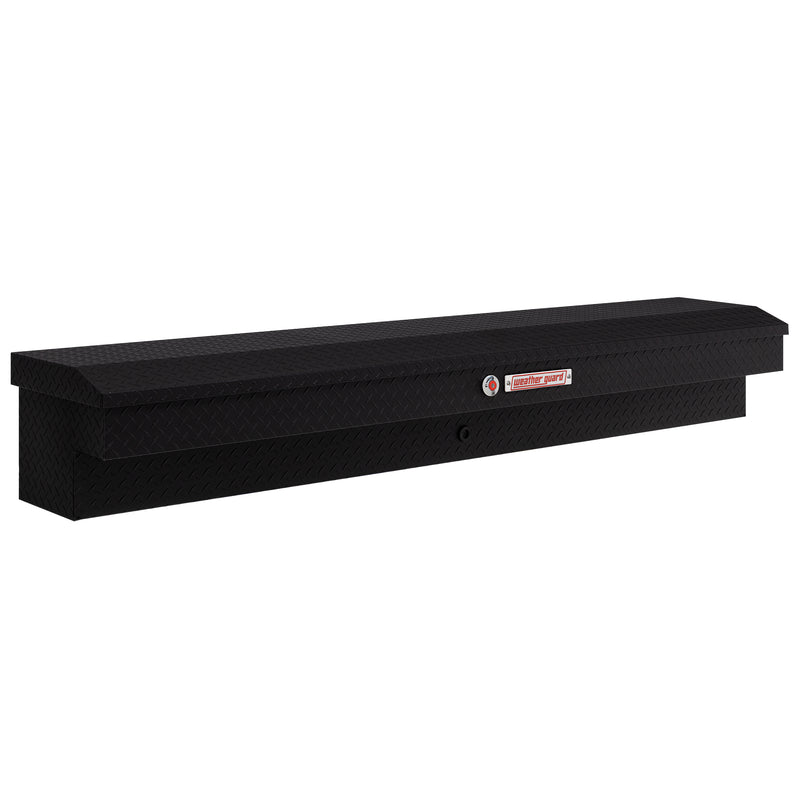

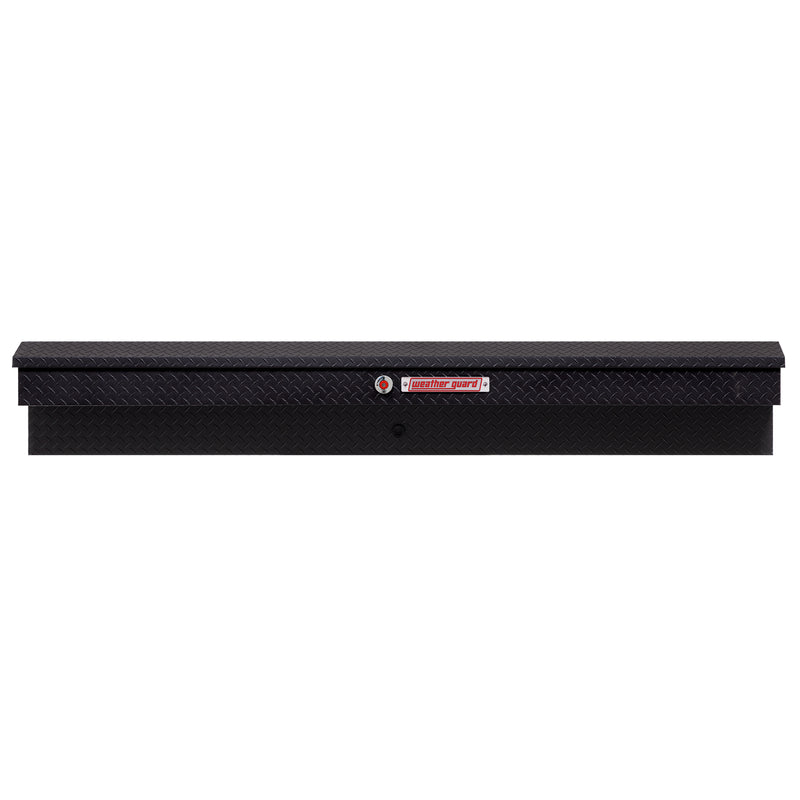

Keep tools locked down and off the bed floor with the Weather Guard 164-52-04 lo-side truck tool box. This 87" box wears a textured matte black ARMOR TUF finish over aluminum diamond plate. The textured matte coat is the choice when you want a stealthy, no-shine look that stays low-key even after the box picks up jobsite dust. It mounts on top of one bed side rail so it rides low, preserves your rear visibility and leaves the bed floor open for sheet goods and cargo, and it locks down 7.0ft³ of weather-sealed storage behind the tamper-resistant 1Key UltraLock push-button lock. Aluminum keeps it lighter than a comparable steel box, so it will not eat into your payload.
What's Included:
164 Series 87" Lo-Side aluminum truck tool box in textured matte black
1Key UltraLock keyed cylinder with recessed red push-button latch
Under-rail mounting clamps and hardware for a no-drill install

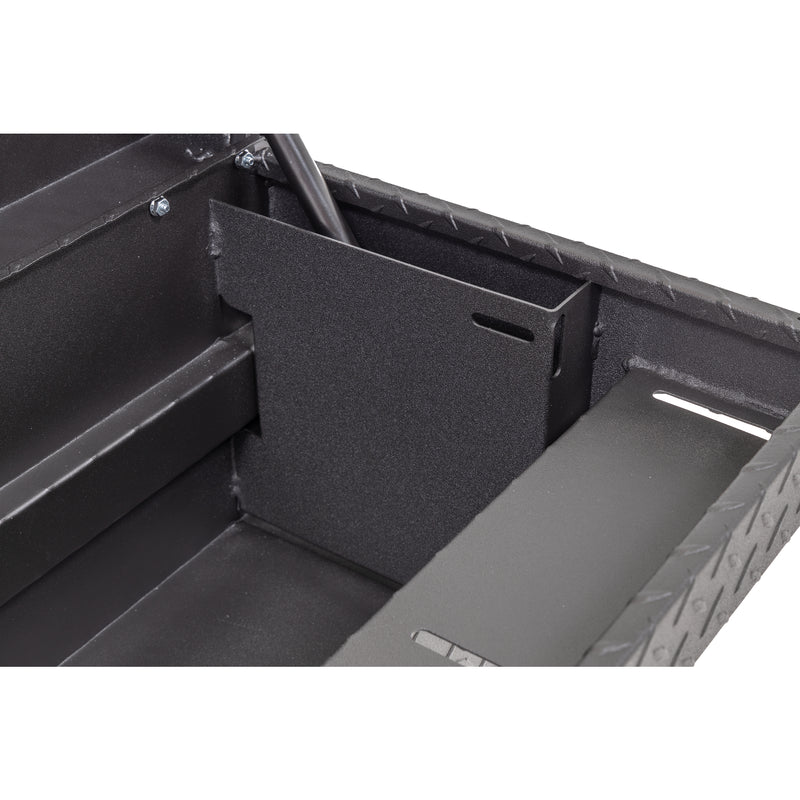

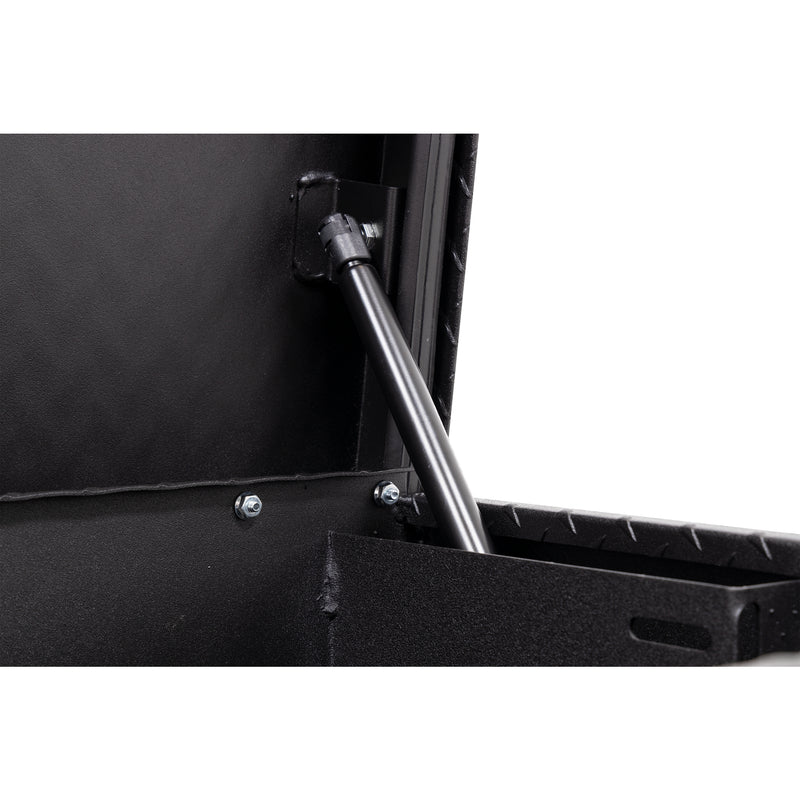

Gas strut for controlled lid lift
Removable tray
Full-perimeter weather seal, pre-installed
Drain plug
Weather Guard installation instructions
Features
87" of Secure Side-Rail Storage At 87" long the 164-52-04 runs along one bed side rail and gives you 7.0ft³ of lockable, organized storage while keeping the rest of the bed floor clear. It swallows long levels, pipe and power tools that will not fit a shorter box.
Textured Matte Black Diamond Plate Finish A Textured Matte Black ARMOR TUF powder coat covers the aluminum diamond plate and knocks down glare, so the box hides dust, fingerprints and light scratches far better than a glossy finish. The result is a stealthy, modern look that stays sharp.
Stealth Look That Stays Clean Textured matte black is the stealth choice, and unlike gloss it does not throw glare or broadcast every fingerprint and fine scratch. It keeps a purposeful, tactical look on blacked-out and off-road builds even after a hard day.

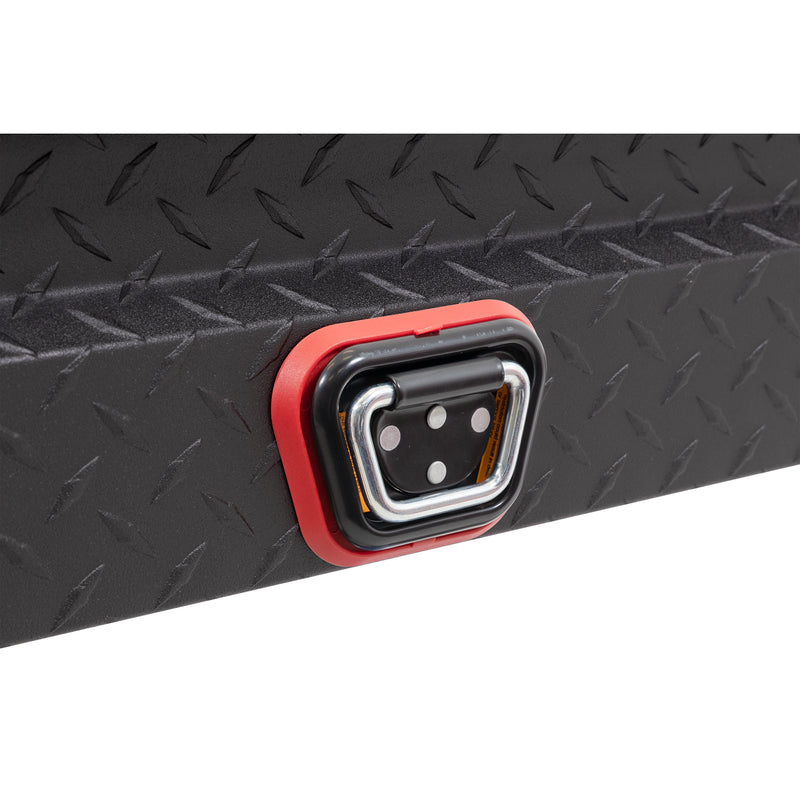

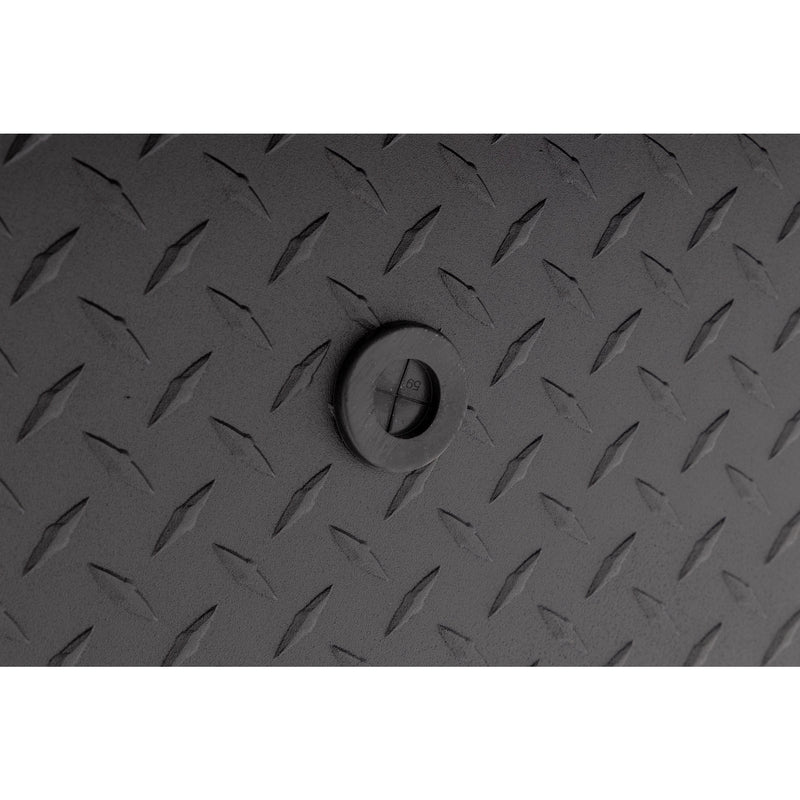

Enhanced Tie-Downs and 12V Access Enhanced tie-down buckles give extra clearance for universal or multiple straps so you can lash cargo down on the lid, and a 12V access point supports electrical upfits when you add them.

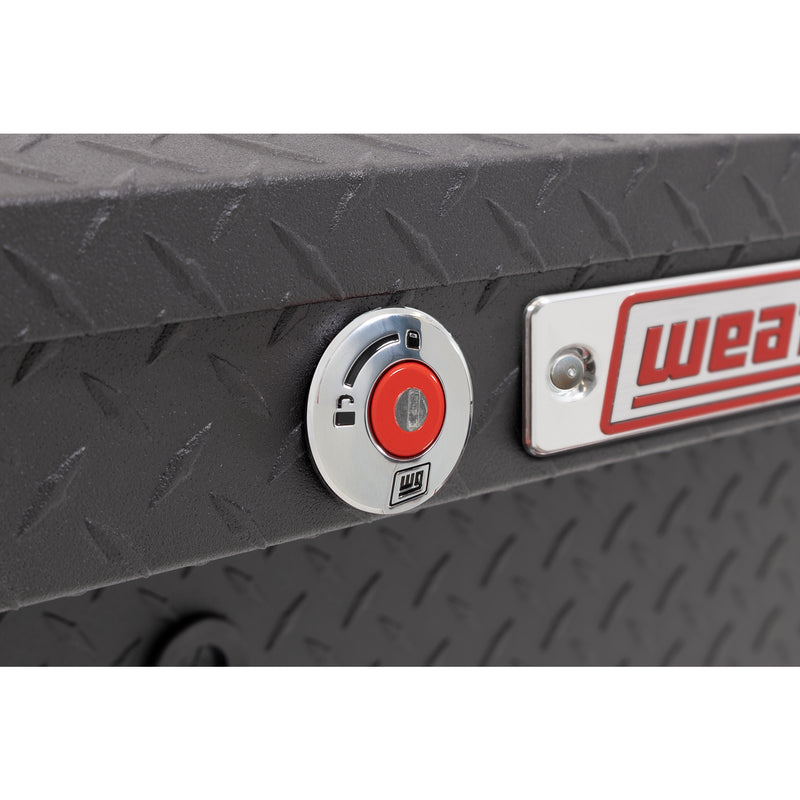

1Key UltraLock Security A tamper-resistant lock pairs a keyed cylinder with a recessed red push-button that sits flush when locked, giving you a quick visual cue your gear is secured. The 1Key system lets you code multiple boxes on a truck or a whole fleet to one key.
Lightweight Welded Aluminum Build The 164-52-04 is built from welded aluminum diamond plate, so it resists corrosion and dents while staying lighter than a comparable steel box. It is made in the USA and backed by a Weather Guard Limited Lifetime Warranty against defects.
Reinforced Body, Automotive-Grade Hardware Weather Guard specifies a heavy-duty welded body for the 164-52-04, with a C-channel reinforced front panel and a heavy-duty C-channel reinforced lid, so the box stays square when it is loaded and when someone stands on the lid. The latch is an automotive dual-stage rotary mechanism, the same style a truck door uses, so it pulls the lid down onto the seal instead of relying on a friction catch. A welded gas strut shield keeps loose tools from knocking the strut mount out of line. The D-shaped ribbed weather strip is memory resistant, so it springs back after years of closing rather than taking a set and letting water track in.
Fitment & Compatibility
Truck Class
Bed Length
Example Trucks
Fit
Full-size
8' (long bed)
F-150 and Super Duty, Silverado/Sierra 1500 to 3500, Ram 1500 to 3500, Tundra 8', Titan XD 8'
✓ Yes, the 87" box needs a full-size 8' long bed
Full-size or standard
5'6", 6'6" (short bed)
-
✗ No, the 87" box is too long
Mid-size and compact
-
Ranger, Colorado, Tacoma, Frontier, Maverick
✗ No, not designed for these trucks

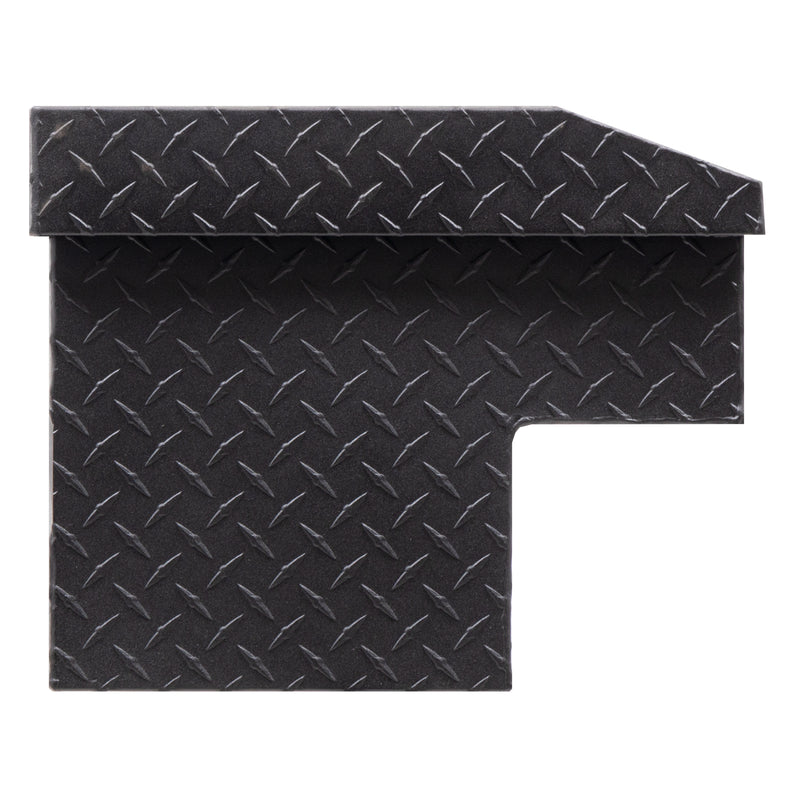

Fit guidance: Lo-Side boxes mount on top of one bed side rail and run most of the length of the bed, so they keep the bed floor open and do not block the rear window. At 87" long this box needs a full-size 8' long bed. It will not fit standard 6'6" or short 5'6" beds. It can mount on either the driver or passenger side rail. Always measure your bed side rail length and confirm clearance before ordering.
Specifications
Series: 164 Series Lo-Side
Style: 87" single-lid side-mount (Lo-Side)
Storage Capacity: 7.0ft³

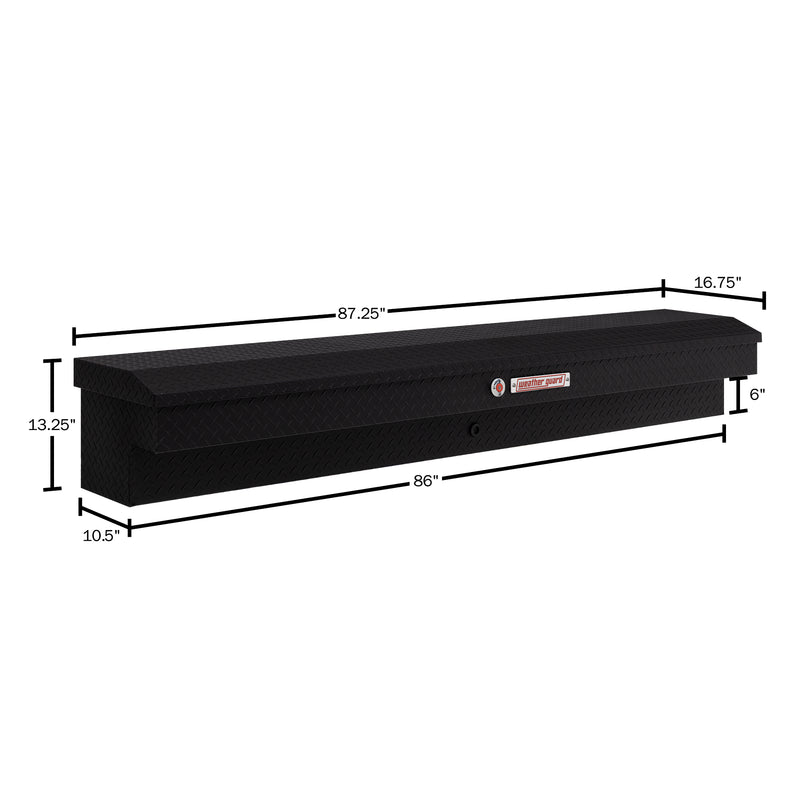

Exterior Dimensions: about 87"L x 17"W x 13"H
Material: Welded aluminum diamond plate
Finish: Textured Matte Black ARMOR TUF powder coat

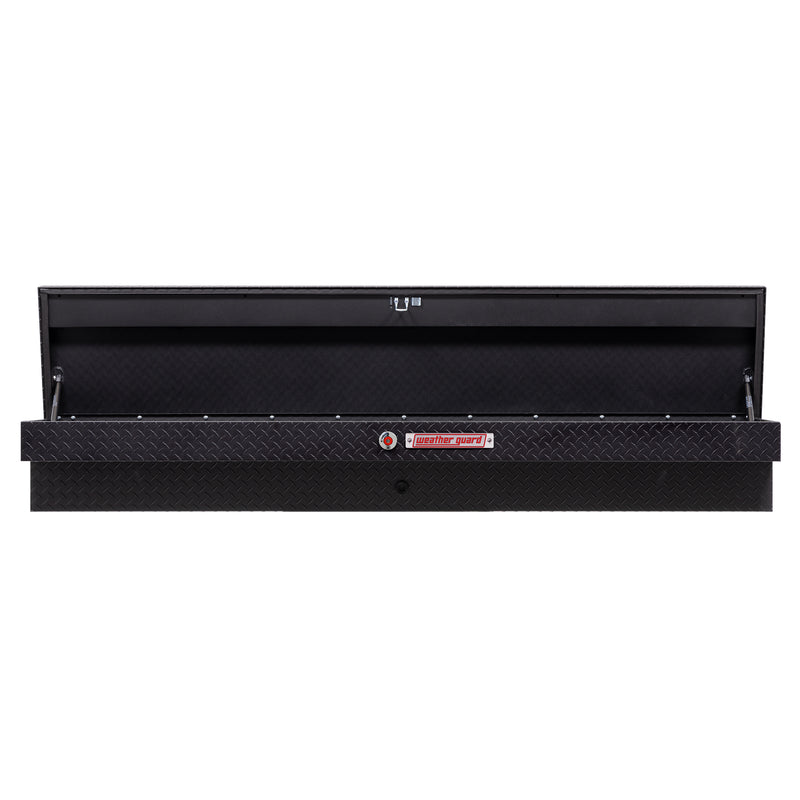

Lid: Reinforced, opens to about 90 degrees, gas strut
Lock: 1Key UltraLock keyed cylinder with recessed red push-button, tamper-resistant, keyed alike
Weather Seal: Full-perimeter, multi-ridge weather seal
Mounting: Sits on top of one bed side rail, under-rail clamps and hardware included, no drilling required
Type: Side-rail mount, clamp-in with no drilling · Time: About 20 to 30 minutes · Tools: Socket or wrench set and a tape measure; no drill needed with the included under-rail clamps · Difficulty: Easy, best done with two people because of the length
Set the box on top of one bed side rail and position it front to back, then hook the included clamps under the rail lip and tighten the hardware evenly so the box sits flat and the lid seals. Because the box is long, have a second person help lift and steady it while you clamp it down. Follow the Weather Guard installation instructions for exact clamp placement and torque.
Watch the installation walkthrough:
Resources
Everything you need for your Weather Guard 164 Lo-Side Truck Tool Box, 87" Textured Matte Black Aluminum Diamond Plate, in one place.
Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Weather Guard
Weather Guard has built professional-grade truck and van storage in the USA for decades and is the storage brand tradespeople, contractors, and fleets reach for first. Its steel and aluminum tool boxes, ladder racks, and van-interior systems are engineered to survive daily jobsite abuse and keep expensive tools secure and organized.
Known for weather-tight seals, patented locking systems, and heavy-gauge construction, Weather Guard products mount cleanly on work trucks and vans and stand up to years of hard use. The lineup spans crossover, low-side, and saddle truck boxes, ladder and van racks, drawer units, and fuel and utility tanks, so an entire work vehicle can be outfitted from one brand.
Backed by a strong manufacturer warranty and US-based support, Weather Guard is the name pros trust to protect the tools their livelihood depends on.
Authorized Weather Guard dealer. Prestige Truck is an authorized dealer of Weather Guard, so every tool box, rack and storage product you buy is 100% genuine and factory-new, covered by the full Weather Guard manufacturer warranty, and backed by our own US-based support team.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWeather Guard 164 Lo-Side Truck Tool Box, 87" Textured Matte Black Aluminum Diamond Plate (164-52-04)
A step-by-step look from Weather Guard at what the 1Key UltraLock actually does: how the cylinder accepts a new code, why the red push button retracts when the box is locked, and how the latch pulls the lid down against the seal. Worth two minutes before you set the box up.
How to Code Your 1Key UltraLock Lock
Weather Guard's official walkthrough for coding the lock so this box opens with the same key as the rest of your Weather Guard boxes. Follow it once when the box arrives and you can stop carrying a separate key for every lid on the truck.
Protect Your Gear and Your Reputation
Weather Guard's own film on why a working truck earns its keep from what is bolted to it. It frames the boxes, racks and bed equipment as the difference between arriving ready and arriving short, which is the thing a customer actually notices.
It is a short manufacturer-made overview rather than a product demo, so watch it for the why rather than the how. If you are outfitting a truck from scratch it is a useful place to start before you pick individual part numbers.
Frequently Asked Questions
Straight answers on specs, fit and support
What bed size do I need for the 164-52-04?
This box is 87" long, so it needs a full-size pickup with an 8' long bed. It will not fit a standard 6'6" or short 5'6" bed. It mounts on top of one bed side rail, so measure your side rail length and confirm clearance before ordering.
What is the finish on the 164-52-04?
It is aluminum diamond plate finished in Textured Matte Black ARMOR TUF powder coat. The matte, low-glare surface hides dust, fingerprints and fine scratches better than gloss, giving the box a stealthy, blacked-out look.
Matte black or gloss black, which should I pick?
Pick textured matte black if you want a stealthy, no-shine look that hides dust, fingerprints and light scratches, which suits off-road and blacked-out builds. Choose gloss black instead if you want a deep, reflective shine.
How big is it, and is it covered by a warranty?
The exterior measures about 87"L x 17"W x 13"H with 7.0ft³ of storage, and it weighs about 65.5 lb. It is built from welded aluminum diamond plate in textured matte black, and it is made in the USA and backed by a Weather Guard Limited Lifetime Warranty against defects in materials and workmanship.
How does it lock?
It uses the Weather Guard 1Key UltraLock, a tamper-resistant design that pairs a keyed cylinder with a recessed red push-button that sits flush when locked. The 1Key system also lets you code multiple boxes on a truck or an entire fleet to a single key.
Can I run electrical accessories with it?
Yes. The box includes 12V access for electrical upfits, so you can wire in lights or other accessories, and enhanced tie-down buckles give you extra clearance for straps on the lid.
