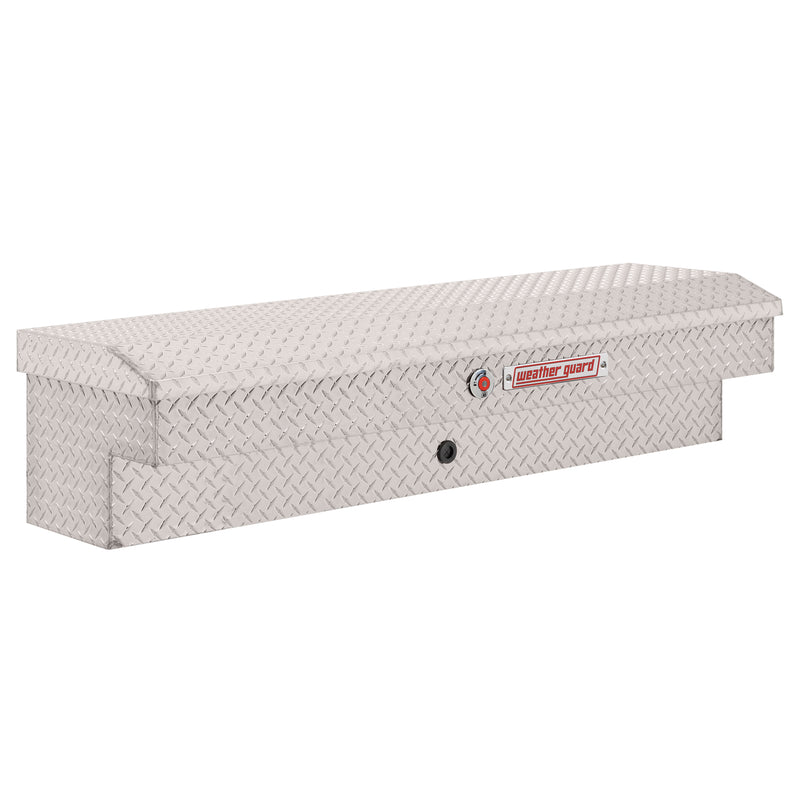

Weather Guard 174 Lo-Side Truck Tool Box, 56" Bright Aluminum Diamond Plate (174-0-04)

Keep tools locked down and off the bed floor with the Weather Guard 174-0-04 lo-side truck tool box. This 56" box wears bright aluminum diamond plate under a durable Clear ARMOR TUF coat. Bright aluminum is the look most people picture on a work truck, and it lights up the bed while the tread pattern quietly hides the dings and scuffs of daily use. It mounts on top of one bed side rail so it rides low, preserves your rear visibility and leaves the bed floor open for sheet goods and cargo, and it locks down 4.0ft³ of weather-sealed storage behind the tamper-resistant 1Key UltraLock push-button lock. Aluminum keeps it lighter than a comparable steel box, so it will not eat into your payload.

What's Included:

• 174 Series 56" Lo-Side aluminum truck tool box in bright aluminum
• 1Key UltraLock keyed cylinder with recessed red push-button latch
• Under-rail mounting clamps and hardware for a no-drill install
• Gas strut for controlled lid lift
• Removable tray
• Full-perimeter weather seal, pre-installed
• Drain plug
• Weather Guard installation instructions

Features

56" of Secure Side-Rail Storage
At 56" long the 174-0-04 runs along one bed side rail and gives you 4.0ft³ of lockable, organized storage while keeping the rest of the bed floor clear. It carries a full day of hand and power tools without taking over the bed.

Bright Aluminum Diamond Plate Finish
A Clear ARMOR TUF powder coat protects the bright aluminum diamond-plate tread against corrosion and fading while keeping that traditional polished-tread shine. It cleans up fast, and the tread pattern helps hide the everyday scuffs of jobsite life.

Classic Look, Easy to Match
Bright aluminum diamond plate matches almost any truck color and never looks out of place, which also helps at resale. It pairs naturally with chrome and polished trim and keeps that traditional contractor look season after season.

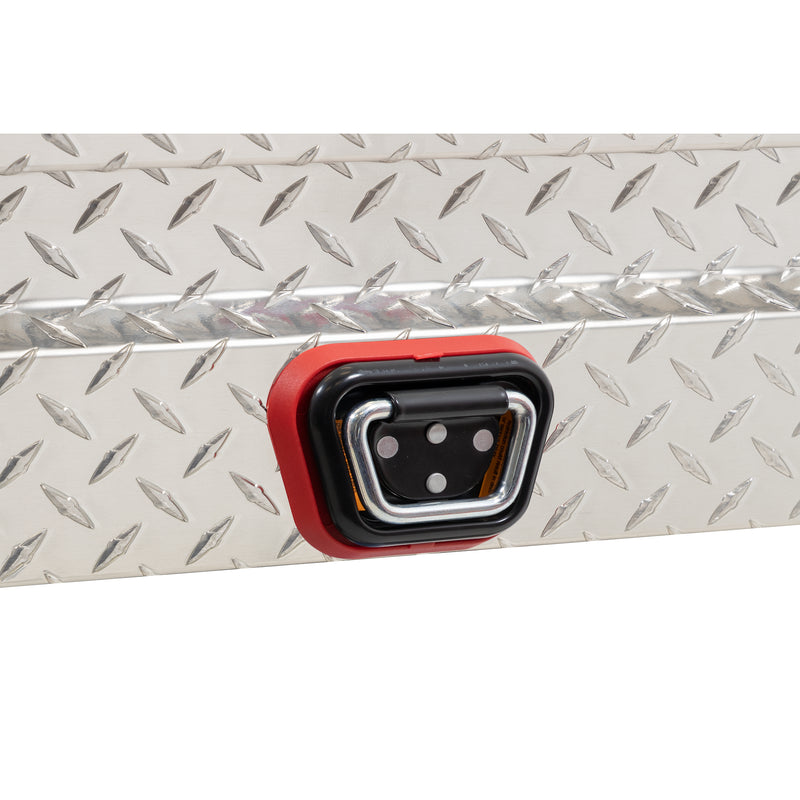

Enhanced Tie-Downs and 12V Access
Enhanced tie-down buckles give extra clearance for universal or multiple straps so you can lash cargo down on the lid, and a 12V access point supports electrical upfits when you add them.

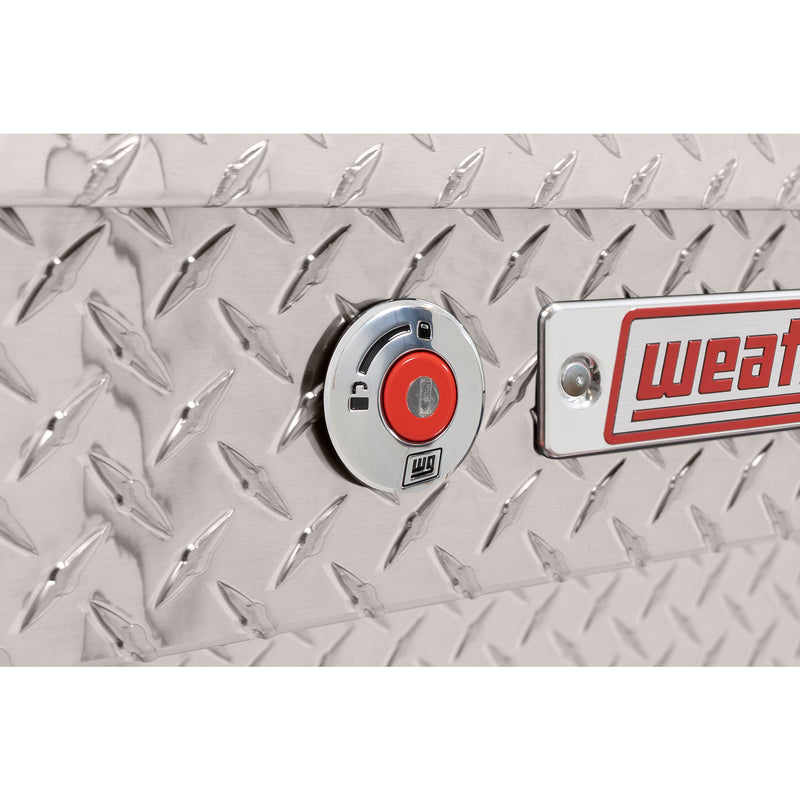

1Key UltraLock Security
A tamper-resistant lock pairs a keyed cylinder with a recessed red push-button that sits flush when locked, giving you a quick visual cue your gear is secured. The 1Key system lets you code multiple boxes on a truck or a whole fleet to one key.

Lightweight Welded Aluminum Build
The 174-0-04 is built from welded aluminum diamond plate, so it resists corrosion and dents while staying lighter than a comparable steel box. It is made in the USA and backed by a Weather Guard Limited Lifetime Warranty against defects.

Reinforced Body, Automotive-Grade Hardware

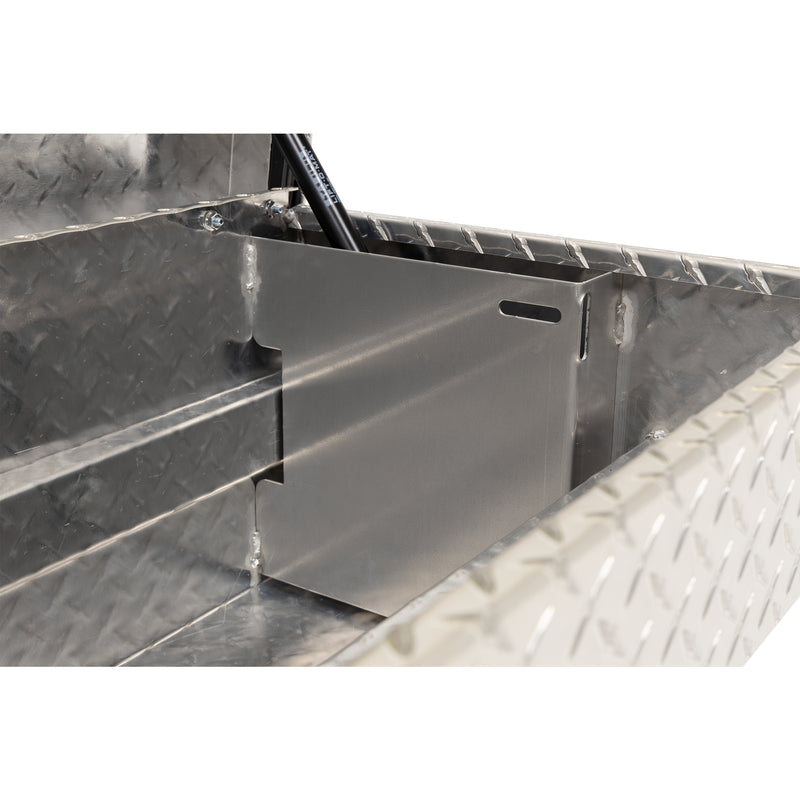

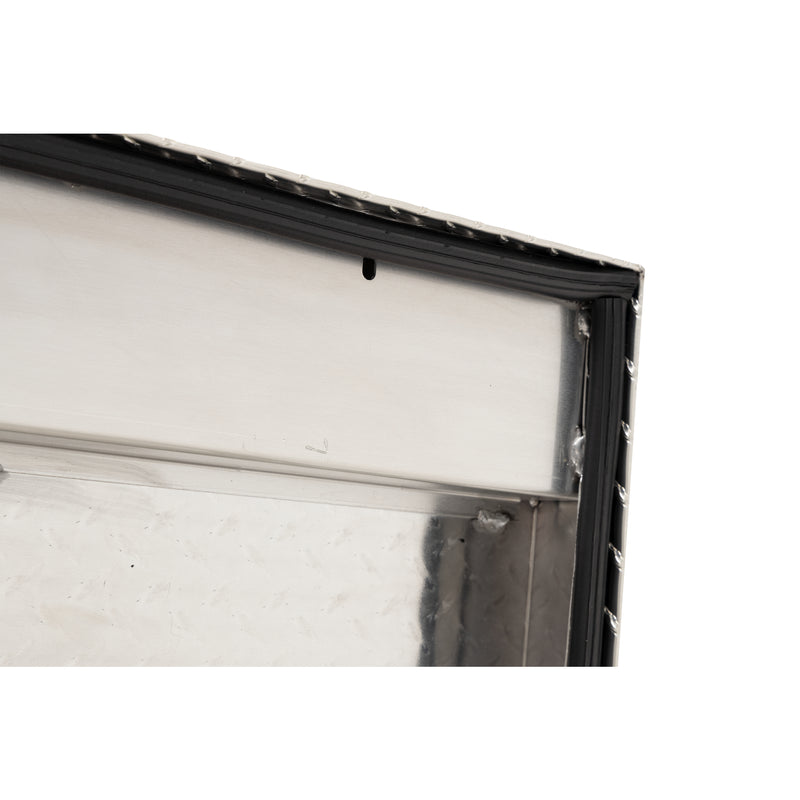

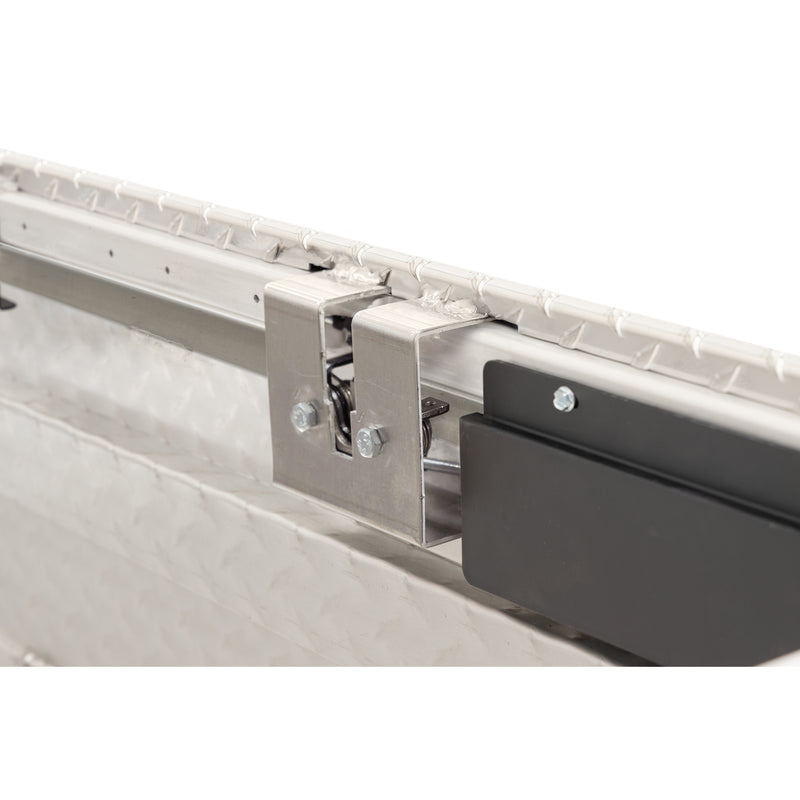

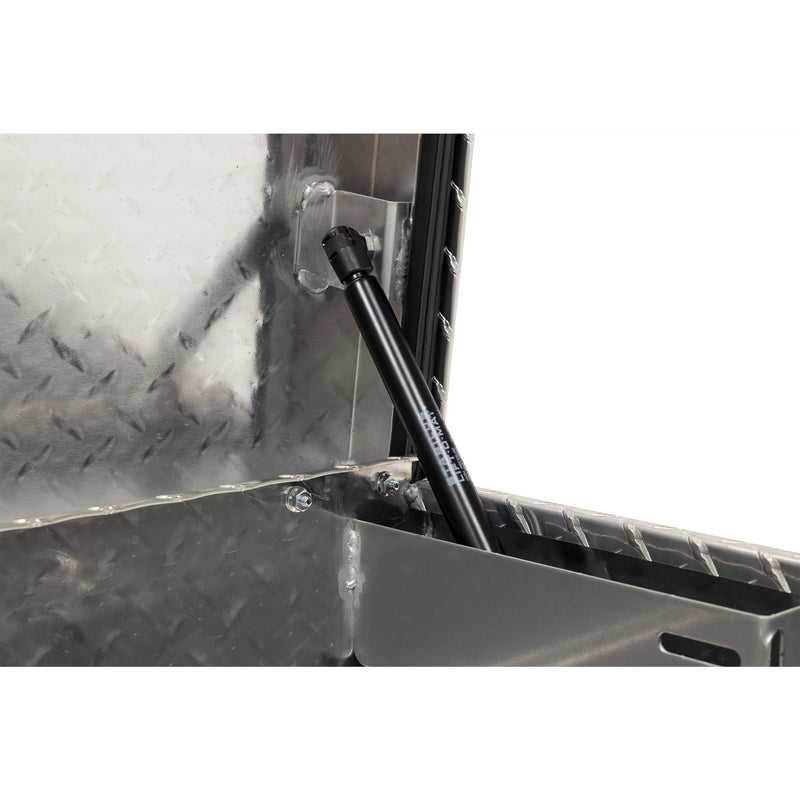

Weather Guard specifies a heavy-duty welded body for the 174-0-04, with a C-channel reinforced front panel and a heavy-duty C-channel reinforced lid, so the box stays square when it is loaded and when someone stands on the lid. The latch is an automotive dual-stage rotary mechanism, the same style a truck door uses, so it pulls the lid down onto the seal instead of relying on a friction catch. A welded gas strut shield keeps loose tools from knocking the strut mount out of line. The D-shaped ribbed weather strip is memory resistant, so it springs back after years of closing rather than taking a set and letting water track in.

Fitment & Compatibility

Specifications

• Series: 174 Series Lo-Side
• Style: 56" single-lid side-mount (Lo-Side)
• Storage Capacity: 4.0ft³

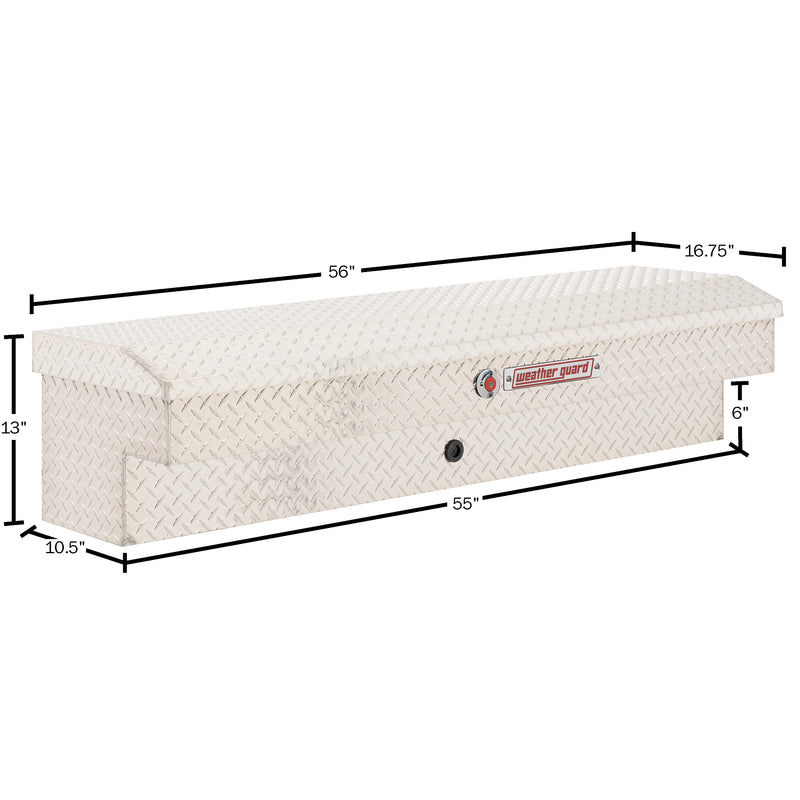

• Exterior Dimensions: about 56"L x 17"W x 13"H
• Material: Welded aluminum diamond plate
• Finish: Bright aluminum, Clear ARMOR TUF powder coat
• Lid: Reinforced, opens to about 90 degrees, gas strut
• Lock: 1Key UltraLock keyed cylinder with recessed red push-button, tamper-resistant, keyed alike
• Weather Seal: Full-perimeter, multi-ridge weather seal
• Mounting: Sits on top of one bed side rail, under-rail clamps and hardware included, no drilling required
• Electrical: 12V access for electrical upfits
• Drainage: Drain plug
• Construction: Heavy Duty Welded
• Front Panel: C-Channel Reinforced
• Lid Construction: Heavy Duty C-Channel Reinforced
• Latch Mechanism: Automotive Dual-Stage Rotary
• Weather Strip Profile: Memory Resistant D-Shaped Ribbed
• Gas Strut Protection: Welded Gas Strut Shield
• Bed Style: Style Side
• Shipping Size: 58"L x 19"W x 14"H, 49 lb
• UPC: 783965071314
• Weight: About 49 lb (shipping)
• Warranty: Limited Lifetime
• Made In: USA

Installation

Type: Side-rail mount, clamp-in with no drilling  ·  Time: About 20 to 30 minutes  ·  Tools: Socket or wrench set and a tape measure; no drill needed with the included under-rail clamps  ·  Difficulty: Easy, best done with two people because of the length

Set the box on top of one bed side rail and position it front to back, then hook the included clamps under the rail lip and tighten the hardware evenly so the box sits flat and the lid seals. Because the box is long, have a second person help lift and steady it while you clamp it down. Follow the Weather Guard installation instructions for exact clamp placement and torque.

Watch the installation walkthrough:

Resources

Everything you need for your Weather Guard 174 Lo-Side Truck Tool Box, 56" Bright Aluminum Diamond Plate, in one place.

• Official Weather Guard 174 Lo-Side Truck Tool Box, 56" Bright Aluminum Diamond Plate installation manual (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and torque specs.

Warranty, Shipping & Returns

Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.

Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
