Weather Guard 178 Low Profile Lo-Side Truck Tool Box, 56" Textured Matte Black Aluminum Diamond Plate (178-52-04)
Free gift included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
See it on a truck
Push-button lock

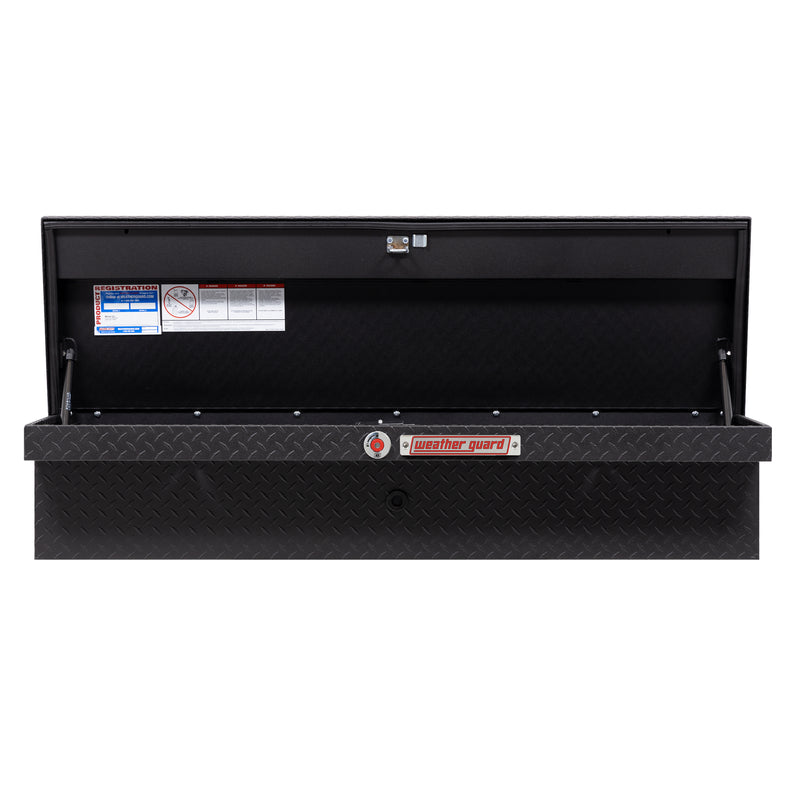

90-degree lid opening
12V access port
Features

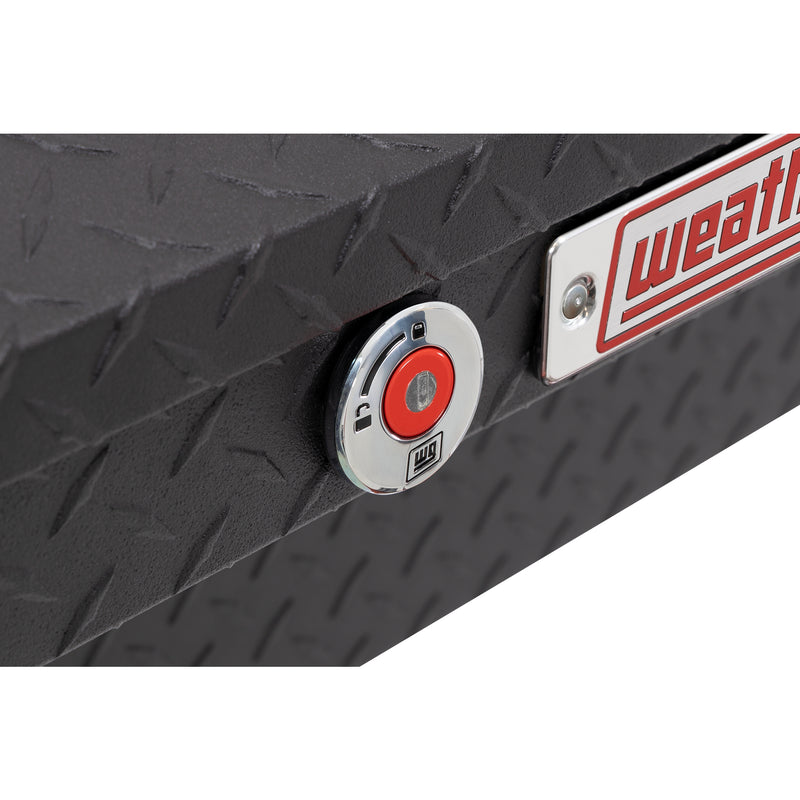

- Push-button lock: A red push-button sits on the lid face, built to resist tampering; turn the key to lock it and the button stays retracted until you unlock it again.

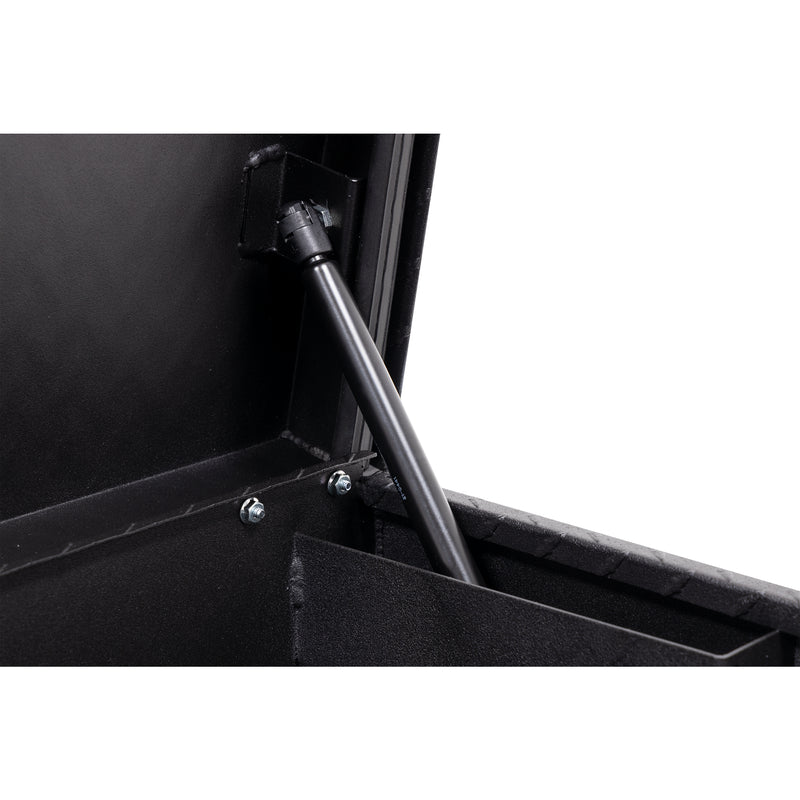

- 90-degree lid opening: Gas struts lift the lid straight up to 90 degrees and hold it there, so the whole box is open to you while you work.
- 12V access port: A 12V pass-through gives you a path for power into the box, ready for lights, chargers or other electrical up-fits.
- High-security locking: Weather Guard calls this lock system its improved high-security design, and the lock pairs with an automotive-grade latch so the lid stays shut against prying and picking.

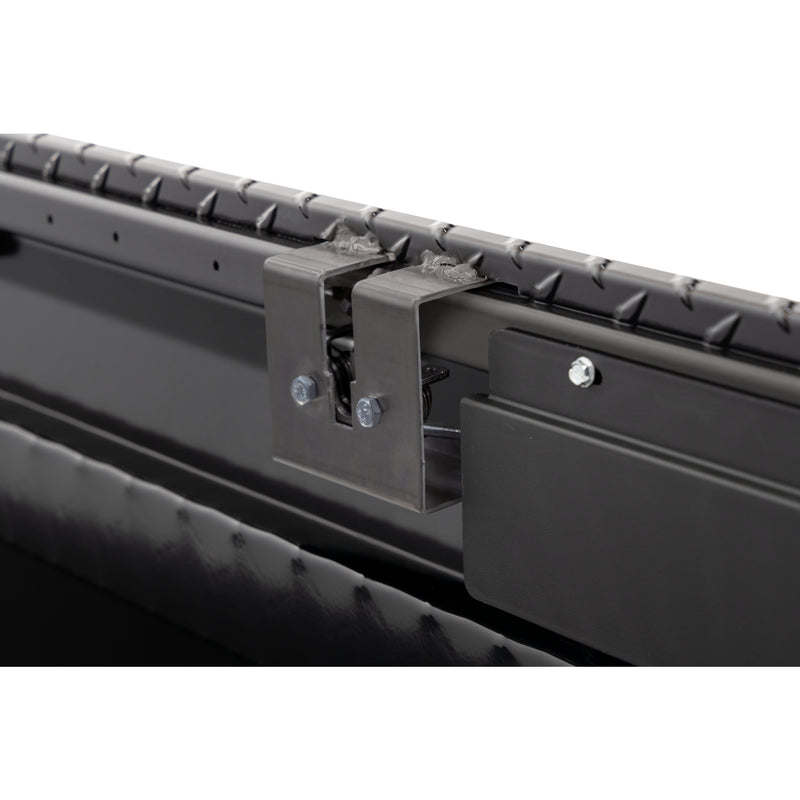

- Easy-close latch: Dual-stage rotary latches catch with a lighter push, so the lid closes fully without being slammed.

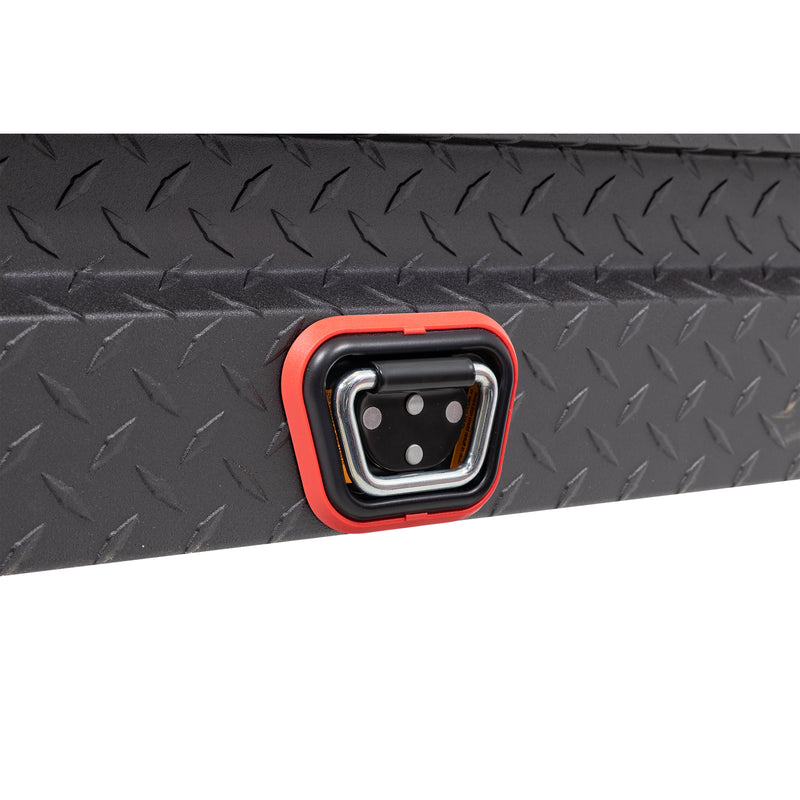

- Enhanced tie-down buckles: Roomier tie-down buckles leave space for a universal strap hook, or for several straps at once, when you secure cargo in the bed.
Description & Fitment

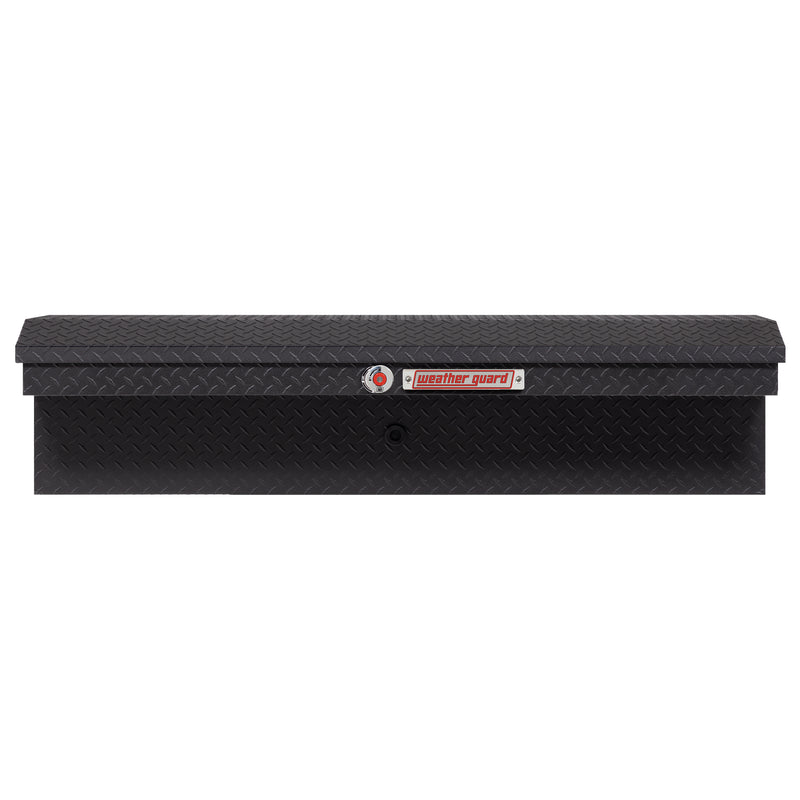

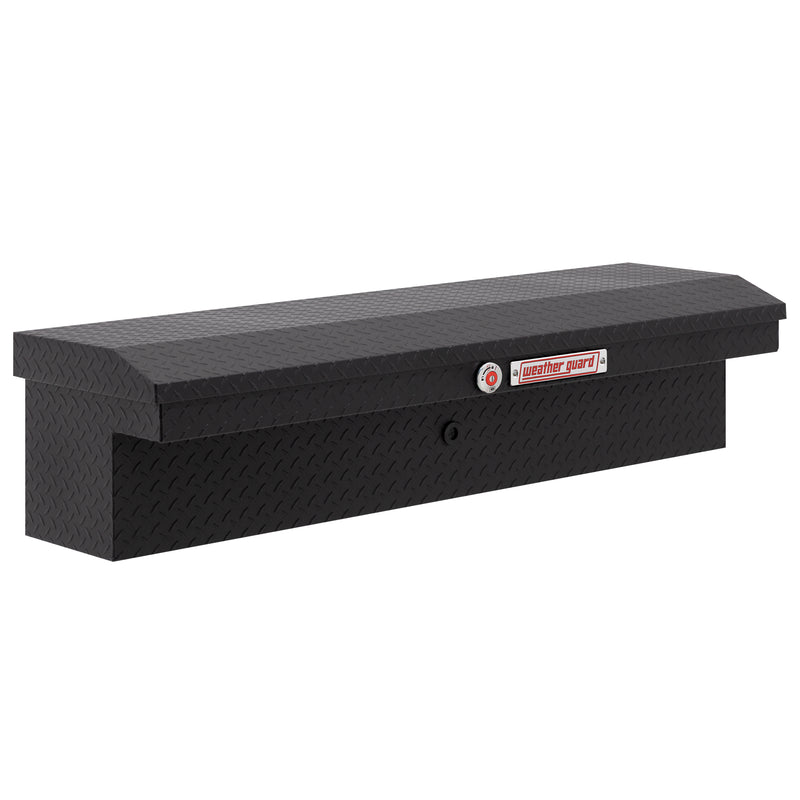

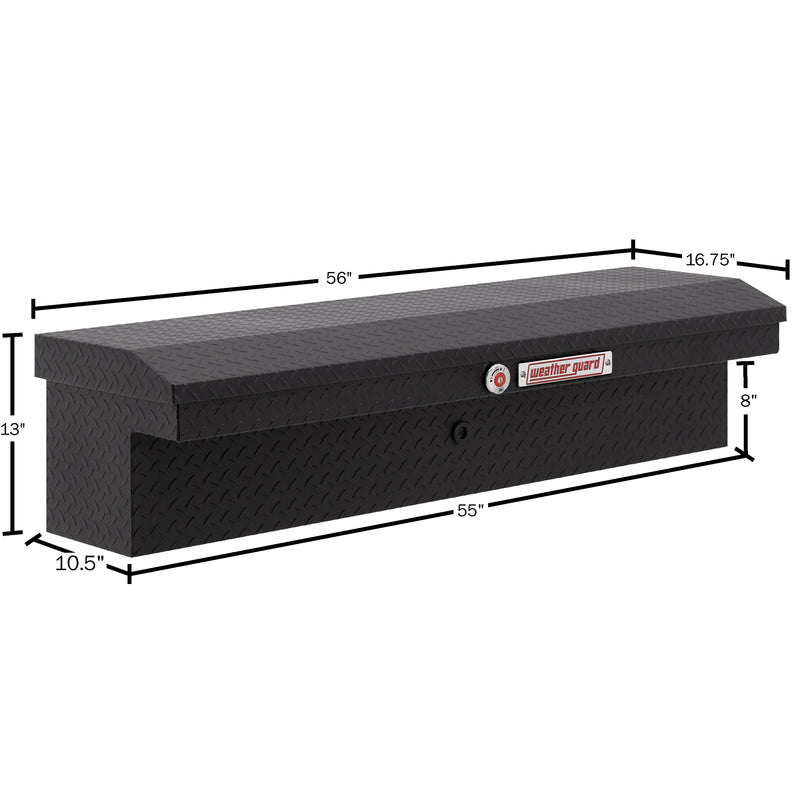

For a flat, low-glare look, the 178-52-04 wraps the 56" Low Profile Lo-Side in textured matte black ARMOR TUF over aluminum. You get 4.0 ft³ of lockable room, a 56" x 17" x 13" footprint and a 44.5 lb weight on the spec sheet.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1999-2027 | Silverado 1500 | — | |
| 2001-2027 | Silverado 2500 HD | — | |
| 2001-2027 | Silverado 3500 HD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2027 | F-150 | — | |
| 2022-2027 | F-150 Lightning | — | |
| 1999-2027 | F-250 Super Duty | — | |
| 1999-2027 | F-350 Super Duty | — | |
| 1999-2027 | F-450 Super Duty | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1999-2027 | Sierra 1500 | — | |
| 2001-2027 | Sierra 2500 HD | — | |
| 2001-2027 | Sierra 3500 HD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2004-2024 | Titan | — | |
| 2016-2024 | Titan XD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2011-2027 | 1500 | — | |
| 2019-2024 | 1500 Classic | — | |
| 2011-2027 | 2500 | — | |
| 2011-2027 | 3500 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2000-2027 | Tundra | — |
Check your fit: this 56" box is on our fitment list for full-size pickups: Chevrolet Silverado 1500, 2500 HD and 3500 HD; GMC Sierra 1500, 2500 HD and 3500 HD; Ford F-150 (Lightning included) and F-250, F-350 and F-450 Super Duty; Ram 1500, 1500 Classic, 2500 and 3500; Toyota Tundra; Nissan Titan and Titan XD. Measure the usable length of your bed side rail before you order.
Not for: mid-size pickups, which are not on this length's fitment list (Weather Guard's 41" Lo-Side boxes are), and flareside or step-side beds (Weather Guard lists the Lo-Side for Style Side beds). Other 178 finishes: 178-0-04, 178-5-04, 178-6-04. Other Low Profile length: 180 (41"). Not included: a crossover box. If you add one, Weather Guard's sheet has you mount it first and leave a 1/8" gap.
About Weather Guard
Weather Guard is the truck and van storage brand of Werner Co., the Illinois company also known for its ladders. Its tool boxes are built in the USA, and the line runs from crossover, Lo-Side and gull-wing boxes to chests, underbody boxes, bed drawers, transfer tanks, ladder racks and van shelving.
Weather Guard's current boxes use the 1Key UltraLock, a red push-button lock you can code so one key opens every box on a truck or across a fleet, and many are finished in ARMOR TUF powder coat.
Buying Weather Guard from Prestige Truck. Weather Guard asks for the original sales receipt with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Will it fit a Ram 1500?
It is on our fitment list for that truck. Measure the usable length of your bed side rail against this 56" box, since rail length depends on the bed.
Do I need to drill to mount it?
Yes. The Lo-Side install sheet fixes the box with mounting clamps, legs and blind fasteners in drilled holes, so plan for a drill with 3/16", 3/8" and 1/2" bits.
Do I have to drill my truck?
Yes. Weather Guard's Lo-Side install sheet sets blind fasteners in drilled holes, and a stake pocket that blocks a clamp needs a 1/2" hole. Check under the vehicle for fuel lines, the tank and wiring before you drill. For aluminum beds, the bolt kit carries an upfit kit with zinc-rich primer for the holes.
Can I run it next to a crossover box?
Yes. Weather Guard's sheet says to mount the saddle or crossover box first, then set the Lo-Side box with a 1/8" gap between the two and confirm the lid opens fully.
How does the key coding work?
The lock has no preset code: it learns the first Weather Guard key (codes B001 to B050) you code it with, and that cannot be changed later. Each box ships with one pair of matching keys, and further coded boxes can learn the same key. Note your key code, as it cannot be looked up later.
What sizes does the Low Profile Lo-Side come in?
Two lengths, both in aluminum with a 15-ga body: the 56" 178 holds 4.0 ft³ at 44.5 lb, and the 41" 180 holds 3.0 ft³ at 35.5 lb. Each comes in bright aluminum, gloss black, textured matte black or gunmetal gray.
Installation
Here's the short version. Follow Weather Guard's install sheet (below) for the exact positions and hardware.
- Code the locks with your key before first use. Once a lock is coded it cannot be changed; test it five times.
- Fit any saddle or cross box first. Set the side box on the bed, block it up, square it to the bed and level it, with a 1/8" gap to a cross box. Check the lid opens fully.
- Stand each leg square at the rear, inside the wheel-well line, on the bed floor (not a liner or mat). Mark the leg top and foot holes, then repeat for the other leg.
- Take the box out, drill all marks with a 3/16" bit, then open them to 1/2". Set the blind fasteners and bolt the box down with 5/16-18 x 1-1/4" bolts.
- Attach the two mounting clamps with bolt, washer and lock nut. If a stake pocket is in the way, drill it 1/2" level with the bottom of the bed lip.
- Aluminum bed: prime drilled holes with zinc rich primer and use vinyl tape between the J-bolt and the bed.
Stuck on a step?
Specifications
| Brand | Weather Guard |
|---|---|
| Part Number | 178-52-04 |
| Box type | Low Profile Lo-Side (side-rail) box, single lid |
| Material | Aluminum |
| Lock | Coded red push-button lock, 1Key UltraLock generation |
| Key alike | Yes |
| Latch | Automotive dual-stage rotary |

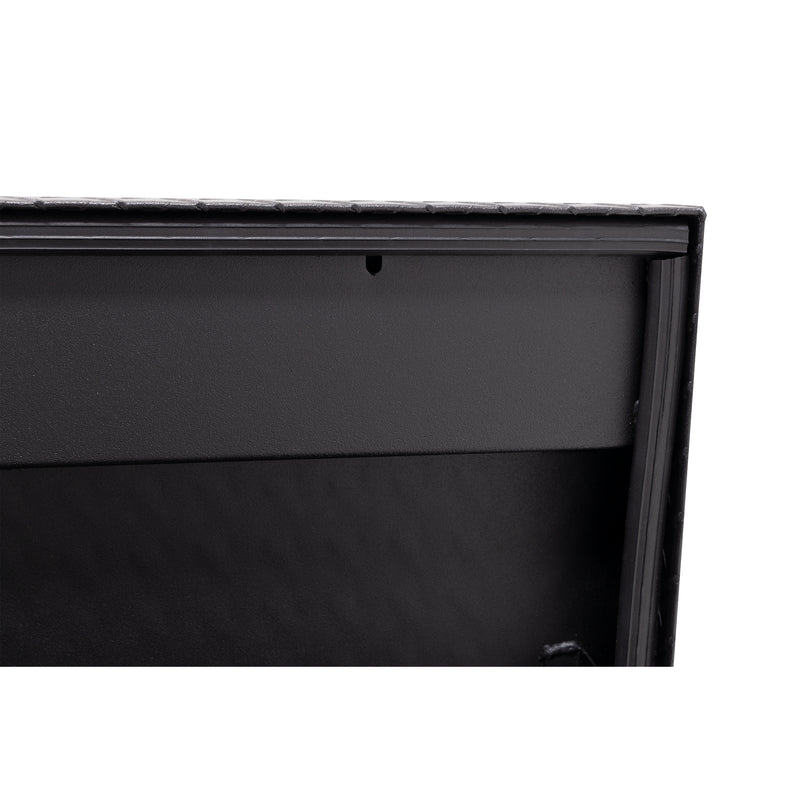

| Weather strip | Memory-resistant D-shaped ribbed |
| Lid | Heavy-duty C-channel reinforced, opens to 90 degrees |
| Front panel | C-channel reinforced |

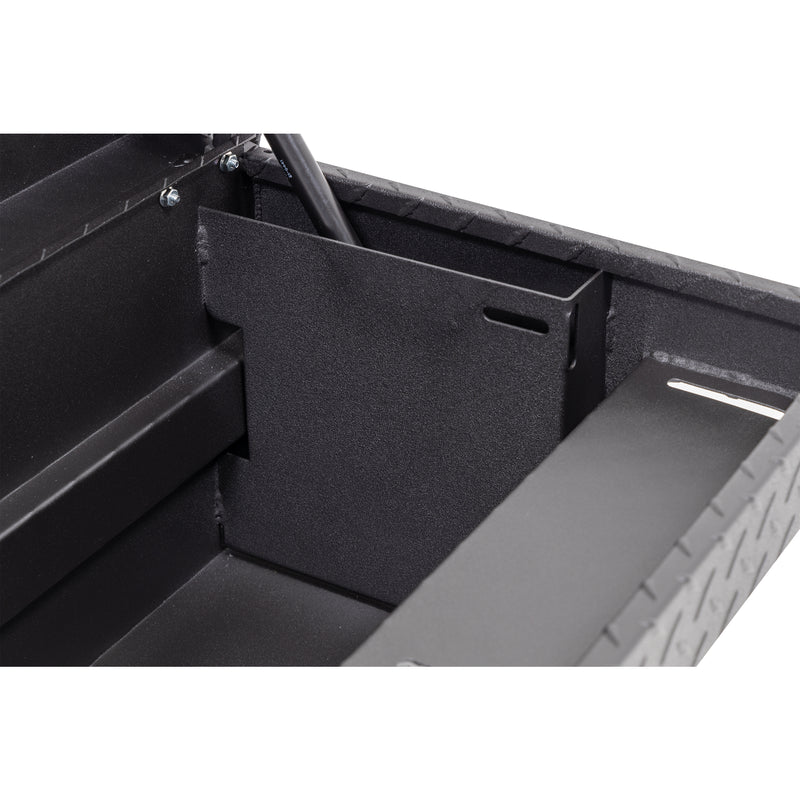

| Gas strut protection | Welded gas strut shield |
| Construction | Heavy-duty welded |
| Width x height | 17" W x 13" H |

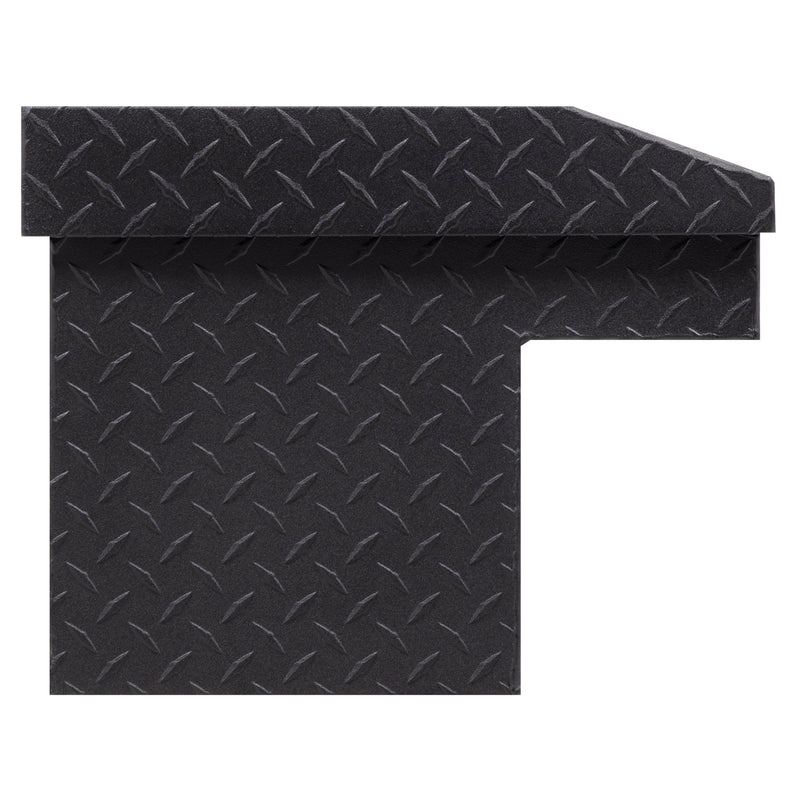

| Mounting | On top of one bed side rail |
| Bed style | Style Side |
| Country of origin | USA |
| Series | 178 Series Low Profile Lo-Side box |
| Length | 56" |
| Finish | Textured Matte Black ARMOR TUF powder coat |
| Exterior dimensions | 56" L x 17" W x 13" H |
| Capacity | 4.0 ft³ |
| Gauge | 15-ga body |
| Weight | 44.5 lb |
| Shipping dimensions | 59" L x 19" W x 14" H |
| Shipping weight | 49.5 lb |
| Warranty | Weather Guard Limited Lifetime |
| UPC | 783965071550 |
More media
3 videosWarranty, shipping & returns
-
Warranty
Weather Guard backs this box with its Limited Lifetime Warranty, issued by Werner Co.: the box is warranted against defects in material and workmanship for its expected lifetime, counted from the day you buy it.- Only the original purchaser is covered, and coverage ends if the box passes to a new owner.
- Every claim needs a copy of the original sales receipt, so keep your Prestige Truck order receipt with your records.
- Werner Co. picks the remedy: it repairs the faulty part or replaces the whole box at no charge for parts or labor, or it may refund what you paid or issue a credit toward a new Weather Guard product.
- Not covered: normal wear and tear, cosmetic rust, scratches, accident damage, repairs Werner Co. did not authorize, misuse, overloading, or a box that was not mounted or used as Weather Guard's written instructions describe. Damage to what is stored in the box or to the vehicle is excluded too.
- Where the law allows, Werner Co. accepts no liability for incidental, special, indirect or consequential damages, economic loss included. This is the only express warranty on Weather Guard products, and no dealer can change it.
- Report a problem promptly once you find it. To start a claim, contact us with your order number and photos of the issue, and we will take it up with Weather Guard for you.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Before mounting, check the carton for the two keys, the two legs, the corner bracket and the bolt kit with its two mounting clamps, then look over the lid seal and finish. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
