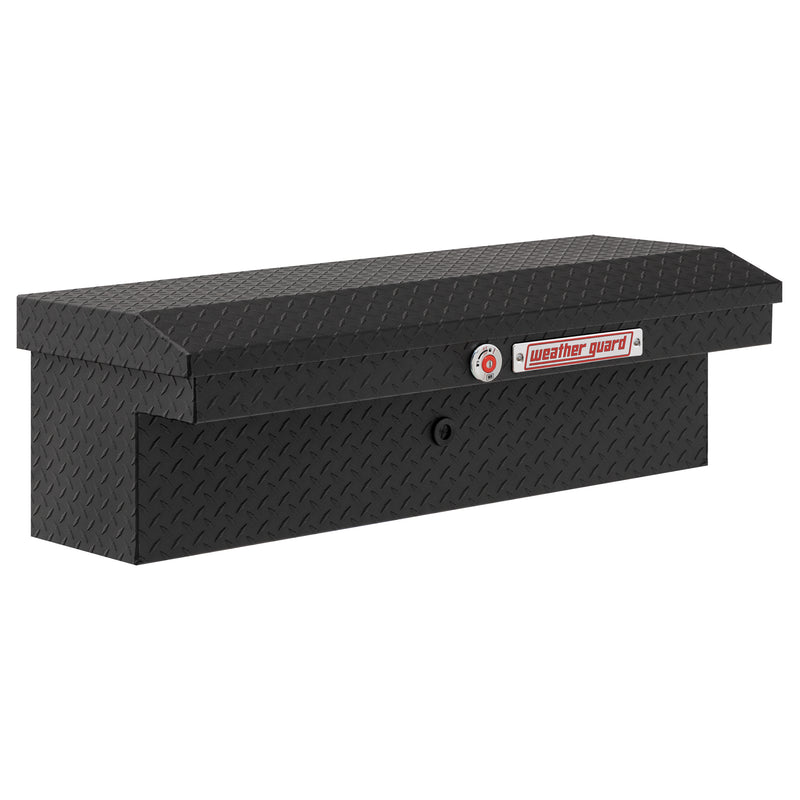

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, front three-quarter studio view with the lid closed

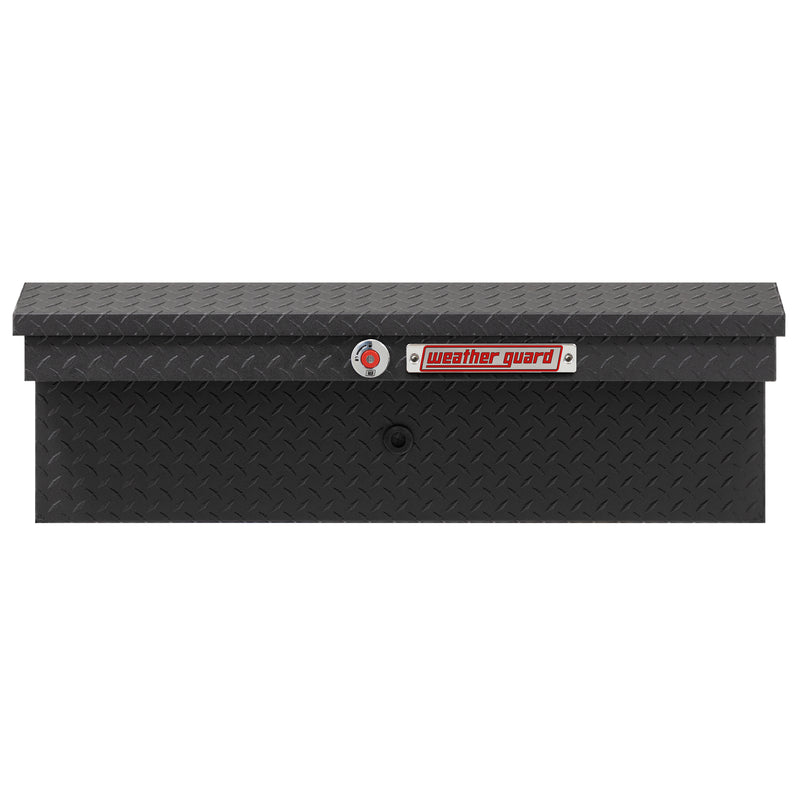

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, straight-on front elevation with the lid closed

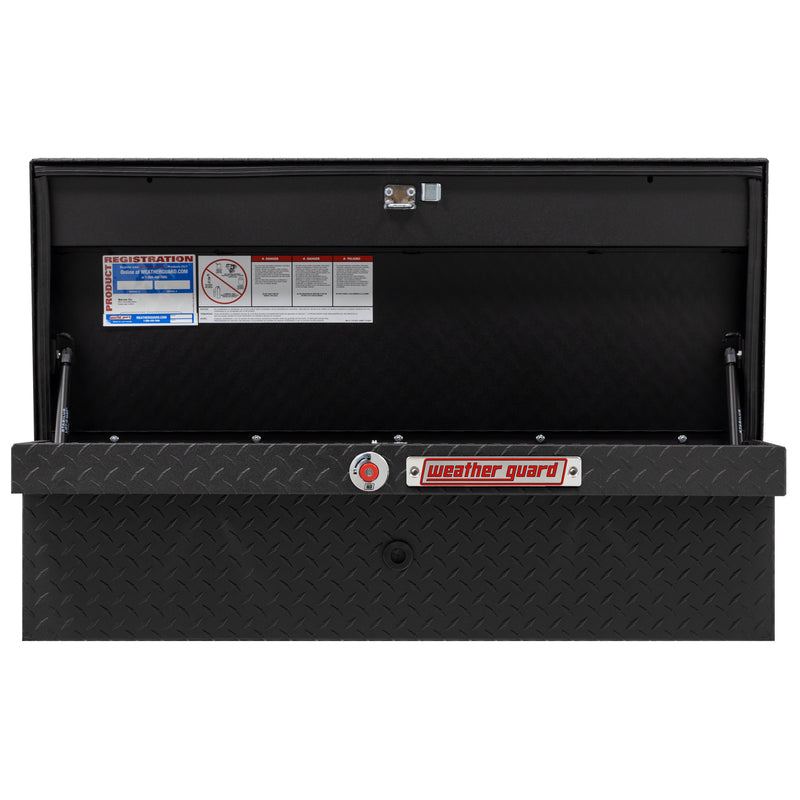

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, straight-on front view with the lid open, showing the full interior

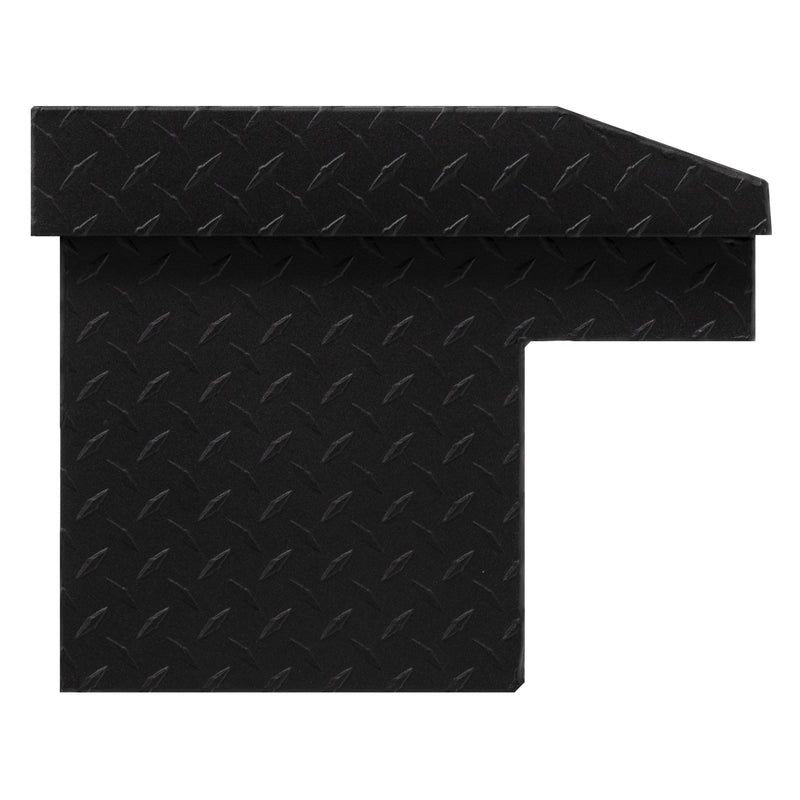

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, side profile showing the body depth and the bed-rail notch

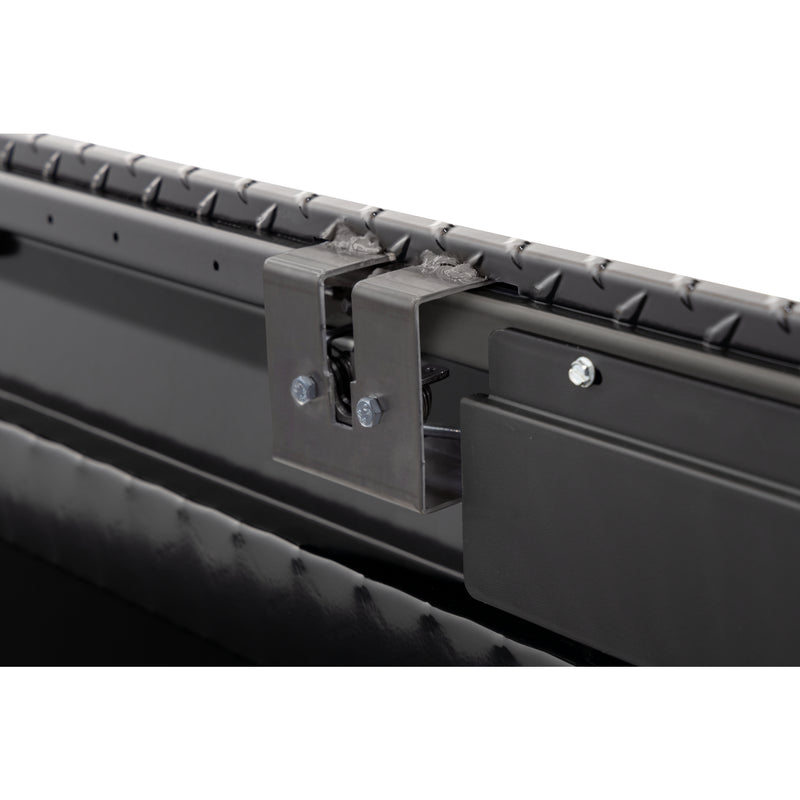

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, close-up of the rotary latch and locking mechanism inside the body

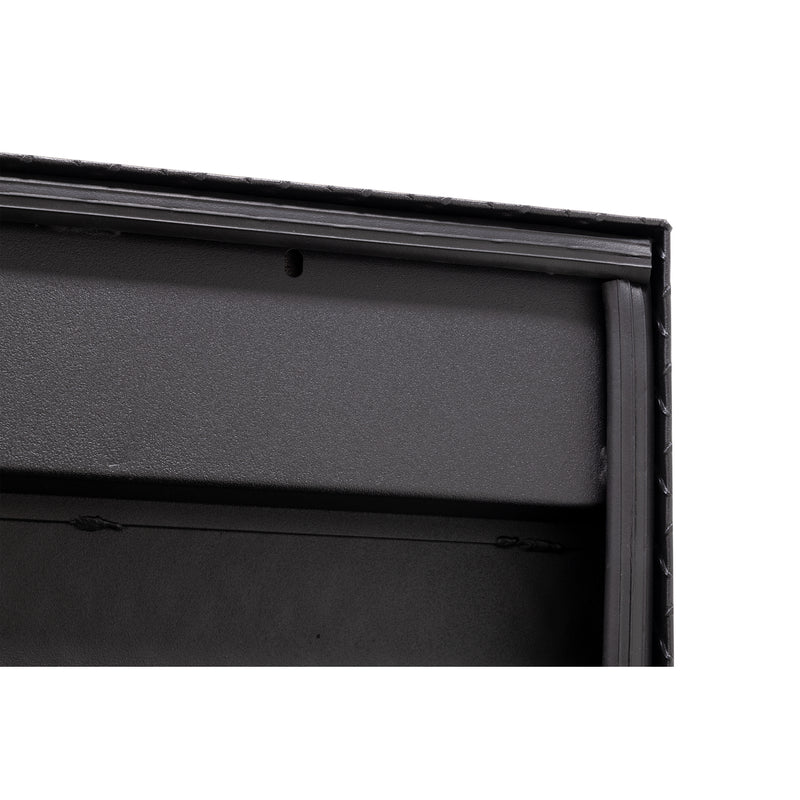

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, close-up of the D-shaped ribbed weather seal around the opening

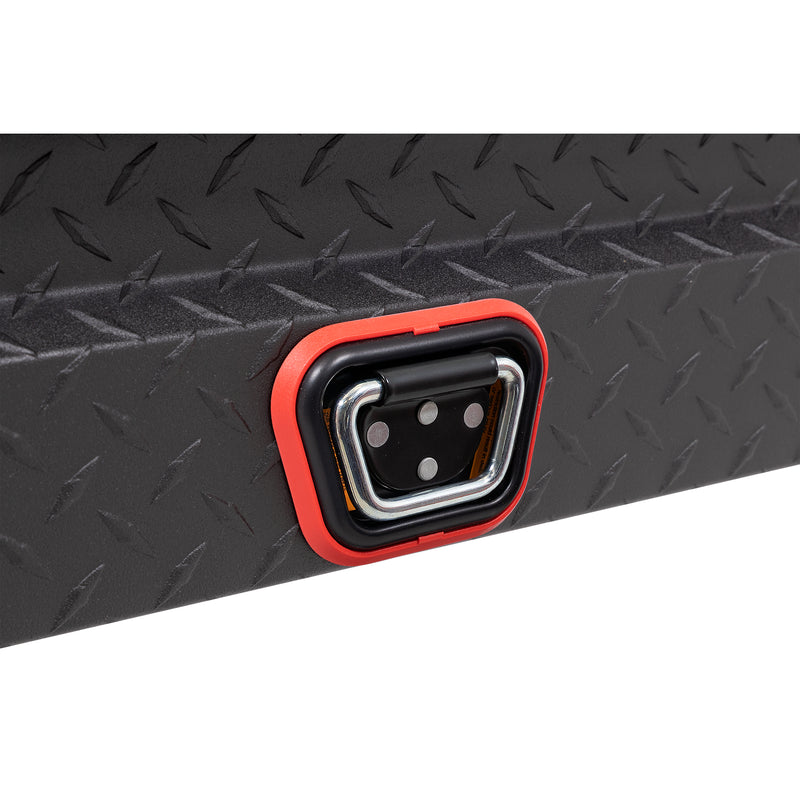

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, close-up of the reinforced tie-down buckle on the body

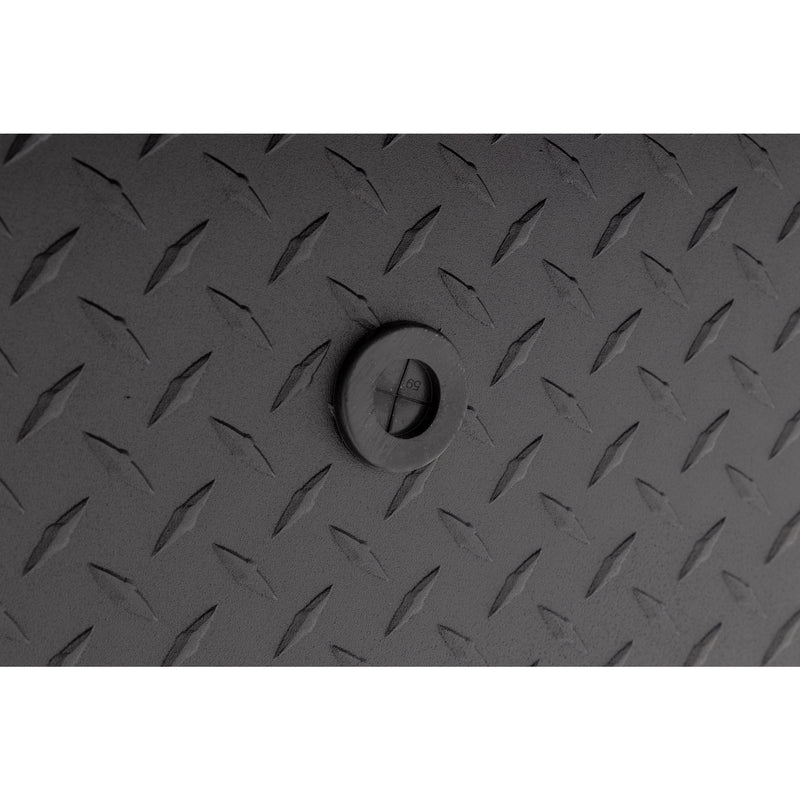

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, close-up of the 12 volt power pass access port grommet

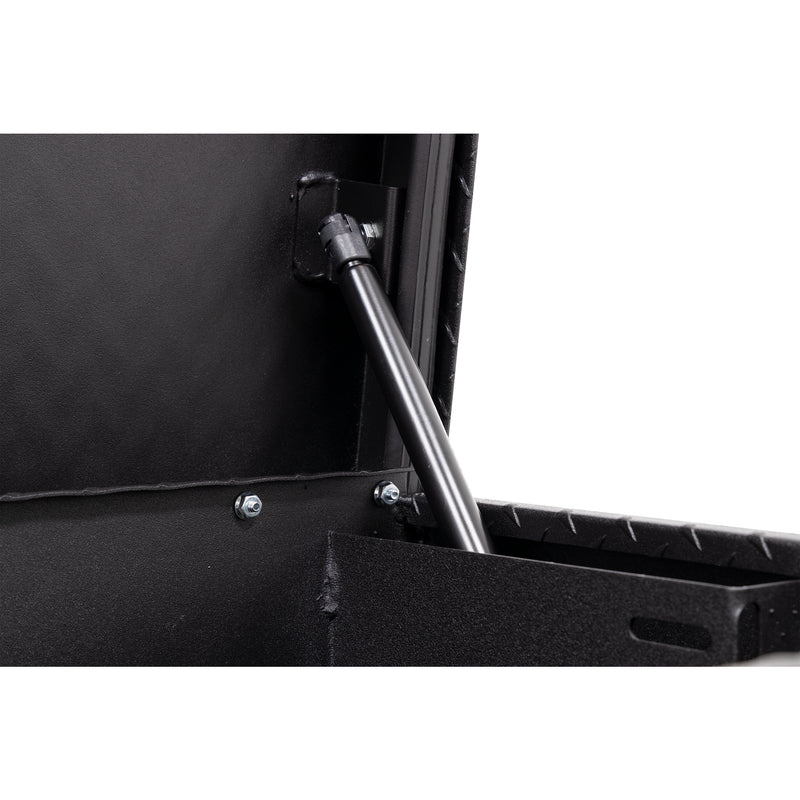

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, close-up of the gas strut holding the lid open

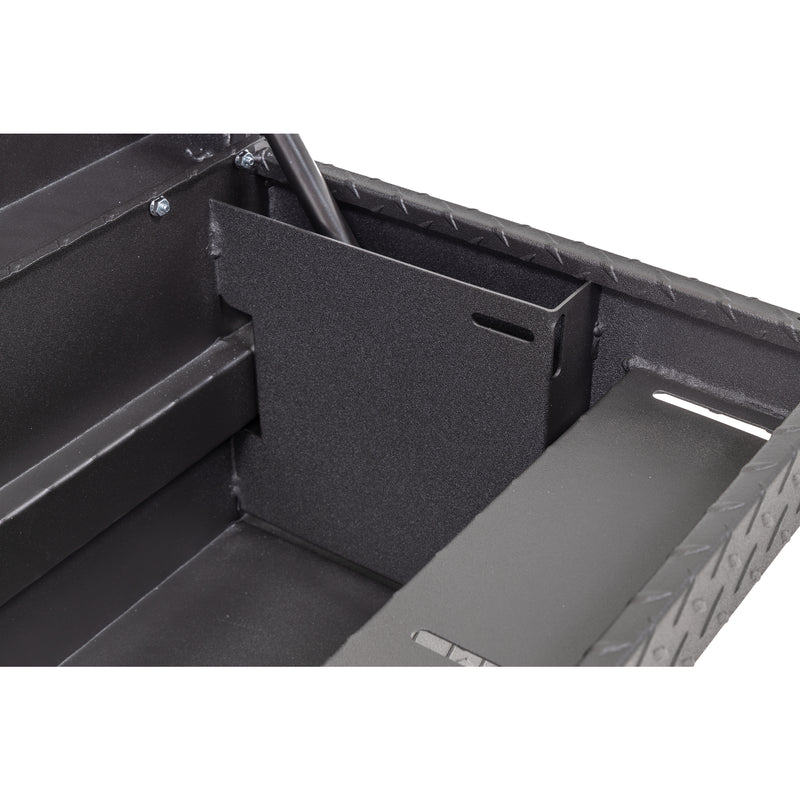

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, close-up of the welded gas strut shield inside the body

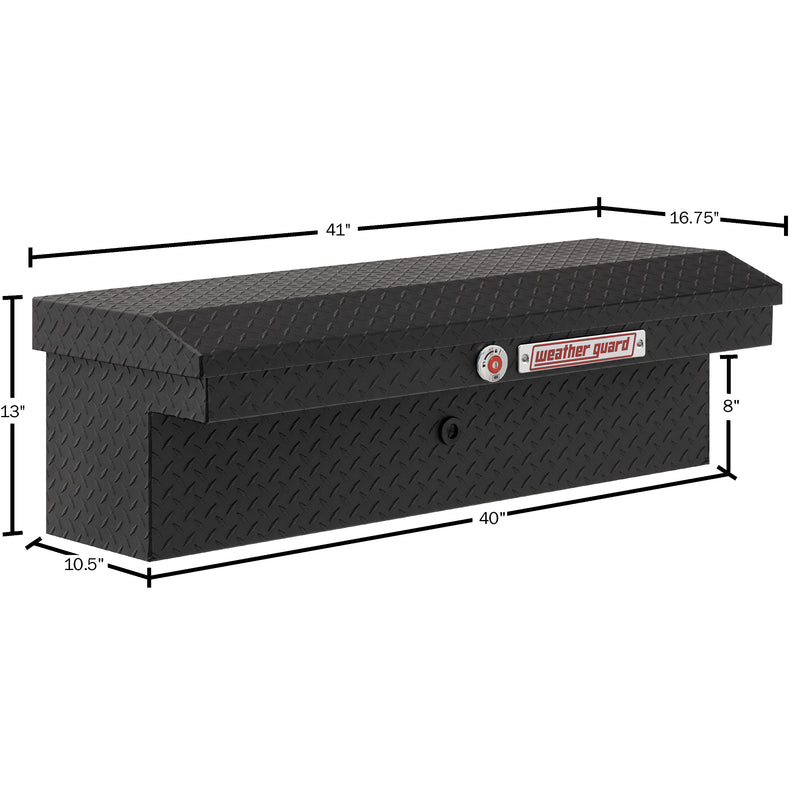

Weather Guard 180-52-04 low-profile Lo-Side box in textured matte black, dimensional line drawing with the overall length, width and height called out

Weather Guard 180 Low Profile Lo-Side Truck Tool Box, 41 in Textured Matte Black Aluminum Diamond Plate (180-52-04)

$989.00 $1,362.99 Save $373.99
FREE SHIPPINGNo sales tax Only 1 leftIn stock now  Estimated delivery
Flash Sale Ends in--:--:--

Free gift included with your order

Details
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Guaranteed FitmentTeam-confirmed fit or money back
  • No Sales TaxZero sales tax on every order
  • 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Prestige Truck customer support

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us
Push-button lock Push-button lock
90-degree lid opening 90-degree lid opening
12V access port 12V access port

Features

  • Push-button lock: A red push-button sits on the lid face, built to resist tampering; turn the key to lock it and the button stays retracted until you unlock it again.
  • 90-degree lid opening: Gas struts lift the lid straight up to 90 degrees and hold it there, so the whole box is open to you while you work.
  • 12V access port: A 12V pass-through gives you a path for power into the box, ready for lights, chargers or other electrical up-fits.
  • High-security locking: Weather Guard calls this lock system its improved high-security design, and the lock pairs with an automotive-grade latch so the lid stays shut against prying and picking.
  • Easy-close latch: Dual-stage rotary latches catch with a lighter push, so the lid closes fully without being slammed.
  • Enhanced tie-down buckles: Roomier tie-down buckles leave space for a universal strap hook, or for several straps at once, when you secure cargo in the bed.

Description & Fitment

In textured matte black over aluminum, the 180-52-04 is the 41" Low Profile Lo-Side for trucks with a darker, satin look. Expect 3.0 ft³ of room in a 41" x 17" x 13" box that weighs 35.5 lb.

Fitment & Compatibility

Chevrolet
Years Model Bed Notes
2004-2012 Colorado —
2014-2027 Colorado —
1999-2027 Silverado 1500 —
2001-2027 Silverado 2500 HD —
2001-2027 Silverado 3500 HD —
Ford
Years Model Bed Notes
1997-2027 F-150 —
2022-2027 F-150 Lightning —
1999-2027 F-250 Super Duty —
1999-2027 F-350 Super Duty —
1999-2027 F-450 Super Duty —
2022-2027 Maverick —
1998-2011 Ranger —
2019-2027 Ranger —
GMC
Years Model Bed Notes
2004-2012 Canyon —
2015-2027 Canyon —
1999-2027 Sierra 1500 —
2001-2027 Sierra 2500 HD —
2001-2027 Sierra 3500 HD —
Nissan
Years Model Bed Notes
1998-2027 Frontier —
2004-2024 Titan —
2016-2024 Titan XD —
Ram
Years Model Bed Notes
2011-2027 1500 —
2019-2024 1500 Classic —
2011-2027 2500 —
2011-2027 3500 —
Toyota
Years Model Bed Notes
1995-2027 Tacoma —
2000-2027 Tundra —

Check your fit: this 41" box is on our fitment list for full-size pickups (Chevrolet Silverado 1500, 2500 HD and 3500 HD; GMC Sierra 1500, 2500 HD and 3500 HD; Ford F-150 (Lightning included) and F-250, F-350 and F-450 Super Duty; Ram 1500, 1500 Classic, 2500 and 3500; Toyota Tundra; Nissan Titan and Titan XD) and for mid-size pickups (Chevrolet Colorado, GMC Canyon, Ford Ranger, Ford Maverick, Toyota Tacoma and Nissan Frontier). Measure the usable length of your bed side rail before you order.

Not for: flareside or step-side beds (Weather Guard lists the Lo-Side for Style Side beds). Other 180 finishes: 180-0-04, 180-5-04, 180-6-04. Other Low Profile length: 178 (56"). Not included: a crossover box. If you add one, Weather Guard's sheet has you mount it first and leave a 1/8" gap.

About Weather Guard

WEATHER GUARD.

Weather Guard is the truck and van storage brand of Werner Co., the Illinois company also known for its ladders. Its tool boxes are built in the USA, and the line runs from crossover, Lo-Side and gull-wing boxes to chests, underbody boxes, bed drawers, transfer tanks, ladder racks and van shelving.

Weather Guard's current boxes use the 1Key UltraLock, a red push-button lock you can code so one key opens every box on a truck or across a fleet, and many are finished in ARMOR TUF powder coat.

Buying Weather Guard from Prestige Truck. Weather Guard asks for the original sales receipt with any warranty claim, so keep your Prestige Truck order receipt with your records.

Frequently Asked Questions

Will it fit a Ram 1500?

It is on our fitment list for that truck. Measure the usable length of your bed side rail against this 41" box, since rail length depends on the bed.

Do I need to drill to mount it?

Yes. The Lo-Side install sheet fixes the box with mounting clamps, legs and blind fasteners in drilled holes, so plan for a drill with 3/16", 3/8" and 1/2" bits.

Do I have to drill my truck?

Yes. Weather Guard's Lo-Side install sheet sets blind fasteners in drilled holes, and a stake pocket that blocks a clamp needs a 1/2" hole. Check under the vehicle for fuel lines, the tank and wiring before you drill. For aluminum beds, the bolt kit carries an upfit kit with zinc-rich primer for the holes.

Can I run it next to a crossover box?

Yes. Weather Guard's sheet says to mount the saddle or crossover box first, then set the Lo-Side box with a 1/8" gap between the two and confirm the lid opens fully.

How does the key coding work?

The lock has no preset code: it learns the first Weather Guard key (codes B001 to B050) you code it with, and that cannot be changed later. Each box ships with one pair of matching keys, and further coded boxes can learn the same key. Note your key code, as it cannot be looked up later.

What sizes does the Low Profile Lo-Side come in?

Two lengths, both in aluminum with a 15-ga body: the 56" 178 holds 4.0 ft³ at 44.5 lb, and the 41" 180 holds 3.0 ft³ at 35.5 lb. Each comes in bright aluminum, gloss black, textured matte black or gunmetal gray.

Installation

Install time Not printed on Weather Guard's install sheet
DifficultyNot printed on Weather Guard's install sheet
TypeLo-Side box on top of one bed side rail, held by two mounting clamps, two legs and blind fasteners set in drilled holes (Weather Guard sheet 24-00156)
Toolselectric drill with 3/16", 3/8" and 1/2" bits, 1/2" deep-well ratchet, 1/2" and 9/16" open or box wrenches, carpenter's square

Here's the short version. Follow Weather Guard's install sheet (below) for the exact positions and hardware.

  1. Code the locks with your key before first use. Once a lock is coded it cannot be changed; test it five times.
  2. Fit any saddle or cross box first. Set the side box on the bed, block it up, square it to the bed and level it, with a 1/8" gap to a cross box. Check the lid opens fully.
  3. Stand each leg square at the rear, inside the wheel-well line, on the bed floor (not a liner or mat). Mark the leg top and foot holes, then repeat for the other leg.
  4. Take the box out, drill all marks with a 3/16" bit, then open them to 1/2". Set the blind fasteners and bolt the box down with 5/16-18 x 1-1/4" bolts.
  5. Attach the two mounting clamps with bolt, washer and lock nut. If a stake pocket is in the way, drill it 1/2" level with the bottom of the bed lip.
  6. Aluminum bed: prime drilled holes with zinc rich primer and use vinyl tape between the J-bolt and the bed.

Stuck on a step? Ask our install experts

Specifications

BrandWeather Guard
Part Number180-52-04
Box typeLow Profile Lo-Side (side-rail) box, single lid
MaterialAluminum
LockCoded red push-button lock, 1Key UltraLock generation
Key alikeYes
LatchAutomotive dual-stage rotary
Weather stripMemory-resistant D-shaped ribbed
LidHeavy-duty C-channel reinforced, opens to 90 degrees
Front panelC-channel reinforced
Gas strut protectionWelded gas strut shield
ConstructionHeavy-duty welded
Width x height17" W x 13" H
MountingOn top of one bed side rail
Bed styleStyle Side
Country of originUSA
Series180 Series Low Profile Lo-Side box
Length41"
FinishTextured Matte Black ARMOR TUF powder coat
Exterior dimensions41" L x 17" W x 13" H
Capacity3.0 ft³
Gauge15-ga body
Weight35.5 lb
Shipping dimensions44" L x 19" W x 14" H
Shipping weight40.5 lb
WarrantyWeather Guard Limited Lifetime
UPC783965071598

More media

3 videos

Warranty, shipping & returns

  • Warranty

    Weather Guard backs this box with its Limited Lifetime Warranty, issued by Werner Co.: the box is warranted against defects in material and workmanship for its expected lifetime, counted from the day you buy it.
    • Only the original purchaser is covered, and coverage ends if the box passes to a new owner.
    • Every claim needs a copy of the original sales receipt, so keep your Prestige Truck order receipt with your records.
    • Werner Co. picks the remedy: it repairs the faulty part or replaces the whole box at no charge for parts or labor, or it may refund what you paid or issue a credit toward a new Weather Guard product.
    • Not covered: normal wear and tear, cosmetic rust, scratches, accident damage, repairs Werner Co. did not authorize, misuse, overloading, or a box that was not mounted or used as Weather Guard's written instructions describe. Damage to what is stored in the box or to the vehicle is excluded too.
    • Where the law allows, Werner Co. accepts no liability for incidental, special, indirect or consequential damages, economic loss included. This is the only express warranty on Weather Guard products, and no dealer can change it.
    • Report a problem promptly once you find it. To start a claim, contact us with your order number and photos of the issue, and we will take it up with Weather Guard for you.

  • Free shipping

    Ships free to the lower 48 states, with no minimum order.
    • Order by 5 PM ET on a business day and it starts processing the same day.
    • Most orders arrive within 1-5 business days.
    • We email your tracking number as soon as it ships.

  • Inspect on delivery

    Before mounting, check the carton for the two keys, the two legs, the corner bracket and the bolt kit with its two mounting clamps, then look over the lid seal and finish. Check it as soon as it arrives.
    • Look for crushed ends, punctures or tears in the carton.
    • If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
    • Open the box and check the parts against the parts list before you install.
    • Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.

  • 30-day returns

    Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.
    • Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
    • Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
    • Changed your mind: you pay return shipping. No restocking fee.
    • Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
