Weather Guard 614 Aluminum All-Purpose Chest Truck Tool Box, Compact 7.0ft³, Gloss Black (614-5-04)

Get the compact All-Purpose Chest in a blacked-out finish with the Weather Guard 614-5-04. At about 40" long with 7.0ft³ of storage, it sits below the bed rail on compact and full-size trucks alike, clearing tonneau covers and caps while keeping your rear window clear. A gloss black ARMOR TUF diamond-plate finish gives it a clean, tactical look that hides scuffs, a full weather seal keeps tools dry, and the automotive-grade 1Key UltraLock latch locks everything behind a single key.

What's Included:

• One aluminum All-Purpose Chest, Gloss Black
• Offset zero-clearance cover with full perimeter weather seal
• Automotive-grade lock and latch, 1Key UltraLock compatible
• 12V access port
• Reinforced tie-down buckles
• Weather Guard installation instructions

Features

Below-Bed-Rail Fit
The 614-5-04 sits below your truck bed rail, so it preserves rear-window visibility and clears tonneau covers, lids and truck caps. You keep a tidy bed profile and still get 7.0ft³ of lockable storage.

90 Degree Zero-Clearance Cover

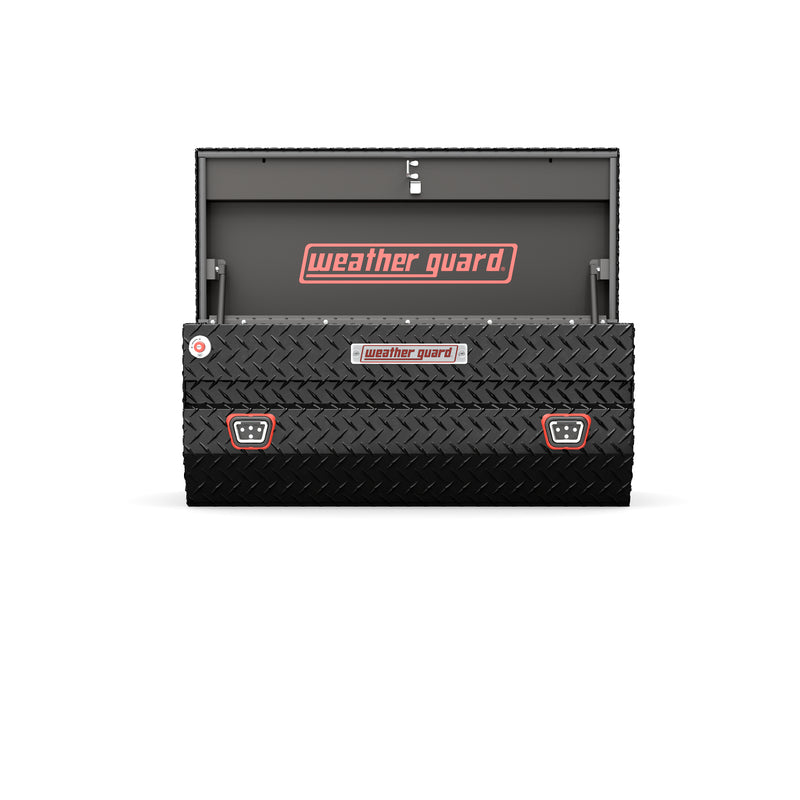

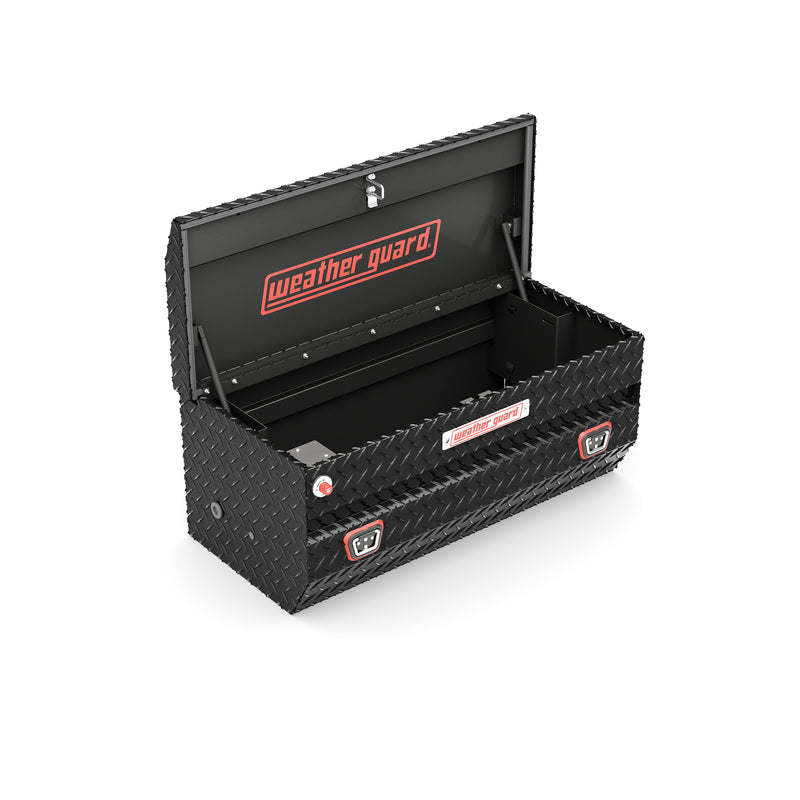

The cover opens a full 90 degrees for easy, wide-open access, and the offset zero-clearance design lets the back of the chest sit tight against the front of the bed so you do not lose usable bed length.

1Key UltraLock Compatible Security
An automotive-grade lock and latch system resists prying and tampering, and the chest is 1Key UltraLock compatible, so you can code it and every other 1Key box on your truck or fleet to a single key.

Full Weather Seal
A full perimeter weather seal keeps rain, snow and dust out, so your tools and gear stay dry and ready in wet weather and on dusty jobsites.

12V Access Port and Tie-Downs
A 12-volt access port makes electrical up-fits simple, and reinforced tie-down buckles give you enhanced attachment points for multiple strap configurations to secure the chest and lash down cargo.

Aluminum Build, Gloss Black ARMOR TUF Finish
The 614-5-04 is built from aluminum diamond plate and finished in Gloss Black ARMOR TUF powder coat, which resists corrosion, scuffs and fading for years of dependable, professional-looking service. Made in the USA.

Fitment & Compatibility

Specifications

• Style: All-Purpose Chest (below-bed-rail)
• Storage Capacity: 7.0ft³
• Exterior Dimensions: 40"L x 20"W x 16-1/4"H (compact)
• Material: Aluminum diamond plate
• Finish: Gloss Black ARMOR TUF powder coat
• Cover: Opens 90 degrees, offset zero-clearance design
• Lock: Automotive-grade lock and latch, 1Key UltraLock compatible
• Weather Seal: Full perimeter weather seal
• Electrical: 12V access port
• Tie-Downs: Reinforced tie-down buckles, enhanced attachment points
• Mounting: Sits below the bed rail against the bulkhead; secure with straps or bolt-down hardware

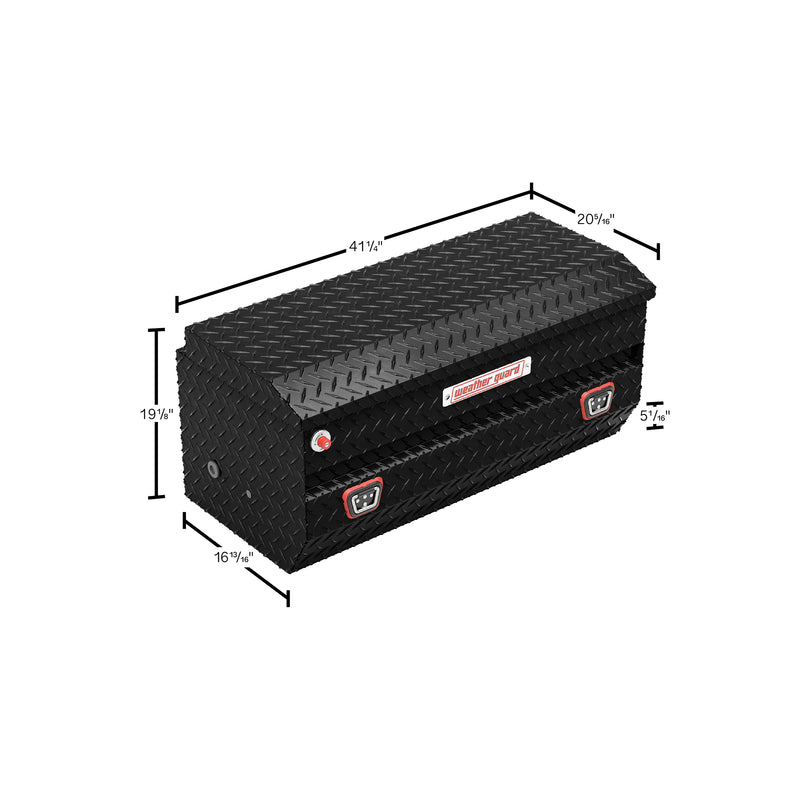

• Overall Size (Weather Guard published): 41-1/4"L x 20-1/2"W x 19-1/4"H
• Shipping Size: 41-1/2"L x 21"W x 19-1/2"H, 36.5 lb
• UPC: 783965072946
• Weight: About 36.5 lb (44 lb shipping)
• Made In: USA
• Warranty: Limited Lifetime

Installation

Type: Below-bed-rail, set in place and secure  ·  Time: About 20 to 40 minutes  ·  Tools: Tape measure and a wrench or socket set; tie-down straps or the included hardware to secure it  ·  Difficulty: Easy, best done with two people for the lift

Set the chest in the bed against the front wall so the offset back sits flush and the cover clears the bed rail. Secure it with tie-down straps through the reinforced buckles or with bolt-down hardware per the Weather Guard instructions, then confirm the cover opens a full 90 degrees and the weather seal closes all the way around. Because the chest is wide, have a second person help lift it into place.

Watch the installation walkthrough:

Resources

Everything you need for your Weather Guard 614 Aluminum All-Purpose Chest Truck Tool Box, Compact 7.0ft³, Gloss Black, in one place.

• Official Weather Guard 614 Aluminum All-Purpose Chest Truck Tool Box, Compact 7.0ft³, Gloss Black installation manual (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and torque specs.

Warranty, Shipping & Returns

Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.

Freight shipping. This item is oversized, so it ships by freight to the lower 48 states and typically arrives in 3 to 7 business days. The freight cost is shown at checkout before you pay.

Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
