19in.H....20in.W... 63.25in.L
Weather Guard 635 Steel All-Purpose Chest Truck Tool Box, 10.0ft³, White (635-3-04)
$1,066.00
Regular price
$1,494.99
Save $428.99
Free gift included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Top security protection: Weather Guard pairs automotive-grade latches with high-strength strikers, a lock-and-latch setup it says is built to stop thieves who try to pick it.
- 1Key UltraLock: Code your chests to one key and it runs a single box or a whole fleet; the red push-button stays retracted while locked so you can tell at a glance.
- Full weather seal: A seal runs around the full cover opening to keep rain, snow and road dust off the tools inside.
- Zero-clearance cover: The cover needs no room behind the chest to open, so you can push the chest tight to the front of the bed and still lift the lid to 90 degrees.
- Enhanced tie-down buckles: Larger attachment buckles leave room for more than one strap, which helps when you tie down cargo around the chest.
- 12V access port: A 12-volt pass-through gives you a ready path for wiring when you add lights, chargers or other electrical upfits.
Description & Fitment
The 635-3-04 builds the 58" full-size chest in steel under white ARMOR TUF powder coat. Capacity matches the aluminum 634 at 10.0 ft³, while the steel body brings the weight to 112.5 lb.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1999-2027 | Silverado 1500 | — | |
| 2001-2027 | Silverado 2500 HD | — | |
| 2001-2027 | Silverado 3500 HD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2027 | F-150 | — | |
| 2022-2027 | F-150 Lightning | — | |
| 1999-2027 | F-250 Super Duty | — | |
| 1999-2027 | F-350 Super Duty | — | |
| 1999-2027 | F-450 Super Duty | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1999-2027 | Sierra 1500 | — | |
| 2001-2027 | Sierra 2500 HD | — | |
| 2001-2027 | Sierra 3500 HD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2004-2024 | Titan | — | |
| 2016-2024 | Titan XD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2011-2027 | 1500 | — | |
| 2019-2024 | 1500 Classic | — | |
| 2011-2027 | 2500 | — | |
| 2011-2027 | 3500 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2000-2027 | Tundra | — |
Check your fit: this 58" chest is on our fitment list for full-size pickups: Chevrolet Silverado 1500, 2500 HD and 3500 HD; GMC Sierra 1500, 2500 HD and 3500 HD; Ford F-150 (Lightning included) and F-250, F-350 and F-450 Super Duty; Ram 1500, 1500 Classic, 2500 and 3500; Toyota Tundra; Nissan Titan and Titan XD. It sits on the bed floor against the front wall, so measure the floor width there against its 58" length.
Not for: mid-size pickups, which are not on this chest's fitment list (the compact 614 is). Other 635 finishes: 635-5-04. Other -04 chests: 614 (7.0 ft³) or 624 (8.5 ft³) or 634 (10.0 ft³).
About Weather Guard
WEATHER GUARD.
Weather Guard is the truck and van storage brand of Werner Co., the Illinois company also known for its ladders. Its tool boxes are built in the USA, and the line runs from crossover, Lo-Side and gull-wing boxes to chests, underbody boxes, bed drawers, transfer tanks, ladder racks and van shelving.
Weather Guard's current boxes use the 1Key UltraLock, a red push-button lock you can code so one key opens every box on a truck or across a fleet, and many are finished in ARMOR TUF powder coat.
Buying Weather Guard from Prestige Truck. Weather Guard asks for the original sales receipt with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Will it fit a Ram 1500?
It is on our fitment list for that truck. Measure the bed floor width at the front wall against the chest's 58" length before ordering.
Will it fit a Colorado or Ranger?
Mid-size pickups are not on this chest's fitment list. The compact 614, at 41.25" long, is the -04 chest listed for them.
Do I have to drill my truck?
Yes. Weather Guard's sheet has you pick two bed ribs, ideally outside the frame rails, and drill 3/8" holes through the chest and the bed floor. You then bolt through, or open the bed holes to 1/2" for blind fasteners. Check under the bed for the fuel tank, lines and wiring first, and coat holes in an aluminum bed with zinc-rich primer.
How does the 1Key UltraLock key work?
Turn the key to the lock mark and the red button stays pushed in, so you can see at a glance that the chest is locked. Weather Guard says the key works across its 1Key UltraLock products, so one key can run a single chest or a whole fleet once the boxes are coded to it.
Can it sit right against the front of the bed?
Yes. Weather Guard designed the cover to open to 90 degrees with zero clearance behind the chest, so the back of the chest can sit tight to the front wall of the bed.
Does it come with a tray?
The 624, 634 and 635 chests ship with a tray. Weather Guard's parts list leaves it out of the compact 614. Each chest comes with two keys and the bolt kit.
Installation
Install time
Not printed on Weather Guard's install sheet
DifficultyNot printed on Weather Guard's install sheet
TypeAll-Purpose Chest set on the bed floor and bolted down through two bed ribs in drilled holes, with through-bolts or blind fasteners and rubber grommets (Weather Guard installation instructions for the current -04 chests: 614, 624, 634 and 635)
Toolselectric drill with 3/8" and 1/2" bits, two 1/2" and 9/16" open or box wrenches, a hammer and a marker
Here's the short version. Follow Weather Guard's install sheet (below) for the exact positions and hardware.
- Center the chest in the bed and check the lid opens without hitting anything.
- Pick two bed ribs to mount on, ideally outside the frame rails. Transfer the rib position inside the box and mark lines 3"-4" from the front and back.
- Drill 3/8" holes through box and bed at the marks and push the four rubber grommets into the box holes.
- Bolt down with one of the four styles on p5 (through-bolts or blind fasteners, with or without a bedliner). For blind fasteners, open the bed holes to 1/2".
- With a bedliner, add a 5/16" x 3/4" plastic washer between grommet and floor rib. Aluminum bed: zinc rich primer on drilled holes.
Stuck on a step?
Specifications
| Brand | Weather Guard |
|---|---|
| Part Number | 635-3-04 |
| Box type | All-Purpose Chest, sits on the bed floor |
| Lock | 1Key UltraLock red push-button lock, automotive-grade latches |
| Cover | Opens to 90 degrees with zero clearance behind the chest |
| Weather seal | Full weather seal |
| Electrical | 12-volt access port |
| Tie-downs | Enhanced attachment point buckles |
| Keys | Two keys included |
| Country of origin | USA |
| Series | 635 Series All-Purpose Chest |
| Material | Steel |
| Finish | Brite White ARMOR TUF powder coat |

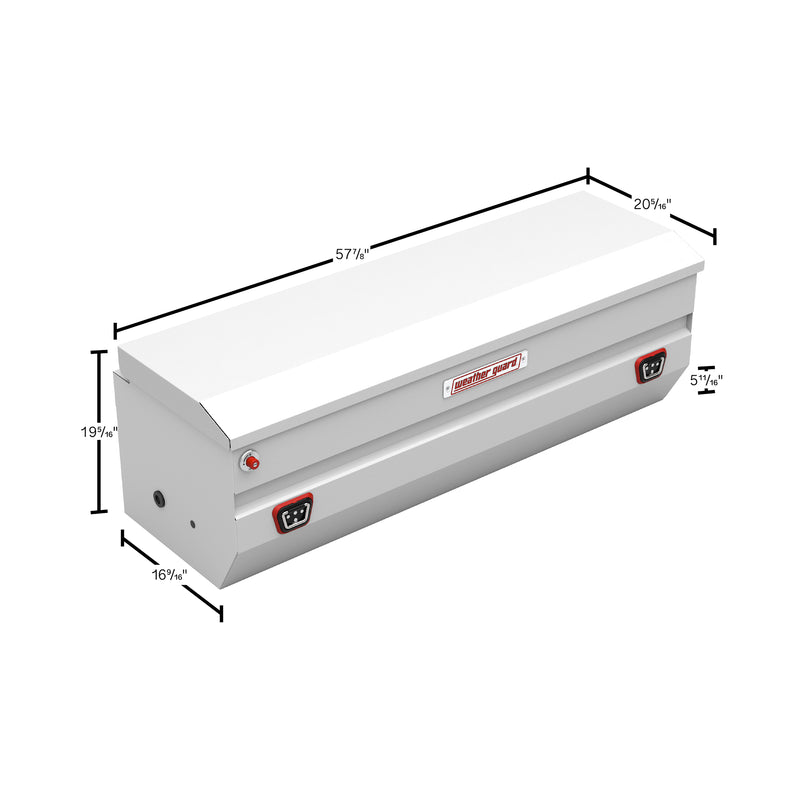

| Exterior dimensions | 58" L x 20" W x 19" H |
| Capacity | 10.0 ft³ |
| Weight | 112.5 lb |
| Shipping dimensions | 63.25" L x 21" W x 19.5" H |
| Shipping weight | 112.5 lb |
| Warranty | Weather Guard Limited Lifetime |
| UPC | 783965073011 |
More media
3 videosWarranty, shipping & returns
-
Warranty
Weather Guard backs this box with its Limited Lifetime Warranty, issued by Werner Co.: the box is warranted against defects in material and workmanship for its expected lifetime, counted from the day you buy it.- Only the original purchaser is covered, and coverage ends if the box passes to a new owner.
- Every claim needs a copy of the original sales receipt, so keep your Prestige Truck order receipt with your records.
- Werner Co. picks the remedy: it repairs the faulty part or replaces the whole box at no charge for parts or labor, or it may refund what you paid or issue a credit toward a new Weather Guard product.
- Not covered: normal wear and tear, cosmetic rust, scratches, accident damage, repairs Werner Co. did not authorize, misuse, overloading, or a box that was not mounted or used as Weather Guard's written instructions describe. Damage to what is stored in the box or to the vehicle is excluded too.
- Where the law allows, Werner Co. accepts no liability for incidental, special, indirect or consequential damages, economic loss included. This is the only express warranty on Weather Guard products, and no dealer can change it.
- Report a problem promptly once you find it. To start a claim, contact us with your order number and photos of the issue, and we will take it up with Weather Guard for you.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Check that the two keys and the bolt kit with its grommets are in the carton (plus the tray on all but the 614), then press the red button and look over the cover seal before mounting. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
