A skid plate is a sacrificial panel under the front of the truck. Its job is to let something cheap take an impact that would otherwise land on something expensive, and to let the truck slide over an obstacle rather than catch on it.
What Does a Skid Plate Protect?
The components hanging low at the front of the vehicle. On most trucks that means the steering rack, the oil pan, the transmission bell housing and the lower edge of the radiator or the air conditioning condenser. Any of those meeting a rock, a kerb or a frozen rut is a day off the road.
Bolt-On or Part of a Bar
Skid plates come two ways. Some are supplied as part of a bull bar or grille guard, hanging below the tube and covering the area directly behind it. Others are standalone panels that bolt to the frame or to factory mounting points under the engine.
The integrated version is easier, since it arrives with the bar and mounts to the same brackets. The standalone version covers more, because it is not limited to the footprint of the bar above it. Trucks that work off pavement usually end up with both.
Material and Thickness
Steel takes a hit and deforms rather than cracking, which is what you want from something designed to be sacrificial. Aluminum saves weight at the front axle and does not corrode, but it is more likely to crack than to bend at the same thickness.
- Steel: heavier, cheaper, absorbs repeated impacts well.
- Aluminum: lighter, corrosion resistant, better on a truck already at payload.
- Thickness matters more than material for a plate that sees real contact.
- Check the fastener grade. A plate is only as strong as the bolts holding it.
Clearance Is the Cost
Every skid plate hangs below something, which lowers the effective ground clearance at the point it covers. That is usually a fair trade, since a plate sliding over an obstacle is better than a sump hitting it, but it does change the approach angle slightly and it can reduce airflow to the radiator on a tightly packaged front end.
If the truck spends its life on pavement and gravel, a plate behind a bull bar is plenty. If it works on rutted sites, the fuller coverage is worth the clearance.
Fitting and Upkeep
Fasteners into the frame want anti-seize and a retorque after the first month, because a plate that takes vibration will loosen. Check the plate after any real impact rather than assuming it did its job silently, since a bent plate can transfer load into the mount it is bolted to.
Watch for corrosion where the plate traps road salt against the frame. A plate holding wet grit against a rail is doing more harm than the impact it prevented, so pull it once a year, clean behind it and put it back.

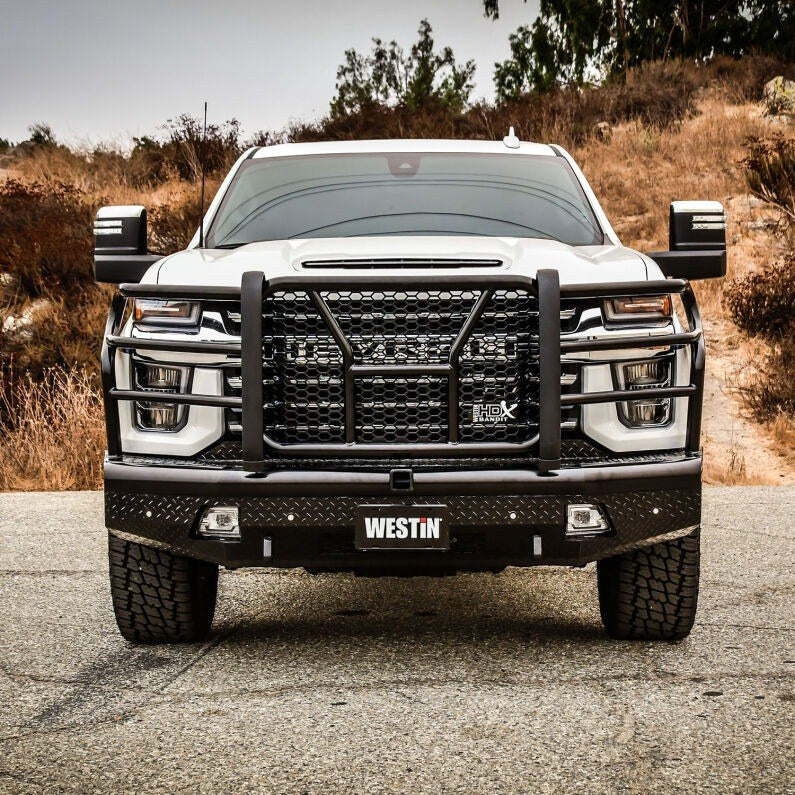

See bumpers and grille guards for bars with integrated plates, and the Westin range for the bull bar and skid plate combinations.
