A winch is only as secure as what it bolts to. The plate or bumper carrying it sees the full rated pull in a direction the factory bumper was never designed for, which is why mounting is worth more thought than it usually gets.
What Does a Winch Mounting Plate Do?
It spreads the pulling load from four winch feet into the truck's frame rails. A plate sits between the frame horns and the bumper, or replaces the bumper support entirely. Without one, the load lands on sheet metal and body mounts that will fold long before the winch stalls.
Check the Bolt Pattern First
Most full-size truck winches in the 8,000 lb to 12,000 lb range share a common footprint of about 10 inches by 4.5 inches. That is what a universal plate is drilled for. Not every winch follows it.
- The M8274 stands the motor vertically and uses its own mounting arrangement.
- Powersports winches use much smaller patterns that are specific to the machine.
- Short drum models built for hidden kits sit further back than a standard drum.
- Low profile models such as the ZEON XC series drop the height for tight bumper openings.
Read the pattern from the winch you intend to buy, then confirm the plate matches. Assuming universal means universal is the usual way this goes wrong.
Winch Ready Bumpers vs a Plate Behind the Factory Bumper
A winch ready bumper has the cradle built in, so the winch drops into a pocket engineered for the load and the fairlead opening is already cut. It is the tidier answer and usually the stronger one, since the whole bumper is designed around the pull.
A hidden plate behind the factory bumper keeps the truck looking stock and costs less. The tradeoffs are access to the drum, restricted airflow around the motor and a fairlead opening that has to be cut to suit. On a truck that winches occasionally, that is a fair trade. On one that recovers regularly, the bumper is the sounder route. See bumpers and grille guards.
Fairlead and Clearance Details

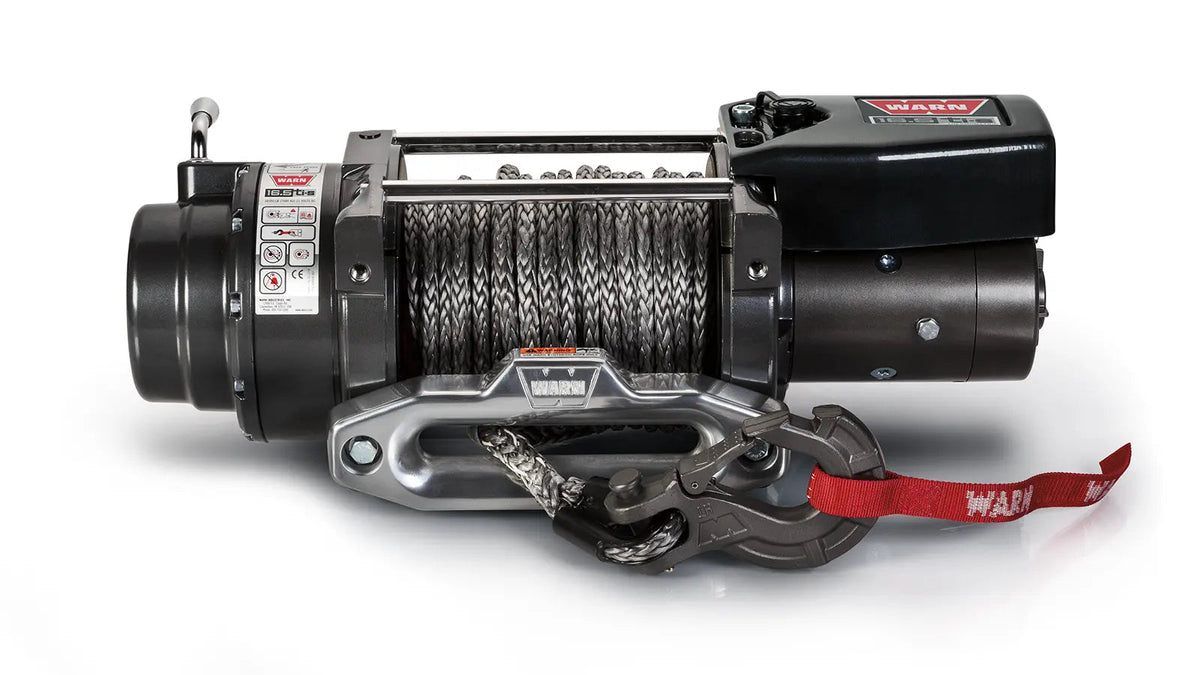

The fairlead has to line up with the drum, and the rope needs a straight run to it. A roller fairlead adds depth ahead of the winch, so measure it into the total. A hawse fairlead is thinner but only suits synthetic rope, and the two are not interchangeable.
Then check what sits behind the bumper. Radiators, air conditioning condensers, tow hooks and parking sensors all compete for the same space, and a winch pushed too far back cooks its own motor on a long pull.
Getting It Right First Time
Pick the winch, confirm its bolt pattern and drum length, then choose the mount. Doing it in that order avoids the common outcome of a plate that fits the truck but not the winch. Browse truck and SUV winches, then see winch accessories for fairleads and controls.
