Access Limited Edition Soft Roll-Up Tonneau Cover for 2017-2025 Honda Ridgeline (5'4" Bed)
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck

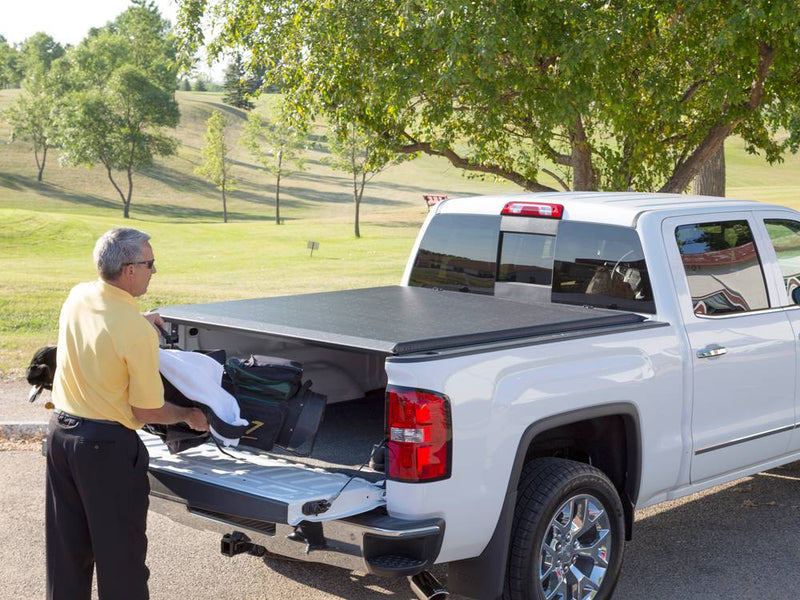

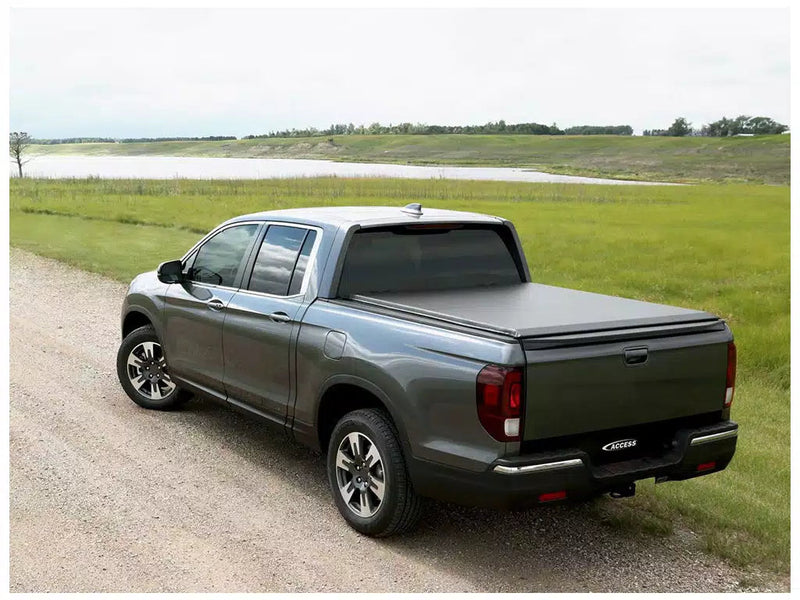

See it on a truck

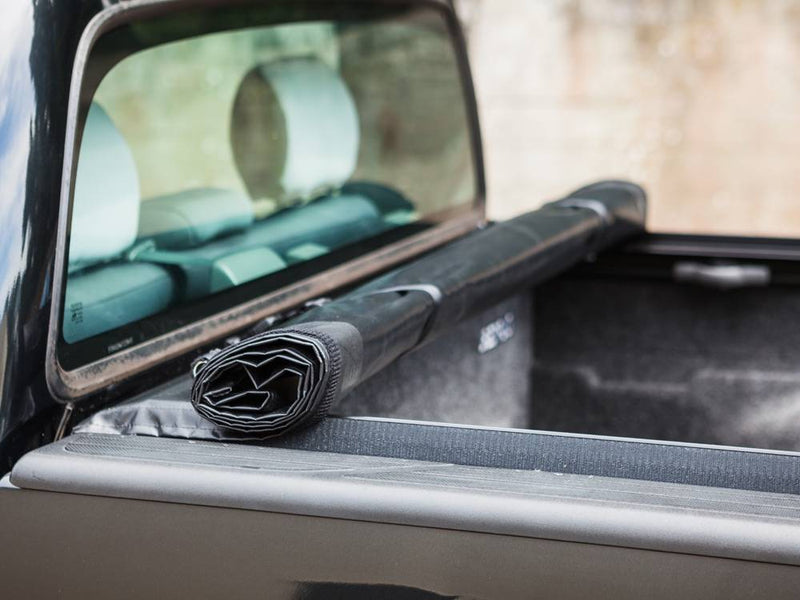

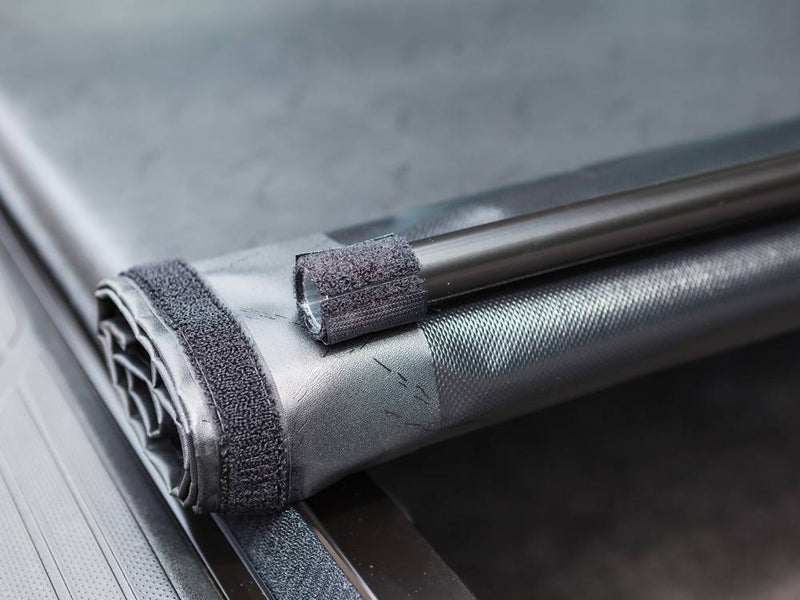

Rolls to the cab, strapped

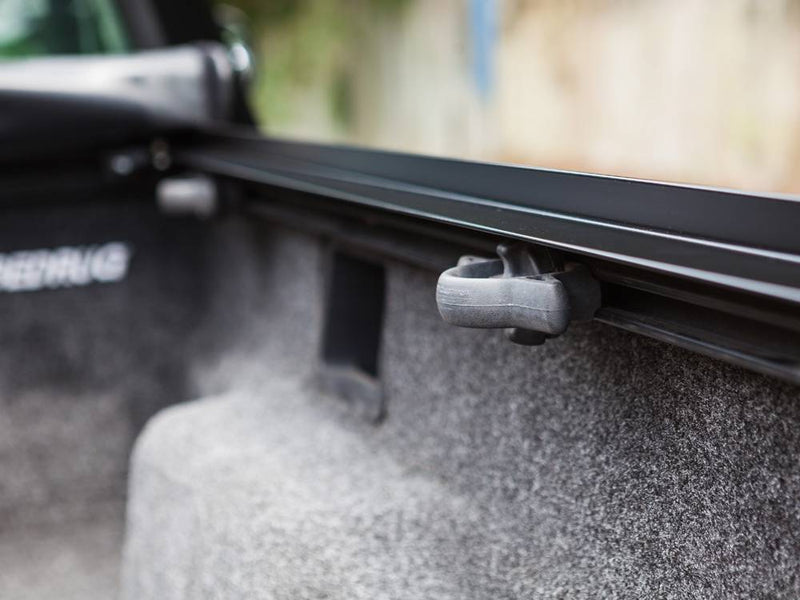

Clamps with tie-down rings
Features
- Five Accessories in the Box: Every Limited Edition ships with a TrailSeal tailgate gasket, an 18" AA battery LED light, the EZ-Retriever II cargo reaching tool, an EZ-Holder kit to stow it and a 2 oz sample of Cover Care cleaner. On other Access covers these are extra-cost options.

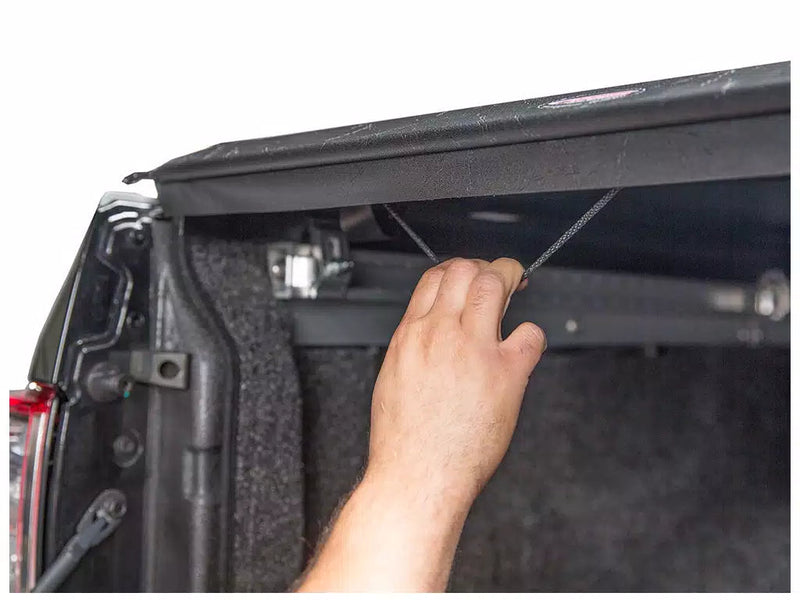

- AutoLatch II Locks Itself Shut: With the tailgate open, a pull on the cord from either side lets both nylon latches go together. Press the rear bar down to close and the latches catch under the side rails on their own, with 1/2" of latch contact.

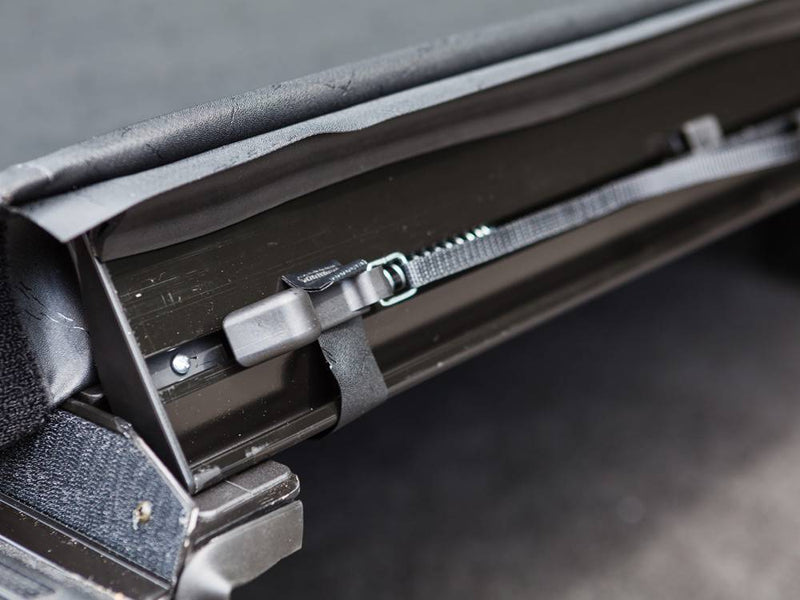

- EZ-Dial Tension at the Tailgate: Hand dials near the tailgate set how tight the vinyl sits, with no tools. Release the rear bar and turn both the same amount, clockwise to tighten; Access says a drum-tight cover runs quieter and is less likely to hold standing water.
- Sealed on All Four Sides: Front and rear vinyl seals, foam along both side rails, an Element Seal gasket across the front of the bed and rear corner seals close the gaps, the included TrailSeal gasket seals around the tailgate, and a 1-1/2" hook-and-loop strip seals each side. It is weather-resistant, not waterproof; Access notes some moisture and dust can still get in.

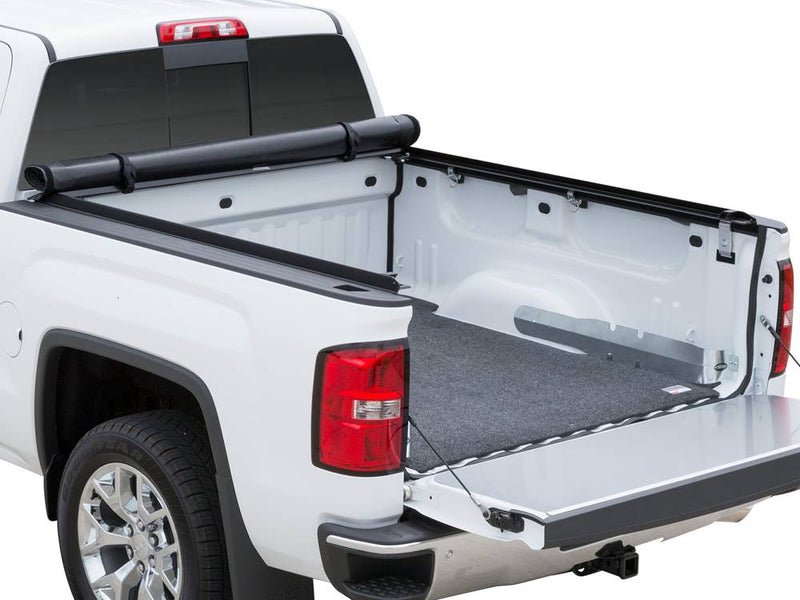

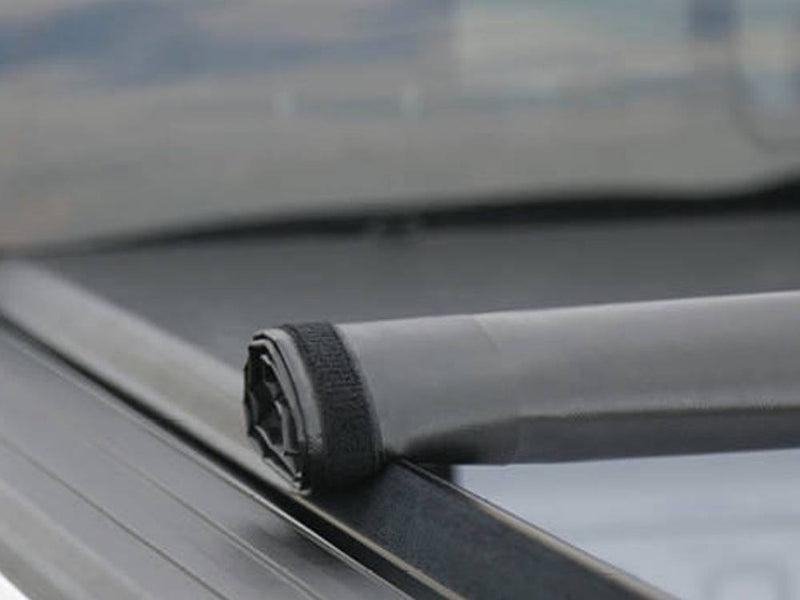

- Rolls to the Cab, Strapped: One person can roll the cover up toward the cab and open the whole bed. Heavy-duty nylon straps with a cab-guard buckle hold the roll off the cab, then clip to buckles underneath when the cover is closed.
- Clamps With Tie-Down Rings: Tight Bite clamps hold the black aluminum rails inside the bed walls with no drilling on most trucks: 6 on most short beds, 8 on long beds. Access fits them with tie-down rings for securing cargo, except on utility-rail and bolt-on trucks.
Description & Fitment
The Access Limited Edition is a soft roll-up tonneau cover for the 2017-2025 Honda Ridgeline with the 5'4" bed. Five accessories come in the box, the AutoLatch II locks it shut on its own and EZ-Dial tension adjusts at the tailgate. It is sealed on all four sides and rolls to the cab, where it straps in place. It installs with rails and brackets made for the Ridgeline, and Access notes it limits how far the in-bed trunk lid opens.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2017-2025 | Ridgeline | 5'4" |
Check your bed: Measure inside the bed floor from the bulkhead to the closed tailgate. This part is for the 5'4" box. Access notes this cover limits how far the in-bed trunk lid opens.
Not for: other bed lengths or generations of these trucks. Not confirmed: 2026-2027 Honda Ridgeline.
About Access
Access roll-up covers come from Agri-Cover, Inc. of Jamestown, North Dakota, which says its covers are built there. Agri-Cover says it introduced the first roll-up tonneau cover, the Access Original, in 1991; it also makes LOMAX hard covers, truck racks and farm roll tarps.
Access calls the Limited Edition its best premium tonneau cover. It builds on the Original's 1-1/2" frame and AutoLatch II latches, then adds EZ-Dial adjusters at the tailgate, clamps with tie-down rings and five accessories in the box.
Authorized Access dealer. Agri-Cover sells Access covers through what it calls "Authorized Dealers all across the country" and "authorized online retailers." Your Access Limited Edition carries Agri-Cover's 5-year limited warranty.
Frequently Asked Questions
Will this fit my 2017-2025 Honda Ridgeline?
Yes, if it has the 5'4" box. Measure inside the bed floor from the bulkhead to the closed tailgate and match it to the label. If you're unsure, send us your VIN and we'll check.
Does it fit a 2026-2027 Honda Ridgeline?
Not confirmed. This part is verified for the trucks listed in the fitment table; the 2026-2027 Honda Ridgeline is not on the verified list. Send us your VIN before ordering.
How is the Limited Edition different from the Original?
Both ride 1-1/2" above the bed rails on black rails, bars and 3 bows, with AutoLatch II latches, four-side sealing, the Slantback rear bar and a 5-year limited warranty. The Limited Edition moves to EZ-Dial adjusters near the tailgate, uses clamps with tie-down rings on most trucks and adds five accessories in the box.
Will it keep rain and snow out of the bed?
It is built to keep most of it out: seals on all four sides, foam between the rails and the bed, a gasket at the front, rear corner seals and a TrailSeal gasket for the tailgate gaps. Access's own sheet says no cover stops all moisture and dust, so wrap cargo that must stay dry and seal any factory holes or stake pockets. Brush snow off before you roll it up.
Does the cover lock?
The latches engage on their own every time you close it, and the release cord is reached from the open tailgate. Access says that with a locking tailgate the bed becomes a secure unit. It is a deterrent rather than a safe, so don't leave valuables in an unattended truck.
Will it work with my bed liner?
Usually, yes. Access lists spray-in liners, bed mats and most under-the-rail drop-in liners as compatible. Its sheet says an under-the-rail drop-in needs a little trimming at the front corners and near the tailgate, while an over-the-rail drop-in needs a lot more.
Installation
- 1/2" wrench
- Torque wrench with a 1/2" socket
- Tape measure
- Marking pen
- Scissors
- Safety glasses
Here's the short version. Follow Access's install sheet (below) for your truck's exact clamp positions, plus any special sheet your truck needs.
- Clamp the side rails. Set each rail with its weather strip against the inside lip of the bed, pushed forward to the front wall with the nylon strike at the tailgate end (long beds join the two rail sections first). Hold the front flush with the top of the bed, then clamp from front to back, 3 or 4 clamps a side depending on the truck, with the teeth in the rail grooves and the rail level, and torque each clamp to 20 ft-lb or the value on your truck's special sheet.
- Fit the bulkhead seal gasket. With the air and surface above 60°F, wipe the top of the front wall with the alcohol pad and keep the pad for the next step. Peel and stick the gasket from the front of one rail to the opposite corner, raised side along the inside edge of the bed, and cut it to length.
- Add the rear seals. Clean the underside of each rail end with the saved pad, mark and notch the rear seal's leg so its end meets the edge of the bed, then stick a seal to the tailgate end of both rails.
- Mount the cover to the rails. Set the pre-rolled cover on the rails, front bar up and straps toward the tailgate, and loosen the thumb wheels if needed. Roll the front bar onto the rails with the vinyl flap tucked under it, slide the thumb wheels under the rails until they seat in the notches, center the front bar and tighten the wheels fully.
- Close and set the rail height. Unroll the cover, set the rear bar in the strikes and press it down. Close the tailgate slowly; it should sit snug under the rear bar, so raise or lower the rails at the rear to suit, then re-check each clamp's torque, working from the cab back.
- Set the tension and seal. Open and close the rear bar a few times: it should snap shut, with no sag in the vinyl between the bows. To adjust, release the rear bar and turn both adjusters the same amount (clockwise tightens), then seal both sides with the hook-and-loop.
- ACCESS Limited Edition Roll-Up Cover Installation Instructions 4008676 (short/standard box) (PDF)
- 17-ON Honda Ridgeline, Special Instructions for Rails and Brackets 2000030 (PDF)
Stuck on a step?
- Pre-rolled cover assembly with front bar, rear bar, support bows, dual latches and storage straps
- Driver and passenger side rails (two-piece rails on long beds)
- Tight Bite clamps (6 or 8, by bed length)
- Seal gasket and 2 rear seals
- Alcohol prep pad
- TrailSeal tailgate gasket, 18" AA battery LED light, EZ-Retriever II cargo reaching tool, EZ-Holder kit and 2 oz Cover Care sample (five accessories)
Specifications
| Brand | Access (Agri-Cover, Inc.) |
|---|---|
| Part Number | ACC26039 |
| Cover Type | Soft roll-up |
| Cover Material | Textured vinyl, reinforced, commercial grade, UV protected |
| Color | Black |
| Cold Weather | Vinyl stays flexible to -40°F |
| Profile | 1-1/2" above the bed rails |
| Frame | Black aluminum side rails, bars and 3 bows |
| Latch | AutoLatch II dual locking system, nylon latches, 1/2" latch engagement |
| Tension Control | EZ-Dial tension adjusters near the tailgate, no tools |
| Sealing | Front and rear vinyl seals, side-rail foam, Element Seal bulkhead gasket, rear corner seals |
| Side Closure | 1-1/2" slide-in hook and loop |
| Rear Bar | Slantback rear design |
| Storage Straps | Heavy-duty nylon, cab-guard buckle design |
| Mounting | Tight Bite clamps with tie-down rings, no drilling on most trucks (6 on most short beds, 8 on long beds); no rings on utility-rail or bolt-on trucks |
| Included Accessories | Five: TrailSeal tailgate gasket, 18" AA battery LED light, EZ-Retriever II, EZ-Holder kit, 2 oz Cover Care sample |
| Built In | Jamestown, North Dakota, USA |
| Bed Length | 5'4" |
| UPC | 813072021930 |
More media
8 videosWarranty, shipping & returns
-
Warranty
Agri-Cover, which makes Access covers, gives the Limited Edition a 5-year limited warranty against defects in material and workmanship, under normal use on the truck model the cover was made for.- The 5 years run from the date you received the cover or its date of manufacture.
- Agri-Cover repairs or replaces defective parts, at its option. No labor or service allowance is included, and incidental or consequential damages are not covered.
- Not covered: ordinary wear and tear, or damage caused by an accident, abuse, misuse, neglect, an alteration or a faulty installation.
- To make a claim or get registration help, email support@prestigetruck.com with your order number and the serial number (it is on a decal under the rear bar by the tailgate); we handle the claim with Agri-Cover.
- If Agri-Cover needs the cover back for inspection, we arrange the return authorization (RA); you ship it freight prepaid, and Agri-Cover pays the freight to send it back.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- The rolled cover ships in a long box, by freight or oversized parcel carrier depending on its size.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
This roll-up cover ships in a long box. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
