BAKFlip F1 Hard Folding Tonneau Cover for 2015-2020 Ford F-150 / F-150 Raptor (5'7" Bed)

This is the most common F-150 configuration there is: 2015-2020 SuperCrew, 5'7" bed, and for four of those years the Raptor sat on the same box. It is also the aluminum-body generation, so anything you bolt to the bed should clamp rather than drill. The F1 does exactly that, and it is the low-profile cover in BAK's hard-folding range, which suits a truck whose whole design language is flush surfaces. Fiber-reinforced top skins over a high-density foam core give it 400 lb evenly distributed and a top that does not dent, and each panel latches into the aluminum side rail as you fold the cover shut.

What's Included:

• BAKFlip F1 hard folding tonneau cover, pre-assembled
• Two clamp-on aluminum side rails
• Clamp set and hardware kit
• Integrated buckle straps and prop rods
• BAKFlip hard-folding install guide

Features

FRP Top Skins Over a High-Density Foam Core

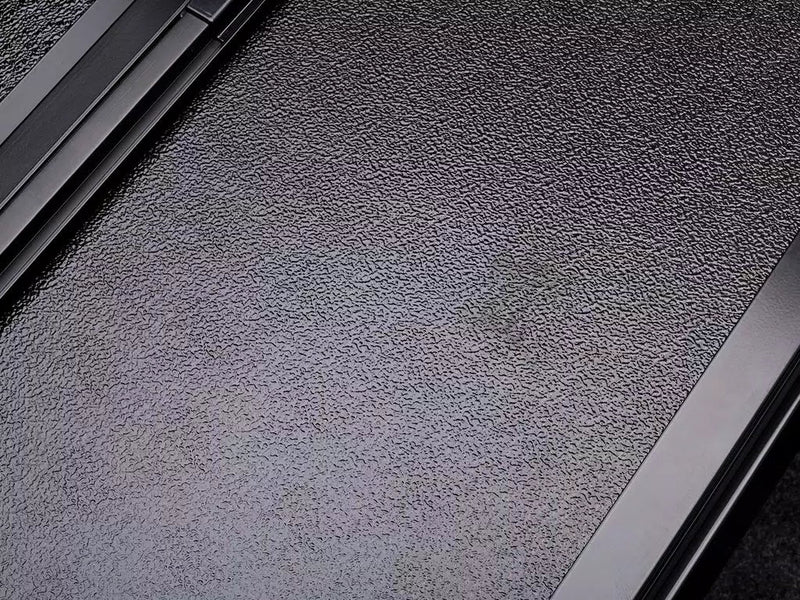

The F1 is built in layers. Heavy-duty fiber-reinforced plastic top skins take the hits, a rigid high-density foam core carries the load, and powder-coated aluminum bottom skins close the sandwich. That construction is what lets the closed cover hold 400 lb evenly distributed and shrug off dropped gear, branches, and hail that would dent a single-layer panel.

Ultra-Low-Profile, Nearly Flush With Your Bed Rails

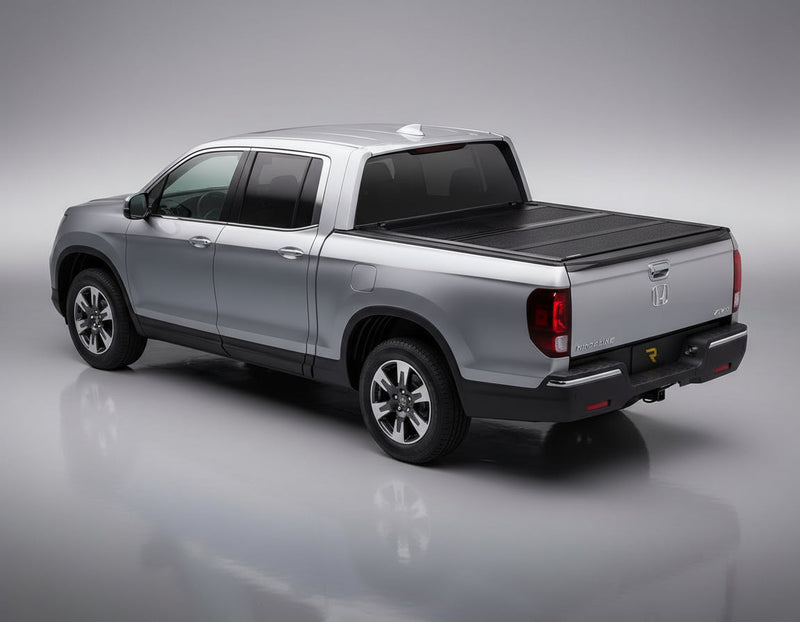

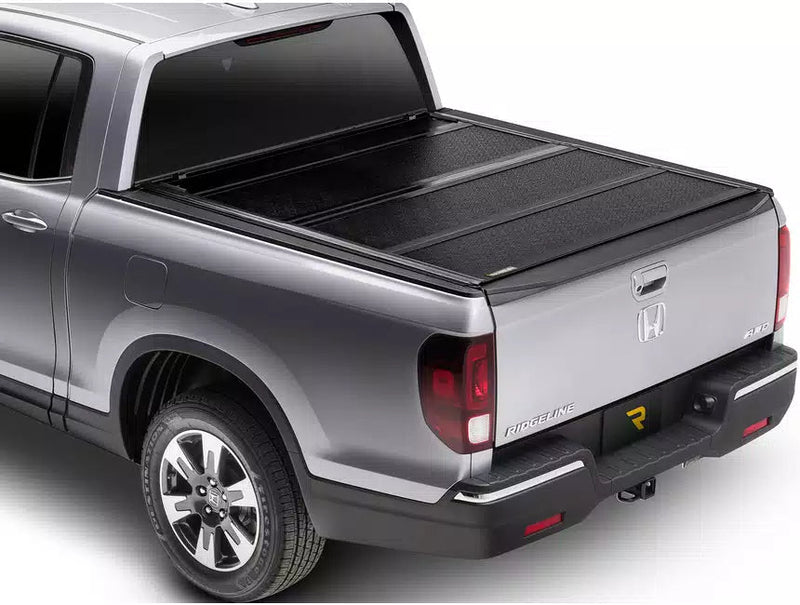

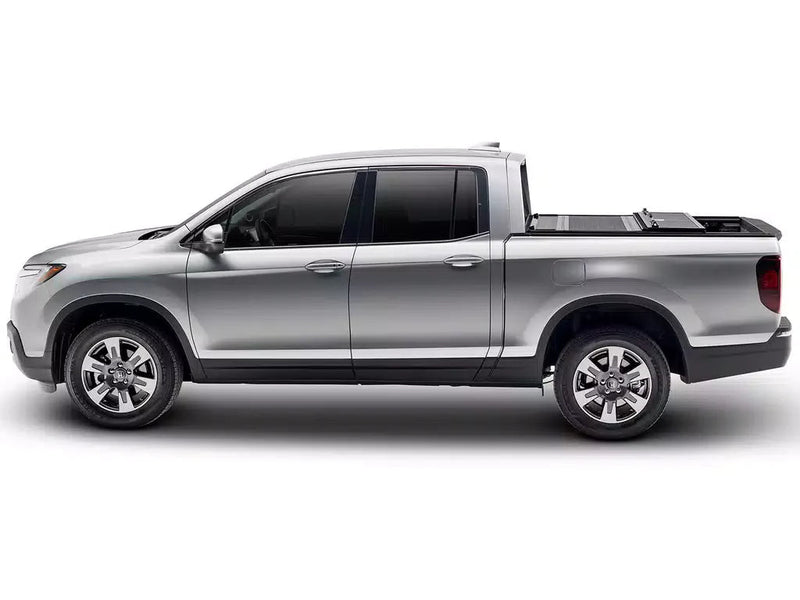

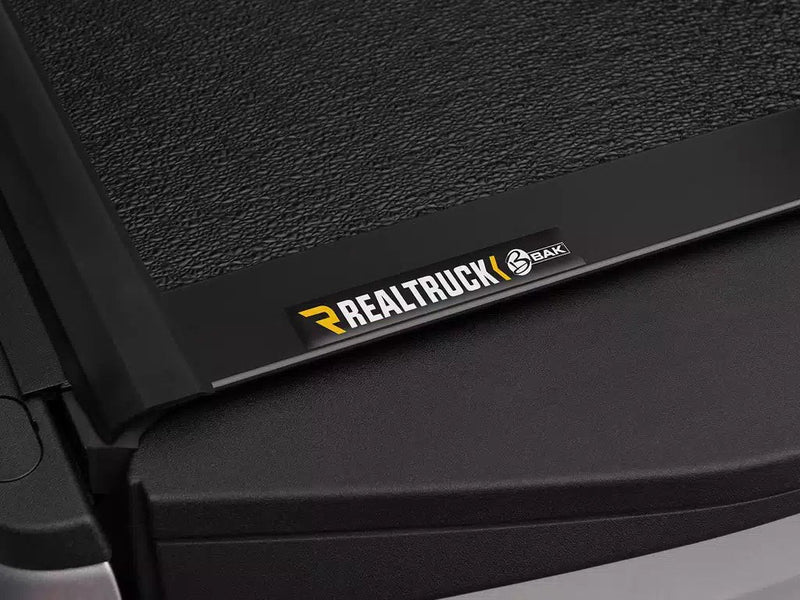

This is the low-profile one. The panels sit nearly flush with the top of your bed rails, so from the side the cover almost disappears and the truck keeps its factory line. The textured gloss-black finish reads as trim, not as an add-on bolted to the bed.

Panels That Latch Themselves Into the Side Rails
Close the cover and each panel automatically latches into the aluminum side rails. There is no loose edge for someone to get a bar under, and no separate locking step to forget. To open, reach under the rear panel and pull the release cable.

Wrap-Around Seals and a Real Drainage System

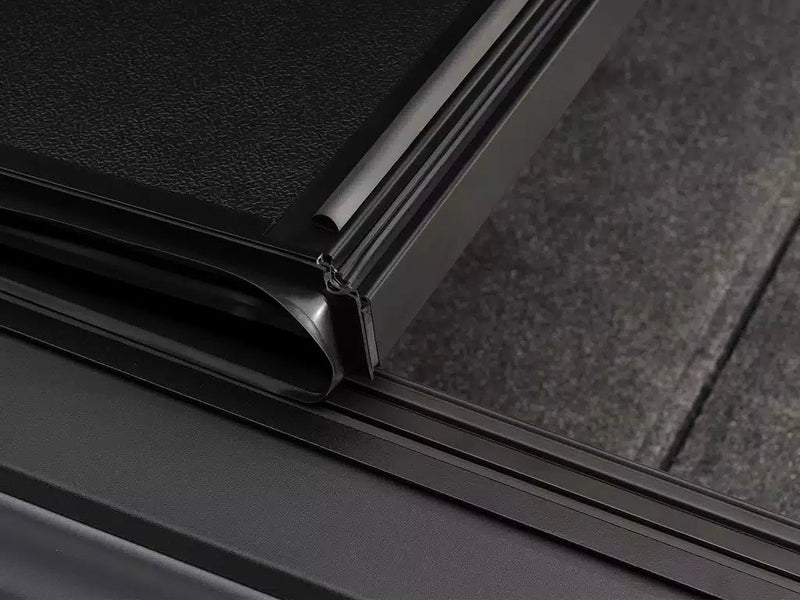

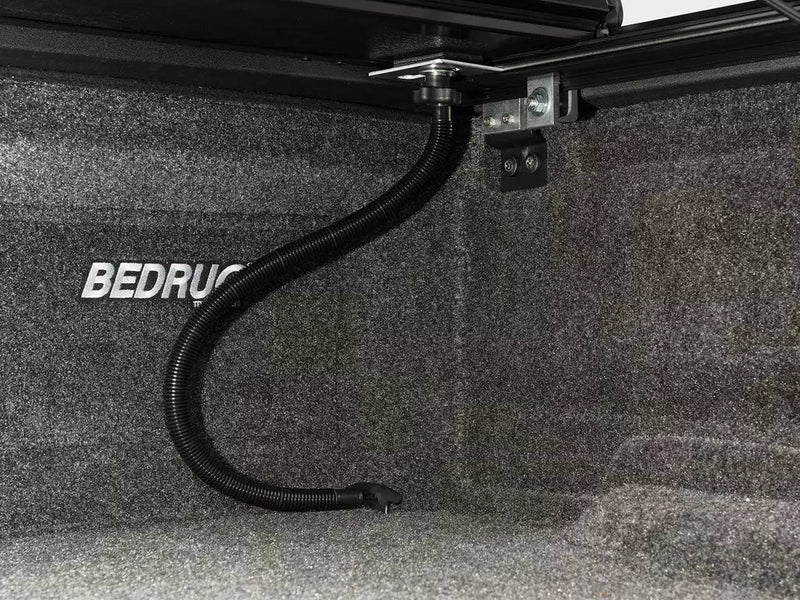

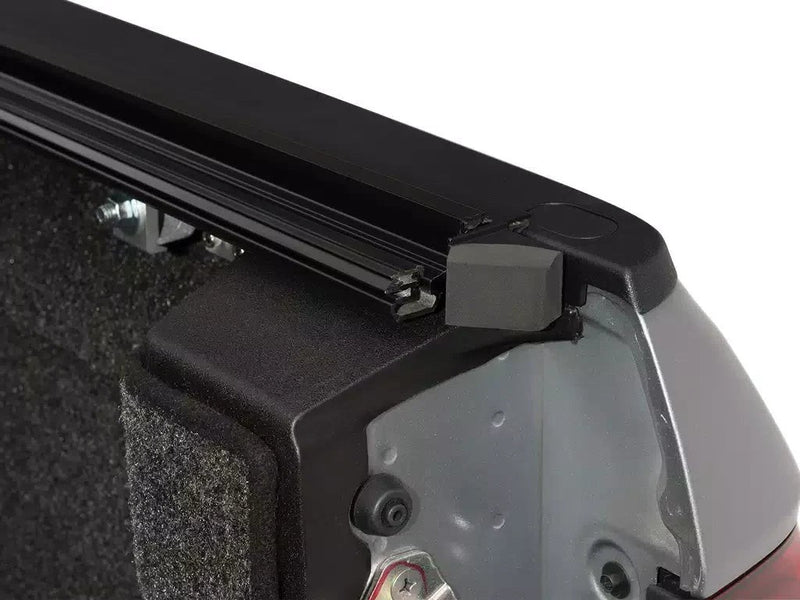

Premium EPDM rubber perimeter seals close the gap between the cover and the bed rails, and rounded hinges shed water instead of trapping it. Most applications add a dual-action tailgate seal at the back edge. Anything that gets past the seals runs down the rails and out through the drain tubes at the front of the bed. Like every folding cover this is water-resistant rather than submersible.

Two Open Positions, and the Brake Light Never Disappears

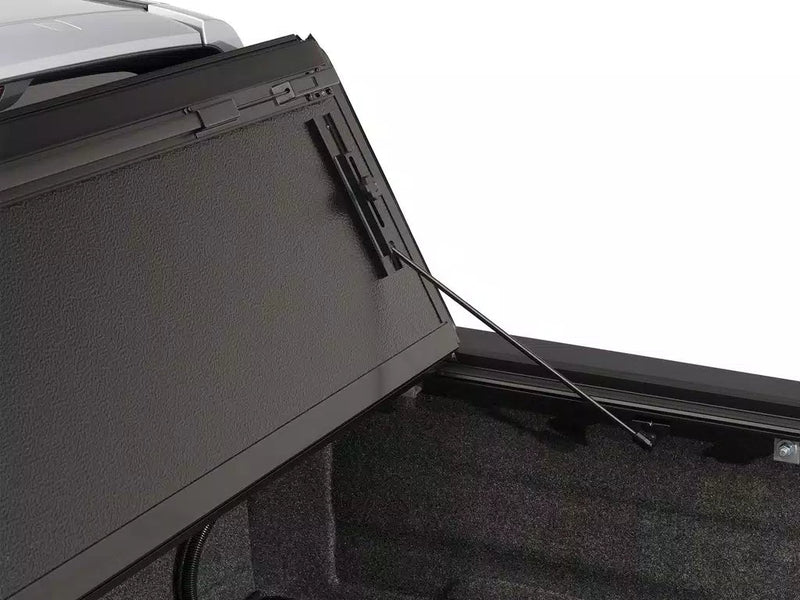

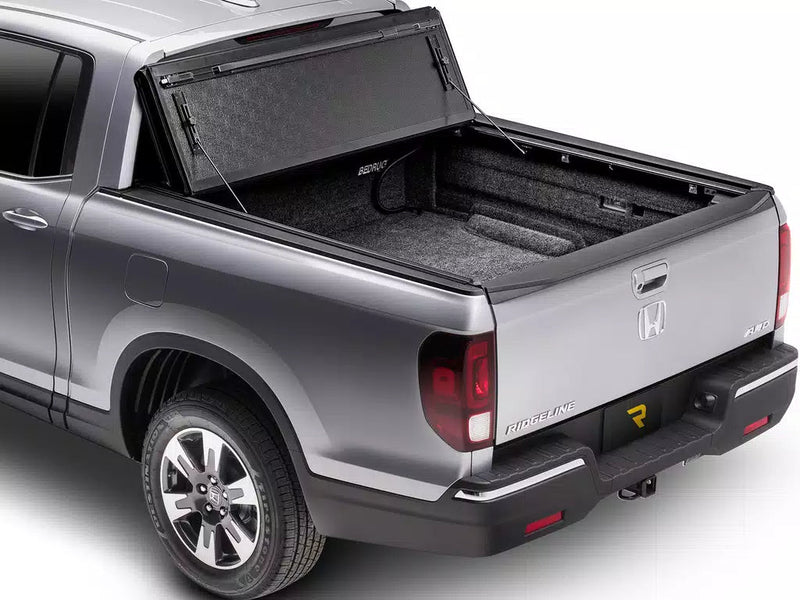

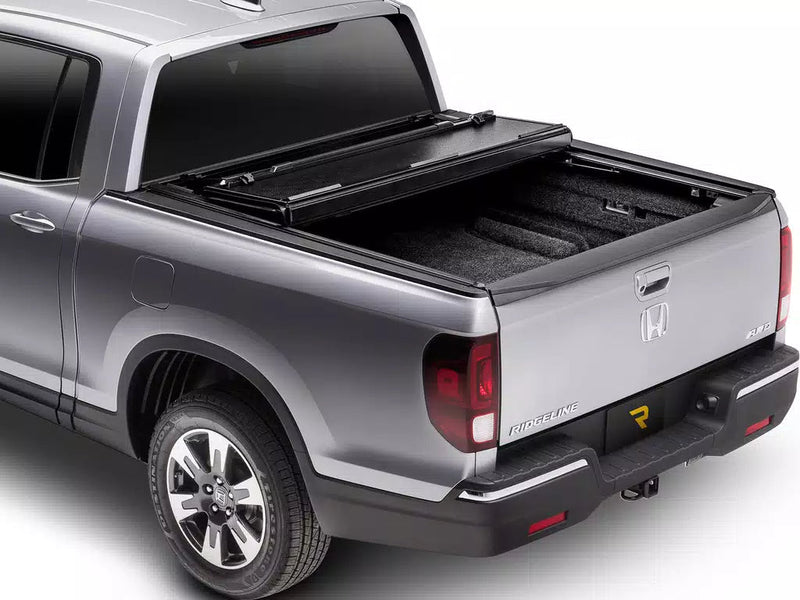

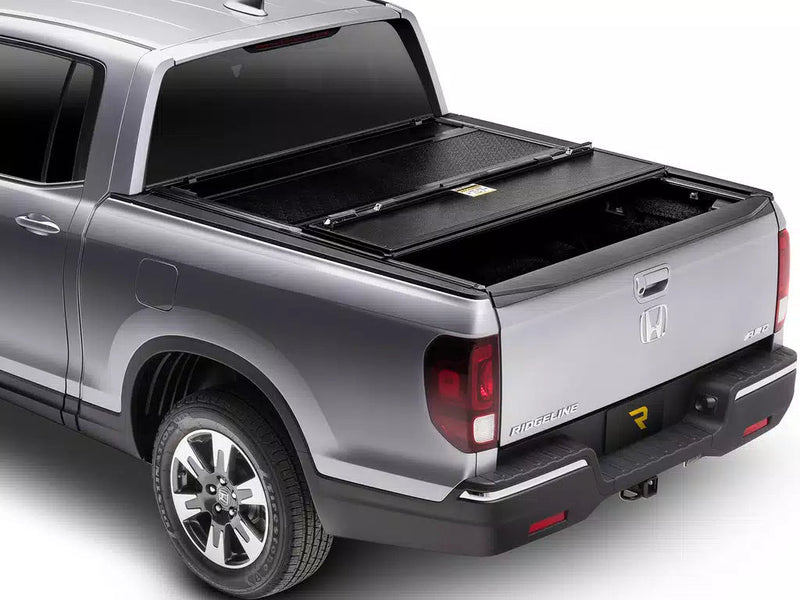

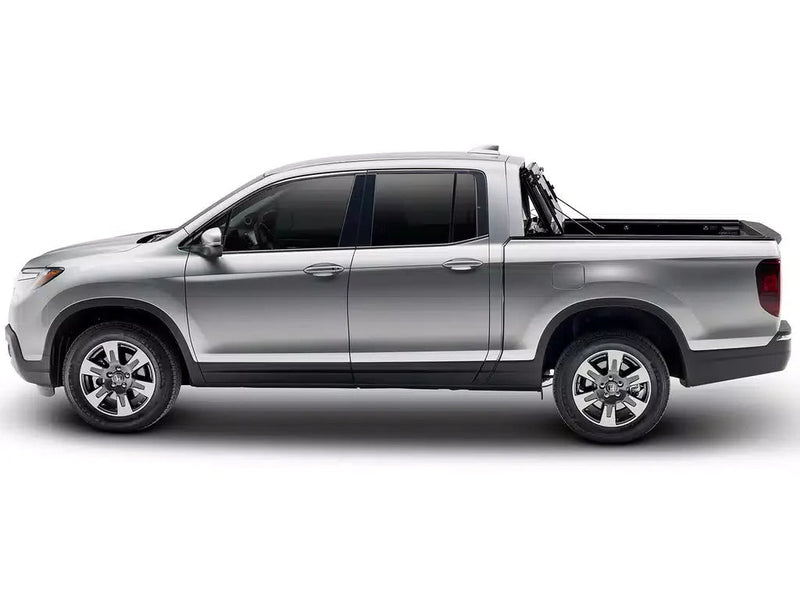

Drop the tailgate, release the rear latches, and fold the F1 forward to expose two thirds of the bed, then cinch the integrated buckle straps and drive. Need the whole bed? Fold it once more against the cab and set the integrated prop rods. Rubber bumpers protect the cab, and your third brake light stays visible in every position.

Bolt-On Install in Under an Hour, Backed Five Years
The F1 clamps to your factory bed rails with the included hardware. No cutting, no trimming, no drilling into the truck, and most owners are done inside an hour with basic hand tools. It is assembled in Missouri and carries a 5-year limited warranty with US-based product support.

Fitment & Compatibility

Specifications

• Cover Type: Hard folding (tri-fold) tonneau cover
• Material: Fiber-reinforced plastic (FRP) top skins over a high-density foam core, powder-coated aluminum bottom skins
• Frame: Aluminum side rails, clamp-on
• Finish: Textured gloss black
• Bed Access: Two thirds open on the buckle straps, 100% folded to the cab on the prop rods
• Weight Capacity: 400 lb, evenly distributed
• Sealing: EPDM wrap-around perimeter seals, rounded hinges, integrated drain tubes, dual-action tailgate seal on most applications
• Security: Automatic latching panels that lock into the aluminum side rails
• Third Brake Light: Visible in every cover position
• Drilling Required: No, clamp-on install
• Install Time: Under 1 hour
• Install Difficulty: Level 1, simple
• Fits: 5'7" bed, see fitment table
• Assembled In: Missouri, USA
• Warranty: 5-year limited

Installation

Type: Clamp-on bolt-on, no drilling  ·  Time: Under 1 hour (varies by truck)  ·  Tools: Basic hand tools, a socket or wrench set  ·  Difficulty: Level 1, simple, one-person DIY

The BAKFlip F1 ships pre-assembled and every clamp and fastener you need is in the box. Nothing is cut, trimmed, or drilled into the truck. Follow the included BAKFlip hard-folding install guide for clamp placement and torque, and re-check the clamps after your first week of driving.

Watch the model-specific installation walkthrough:

Warranty, Shipping & Returns

Warranty. 5-Year Limited Warranty from BAK Industries against defects in materials and workmanship, backed by US-based product support. Coverage runs to the original purchaser and is not transferable, and warranty registration or a dated proof of purchase may be required. It does not cover accident damage, neglect, improper installation, or improper servicing. To keep coverage: clean with mild automotive soap and water only, keep the cover secured at every point while the vehicle is moving, clear snow and ice before opening it, re-check the clamps after the first week of driving and periodically after that, and remove the cover before towing the truck from the rear.

Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
