Roll-N-Lock A-Series XT Retractable Tonneau Cover for 2024-2025 Ford Ranger (5' Bed)
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck

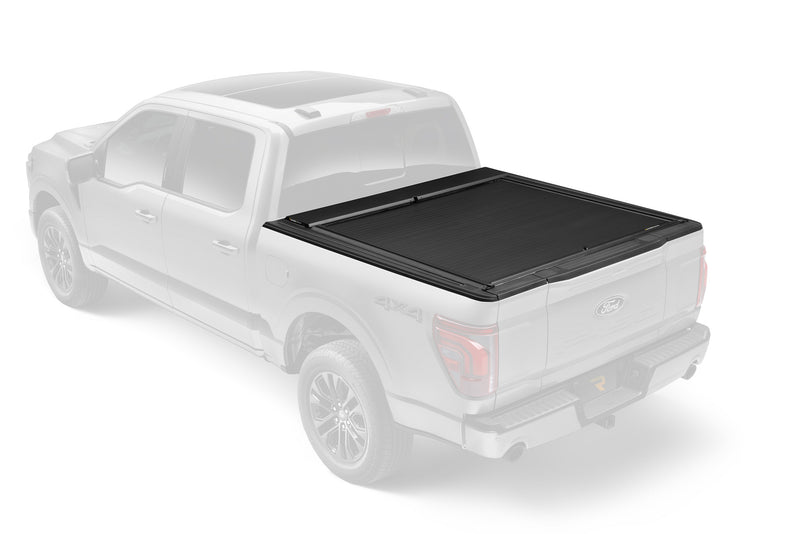

See it on a truck
Rack-ready T-slot rails
Compact front canister
Clamps on, no rail drilling
Features
- MaxTrak T-slot rails: Roll-N-Lock's MaxTrak system builds two slim T-slot rails into the sides of the cover. Add crossbars (sold separately) and Roll-N-Lock says they accept most T-slot racks and accessories, so the cover can share the truck with bike, kayak or gear mounts. Crossbars and racks are not included.
- Dual-layer aluminum deck: Under the rails is the A-Series deck: two layers of aluminum slats joined by a patented hinge system, finished in a matte black powder coat that Roll-N-Lock says resists corrosion, UV fading and abrasion. There is no vinyl skin to wear.
- Locks with your tailgate: Twist the included key to lock the rear latch, and a cover over the key slot keeps out rain and snow. Once the cover is closed and locked, Roll-N-Lock's patented built-in tailgate locking system keeps a locking tailgate from being opened. Roll-N-Lock's sheets still note that no bed cover prevents theft outright.
- Rolls into a compact canister: A torsion-spring drive rolls the deck into a canister Roll-N-Lock lists at 7.25" deep, at the front of the bed. The integrated pull strap brings it back from outside the bed, and the ratchet-style latch holds it at three positions along the way.
- Drain tubes clear the canister: Hidden seals shed most weather, and two drain tubes carry water that gets past them from the canister to below the truck. Roll-N-Lock's sheets say the cover is not airtight, so keep the drains clear and treat it as weather-resistant, not waterproof.
- Clamps on, no rail drilling: The tracks clamp or bolt on with a truck-specific kit, and Roll-N-Lock notes that installation is the same for the standard and XT tracks. Most trucks still need a 1/2" hole for each drain tube, and a plastic drop-in bedliner has to be cut. Your truck's sheet shows each step.
Description & Fitment
The Roll-N-Lock A-Series XT (part 124A-XT) is an all-aluminum retractable tonneau cover with two MaxTrak T-slot rails for the 2024-2025 Ford Ranger and Ranger Raptor with the 5' bed. It's for owners who want a lockable hard cover that also takes crossbars (sold separately) and most T-slot racks and accessories. The dual-layer aluminum deck, joined by a patented hinge, rolls into a compact canister and locks with your tailgate. It clamps on with no rail drilling, drain tubes clear the canister, and Roll-N-Lock backs it with a 3-year limited warranty.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2024-2025 | Ranger | 5' | β |
| 2024-2025 | Ranger Raptor | 5' | β |
Check your bed: measure along the bed rail from the bulkhead to the inside of the closed tailgate. This part is for the 5' bed on the 2024-2025 Ford Ranger / Ranger Raptor.
Not for: any other truck or bed length; each part fits one truck and bed.
About Roll-N-Lock
Roll-N-Lock makes retractable tonneau covers that roll into a canister at the front of the bed, plus the Cargo Manager bed divider that rides in their tracks. Every cover is built for one truck and one bed length.
The range covers the manual M-Series (vinyl over aluminum slats) and A-Series, the electric E-Series (5-year warranty), XT versions with T-slot rails for crossbars and racks, and the Cargo Manager. The M-Series and A-Series carry a 3-year limited warranty. The A-Series XT adds the MaxTrak T-slot rails to the all-aluminum A-Series.
Authorized Roll-N-Lock dealer. Prestige Truck is an authorized Roll-N-Lock dealer, so what we sell is new and genuine Roll-N-Lock. Roll-N-Lock's warranty covers products "purchased directly or from an authorized reseller," and Roll-N-Lock "does not warrant any products purchased from unauthorized resellers." Your Prestige Truck order receipt is your proof of purchase.
Frequently Asked Questions
Will this fit my 2024-2025 Ranger / Ranger Raptor?
Yes, if it has the 5' bed. Measure along the bed rail from the bulkhead to the inside of the closed tailgate. If you're unsure, send us your VIN and we'll confirm.
Is there a version without the rails?
Yes. The plain A-Series for this truck and bed is BT124A: the same dual-layer aluminum retractable without the MaxTrak T-slot rails.
Are crossbars included?
No. The two MaxTrak T-slot rails are built into the cover, but crossbars and racks are sold separately. Roll-N-Lock says the rails accept most T-slot racks and accessories; tell us which rack you have and we'll check it with Roll-N-Lock before you order.
How is it different from the regular A-Series?
It's the same all-aluminum retractable, with the same 7.25" canister, keyed latch and tailgate lock, plus two MaxTrak T-slot rails along the sides. Roll-N-Lock's install sheets note that installation is the same for the standard track and the XT track.
Is it waterproof?
No, and Roll-N-Lock doesn't claim it is. Hidden seals shed rain and snow and drain tubes carry off water that gets past them, but Roll-N-Lock's sheets say the cover is not airtight and its warranty excludes water intrusion. Keep the drains and the canister clear of debris.
Is it safe to be in the bed with the cover closed?
No. Roll-N-Lock warns that the cover has no release inside the bed, so never let anyone ride or climb in the bed while it's closed. Don't put anything on top of the cover when opening or closing it, and use the pull strap only for opening and closing, never to climb in or out.
Installation
- Jig saw
- Drill with 1/2" drill bit
- Phillips screwdriver
- 10mm wrench
- T45 Torx bit
- Tape measure
Here's the short version. Follow Roll-N-Lock's install sheet (below) for your truck's exact measurements, hardware and part letters.
- Prep the bed. With a plastic drop-in bedliner, cut it across the bulkhead to the sheet's measurements (some notching may be needed at the tailgate end) and drill the five 1/2" holes. Stick the bulkhead foam tape across the bulkhead, center the housing against it and lift off the lid.
- Mount the brackets. Bolt a track mounting bracket to each side rail through the first two existing holes with the black 1/4"-20 x 3/4" screws, lock washers and nuts. At the tailgate, loosely fit the track support bracket using the existing Torx screw plus the black 6mm x 19mm bolt and washer; leave the rubber tailgate bumper in place.
- Seat the tracks. Turn the lock to 10 o'clock (leave the wing nut on), seat the tracks on the housing stems, onto the mounting brackets and on the ledge of the support brackets, and fix them to the stems with a cargo nut and #10-24 screw. Close the tailgate, slide the housing back and loosely screw the tracks to both brackets.
- Set the spacing and tighten. Check the inside track-to-track width with the cargo shield notches; if it's over 52 5/8", add shims behind the tracks at the support brackets. Leave 1/8" at the tailgate with the tracks square, then tighten the support-bracket screw, bolt and Torx screw, followed by the mounting-bracket screws.
- Close it and refit the lid. Turn the lock to 7 o'clock, discard the plastic wing nut and pull the cover back to the tailgate. Refit the lid with its two lid screws and fix the cargo shield (backing peeled off) to the housing with the black rubber washers.
- Run the drains. Drill a 1/2" hole through the plug at the bulkhead on each side (never into the cab) and feed the drain tubes through toward the ground and onto the housing fittings, clear of the cab vents.
Stuck on a step?
- Housing (1)
- Track (2)
- Cargo shield (1)
- Track mounting bracket (2)
- Track support bracket (2)
- Drain tube (2)
- Cargo nut (10)
- #10-24 x 1/2" Screw (10)
- 1/4-20 x 3/4" Screw (black) (4)
- 1/4" Lock washer (4)
- 1/4-20 Nut (4)
- 6mm x 19mm Bolt (black) (2)
- 6mm Flat washer (black) (2)
- 1/4-20 Lid screw (Taped to lid) (2)
- Black rubber washer (4)
- 1/4-20 x 3/8" Screw (4)
- Bulkhead foam tape (1)
- Shim (4)
Specifications
| Brand | Roll-N-Lock |
|---|---|
| Part Number | ROL124A-XT |
| Series | A-Series XT |
| Cover Type | Manual retractable with T-slot rails |
| Construction | Dual-layer aluminum slats, patented hinge system |
| Rails | MaxTrak system, two T-slot rails |
| Crossbars and Racks | Not included |
| Finish | Matte black powder coat |
| Canister Depth | 7.25" |
| Latch | Keyed twist-lock with key-slot cover |
| Latch Positions | 3 (patented ratchet-style latch) |
| Opening | Torsion-spring drive; integrated pull strap |
| Tailgate Lock | Built-in tailgate locking system (needs a locking tailgate) |
| Mounting | Truck-specific clamp or bracket kit; see the install sheet |
| Bed Length | 5' |
| UPC | 194839067270 |
Warranty, shipping & returns
-
Warranty
Roll-N-Lock warrants the A-Series XT against defects in materials and workmanship for three (3) years from the date of purchase.- A part found defective from the manufacturing process is repaired or replaced at no charge, at Roll-N-Lock's option, and Roll-N-Lock may substitute a newer model of similar form and function. Labor to remove or reinstall the cover is not covered.
- It covers the original purchaser only and is not transferable. It ends if the cover is moved to another vehicle or the truck changes owners. Keep your proof of purchase; contact us for help with registration or a claim.
- To keep it valid: clean with mild automotive soap and water only, no strong chemicals; never use silicone or petroleum lubricants on the rails or in the tracks; keep the cover latched and the tether strap secured while driving; check every clamp and mount for tightness after the first week and now and then after that; clear snow and ice off before opening; take the cover off before the truck is towed from the rear.
- Claims: Roll-N-Lock issues a Return Material Authorization (RMA) number before anything is returned, and may ask for the defective part back, packaged and shipped at your expense, with the product ID and a short description of the problem.
- Not covered: improper installation; use below -30Β°F or above 120Β°F; water intrusion, including leaks from normal use; misuse, modification or tampering; improper maintenance; use outside the product specifications; normal wear, cosmetic damage or finish fading from sun or chemicals; negligence; accidents, flood, fire and other acts of God; parts not made by Roll-N-Lock.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- This cover is an oversized item, so it ships by freight or as an oversized parcel.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
This cover ships in a long, heavy box. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
