Roll-N-Lock E-Series XT Electric Retractable Tonneau Cover for 2022-2026 Toyota Tundra (6'7" Bed)
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
See it on a truck
MaxTrak T-slot rails
Clamps on, wires to battery
Features
- Opens from the key fob: Two wireless remotes come with the cover. One press of the large button runs it open or closed, another press stops it, and Roll-N-Lock's sheet says it stops by itself at the tailgate and at the canister.

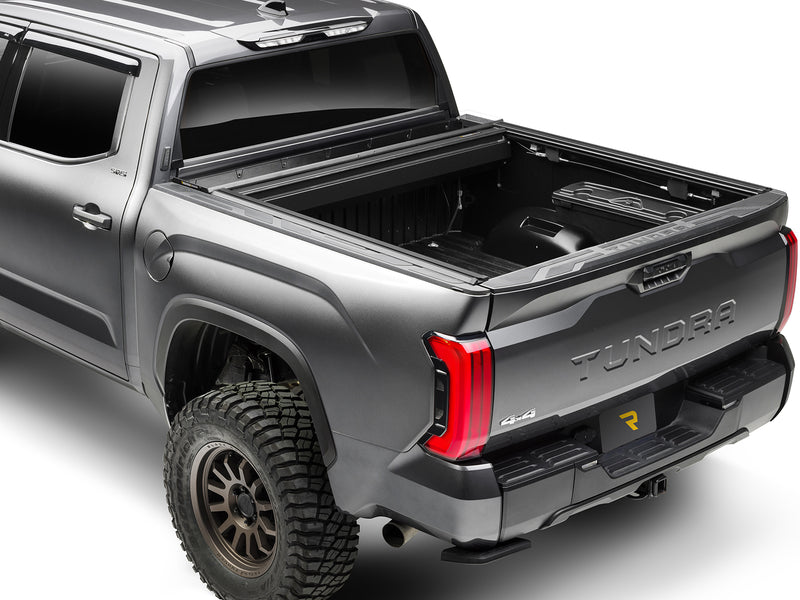

- MaxTrak T-slot rails: Two slim T-slot rails, Roll-N-Lock's MaxTrak system, run along the sides of the cover. Fit crossbars (sold separately) and Roll-N-Lock says the rails take most T-slot racks and accessories. Crossbars and racks are not included.
- Motor-driven, locks anywhere on the track: An electric motor at the canister moves the dual-layer aluminum deck, and Roll-N-Lock says it locks in any position along the tracks, so a tall load can ride with the cover part-closed. Roll-N-Lock also describes an auto-stop that cuts the motor if something is in the way; keep hands and cargo clear while it moves regardless.
- LED cargo light: The canister carries an integrated LED cargo light. Switch it on and off with the small left button on the remote; Roll-N-Lock's guide says it switches itself off after three minutes.
- Locks with your tailgate: Run it closed to the tailgate and it stays locked; Roll-N-Lock says it locks in any position along the tracks, and its guide puts the manual override on the passenger-side track inside the bed, with the lever pushed back to lock the cover. Shut a locking tailgate and the bed is closed off until you open it. Roll-N-Lock's sheets still note that no bed cover prevents theft outright.
- Clamps on, wires to battery: The tracks mount with a truck-specific kit, and Roll-N-Lock notes that installation is the same for the E-Series and XT tracks. A fused power wire runs under the truck to the battery on an existing harness, and the drain tubes and power wire need holes in the bed; your truck's sheet shows where.
Description & Fitment
The Roll-N-Lock E-Series XT (part 576E-XT) is a motorized retractable tonneau cover with two MaxTrak T-slot rails for the 2022-2026 Toyota Tundra with the 6'7" bed. It's for owners who want key-fob control of the bed plus a base for crossbars, though it won't fit trucks with the factory spray-in liner carrying the molded Tundra nameplate or the Trail Edition package. The cover locks in any position along the tracks, so a tall load can ride with it part-closed, and a mechanical override cable lets you work it by hand if the remote won't. An LED cargo light, tailgate locking and a fused connection to the battery round it out, backed by Roll-N-Lock's 5-year limited warranty.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2022-2026 | Tundra | 6'7" (78.7") | Not compatible with the factory spray-in liner that carries the molded “Tundra” nameplate. Not compatible with the Trail Edition package |
Check your bed: measure along the bed rail from the bulkhead to the inside of the closed tailgate. This part is for the 6'7" bed on the 2022-2026 Toyota Tundra. Measured, that box is about 78.7" long.
Not for: the 5'7" bed (575E-XT) and trucks with the factory spray-in liner that carries the molded “Tundra” nameplate or the Trail Edition package.
About Roll-N-Lock
Roll-N-Lock makes retractable tonneau covers that roll into a canister at the front of the bed, plus the Cargo Manager bed divider that rides in their tracks. Every cover is built for one truck and one bed length.
The range covers the manual M-Series (vinyl over aluminum slats) and A-Series, the electric E-Series (5-year warranty), XT versions with T-slot rails for crossbars and racks, and the Cargo Manager. The M-Series and A-Series carry a 3-year limited warranty. The E-Series XT adds the MaxTrak T-slot rails to the electric E-Series, with the same remotes, LED cargo light and 5-year limited warranty.
Authorized Roll-N-Lock dealer. Prestige Truck is an authorized Roll-N-Lock dealer, so what we sell is new and genuine Roll-N-Lock. Roll-N-Lock's warranty covers products "purchased directly or from an authorized reseller," and Roll-N-Lock "does not warrant any products purchased from unauthorized resellers." Your Prestige Truck order receipt is your proof of purchase.
Frequently Asked Questions
Will this fit my 2022-2026 Tundra?
Yes, if it has the 6'7" bed, about 78.7" long. Measure along the bed rail from the bulkhead to the inside of the closed tailgate. It is not for the 5'7" bed (575E-XT). It won't fit a truck with the factory spray-in liner that carries the molded “Tundra” nameplate or the Trail Edition package. If you're unsure, send us your VIN and we'll confirm.
Do I have to drill into my truck?
Expect to drill holes for the drain tubes and the power wire, and a plastic drop-in bedliner has to be cut. The fused power wire runs under the truck to the battery along an existing harness. Roll-N-Lock's sheet for this truck shows where.
Are crossbars included?
No. The MaxTrak T-slot rails are part of the cover, but crossbars and racks are sold separately. Roll-N-Lock says the rails accept most T-slot racks and accessories; tell us which rack you have and we'll check it with Roll-N-Lock before you order.
How is it different from the E-Series?
It's the same electric cover, with the same remotes, LED cargo light, override cable and 5-year limited warranty, plus two MaxTrak T-slot rails along the sides. Roll-N-Lock's E-Series sheets note that installation is the same for the standard track and the XT track.
What if the remote stops working or the battery is dead?
Use the manual override. The override cable mounts on the passenger-side track; pull the lever and turn it to lock it out, and the cover moves by hand. Unlock the lever and push it back to lock the cover again. If the cover won't run at all, Roll-N-Lock's first troubleshooting check is the connection at the battery.
Is it waterproof?
No, and Roll-N-Lock doesn't claim it is. Seals and patented hinges shed rain and snow, and two drain tubes carry water that gets past them out of the bed, but Roll-N-Lock's sheets say the cover is not airtight and its warranty excludes water intrusion. Keep the canister and drains clear of debris.
Installation
- Jig saw
- Drill with PH2 Phillips bit
- 1/2" drill bit
- 3/4" drill bit
- PH2 Phillips screwdriver
- Tape measure
Here's the short version. Follow Roll-N-Lock's install guide (below) for the exact hardware letters and the wiring diagram.
- Run the power wire. Drill a 3/4" hole through the existing small hole in the bed floor on the driver side and feed the end of the power wire through to the ground, leaving 3' of wire in the bed. Route it under the truck along an existing wiring harness to the battery with the supplied zip ties, join the fuse holder to the white wire connector, then connect the fuse holder ring to the positive terminal and the black wire to the negative.
- Prep the bed. Remove the factory rail channels at the bulkhead and on both sides. Press a butyl strip into the seam on each side, drill a 1/2" hole through the existing hole in the bed floor on the passenger side, center the housing between the bed rails against the bulkhead, and lift off its lid by pushing it toward the cab and up.
- Fit the L brackets and tracks. Screw a Tundra L bracket into holes 2 and 5 from the rail channels on each side with a pan head screw and flat washer, fully tightened (the RC576E uses three brackets a side). Key each track onto the housing stems so its edge butts against the housing, and fix it with a cargo nut and #10-24 screw. Leave the protective piece in the housing until the tracks are on.
- Set the spacing and tighten. Close the tailgate and slide the housing back until the track ends meet the tailgate. Use the cargo shield notches to set the inside track-to-track width to 59 7/16"; Roll-N-Lock warns the cover won't run properly otherwise. Leave 1/8" between the track end caps and the tailgate, line the angles up with the track clamps and shim for height, then tighten the back (tailgate) fasteners first and the front ones second with the 1/4" Allen wrench.
- Refit the lid, drains and power. Set the lid back on (down, then toward the tailgate) and fit the lid screws. Feed a drain tube through each drilled hole, the 1/2" and the 3/4", toward the ground and onto the housing fitting on each side. At the housing, unwrap the light wires from the motor wire, zip-tie the power wire loosely to the front of the unit, plug the motor wire into the power wire, and plug in the light wires black to black and red to white before tightening and trimming the zip ties.
- Fit the shield and override, then test. Take the two remotes off the housing. Fix the cargo shield to the slots at the bottom of the housing with the black rubber washers and 1/4-20 x 3/8" screws. On the passenger-side track only, mount the override cable's small bracket toward the front and its large bracket toward the back with cargo nuts and #10-24 screws, then pull the soft cable taut through the coupler and tighten it. The large remote button runs and stops the cover, and it stops by itself at the tailgate and housing.
Stuck on a step?
- Housing (1)
- Track (2)
- Cargo shield (1)
- Drain tube (2)
- Tundra "L" bracket (4; 6 on RC576E)
- #10-24 screw (6)
- Cargo nut (6)
- 5/16" lock washer (4; 6 on RC576E)
- 5/16" x 3/4" cap screw (4; 6 on RC576E)
- Shim (4; 6 on RC576E)
- 6mm x 25mm pan head screw (4; 6 on RC576E)
- 1/4" flat washer (4; 6 on RC576E)
- 1/4-20 x 3/8" screw (4)
- Rubber washer (4)
- 1/4" lid screw (2)
- Butyl caulk strip (4)
- Override cable (1)
- Power wire with fuse holder, and zip ties (10)
- Remotes (2, taped to the housing)
- 303 Vinyl Protector
Specifications
| Brand | Roll-N-Lock |
|---|---|
| Part Number | ROL576E-XT |
| Series | E-Series XT |
| Cover Type | Electric retractable with T-slot rails |
| Construction | Dual-layer aluminum slats, patented hinges |
| Rails | MaxTrak system, two T-slot rails |
| Crossbars and Racks | Not included |
| Finish | Matte black powder coat |
| Canister Depth | 7.25" |
| Operation | Electric motor; 2 wireless remotes |
| Stops | Anywhere along the track; automatically at the tailgate and canister |
| Cargo Light | Integrated LED; turns off after 3 minutes |
| Manual Override | Override cable included |
| Power | Fused power wire to the truck battery |
| Mounting | Truck-specific kit; see the install sheet |
| Bed Length | 6'7" (78.7") |
Warranty, shipping & returns
-
Warranty
Roll-N-Lock warrants the E-Series XT against defects in materials and workmanship for five (5) years from the original date of purchase.- A defective cover or hardware part is repaired or replaced at Roll-N-Lock's option, and Roll-N-Lock may substitute a newer model of similar form and function. Labor to remove or reinstall the cover is not covered.
- It covers the original purchaser only and is not transferable. It ends if the cover is moved to another vehicle or the truck changes owners. Keep your proof of purchase; contact us for help with registration or a claim.
- To keep it valid: clean with mild automotive soap and water only, no strong chemicals; never lubricate the rails or tracks with silicone or petroleum products; keep cargo, the cover and the tether strap secured while driving; check every clamp and mount for tightness after the first week and now and then after that; clear snow and ice off before opening; take the cover off before the truck is towed from the rear.
- Claims: Roll-N-Lock issues a Return Material Authorization (RMA) number before anything is returned, and may ask for the original part back, shipped prepaid, for a final decision. Contact us first and we will start the claim with Roll-N-Lock.
- Not covered: damage from an accident, neglect, improper installation or servicing; use below -30°F or above 120°F; water intrusion, including leaks from normal use; misuse, modification or tampering; normal wear, cosmetic damage or finish fading from sun or chemicals; acts of God; parts not made by Roll-N-Lock.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- This cover is an oversized item, so it ships by freight or as an oversized parcel.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
This cover ships in a long, heavy box. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
