TeraFlex 2" Alpine Rear Stretch Kit, 4-Arm for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Up to 2" more wheelbase: Moves the rear axle back as much as 2", which TeraFlex says improves climbing on steep terrain.
- Centers the rear tires: Puts the rear wheels in the middle of the opening for more tire clearance.
- Springs stay vertical: Relocation brackets keep the rear coil springs upright to prevent bowing.
- Alpine adjustable arms: Built around TeraFlex's Alpine rear arms, sold here as a 4-arm rear kit.
- Factory or high-line flares: Designed with high-line fenders in mind, but TeraFlex says it also works with factory flares.
- Pairs with your lift: Needs lift coil springs and longer shocks, both sold separately.
Description & Fitment

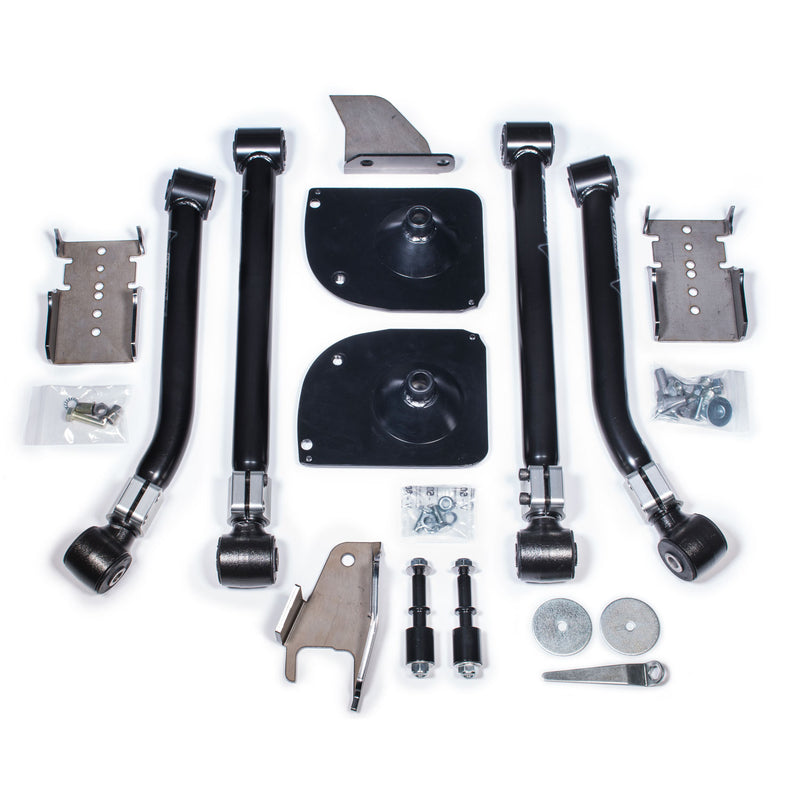

TeraFlex's 2" Alpine Rear Stretch Kit (4-Arm) moves the rear axle of a 2007-2018 Jeep Wrangler JK up to 2" rearward. That centers the rear tires in the wheel opening, adds clearance and lengthens the wheelbase, which TeraFlex says helps when climbing. Rear Alpine mid arm stretch brackets and rear upper coil spring relocation brackets keep the springs vertical so they don't bow. The 2" is wheelbase stretch, not lift: lift coil springs and longer shocks are required and not included.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK |
Check your Jeep: Wrangler JK or JK Unlimited, 2007-2018; lift coil springs and longer shocks in place or planned.
Not for: JL or JT models. Want front long arms too? See the 8-arm kit 1259100.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does this lift my Jeep?
No. The 2" is how far the rear axle moves back. You still need lift coil springs and longer shocks, which are not included.
Is welding required?
Yes. TeraFlex lists cutting off the factory brackets and welding on the new mid arm and coil spring relocation brackets.
What wheels do I need?
TeraFlex calls for 4.75" backspacing or less, or its 1055000 offset wheel adapters with stock wheels.
What warranty does TeraFlex give?
TeraFlex covers its control arms, IR bushings, coil springs, bump stops and track bars for life against defects in materials and workmanship. Non-IR control arm and track bar bushings carry 1 year and finishes 90 days. For a claim, contact us with your order details.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's right for my Jeep before I order?
Yes. Contact us with your VIN or year, model and trim, plus your current lift, and we'll check it against TeraFlex's fitment information before it ships.
Installation
- Jack
- Jack stands
- Basic mechanics tool set
- Red thread locking compound
- Blue thread locking compound
- Rest on TeraFlex's tool list
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Raise and support the rear, remove the wheels, disconnect the e-brake cables, unbolt and support the rear driveline, remove the shocks, lower the axle to pull the springs, and remove the brake line bracket and rear track bar.
- Trim the front ear of the frame-side track bar bracket with the template, remove the rear sway bar, cut the exhaust about 3" behind the resonator, cut off the track bar brace and hole-saw the spring perches (4") with the centering spacer. This kit requires exhaust modification.
- Weld on the extended bump stop striker pads, the track bar relocation bracket (tack with the track bar fitted, then weld) and the frame brace, then prime and paint all bare metal.
- Fit the new lower and upper control arms with the fixed end at the frame, stickers out, bolts finger tight (p6); refit the track bar with the bolts from the front and add the stud mount spacers to the drilled outer shock tabs (nut 40 ft-lbs).
- Bolt in the spring perch relocation brackets with red thread locker, cycle the suspension to check shock clearance, fit the springs and retainers, then relocate the sway bar into new 17/32" holes with the nutserts and torque it to 45 ft-lbs (p8).
- With the Jeep on the ground, torque the control arms and track bar to 125 ft-lbs and the pinch clamps to 40 ft-lbs, have an exhaust shop finish the exhaust, get a 4-wheel alignment, and re-torque after 100 miles and every 3,000.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1257100 |
| Product Type | Rear stretch kit |
| Stretch | Up to 2" rearward (rear axle) |
| Lift Height | None (stretch only) |
| Arms | 4-arm rear |
| Requires | Lift coil springs and longer shocks (not included) |
| UPC | 843885036487 |
