TeraFlex 3" Enduro LCG Long Arm Suspension System & 9550 VSS Twin-Tube Shocks for 2004-2006 Jeep Wrangler Unlimited LJ
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- LCG lower long arms: Adjustable lower arms and brackets shared with TeraFlex's Pro LCG systems.
- Factory-mount rear uppers: Adjustable rear upper short arms bolt to the stock brackets.
- Two lift heights: 3" for up to 33" tires or 4" for up to 35" tires, per TeraFlex.
- Shock options: With TeraFlex 9550 VSS twin-tube shocks or without shocks.
- Low center of gravity: TeraFlex says the LCG layout keeps ground clearance high and handling responsive.
- Transfer case access: The lower LCG brackets are designed not to block transfer case access.
Description & Fitment

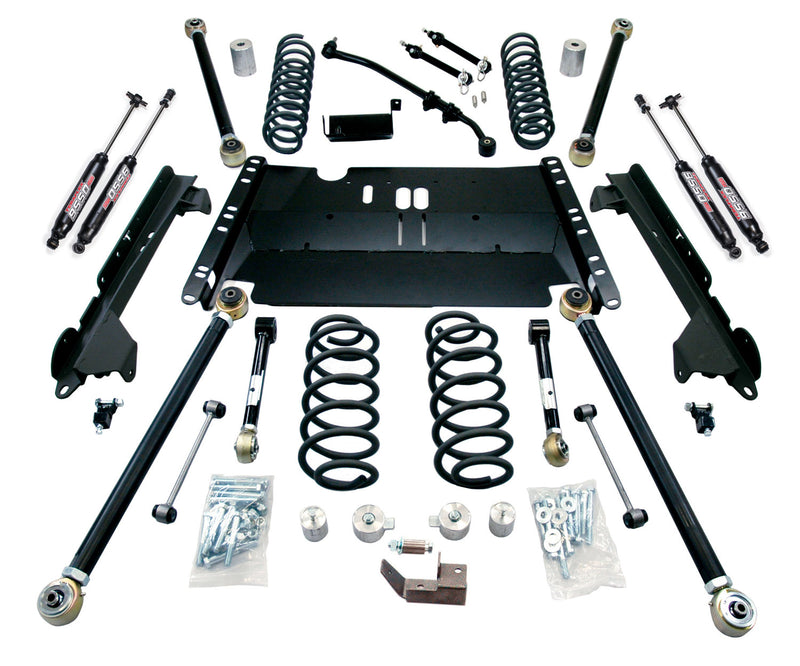

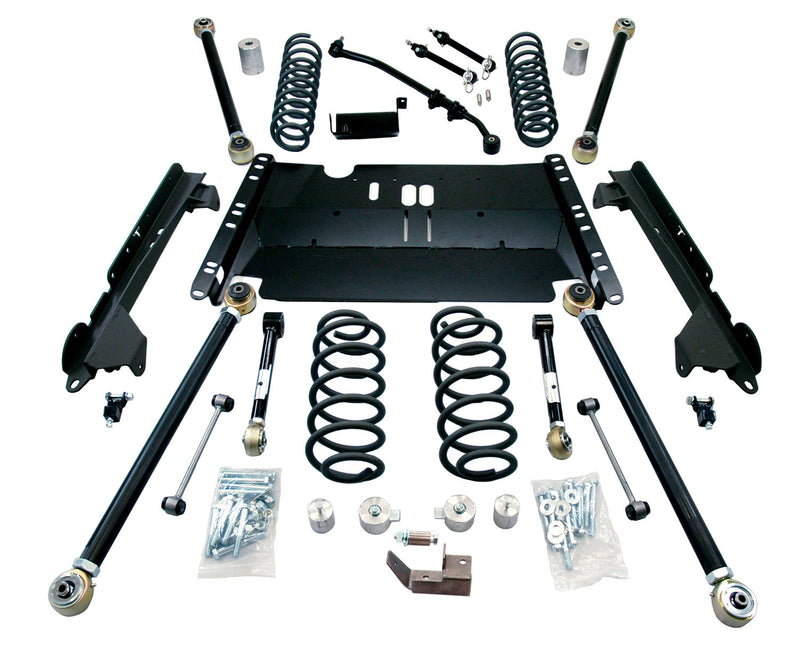

For the long-wheelbase 2004-2006 Jeep Wrangler Unlimited LJ, TeraFlex's Enduro LCG Long Arm Suspension System pairs Pro LCG lower long arms and brackets with adjustable rear upper short arms that bolt to the factory mounts. Four versions: 3" (33" tires) or 4" (35" tires), each with TeraFlex 9550 VSS twin-tube shocks or without shocks. TeraFlex says it is not compatible with Rubicon models, and the lower brackets require cutting and welding.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2004-2006 | Wrangler | LJ; Unlimited only; 3"-4" lift; Not for Rubicon models |
Check your Jeep: Wrangler Unlimited LJ, 2004-2006, non-Rubicon; wheels with 4.5" backspacing or less.
Not for: Short-wheelbase TJ (1249372); Rubicon models; JK, JL or JT.
Fits: 2004-2006 Jeep Wrangler Unlimited LJ (long wheelbase; not Rubicon)
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Will it fit a short-wheelbase TJ?
No, this is the LJ Unlimited version. The TJ version is 1249372. It is also not for Rubicon models.
How do the four options differ?
1249382 is 3" with 9550 VSS shocks, 1249482 is 4" with shocks, 1449382 is 3" without shocks and 1449482 is 4" without shocks.
What else should I plan for?
Wheels with 4.5" backspacing or less, or TeraFlex 1005200 offset wheel adapters with stock wheels, plus cutting and welding for the lower brackets. Lifts of 4" and up need a CV-style driveshaft and a TeraFlex short shaft slip yoke eliminator kit (4444400 or 4444401).
What warranty does TeraFlex give?
TeraFlex covers its control arms, IR bushings and long arm brackets for life against defects in materials and workmanship. Non-IR control arm bushings carry 1 year and finishes 90 days. Contact us with your order details to confirm coverage on any other part or to start a claim.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's right for my Jeep before I order?
Yes. Contact us with your VIN or year, model and trim, plus your current lift, and we'll check it against TeraFlex's fitment information before it ships.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Support the TJ under the frame so the axles fully droop, remove the tires, shocks, sway bar links, coil springs and lower control arms, support the transmission and remove the transfer case skid plate.
- Cut off the front lower and rear lower control arm mounts without cutting into the frame, slide the one-piece lower arm brackets up over the frame on the skid plate bolts, tack weld each in 4 places and paint the welds.
- Bolt on the Belly Up skid plate (or modify the factory skid for rear arm clearance) and mount the transmission to it.
- Rear: fit the new lower arms and the track bar bracket extension (spacer in the old bolt hole, 5/16" holes drilled for the small bolts), reattach the track bar, then the 6.50" OD springs, shocks and longer sway bar links.
- Front: fit the arms, springs and bump stops, the steering box skid plate (drill 5/16" for the self-tapping bolt), the brake line extensions and the disconnect sway bar links with their securing stud (3/8" tapped hole, p6).
- Bleed the brakes passenger rear, driver rear, passenger front, driver front, tighten all arm jam nuts after alignment, grease the arms, and recheck fasteners, welds and jam nuts after the first 100 miles.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Product Type | Long arm suspension system |
| Lift Height | 3" (1249382, 1449382) or 4" (1249482, 1449482) |
| Tire Size | 33" at 3" lift / 35" at 4" lift |
| Shocks | 9550 VSS twin-tube (1249382, 1249482) / not included (1449382, 1449482) |
| Wheels | 4.5" backspacing or less, or 1005200 adapters |
| Variants | 1249382 3" with shocks / 1249482 4" with shocks / 1449382 3" no shocks / 1449482 4" no shocks |
| Part number | 1249382 |
| UPC | 843885020394 |
| Part # | Version | UPC |
|---|---|---|
| 1249382 | 3" Enduro LCG Long Arm Suspension System & 9550 VSS Twin-Tube Shocks | 843885020394 |
| 1249482 | 4" Enduro LCG Long Arm Suspension System & 9550 VSS Twin-Tube Shocks | 843885020431 |
| 1449382 | 3" Enduro LCG Long Arm Suspension System, No Shocks | 843885021483 |
| 1449482 | 4" Enduro LCG Long Arm Suspension System, No Shocks | 843885021520 |
