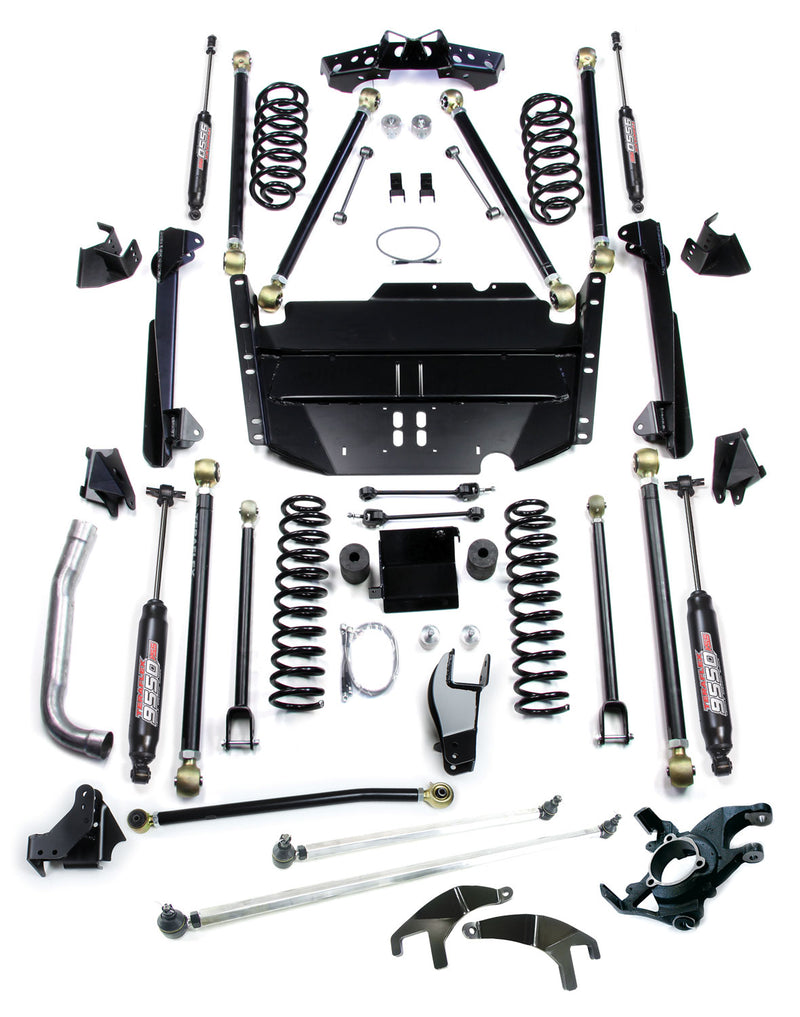

TeraFlex 5" Pro LCG Long Arm Suspension System, High Steer & 9550 VSS Twin-Tube for 1997-2006 Jeep Wrangler TJ
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- 5" lift, 37" tires: TeraFlex's rating for this Pro LCG version.
- High Steer version: TeraFlex's High Steer Pro LCG package, shocks included.
- 9550 VSS shocks: Comes with TeraFlex 9550 VSS twin-tube shocks.
- Long arms all around: Adjustable LCG long control arms front and rear on gusseted LCG brackets.
- Triangulated 4-link rear: Drops the rear track bar and lets you tune anti-squat.
- Low center of gravity: TeraFlex's LCG design for crawling and stable high-speed driving.
Description & Fitment
The 5" High Steer version of TeraFlex's Pro LCG Long Arm Suspension System with 9550 VSS twin-tube shocks, for the short-wheelbase 1997-2006 Jeep Wrangler TJ (not LJ, not Rubicon). Adjustable LCG long control arms run front and rear on TeraFlex's LCG brackets, and the rear becomes a triangulated 4-link with axle truss in place of the factory 5-link and track bar. TeraFlex rates the 5" lift for 37" tires. Installing it requires cutting and welding.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ; Not for LJ Unlimited; 5" lift; Not for Rubicon models |
Check your Jeep: Wrangler TJ (short wheelbase), 1997-2006, non-Rubicon; CV driveshaft and slip yoke eliminator; wheels with 4.5" backspacing or less.
Not for: Wrangler Unlimited LJ (1249580); Rubicon models; JK, JL or JT.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
What's the non-High Steer version?
The TJ Pro LCG in 4" or 5", with or without shocks, is 1249474 and its sibling options.
Will it fit an LJ Unlimited or a Rubicon?
No. It is for the short-wheelbase TJ and TeraFlex says it is not compatible with Rubicon models. The LJ High Steer version is 1249580.
What else is required?
Cutting and welding, wheels with 4.5" backspacing or less, or TeraFlex 1005200 offset wheel adapters with stock wheels, a CV-style driveshaft and a TeraFlex short shaft slip yoke eliminator kit (4444400 or 4444401).
What warranty does TeraFlex give?
TeraFlex covers its control arms, IR bushings and long arm brackets for life against defects in materials and workmanship. Non-IR control arm bushings carry 1 year and finishes 90 days. Contact us with your order details to confirm coverage on any other part or to start a claim.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's right for my Jeep before I order?
Yes. Contact us with your VIN or year, model and trim, plus your current lift, and we'll check it against TeraFlex's fitment information before it ships.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Support the TJ under the frame so the axles fully droop, remove the tires, shocks, sway bar links, coil springs and all control arms, support the transmission and remove the transfer case skid plate.
- Mark and cut the exhaust header pipe at the patch location and remove the rest of the exhaust (protect the oxygen sensors), then remove the front upper, front lower and rear lower control arm mounts from the frame. The muffler must be replaced with a smaller one and the tailpipe rerouted.
- Bolt in the Belly Up skid plate (or modify the factory skid for arm clearance) and mount the transmission to it; have the rear axle truss professionally welded to clean axle tubes, resealing the diff cover.
- Fit the rear upper arm frame brackets, the new rear arms and springs, the extended brake hose and sway bar links with the brake tee on the truss (p4); the rear track bar is eliminated.
- Front: grind the paint, weld the upper PRO brackets inside the frame rails, fit the upper arms set to about 24-1/2" and the new lowers; the 4" kit uses the adjustable track bar in the stock brackets, the 5" kit welds on a new track bar bracket (p5).
- Drill (or drill and tap 3/8-16 where a plate is welded on) the front spring pads, fit the LCG springs with the aluminum bump stop spacers and the bump stops, then have an exhaust shop build the new muffler and tailpipe and weld in the front exhaust patch.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1249570 |
| Product Type | Long arm suspension system |
| Lift Height | 5" |
| Tire Size | 37" |
| Shocks | 9550 VSS twin-tube (included) |
| Steering | High Steer version |
| Rear | Triangulated 4-link with rear axle truss |
| Wheels | 4.5" backspacing or less, or 1005200 adapters |
| UPC | 843885020455 |
Warranty, shipping & returns
-
Warranty
TeraFlex covers its control arms, IR bushings and long arm brackets for life against defects in materials and workmanship. Alpine control arm bushings other than IR carry 1 year, and paint and powder coat finishes 90 days (defects only).- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Long arm parts ship in several boxes. Check every arm, bracket and hardware pack against the part list in the TeraFlex instructions before you start cutting, and contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
