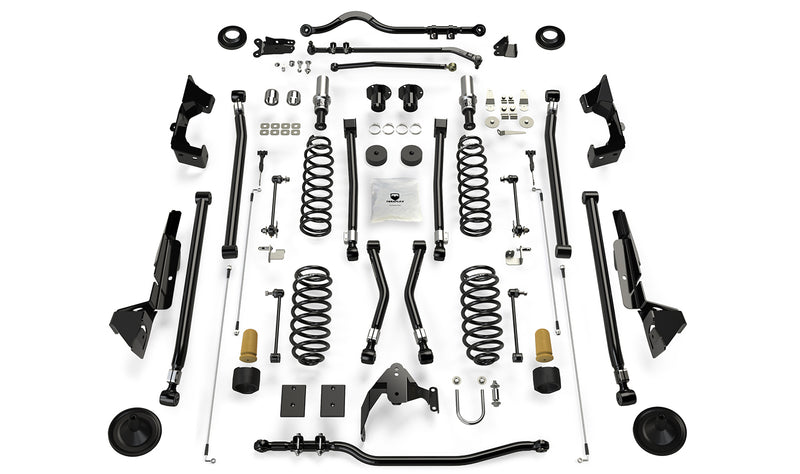

TeraFlex 6" Alpine CT6 Long Arm Suspension System, No Shocks (2-Door) for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- 6" lift for 38" tires: TeraFlex says the CT6 runs a 38" tire with stock fender flares.
- Drag link flip kit: HD drag link flip with front track bar drop bracket corrects steering geometry and shimmy.
- Frame brace kit: Reinforces the JK frame, per TeraFlex.
- Alpine long arms and brackets: Adjustable long arms on relocated frame brackets for near-factory angles.
- Forged adjustable track bars: Front and rear track bars with a rear bracket re-center the axles.
- 6" lift coil springs: The CT6 uses 6" lift coil springs; shocks are not included.
Description & Fitment
TeraFlex's 6" Alpine CT6 Long Arm Suspension System for the 2-door 2007-2018 Jeep Wrangler JK adds TeraFlex's HD drag link flip kit with front track bar drop bracket and a frame brace kit to the Alpine long arm setup, which TeraFlex says corrects steering geometry, stops front end shimmy and stiffens the frame. With 6" lift coil springs it clears 38" tires on stock fender flares, per TeraFlex. It is the no-shocks version; driveshaft modifications, cutting and welding are required.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 2-door only; 6" lift |
Check your Jeep: Wrangler JK 2-door, 2007-2018; driveshaft upgrade; shocks sourced separately.
Not for: JK Unlimited 4-door (1326000); JL or JT models.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it fit a 4-door JK?
No, this is the 2-door system. The 4-door version is 1326000.
Will I need driveshaft work?
Yes. TeraFlex lists driveshaft modifications as required, such as its high-angle Rzeppa CV driveshafts or CV joint kit (1744014).
What else is required?
Shocks, wheels with 4.75" backspacing or less (or 1055000 adapters), cutting and welding for the brackets, and an alignment.
What warranty does TeraFlex give?
TeraFlex covers its control arms, IR bushings and long arm brackets for life against defects in materials and workmanship. Non-IR control arm bushings carry 1 year and finishes 90 days. Contact us with your order details to confirm coverage on any other part or to start a claim.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's right for my Jeep before I order?
Yes. Contact us with your VIN or year, model and trim, plus your current lift, and we'll check it against TeraFlex's fitment information before it ships.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Lift the Jeep by the frame, remove the wheels and both drivelines completely, then the exhaust, drag link at the knuckle, both track bars, calipers, sensors and breathers (p5).
- Lower the axles and remove the springs, then remove all four rear and all four front control arms (keep the hardware) and set the axles aside safely.
- Support the transfer case and swing its cross member aside, disconnect the fuel supply, return and EVAP lines (the supply line may be under pressure, cap all open lines) and lower the fuel tank; remove the catalytic converters (p8).
- Cut off the stock control arm brackets, grind the frame smooth, clean paint within 1" of the weld areas, and weld on the rear frame gussets and the new long arm brackets with C-clamps; prime and paint all bare metal (p9).
- Set the Alpine long arms to 27 3/4" front upper, 33 11/16" front lower, 19 1/2" rear upper and 35 1/8" rear lower and install them adjustable end at the axle (new hardware at the frame, original at the axle, rear lowers bends in and up, p11), bolts untightened.
- Fit the spring spacers, springs, shocks, sway bar links (75 ft-lbs, p14) and new brake lines with copper washers (p15), refit the brakes, sensors, drag link, tank and exhaust, relocate the EVAP canister on 2012+ 4-doors (p18), torque all arm bolts on the ground and get a 4-wheel alignment (p19).
- 999298 07-17 JK 4-6 Inch Suspension Lift Kit (PDF)
- 999043 JK Forged Rear Adjustable Trackbar Instructions (PDF)
- 999044 JK Forged Front Monster Track Bar (PDF)
- 999090 JK Long Arm Bracket Instructions (PDF)
- 999292 JK Front and Rear 3-3.5 Lift SpeedBump Kit (PDF)
- 999104 JK Frame Brace and Drag Link Flip Kit Instructions (PDF)
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1226000 |
| Product Type | Long arm suspension system |
| Lift Height | 6" |
| Max Tire Diameter | 38" |
| Steering | HD drag link flip kit with front track bar drop bracket |
| Shocks | Not included |
| Wheels | 4.75" backspacing or less, or 1055000 adapters |
| UPC | 843885043270 |
Warranty, shipping & returns
-
Warranty
TeraFlex covers its control arms, IR bushings and long arm brackets for life against defects in materials and workmanship. Alpine control arm bushings other than IR carry 1 year, and paint and powder coat finishes 90 days (defects only).- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Long arm parts ship in several boxes. Check every arm, bracket and hardware pack against the part list in the TeraFlex instructions before you start cutting, and contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
