TeraFlex Alta Cargo Rack for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Above the spare: Uses the space over a spare tire up to 37".
- 75-lb cargo rating: TeraFlex's total cargo rating for the rack.
- Aluminum and steel: Aluminum outer frame with a steel cargo basket.
- Steel support structure: Mounts to the Alpha carrier, with accessory points.
- 100% bolt-on: TeraFlex says basic hand tools are all you need.
- Optional mounts: Add the Alta Hi-Lift jack or CB antenna mount.
Description & Fitment

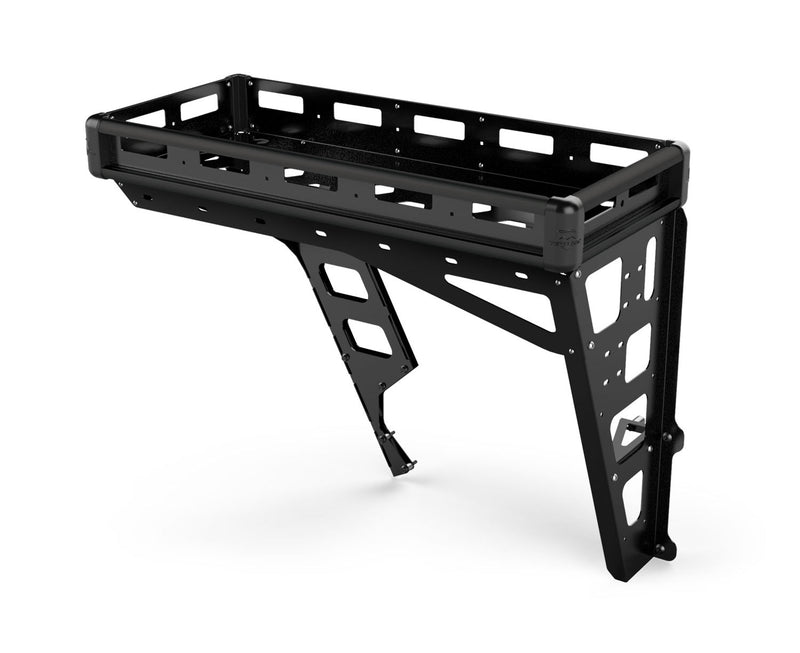

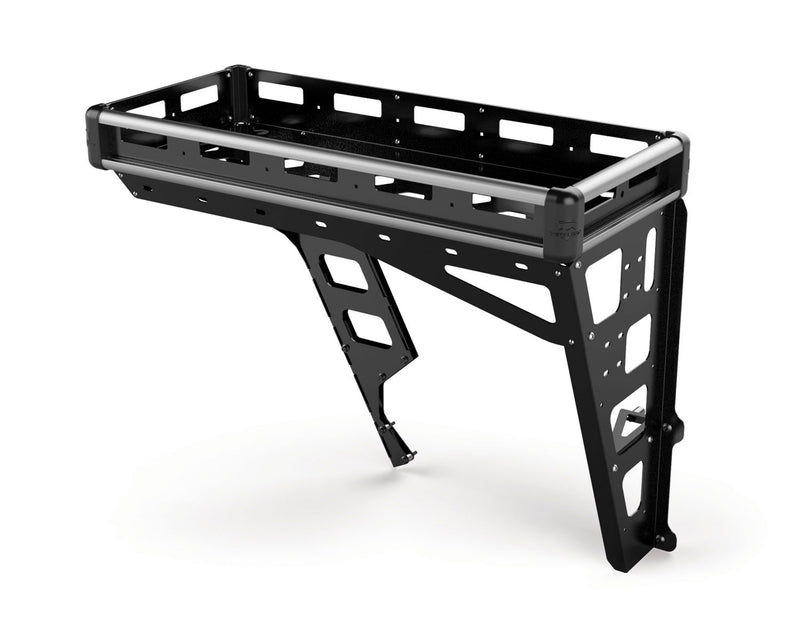

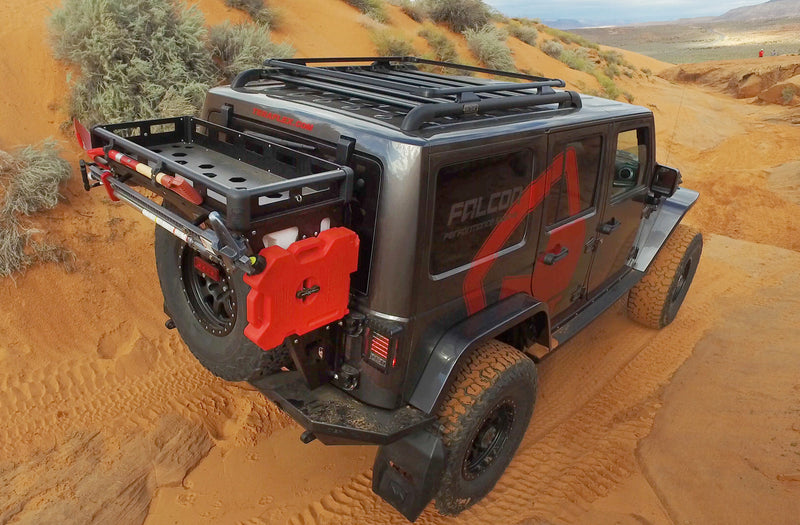

The TeraFlex Alta Cargo Rack sits above the spare tire on a 2007-2018 Jeep Wrangler JK or JK Unlimited hardtop to keep extra supplies out of harm's way on long overland trips. A steel support frame, which adds its own accessory mounting points, attaches it to the TeraFlex Alpha HD Hinged Spare Tire Carrier, and it requires both that carrier and an Alpha HD Adjustable Spare Tire Mount, neither included. TeraFlex rates it at 75 lb total cargo, clears up to a 37" tire and notes it may raise the center of gravity.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; Hardtop only; Requires Alpha HD Hinged Spare Tire Carrier |
Check your Jeep: 2007-2018 JK or JK Unlimited hardtop with the Alpha HD Hinged Spare Tire Carrier and an Alpha HD Adjustable Spare Tire Mount; spare up to 37".
Not for: Soft tops; JKs without the Alpha carrier.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
What do I need to mount it?
TeraFlex says it must be used with both the Alpha HD Hinged Spare Tire Carrier and an Alpha HD Adjustable Spare Tire Mount: 4838150 (carrier with 5x5" mount), or 4838100 carrier plus mount 4838130, 4838235 or 4838188. They are not included.
Does it fit soft-top JKs?
No. TeraFlex lists 2-door and 4-door JK hardtop models with the Alpha HD Hinged Spare Tire Carrier.
How much can it carry?
TeraFlex gives a 75-lb total cargo rating and notes the rack may raise the center of gravity and affect weight distribution.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and doors, plus your top (hardtop or soft top) and the TeraFlex parts you already run, and we'll check it against TeraFlex's fitment information before it ships.
Do I need to read the instructions first?
Yes. TeraFlex asks you to read its instructions fully before you start and recommends installation by a certified mechanic.
Installation
- Flat head screwdrivers (small and medium)
- Ratchet wrench
- Allen sockets (5/16" and 7/32")
- 13mm socket
- Wrenches (10mm, 13mm and 9/16")
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Lay out the parts, loosely fit the passenger side bracket to the rack pan with four M6 x 12mm bolts and T-nuts (thread locker on the bolts), then slide on the side rails on loose T-nuts and snug them with the 4mm Allen key, leaving some play.
- Fit the corner supports by sliding the rails aside to clear each one, square the rails, use a helper or clamp so the gaps are even and the rails sit tight to the pan, then tighten all rail-to-pan bolts with thread locker.
- Loosely fit the driver side bracket and the front brace to the rack pan with the M6 bolts, washers and nuts, and the two 3/8" bolts through the front brace and passenger side bracket.
- Remove the spare tire, the four 13mm bolts on the driver side of the adjustable tire carrier mount, one upper passenger side bolt on the hinged carrier and the rubber tire stopper on the tailgate; clean the tailgate and carrier surfaces.
- With a helper, lift the rack into place and start the upper bolts (1/2" bolt on the passenger side, M8 x 50mm with thread locker on the driver side), then the rest; fit the passenger inner brace and spacer, and the rubber-faced spacer behind the driver side bracket, securing that bolt's nut through the removed tailgate vent cover.
- Tighten the tailgate bolts in order (driver bracket bolts around the tire mount, then the passenger bracket bolts on the carrier, then the spacer bolts and brace bolts), then the rack pan to bracket bolts; refit the spare and re-torque everything after the first 300-500 miles.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Product Type | Spare tire cargo rack |
| Cargo Rating | 75 lb total |
| Max Tire | 37" |
| Construction | Aluminum external frame, steel cargo basket, steel support structure |
| Requires | Alpha HD Hinged Carrier + Alpha HD Adjustable Mount (not included) |
| Part number | 4830000 |
| UPC | 843885039754 |
| Part # | Color | UPC |
|---|---|---|
| 4830000 | Silver Rails | 843885039754 |
| 4830010 | Black Rails | 843885039761 |
