Features
- 2.5", 3" or 4" of lift: Seven versions for the 2-door JK.
- Shocks, extensions or none: Pick 9550 VSS Twin-Tube shocks, shock extensions (2.5") or no shocks.
- Ultra-simple 2.5" kit: TeraFlex's basic route to larger tires with on-road handling kept.
- Stability controls kept: TeraFlex says factory stability controls stay within Jeep's parameters.
- Plan the support parts: 3"/4" need arms, a front track bar and caster correction.
- Wheel backspacing: 4.75" or less, or Offset Wheel Adapters (1055000) on stock wheels.
Description & Fitment
For the 2-door 2007-2018 Jeep Wrangler JK, this TeraFlex Coil Spring Base Lift Kit offers 2.5", 3" or 4" of lift with TeraFlex 9550 VSS Twin-Tube shocks, with shock extensions (2.5") or with no shocks. TeraFlex describes the 2.5" kit as an ultra-simple way to fit larger tires while keeping on-road handling. The 3" and 4" versions need longer preset or adjustable control arms and an adjustable front track bar to correct geometry, plus caster correction (not included), and TeraFlex recommends an adjustable rear track bar at 4". Wheels need 4.75" or less backspacing (or 1055000 adapters), driveshaft changes may be needed, and 2007-2011 JKs need extended front brake lines (4353300).
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 2-door only; 2.5"-4" lift |
Check your Jeep: Wrangler JK 2-door 2007-2018; wheels with 4.75" or less backspacing or 1055000 adapters; 2007-2011: brake lines 4353300.
Not for: JK Unlimited 4-door (1151200 group); TJ or JL models.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Will it fit a JK Unlimited?
No. These are 2-door kits; the 4-door JK Unlimited versions are in the 1151200 group.
What do the 2.5" no-shock kits need?
Longer shocks or TeraFlex Shock Extensions (front upper 1553800, rear upper 1554800), which aren't included; 1352002 includes the extensions.
Will I need driveshaft work?
TeraFlex says driveshaft modifications may be necessary and points to its Rzeppa High Angle CV Kit (1744014).
What warranty does TeraFlex give?
TeraFlex covers its coil springs and 9550 VSS shocks for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. Contact us to confirm coverage on other parts of your kit or to start a claim.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right kit before I order?
Yes. Contact us with your VIN or year, model, doors and trim, plus your wheels, tires and any lift parts already fitted, and we'll check it against TeraFlex's fitment information before it ships.
Installation
- Ratchets (1/4" and 1/2")
- 1/4" drive sockets (5/16", 10mm and 7/16")
- 1/2" drive sockets
- Swivel sockets (18mm, 21mm and 3/4")
- 12" extension
- Allen wrenches (3/16" and 5mm)
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Lift the Jeep by the frame, remove the wheels, support the front axle, loosen (do not remove) all control arm bolts, remove the exhaust skid plate/cross member (not reused), front driveline at the axle and sway bar links, free the ABS lines and breather tube, then lower the axle and remove the springs.
- Fit the new front springs driver side first, rotating each until fully seated, and add the speedbumps or bump stop extensions your kit includes per their TeraFlex instructions.
- Install the front shocks (top nut 20 ft-lbs, lower bolt loose for the brake line anchor), the quick disconnect sway bar links (75 ft-lbs), the kit's front control arms and track bar, then the brake line anchors and the front driveline with thread locker at 15 ft-lbs (p6-p7).
- Loosen the Y-pipe clamp, chisel off the intermediate pipe's indexing stop, and fit the exhaust flange spacers (longer one on the passenger side) with the supplied bolts, checking alignment and clearance.
- Rear: support the axle, remove the shocks, track bar, sway bar links and driveline at the axle, free the breather and ABS lines, then fit the springs and upper and lower spring retainers (30 ft-lbs and 50 ft-lbs, p10), the kit's rear arms, the track bar bracket on its U-bolts (p11), bump stops and sway bar links at 75 ft-lbs (p12).
- With the Jeep at ride height torque all suspension and track bar bolts, check every component, center the steering with the drag link, and re-torque after the first 500 miles and every 3,000.
- 999296 07-17 JK 3 Inch Suspension Lift Kit (PDF)
- 999300 JK 2.5-3 Inch Front and Rear Bump Stops Extension Instructions (PDF)
- 999298 07-17 JK 4-6 Inch Suspension Lift Kit (PDF)
- 999301 JK 4 Inch Front and Rear Bump Stops Extension Instructions (PDF)
- 999160 JK Shock Instructions (PDF)
- 999223 JK 2.5in Install Kit Packet (PDF)
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Product Type | Coil spring base lift kit |
| Doors | 2-door |
| Lift Height | 2.5", 3" or 4" (by version) |
| Shocks | 9550 VSS Twin-Tube on 125xxxx versions; shock extensions on 1352002; none on 1151202/1151421/1351002 |
| Wheel Requirement | 4.75" or less backspacing, or Offset Wheel Adapters 1055000 (not included) |
| 2007-2011 Models | Extended Length Front Brake Lines 4353300 required |
| Part number | 1151202 |
| UPC | 843885019756 |
| Part # | Version | UPC |
|---|---|---|

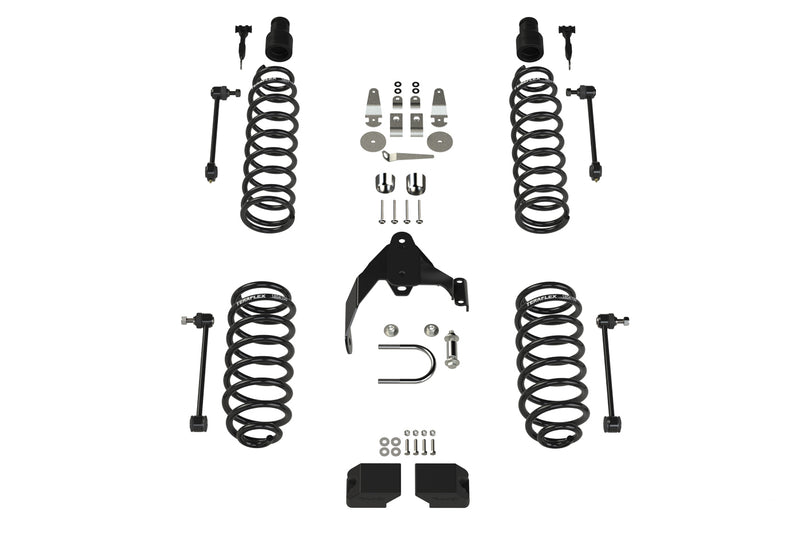

| 1151202 | 3", No Shocks | 843885019756 |

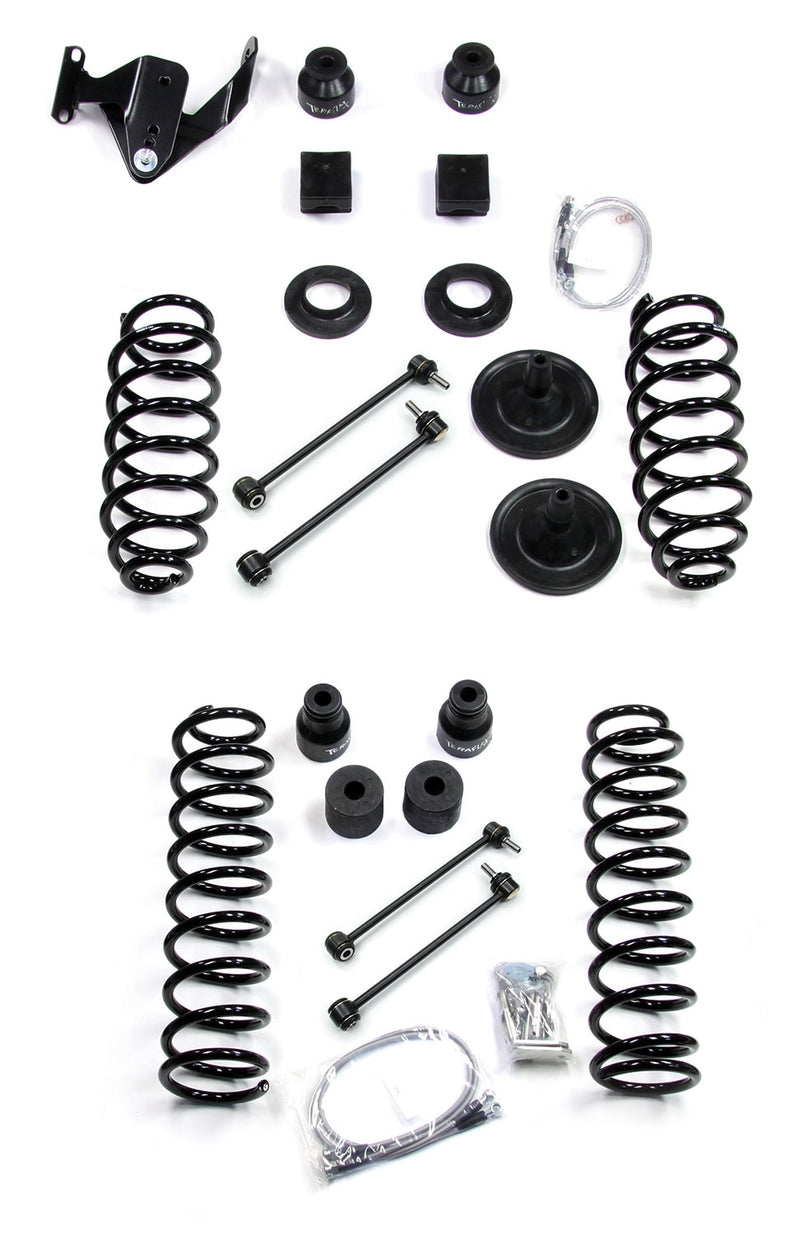

| 1151421 | 4", No Shocks | 843885019909 |

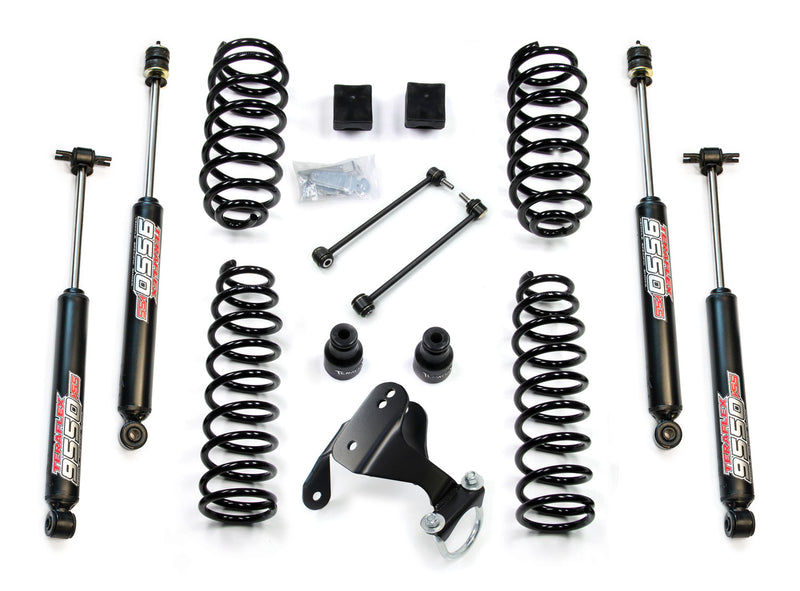

| 1251002 | 2.5" + 9550 VSS Shocks | 843885020509 |

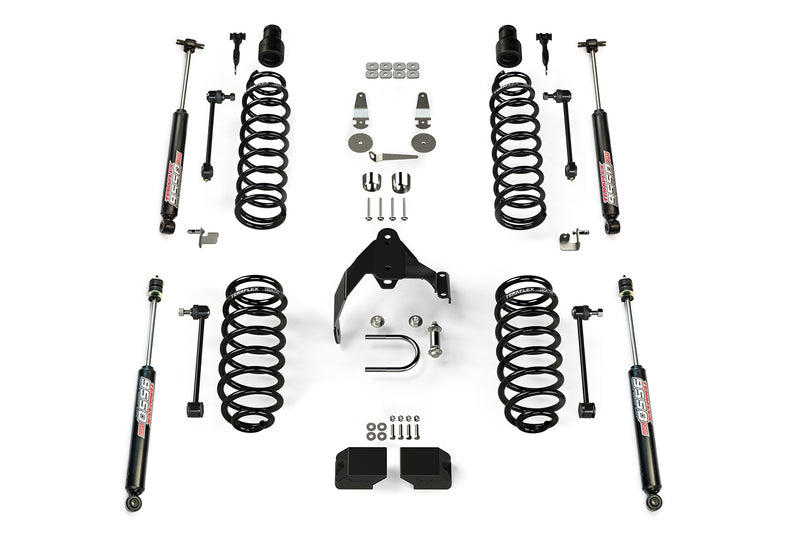

| 1251202 | 3" + 9550 VSS Shocks | 843885020547 |

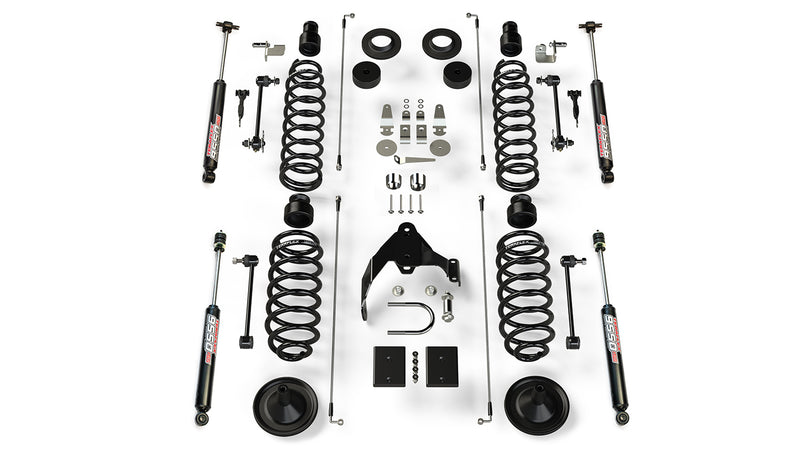

| 1251421 | 4" + 9550 VSS Shocks | 843885044314 |

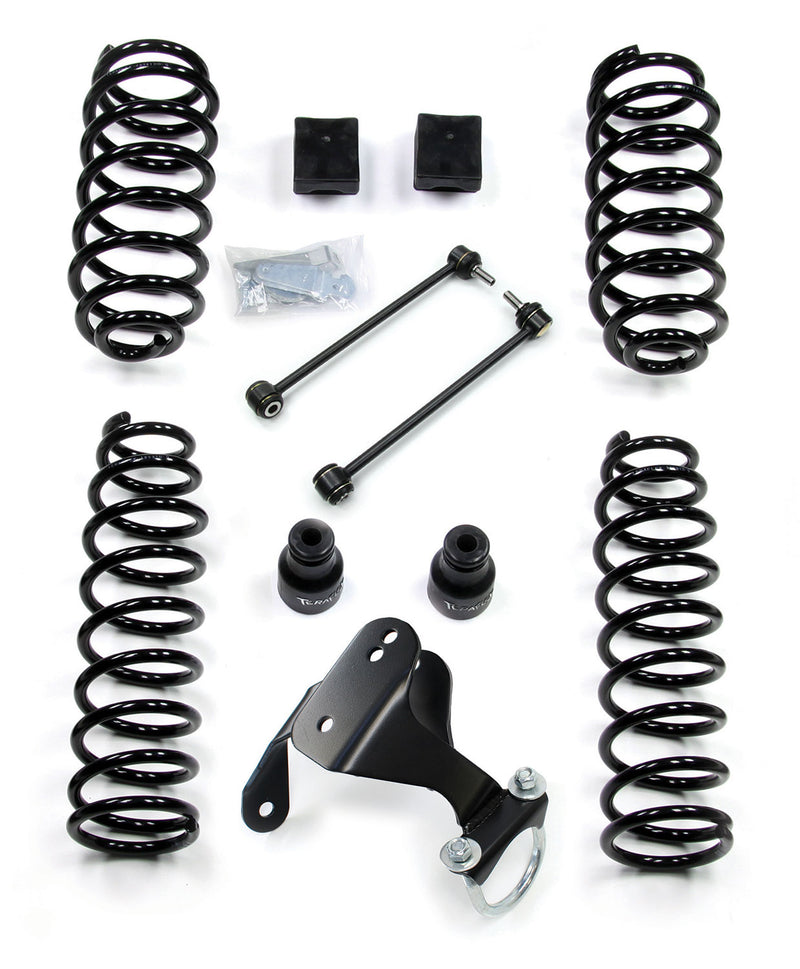

| 1351002 | 2.5", No Shocks or Extensions | 843885021087 |

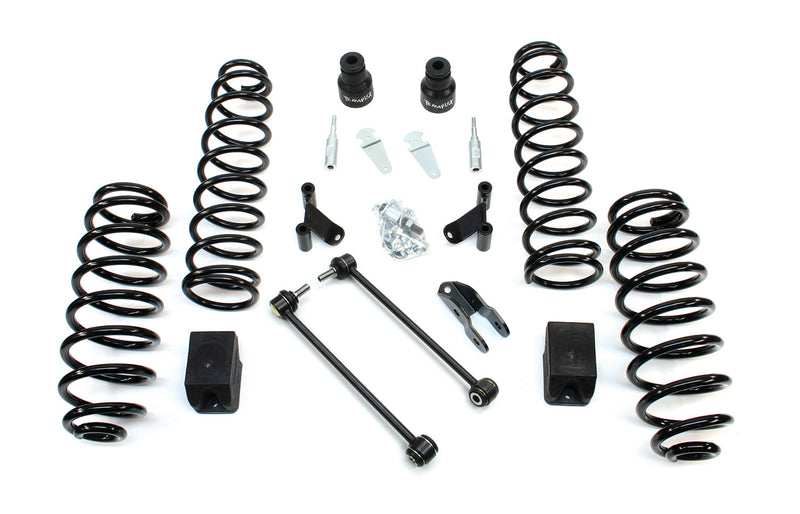

| 1352002 | 2.5" + Shock Extensions | 843885021179 |
