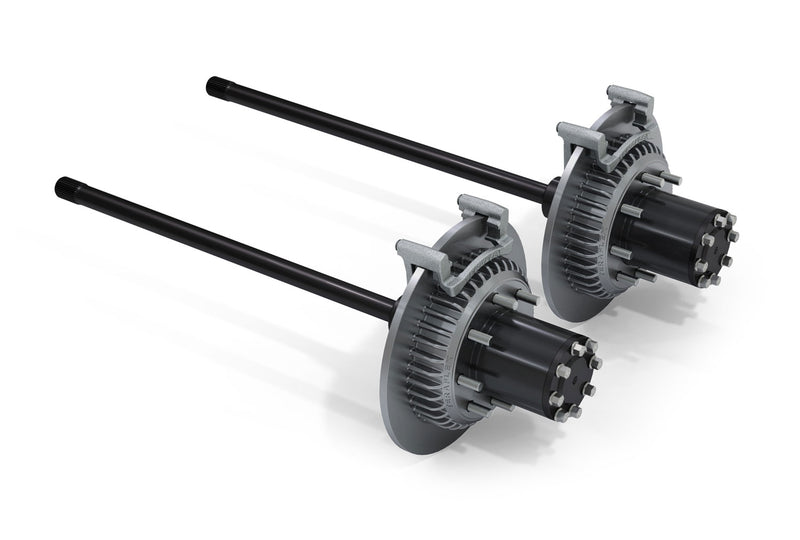

TeraFlex CRD60 Rear Axle 8-Lug Full-Float Conversion & Solid Big Rotors, 3.25" OD for 2007-2018 Jeep Wrangler JK Sport/Sahara
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Shafts stop carrying weight: The full-float design moves vehicle weight off the axle shafts onto the spindles.
- Twin-bearing 4140 spindles: Forged chromoly spindles with two bearings spread the load evenly.
- 4340 chromoly shafts: Case-hardened shafts only transmit torque to the wheels.
- Off-the-shelf bearings: The spindles take industry-standard bearings and seals.
- Factory parts kept: Sensors stay protected, and the OEM park brake, calipers and pads are retained.
- Solid big rotors included: Comes with solid big rotors to match the 8-lug hubs.
Description & Fitment
This TeraFlex kit turns the CRD60 rear axle with 3.25" O.D. tubes on a 2007-2018 Jeep Wrangler JK Sport or Sahara, 2-door or Unlimited, into an 8-lug full-float axle and adds solid big rotors. Twin-bearing forged 4140 chromoly spindles carry the vehicle weight, so the case-hardened 4340 chromoly shafts only drive the wheels. The spindles take industry-standard bearings and seals, and the factory sensors, park brake, calipers and pads are retained. Full-float kits may not work with all wheels, so verify wheel fitment first.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; Sport/Sahara only |
Fits: 2007-2018 Jeep Wrangler JK and JK Unlimited Sport / Sahara, CRD60 rear axle with 3.25" O.D. tubes
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Will my wheels fit?
TeraFlex warns that full-float kits may not work with all wheels, so check your wheels before installing.
Does it fit a factory Dana 44 rear or a Rubicon?
No. This kit is for a CRD60 rear axle with 3.25" O.D. tubes, and TeraFlex lists it for JK Wrangler and Wrangler Unlimited Sport and Sahara models only.
How do I pick the right part number?
Each listing names the axle, size, spline count, side and lift range TeraFlex lists for that part number. Match it to your Jeep and current setup, or send us your VIN and build details and we'll check before you order.
Who should install it?
TeraFlex recommends a certified mechanic. Follow the TeraFlex instructions for the part, and take any torque values from those instructions or your service manual.
What if it arrives damaged?
Check the packaging and the part before you sign, note any damage on the delivery receipt, and contact us right away. We will sort out a replacement with you.
Is this genuine TeraFlex?
Yes. We are an authorized TeraFlex dealer, so every part ships new and genuine.
Installation
- Basic mechanics tool set
- Welder
- One ton spindle nut socket
- 1/2" drill bit and drill
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Raise and support the vehicle and axle, remove the wheels, drain the rear differential, disconnect the e-brake cable and remove the calipers, anchor brackets and rotors.
- Remove the wheel speed sensor without unplugging it, pull the old axle shaft, the backing plate assembly and the bearing race.
- Pack the tube with shop towels, drill a 1/2" hole on both sides about 1" from the flange, clean out all shavings and deburr, then tap the new spindle in until it seats and seal the joint with silicone.
- Refit the backing plate and spindle retainer with the longer M12 hardware at 45 ft-lbs, plug weld both drilled holes and reattach the e-brake cable.
- Pack the bearings with grease, fit the hub and outer bearing, seat the inner nut at 50 ft-lbs while turning the hub, back it off 90 degrees and align the pin with the lock washer; fit the outer nut at 160-205 ft-lbs.
- Install the shaft (7/16" bolts 95 ft-lbs criss-cross, silicone on the hub face), rotor and anchor bracket (blue thread locker, 55 ft-lbs), sensor, pads and caliper (26 ft-lbs), wheels at 135 ft-lbs, then refill and flood each hub by raising each side 6" for a minute (p8).
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 3063100 |
| Category | Axle assemblies & components |
| Pattern | 8-lug |
| Spindles | Forged 4140 chromoly, twin bearing |
| Shafts | Case-hardened 4340 chromoly |
| Rotors | Solid big rotors |
| Note | May not work with all wheels; verify wheel fitment |
| Labor Time | 5 hours |
| UPC | 843885045946 |
Warranty, shipping & returns
-
Warranty
TeraFlex covers its axle assemblies and axle housings, axle shafts and full-float conversion kits for 1 year against defects in materials and workmanship.- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
When it arrives, check the packaging and the part for shipping damage, then match what is in the box to the listing. Contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
