TeraFlex Dana 30/44 High Steer System (4"-6" Lift) for 1997-2006 Jeep Wrangler TJ/LJ, 1984-2001 Cherokee XJ, 1993-1998 Grand Cherokee ZJ & 1986-1992 Comanche MJ
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

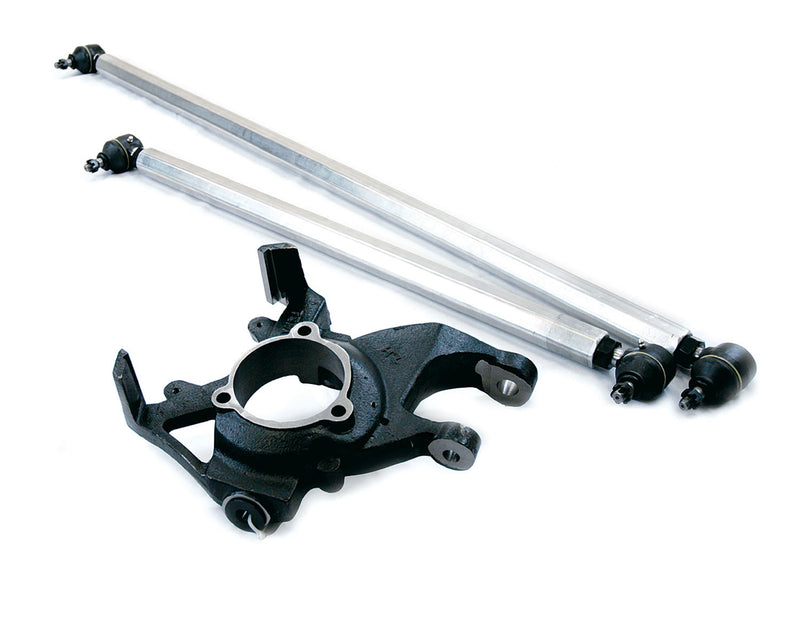

- Three parts in one system: High steer knuckle, HD drag link and HD tie rod.
- More ground clearance: Steering moves up, away from rocks.
- Corrected geometry: Better highway drivability on a lifted TJ.
- Cross or flipped steering: Flipping the drag link helps cut shimmy and bump steer.
- No cutting required: TeraFlex says no factory brackets are cut or removed.
- ABS unaffected: Works with factory or aftermarket shafts, ball joints and hubs.
Description & Fitment
The TeraFlex Dana 30/44 High Steer System addresses the steering problems of a lifted 1997-2006 Jeep Wrangler TJ or Wrangler Unlimited LJ with 4"-6" of lift. It combines the TeraFlex High Steer Knuckle (4828490), High Steer HD Aluminum Drag Link Kit (4920244) and High Steer HD Aluminum Tie Rod Kit (4920251), moving the steering up for ground clearance and correcting geometry for better highway driving. Run it as cross steering or flip the drag link over the knuckle to fight shimmy and bump steer. It is not all-inclusive: the drop pitman arm, sway bar mounts, quick disconnects and stabilizer mount are sold separately.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ/LJ; 4"-6" lift; Dana 30 or Rubicon Dana 44 front axle | |
| 1984-2001 | Cherokee | XJ; 4"-6" lift; Dana 30 front axle; TeraFlex: requires additional modifications | |
| 1993-1998 | Grand Cherokee | ZJ; 4"-6" lift; Dana 30 front axle; TeraFlex: requires additional modifications | |
| 1986-1992 | Comanche | MJ; 4"-6" lift; Dana 30 front axle; TeraFlex: requires additional modifications |
Check your Jeep: Wrangler TJ or Unlimited LJ 1997-2006 with a Dana 30 or Rubicon Dana 44 front axle and a 4"-6" lift; XJ Cherokee, ZJ Grand Cherokee and MJ Comanche with a Dana 30 front axle need extra modifications.
Not for: JK (4390975 / 4391000) or JL/JT; Jeeps under 4" of lift.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
What else might I need?
TeraFlex says it may need the High Steer HD Adjustable Front Track Bar & Bracket Kit (4923200), a front sway bar quick disconnect kit and/or offset wheels, plus the drop pitman arm, sway bar mounts and stabilizer mount, which are not included.
Does it fit an XJ, ZJ or MJ?
TeraFlex says it also fits the XJ Cherokee, ZJ Grand Cherokee and MJ Comanche with a Dana 30 front axle, with additional modifications.
How long does install take?
TeraFlex estimates about 4-5 hours.
What warranty does TeraFlex give?
TeraFlex covers its ball joints, tie rods, tie rod ends and drag links for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. For knuckles, pitman arms, clamps and skid plates, contact us and we'll confirm the term before you order.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Contact us with your VIN or year, model, front axle and lift height, and we'll check it against TeraFlex's fitment information before it ships.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Raise and support the front axle so the tires are off the ground, remove the wheels, and measure the tie rod center to center at the knuckles; write the figure down to approximate toe-in on reassembly.
- Remove the tie rod and drag link. TeraFlex notes the kit is not all-inclusive: plan for sway bar link/mount and front track bar mount changes, update 1984-1991 Dana 30 calipers, rotors and possibly unibearings to the later design, and use wheel spacers or wheels with 3.5" or less backspacing.
- Passenger side: remove the two brake caliper bolts, the caliper and rotor, then the three wheel bearing bolts and pull the unibearing/axle shaft assembly (stuff a rag in the tube if it starts to leak); remove the top and bottom ball joint nuts and take off the knuckle.
- Fit the TeraFlex high steer knuckle, torquing the ball joint nuts as specified in the Jeep service manual, then reinstall the hub assembly, axle shaft, rotor, caliper and brake pads.
- Install the new tie rod set to the length measured at the start, and the drag link from knuckle to pitman arm with a 9/16 flat washer under the castle nut; check every bolt and nut for proper torque and fit cotter pins where required.
- Reinstall the wheels, lower the Jeep and have the front-end alignment checked at a shop experienced with 4WD vehicles; check all bolts and jam nuts after 500 miles. The sway bar mounts (and on some Jeeps the track bar) need the modifications described in the sheet.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1813000 |
| Product Type | High steer system |
| Lift Range | 4"-6" |
| Axle | Dana 30 or Rubicon Dana 44 front |
| Includes | High Steer Knuckle (4828490), HD Aluminum Drag Link Kit (4920244), HD Aluminum Tie Rod Kit (4920251) |
| Not Included | Drop pitman arm (1922133), sway bar mount kit (4959100), quick disconnects (1743092), stabilizer mount (1510090) |
| Wheels | 15" wheels with 3.5" or less backspacing work |
| UPC | 843885023579 |
