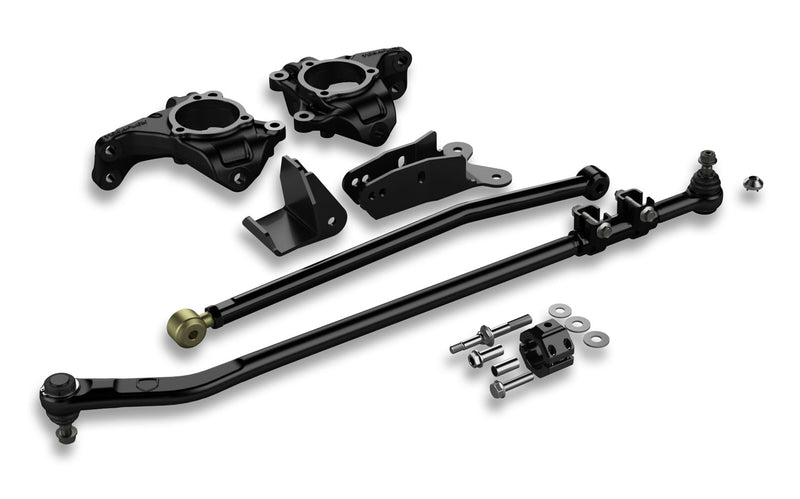

TeraFlex Dana 30/44 High Steer System With HD Forged Drag Link Flip Kit (No Tie Rods) for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Four kits in one: Knuckles, drag link flip kit, track bar bracket and braces, stabilizer kit.
- Flipped forged drag link: 50% stiffer than factory, per TeraFlex.
- Track bar drop bracket: Multiple holes to tune track bar angle.
- Frame braces: Reduce shimmy and excess frame movement.
- Over 1-1/8" more clearance: Knuckles raise the tie rod off the rocks.
- Tie rod sold separately: Add the HD Chromoly Tie Rod Kit (1853910).
Description & Fitment
This TeraFlex Dana 30/44 High Steer System with HD Forged Drag Link Flip Kit (no tie rods) fixes front-end steering on a 2007-2018 Jeep Wrangler JK or JK Unlimited with a 4"-6" lift. It packs the High Steer Knuckle Pair (4390870), HD Forged Drag Link Flip Kit (1853930), Front Upper Track Bar Drop Bracket & Frame Brace Kit (1600444) and Steering Stabilizer Relocation Kit (1123160). The flipped drag link, 50% stiffer than factory per TeraFlex, mounts on top of the knuckle; the drop bracket corrects track bar angle and the braces stiffen the frame against shimmy. Add the HD Chromoly Tie Rod Kit (1853910) separately.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 4"-6" lift; Dana 30/44 front axle |
Check your Jeep: Wrangler JK or JK Unlimited 2007-2018 with a Dana 30 or Dana 44 front axle and a 4"-6" lift, on wheels with 4.75" backspacing or less (or 1055000 adapters).
Not for: JL/JT or TJ; Jeeps under 4" of lift.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
What is the difference from 4391000?
4391000 adds the HD Chromoly Tie Rod Kit (1853910). This system keeps your tie rod.
Does it work with a Falcon Nexus EF stabilizer?
TeraFlex lists Nexus EF stabilizers as not compatible when used with a factory-style track bar bracket and/or factory-style axle housing.
How long does install take?
TeraFlex estimates about 7 hours.
What warranty does TeraFlex give?
TeraFlex covers its ball joints, tie rods, tie rod ends and drag links for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. For knuckles, pitman arms, clamps and skid plates, contact us and we'll confirm the term before you order.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Contact us with your VIN or year, model, front axle and lift height, and we'll check it against TeraFlex's fitment information before it ships.
Installation
- Basic mechanics tool set
- Mallet or dead blow hammer
- Welder
- Wire brush
- Grinder or wire wheel
- Rest on TeraFlex's tool list
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Lift the Jeep, support the frame on jack stands and remove the front wheels; unbolt the track bar at both ends (21mm) and free the drag link at the knuckle by loosening the 21mm castle nut and striking the knuckle face to break the taper (premium kit: also at the pitman arm). The kit needs 4"-6" of lift and welding (p1).
- Remove the two lower steering box bolts (18mm), bolt on the drop bracket and mark it for welding; set the brace bar's fixed end in the factory track bar mount, bend up, then loosely fit the frame-side bracket and mark it against the frame (p4).
- Remove the brackets, clean them and the frame to bare metal, refit them, fit the 1/2" button-head bolt from inside the factory bracket at 65 ft-lbs and the steering box bolts at 87 ft-lbs, and cut off the exposed bolt end; with the brace bar out, weld both brackets flush, then clean, prime and paint (p5).
- Refit the brace (3.5" bolt at the drop bracket, 3" bolt at the frame bracket), drill the knuckle straight with a 13/16" bit and tap the new taper sleeve in from the top.
- Fit the flipped drag link (41" eye to eye is a good starting length): pitman arm end lock nut at 77 ft-lbs (105 Nm), knuckle end at 65 ft-lbs with a lock washer spacer on flip-end kits only; then fit the track bar in the frame bracket hole that sets it parallel to the drag link and torque both ends to 125 ft-lbs (p6).
- Refit the wheels at 95-115 ft-lbs, lower the Jeep, center the axle with the track bar, set the steering wheel with the drag link sleeve (sleeve bolts 26 ft-lbs) after a test drive, get a full alignment, and re-torque the ball joints after 200 miles (p5).
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 4390975 |
| Product Type | High steer system |
| Lift Range | 4"-6" |
| Axle | Dana 30/44 front |
| Includes | 4390870, 1853930, 1600444, 1123160 |
| Not Included | HD Chromoly Tie Rod Kit (1853910) |
| Wheels | 4.75" or less backspacing or 1055000 adapters (x2) |
| UPC | 843885034568 |
