TeraFlex HD Chromoly Tie Rod Kit for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

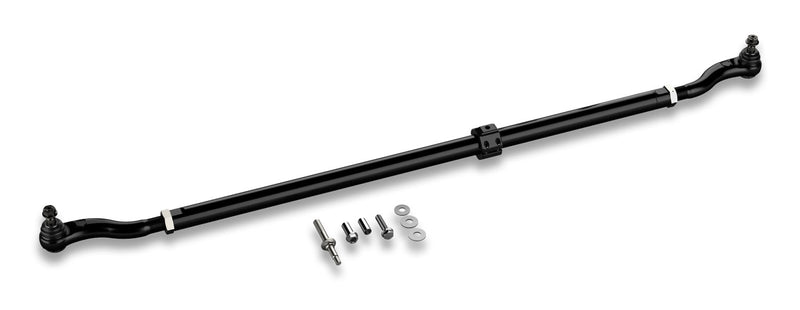

- 4140 chromoly tie rod: 1-5/8" OD heat-treated chromoly steel.
- Over 200% stronger: TeraFlex's rating versus the factory tie rod.
- Ball joint grade ends: 4140 chromoly ball stud and 1045 carbon steel housing.
- Less tie rod roll: End rotation limited to 14 degrees.
- Stabilizer bracket included: Relocation mount for the 1-5/8" tie rod.
- No cutting required: TeraFlex says no factory brackets are cut or removed.
Description & Fitment
TeraFlex's HD Chromoly Tie Rod Kit replaces the factory tie rod on a 2007-2018 Jeep Wrangler JK or JK Unlimited with a Dana 30/44 front axle and up to 6" of lift. The 1-5/8" OD tie rod is heat-treated 4140 chromoly steel that TeraFlex rates at more than 200% stronger than stock, with a JK-specific forged housing. Its end joints use TeraFlex ball joint construction with adjustable preload, and rotation is limited to 14 degrees to reduce tie rod roll. A steering stabilizer relocation bracket for the 1-5/8" tie rod is included and clears factory 17" wheels.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 0-6" lift; Dana 30/44 front axle |
Check your Jeep: Wrangler JK or JK Unlimited 2007-2018 with a Dana 30/44 front axle and 0-6" of lift.
Not for: JL/JT or TJ; Falcon Nexus EF stabilizers without the 99-01-01-158 clamp.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it work with a Falcon Nexus EF stabilizer?
Not with the included relocation bracket. TeraFlex says you need the Falcon 1-5/8" Steering Stabilizer Tie Rod Clamp Kit (99-01-01-158).
Do I need a drag link flip kit?
It may. TeraFlex lists the HD Forged Drag Link Flip Kit (1853905 with tie rod, 1853930 without) as a possible requirement, and other changes may be needed to keep steering geometry correct.
How long does install take?
TeraFlex estimates about 1.5 hours.
What warranty does TeraFlex give?
TeraFlex covers its ball joints, tie rods, tie rod ends and drag links for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. For knuckles, pitman arms, clamps and skid plates, contact us and we'll confirm the term before you order.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Contact us with your VIN or year, model, front axle and lift height, and we'll check it against TeraFlex's fitment information before it ships.
Installation
- Jack
- Jack stands
- Basic mechanics tool set
- 2.5mm Allen wrench
- 1-1/2" open end wrench
- Rest on TeraFlex's tool list
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Chock the rear tires, raise and support the front of the Jeep so the tires are off the ground, and remove the front wheels.
- Prepare the HD tie rod: fit the dust boot retaining spring (one per end) and the set screw plugs (two per end) with blue thread locker on the set screws; the spare O-rings are for later maintenance.
- Remove the steering stabilizer, back the tie rod end nuts off a few threads (21mm), and strike the knuckle casting around the stud (never the stud or threads) until the tie rod drops free; then remove the nuts and the tie rod.
- Measure the factory tie rod center to center and set the new tie rod to match as closely as possible; with upgraded brake rotors, trim the backing plate to clear (cut-off wheel or tin snips).
- Install the new tie rod and torque the tie rod end nuts to 63 ft-lbs.
- Recheck the length against the factory tie rod, tighten the jam nuts so both ends return to neutral without binding, grease the joints and fit the #344408 grease zerk dust cover; TeraFlex highly recommends a professional alignment.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1853910 |
| Product Type | Tie rod kit |
| Lift Range | 0-6" |
| Axle | Dana 30/44 front |
| Tie Rod | 1-5/8" OD 4140 heat-treated chromoly |
| End Rotation | Limited to 14 degrees |
| Clearance | Factory 17" wheels |
| UPC | 843885033271 |
Warranty, shipping & returns
-
Warranty
TeraFlex covers ball joints, tie rods, tie rod ends and drag links for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days (defects only).- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Check the drag link, tie rod, ends, jam nuts and any bracket against the TeraFlex parts list before you start, and contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
