TeraFlex HD Forged Drag Link Kit for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

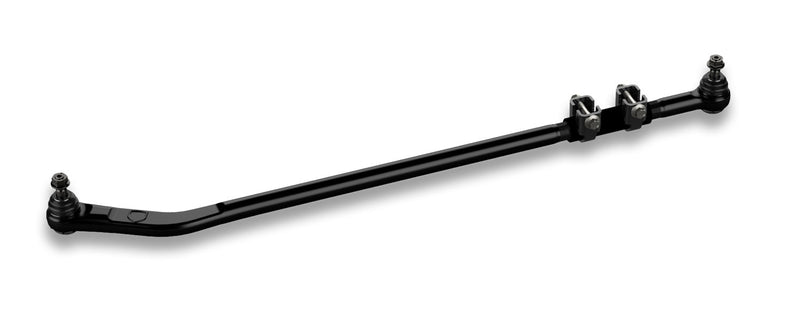

- Fully forged drag link: 1.25" OD forged link limits flex in hard steering.
- 50% stiffer than stock: TeraFlex's figure, to help stop shimmy.
- Ball joint grade ends: 4140 chromoly ball stud and 1045 carbon steel housing.
- Adjustable preload: Joint preload tension set for long-term durability.
- Optional tie rod kit: 1853900 adds the 1-5/8" 4140 chromoly HD tie rod.
- Simple adjustment: Factory-style DOM adjusting collar and pinch clamp.
Description & Fitment

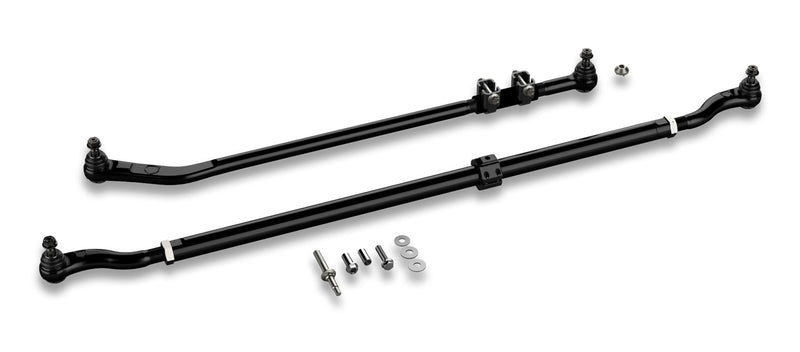

The TeraFlex HD Forged Drag Link Kit replaces factory steering parts that bend and fail on a lifted 2007-2018 Jeep Wrangler JK or JK Unlimited with a 0-3" lift. The 1.25" OD fully forged drag link is rated 50% stiffer than factory and uses a DOM factory-style adjusting collar for simple adjustment. Its joint has a 4140 chromoly ball stud, a 1045 carbon steel housing and adjustable preload for long-term durability. Order it alone, or as 1853900 with the HD Chromoly Tie Rod Kit and its 1-5/8" 4140 chromoly tie rod added.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 0-3" lift; Dana 30/44 front axle |
Check your Jeep: Wrangler JK or JK Unlimited 2007-2018 with a Dana 30/44 front axle and 0-3" of lift, on wheels with 4.75" or less backspacing (or 1055000 adapters).
Not for: High steer knuckles (see 4390975); JL/JT or TJ.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
What is the difference between the two versions?
1853900 is the HD Forged Drag Link Kit plus the HD Chromoly Tie Rod Kit. 1853920 is the drag link kit only.
Does it work with my steering stabilizer?
The tie rod kit's stabilizer relocation bracket does not work with Falcon Nexus EF stabilizers; TeraFlex says the Falcon 1-5/8" Steering Stabilizer Tie Rod Clamp Kit (99-01-01-158) is required.
How long does install take?
TeraFlex estimates about 1.5 hours.
What warranty does TeraFlex give?
TeraFlex covers its ball joints, tie rods, tie rod ends and drag links for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. For knuckles, pitman arms, clamps and skid plates, contact us and we'll confirm the term before you order.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Contact us with your VIN or year, model, front axle and lift height, and we'll check it against TeraFlex's fitment information before it ships.
Installation
- Jack
- Jack stands
- Basic mechanics tool set
- 2.5mm hex drive wrench or socket
- 1-1/2" open end wrench
- Rest on TeraFlex's tool list
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Chock the rear wheels, raise and support the front of the Jeep at the axle, remove the front wheels and the steering stabilizer (18mm).
- Loosen the drag link nuts (and, with 1853900, the tie rod nuts) without removing them (21mm), strike the knuckle castings around the studs with a large hammer until the links come free (a tie rod end puller is suggested at the pitman arm end to protect the steering box), then remove the nuts and the factory drag link (and tie rod with 1853900).
- Prepare the new drag link (and tie rod with 1853900) by fitting a #344407 dust boot retaining spring on each dust boot; the spare O-rings are for later maintenance.
- Measure the factory drag link (and tie rod) center to center, set the new assemblies to match as closely as possible, install them and torque the nuts to 63 ft-lbs; refit the wheels.
- With the ball joints in a neutral position, tighten the pinch clamps and jam nuts; with the tires straight, center the steering wheel by turning the drag link adjusting collar and torque the pinch clamp bolts to 45 ft-lbs.
- Grease the ball joints and fit the #344408 grease zerk dust covers (ball joint preload is set to 90 in-lbs with the supplied tool 1344000, p7); TeraFlex highly recommends a professional alignment.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Product Type | Drag link kit |
| Lift Range | 0-3" |
| Axle | Dana 30/44 front |
| Drag Link | 1.25" OD fully forged |
| Tie Rod (1853900) | 1-5/8" OD 4140 heat-treated chromoly |
| Wheels | 4.75" or less backspacing or 1055000 adapters |
| Part number | 1853900 |
| UPC | 843885033295 |
| Part # | Kit | UPC |
|---|---|---|
| 1853900 | Drag Link + Tie Rod Kit | 843885033295 |
| 1853920 | Drag Link Kit Only | 843885033325 |
