TeraFlex LCG Long Arm Frame Bracket Kit, Lower (3"-5" Lift) for 1997-2006 Jeep Wrangler TJ & Wrangler Unlimited LJ
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Lower long arm mounts: Frame brackets for the lower arms of TeraFlex's LCG long arm suspension.
- 1/4" laser-cut steel: CNC laser-cut and precision bent, per TeraFlex.
- Easy to locate: Positions on the factory belly pan skid plate bolt holes before stitch welding.
- Relaxed link angles: TeraFlex says relocating the mounts restores near-factory angles and eases bushing stress at droop.
- Pro and Enduro LCG part: The same lower brackets used in TeraFlex's LCG systems.
- Arms sold separately: Must be used with TeraFlex's adjustable LCG long control arms.
Description & Fitment

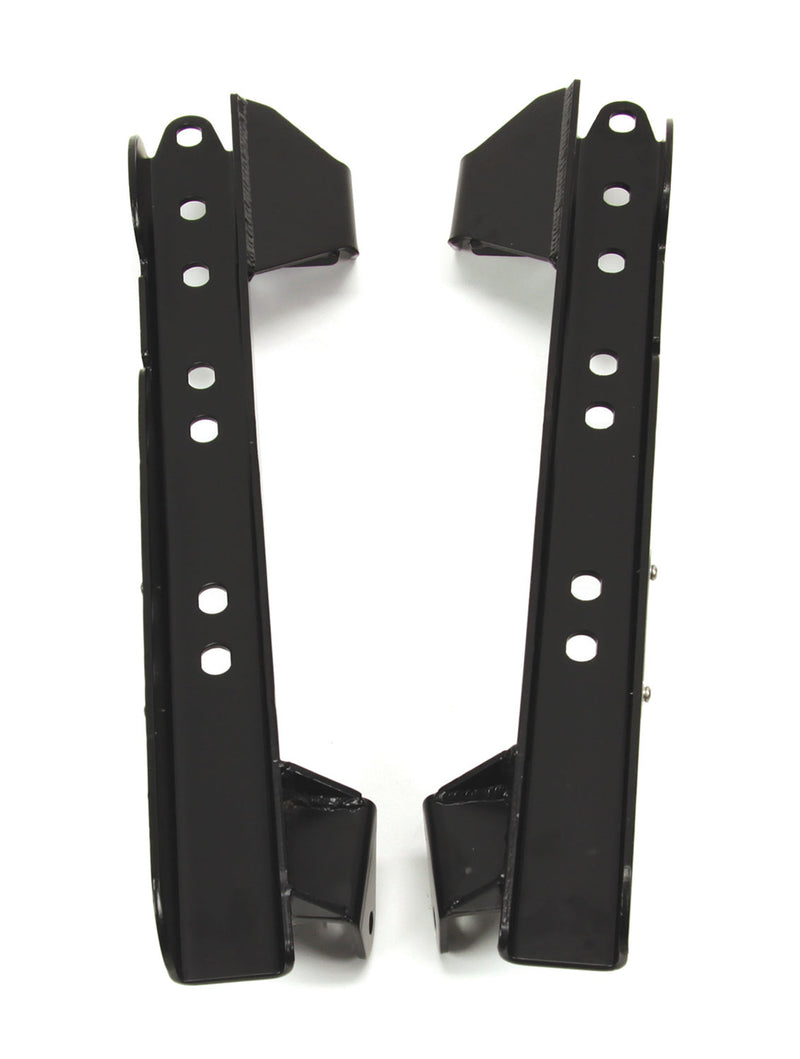

TeraFlex's LCG Long Arm Frame Bracket Kit (Lower) for the 1997-2006 Jeep Wrangler TJ and 2004-2006 Wrangler Unlimited LJ relocates the frame end of the lower control arms for TeraFlex's LCG long arm setup on 3"-5" lifts. The brackets are CNC laser-cut and bent from 1/4" steel, locate on the factory belly pan skid plate bolt holes and are then stitch welded. TeraFlex says these are the same brackets used in its Pro LCG and Enduro LCG systems. Control arms are not included.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ/LJ; 3"-5" lift |
Check your Jeep: Wrangler TJ 1997-2006 or Wrangler Unlimited LJ 2004-2006; 3"-5" lift; TeraFlex LCG long control arms.
Not for: JK, JL or JT models.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it include control arms?
No. TeraFlex says the brackets must be used with its adjustable LCG long control arms, sold separately.
Is welding required?
Yes. The factory control arm brackets are cut off and these are stitch welded to the frame.
Does it fit both TJ and LJ?
Yes, TeraFlex lists it for the TJ and LJ Unlimited with 3"-5" of lift. An alignment is required after install.
What warranty does TeraFlex give?
TeraFlex covers its control arms, IR bushings and long arm brackets for life against defects in materials and workmanship. Non-IR control arm bushings carry 1 year and finishes 90 days. Contact us with your order details to confirm coverage on any other part or to start a claim.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's right for my Jeep before I order?
Yes. Contact us with your VIN or year, model and trim, plus your current lift, and we'll check it against TeraFlex's fitment information before it ships.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Lift the TJ onto jack stands, remove any factory side steps, and remove the front and rear lower control arms on the passenger side only so the axle stays located.
- Grind the welds off the passenger lower arm mounts, chisel them free, buff and paint the area, then support the transmission and transfer case and remove the transfer case skid plate.
- Use the TeraFlex BellyUp skid plate or trim the factory skid plate for the bracket and rear lower arms, checking clearance through full arm travel.
- Fit the long arm bracket on the skid plate bolts and tack weld both sides, connect the front and rear lower FlexArms to the bracket and axle with the stock bolts (about 32.5" front and 32" rear on a 4" TeraFlex lift, rear set for pinion angle), then repeat on the driver side.
- Remove the skid plate bolts under each bracket (the tack welds hold it), refit and tighten the skid plate, check every bolt, and add 1/2" stitch welds to secure the brackets permanently.
- Have the alignment checked by a 4WD-experienced shop, keeping factory caster and setting toe-in.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1447701 |
| Product Type | Long arm frame bracket kit, lower |
| Lift Range | 3"-5" |
| Material | 1/4" CNC laser-cut steel |
| Requires | TeraFlex LCG long control arms (not included) |
| UPC | 843885021407 |
