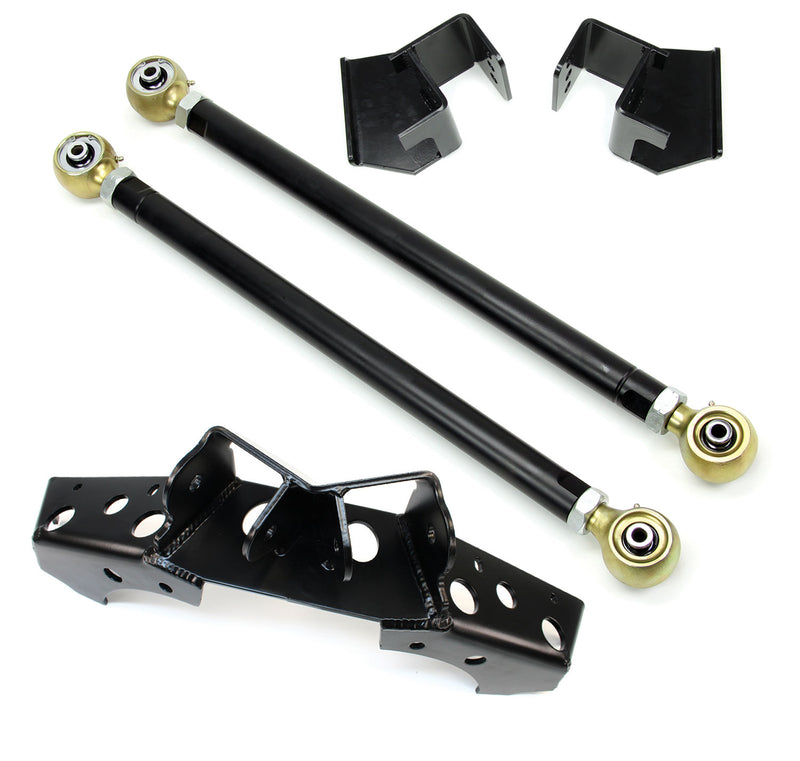

TeraFlex Pro LCG 4-link long control arm and bracket kit, rear upper, on a white background

TeraFlex Pro LCG 4-Link Long Control Arm & Bracket Kit, Rear Upper (3"-5" Lift) for 1997-2006 Jeep Wrangler TJ

$1,239.99
FREE SHIPPINGNo sales tax Only 1 leftIn stock now  Estimated delivery
Verify fitment with your vehicle
GO
Clear
Flash Sale Ends in--:--:--

Free gifts included with your order

Details
Details
  • Guaranteed FitmentTeam-confirmed fit or money back
  • No Sales TaxZero sales tax on every order
  • 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Prestige Truck customer support

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

Features

  • Triangulated 4-link rear: Converts the stock 5-link rear to a triangulated 4-link for more flex.
  • Truss and brackets included: Rear axle truss and frame brackets come in the kit.
  • Relaxed link angles: Repositioned mounts reduce bushing stress at droop, per TeraFlex.
  • CAD-designed for strength: 1/4"-thick steel, CNC laser cut and precision bent.
  • System-grade parts: The same components TeraFlex uses in its Pro LCG and Enduro LCG systems.
  • Short wheelbase TJ only: Sized for the TJ; the LJ Unlimited version is 1444880.

Description & Fitment

The TeraFlex Pro LCG 4-Link Long Control Arm & Bracket Kit, Rear Upper, is the short-wheelbase version for the 1997-2006 Jeep Wrangler TJ with 3"-5" of lift. Its frame brackets and rear axle truss convert the factory 5-link rear to a triangulated 4-link, which TeraFlex says frees up flex and clears other components. Moving both the frame-end and axle-end mounts relaxes link angles to cut bushing stress at full droop. Not for the LJ Unlimited (that kit is 1444880).

Fitment & Compatibility

Jeep
Years Model Bed Notes
1997-2006 Wrangler TJ; Not for LJ Unlimited; 3"-5" lift

Check your Jeep: Wrangler TJ (short wheelbase), 1997-2006, lifted 3"-5"; Lower LCG kit 1447700.

Not for: LJ Unlimited (use 1444880); JK, JL or YJ models.

About TeraFlex

TERAFLEX.

TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.

The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.

Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.

Frequently Asked Questions

Will it fit my LJ Unlimited?

No. This is the TJ short-wheelbase kit. The LJ long-wheelbase version is 1444880.

What else do I need?

TeraFlex lists the Lower LCG Long Control Arm & Bracket kit (1447700 for the TJ) as required with the upper Pro LCG kits; pair it with the Front Upper kit (1443470) for the full Pro LCG system.

Does it need welding?

Yes. The factory bracketry is cut off, the brackets are stitch welded, and an alignment is required.

What warranty does TeraFlex give?

TeraFlex covers its control arms for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. Contact us to confirm coverage on your part or to start a claim.

How quickly does it ship?

Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.

Can you confirm it's the right part before I order?

Yes. Contact us with your VIN or year, model and trim and what's on the Jeep now, and we'll check it against TeraFlex's fitment information before it ships.

Installation

Install time 6 hours
TypeCutting and weldingAlignment required
What's involvedRemove the springs, shocks, control arms and exhaust, cut the factory arm mounts off and weld in the long arm brackets and rear axle truss. Drill the front spring pads, fit the new arms, springs and bump stops, and have a new muffler and tailpipe built.

Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.

  1. Support the TJ under the frame so the axles fully droop, remove the tires, shocks, sway bar links, coil springs and all control arms, support the transmission and remove the transfer case skid plate.
  2. Mark and cut the exhaust header pipe at the patch location and remove the rest of the exhaust (protect the oxygen sensors), then remove the front upper, front lower and rear lower control arm mounts from the frame. The muffler must be replaced with a smaller one and the tailpipe rerouted.
  3. Bolt in the Belly Up skid plate (or modify the factory skid for arm clearance) and mount the transmission to it; have the rear axle truss professionally welded to clean axle tubes, resealing the diff cover.
  4. Fit the rear upper arm frame brackets, the new rear arms and springs, the extended brake hose and sway bar links with the brake tee on the truss (p4); the rear track bar is eliminated.
  5. Front: grind the paint, weld the upper PRO brackets inside the frame rails, fit the upper arms set to about 24-1/2" and the new lowers; the 4" kit uses the adjustable track bar in the stock brackets, the 5" kit welds on a new track bar bracket (p5).
  6. Drill (or drill and tap 3/8-16 where a plate is welded on) the front spring pads, fit the LCG springs with the aluminum bump stop spacers and the bump stops, then have an exhaust shop build the new muffler and tailpipe and weld in the front exhaust patch.

Stuck on a step? Ask our install experts

Specifications

BrandTeraFlex
Part Number1444870
Product TypeTriangulated 4-link long arm and bracket kit
PositionRear Upper
Lift Range3"-5"
IncludesFrame brackets and rear axle truss
Bracket Material1/4" steel, CNC laser cut
UPC843885021339
