TeraFlex Pro LCG Dana 30/44 High Steer System (4"-6" Lift) for 1997-2006 Jeep Wrangler TJ/LJ, 1984-2001 Cherokee XJ, 1993-1998 Grand Cherokee ZJ & 1986-1992 Comanche MJ
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

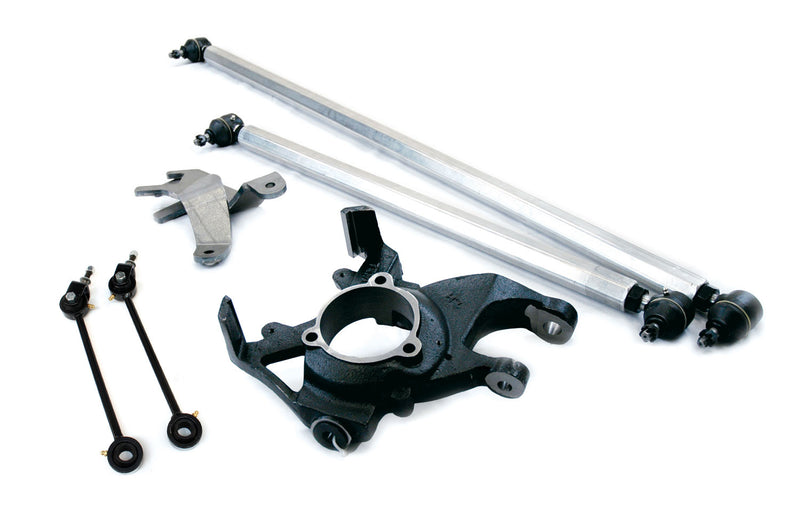

- Six-part Pro LCG system: Knuckle, tie rod, drag link, sway bar mounts, stabilizer mount, disconnects.
- Sway bar clearance: High steer mounts raise the front sway bar.
- Stabilizer mount included: Adapts a 9550 VSS stabilizer to the hex tubing.
- Quick disconnects: Front sway bar disconnect kit in the box.
- Corrected geometry: Better ground clearance and highway drivability.
- No cutting required: TeraFlex says no factory brackets are cut or removed.
Description & Fitment
The TeraFlex Pro LCG Dana 30/44 High Steer System is the more complete high steer package for a 1997-2006 Jeep Wrangler TJ or Wrangler Unlimited LJ with 4"-6" of lift. Along with the High Steer Knuckle, HD Aluminum Tie Rod and HD Aluminum Drag Link kits, it adds the High Steer Sway Bar Mount Kit, the 9550 VSS Steering Stabilizer Mount Kit and the Front Sway Bar Quick Disconnect Kit. The sway bar mounts raise the bar to clear the new steering, and the stabilizer mount fits a 9550 VSS stabilizer to the hex aluminum tubing. A drop pitman arm and track bar kit may still be needed.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ/LJ; 4"-6" lift; Dana 30 or Rubicon Dana 44 front axle | |
| 1984-2001 | Cherokee | XJ; 4"-6" lift; Dana 30 front axle; TeraFlex: requires additional modifications | |
| 1993-1998 | Grand Cherokee | ZJ; 4"-6" lift; Dana 30 front axle; TeraFlex: requires additional modifications | |
| 1986-1992 | Comanche | MJ; 4"-6" lift; Dana 30 front axle; TeraFlex: requires additional modifications |
Check your Jeep: Wrangler TJ or Unlimited LJ 1997-2006 with a Dana 30 or Rubicon Dana 44 front axle and a 4"-6" lift; XJ Cherokee, ZJ Grand Cherokee and MJ Comanche with a Dana 30 front axle need extra modifications.
Not for: JK (4390975 / 4391000) or JL/JT; Jeeps under 4" of lift.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
How does it differ from 1813000?
1813000 has the knuckle, drag link and tie rod. The Pro LCG system adds the sway bar mounts, the 9550 VSS stabilizer mount and front sway bar quick disconnects.
What else might I need?
TeraFlex says it may need a drop pitman arm (1922133), the High Steer HD Adjustable Front Track Bar & Bracket Kit (4923200), and wheels with 4.5" or less backspacing or 1005200 adapters on stock wheels.
How long does install take?
TeraFlex estimates about 4-5 hours.
What warranty does TeraFlex give?
TeraFlex covers its ball joints, tie rods, tie rod ends and drag links for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. For knuckles, pitman arms, clamps and skid plates, contact us and we'll confirm the term before you order.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Contact us with your VIN or year, model, front axle and lift height, and we'll check it against TeraFlex's fitment information before it ships.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Raise and support the front axle so the tires are off the ground, remove the wheels, and measure the tie rod center to center at the knuckles; write the figure down to approximate toe-in on reassembly.
- Remove the tie rod and drag link. TeraFlex notes the kit is not all-inclusive: plan for sway bar link/mount and front track bar mount changes, update 1984-1991 Dana 30 calipers, rotors and possibly unibearings to the later design, and use wheel spacers or wheels with 3.5" or less backspacing.
- Passenger side: remove the two brake caliper bolts, the caliper and rotor, then the three wheel bearing bolts and pull the unibearing/axle shaft assembly (stuff a rag in the tube if it starts to leak); remove the top and bottom ball joint nuts and take off the knuckle.
- Fit the TeraFlex high steer knuckle, torquing the ball joint nuts as specified in the Jeep service manual, then reinstall the hub assembly, axle shaft, rotor, caliper and brake pads.
- Install the new tie rod set to the length measured at the start, and the drag link from knuckle to pitman arm with a 9/16 flat washer under the castle nut; check every bolt and nut for proper torque and fit cotter pins where required.
- Reinstall the wheels, lower the Jeep and have the front-end alignment checked at a shop experienced with 4WD vehicles; check all bolts and jam nuts after 500 miles. The sway bar mounts (and on some Jeeps the track bar) need the modifications described in the sheet.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1849000 |
| Product Type | High steer system |
| Lift Range | 4"-6" |
| Axle | Dana 30 or Rubicon Dana 44 front |
| Includes | 4828490, 4920251, 4920244, 4959100, 1510090, 1743092 |
| Wheels | 4.5" or less backspacing or 1005200 adapters; 15" wheels with 3.5" or less backspacing work |
| UPC | 843885023791 |
Warranty, shipping & returns
-
Warranty
TeraFlex covers ball joints, tie rods, tie rod ends and drag links for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days (defects only).- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Check the drag link, tie rod, ends, jam nuts and any bracket against the TeraFlex parts list before you start, and contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
