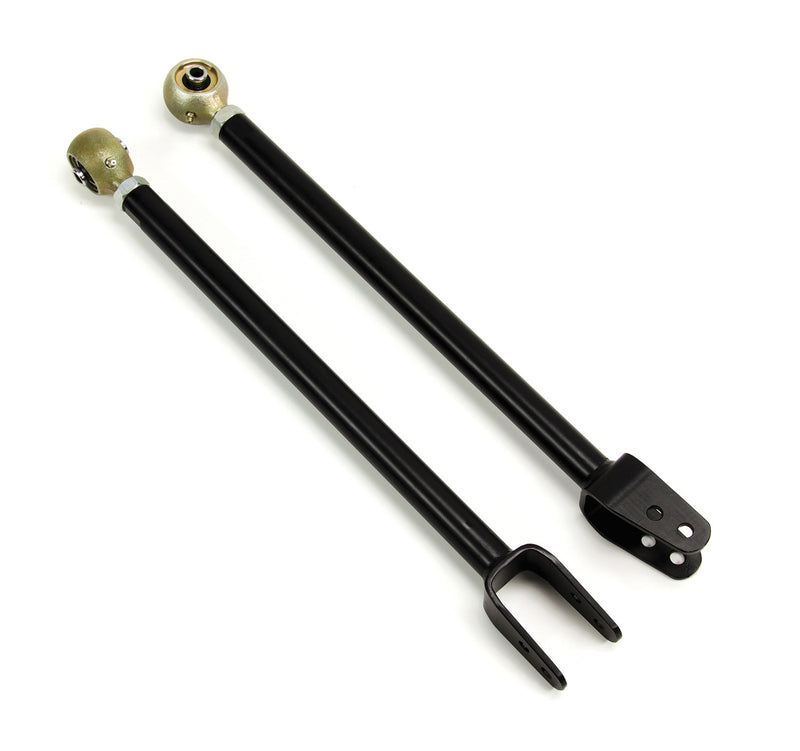

TeraFlex Pro LCG Long Control Arm Kit, Front Upper (3"-5" Lift) on a white background

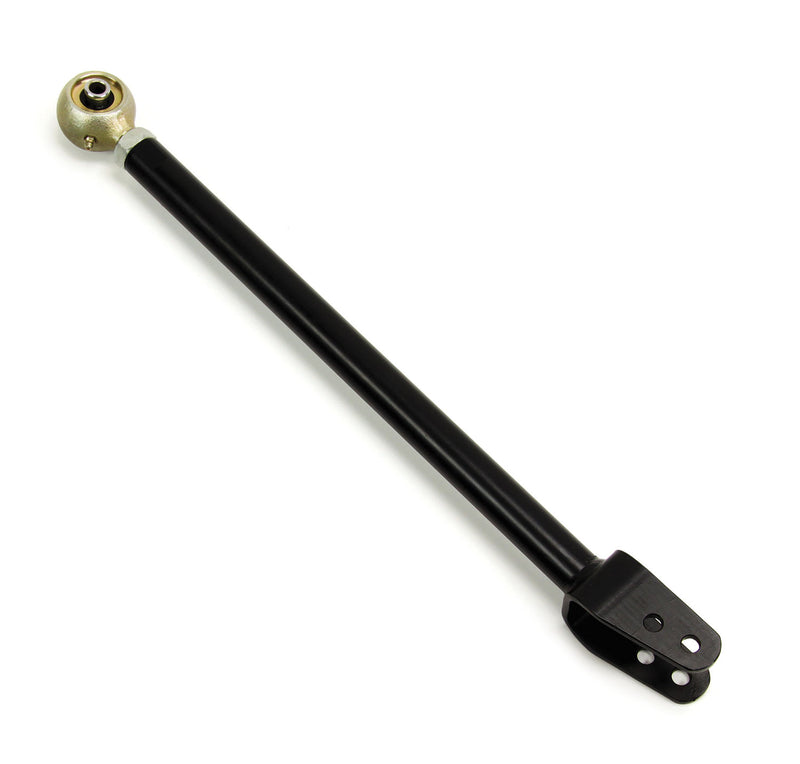

TeraFlex Pro LCG Long Control Arm, (Driver Or Pass) Front Upper (3"-5" Lift) on a white background

TeraFlex Pro LCG Long Control Arm, Front Upper (3"-5" Lift) for 1997-2006 Jeep Wrangler TJ & Wrangler Unlimited LJ

$434.99
FREE SHIPPINGNo sales tax Only 1 leftIn stock now  Estimated delivery
Verify fitment with your vehicle
GO
Clear
Configuration
Flash Sale Ends in--:--:--

Free gifts included with your order

Details
Details
  • Guaranteed FitmentTeam-confirmed fit or money back
  • No Sales TaxZero sales tax on every order
  • 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Prestige Truck customer support

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

Features

  • Long front upper arms: Adjustable front uppers for TeraFlex's Pro LCG long arm layout.
  • 1.25" DOM tube: 1.25" x 0.25" wall DOM tube, per TeraFlex.
  • TJ and LJ fit: One front upper design for the Wrangler TJ and LJ Unlimited.
  • Kit or single arm: Order the kit, or one arm (1649839) for either side.
  • Uses Pro LCG brackets: Runs on the Pro LCG front upper frame brackets, not included.
  • 3"-5" lift range: Matched to TeraFlex's LCG geometry.

Description & Fitment

TeraFlex Pro LCG Long Control Arms, Front Upper, are the adjustable long front upper arms for a 1997-2006 Jeep Wrangler TJ or Wrangler Unlimited LJ with 3"-5" of lift. Order the kit (1613801) or one arm for either side (1649839, sold individually). TeraFlex builds the front uppers from 1.25" x 0.25" wall DOM tube. They mount on the Pro LCG front upper frame brackets, which are not included; the complete arm and bracket kit is 1443470.

Fitment & Compatibility

Jeep
Years Model Bed Notes
1997-2006 Wrangler TJ/LJ; 3"-5" lift

Check your Jeep: Wrangler TJ 1997-2006 or Unlimited LJ 2004-2006 with TeraFlex Pro LCG front upper brackets; 3"-5" lift.

Not for: Factory front upper brackets (use 1613800 short arms for 0"-4"); JK, JL or YJ models.

About TeraFlex

TERAFLEX.

TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.

The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.

Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.

Frequently Asked Questions

Are the frame brackets included?

No. These are the arms only. The kit with brackets is 1443470.

Is the single arm for one side only?

1649839 fits the driver or passenger front upper position; it is one arm, sold individually.

Does it fit the LJ Unlimited?

Yes. TeraFlex lists the front upper Pro LCG arm for the TJ Wrangler and LJ Wrangler Unlimited.

What warranty does TeraFlex give?

TeraFlex covers its control arms for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. Contact us to confirm coverage on your part or to start a claim.

How quickly does it ship?

Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.

Can you confirm it's the right part before I order?

Yes. Contact us with your VIN or year, model and trim and what's on the Jeep now, and we'll check it against TeraFlex's fitment information before it ships.

Installation

Install time 2 hours
What's involvedSet each FlexArm to its starting length, bolt it in with the grease zerk end toward the frame and grease it, then fine-tune the length for caster (front) or pinion angle (rear) and torque the control arm bolts.

Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.

  1. Check the arm length before fitting: the arms leave the factory at stock length, and the sheet lists suggested starting lengths per position (for example 15-1/8" for front uppers, 13-1/4" for rear uppers); never go more than 3/4" from factory length.
  2. Install each Flex Arm with the grease zerk end toward the frame and the zerk facing up, out of harm's way.
  3. Grease the arm through its zerks before driving.
  4. Fine-tune length if needed: front arms adjust caster, rear arms adjust pinion angle.
  5. Retorque the lower control arm bolts to 130-145 ft-lbs and the upper arm bolts to 37-47 ft-lbs.
  6. Grease the arms at least monthly, and before and after every trip with heavy off-road use; skipping it voids the TeraFlex warranty.

Stuck on a step? Ask our install experts

Specifications

BrandTeraFlex
Product TypeAdjustable long control arm(s)
PositionFront Upper
Lift Range3"-5"
Tube1.25" x 0.25" wall DOM
RequiresTeraFlex Pro LCG front upper frame brackets (not included; arm and bracket kit 1443470)
Part number1613801
UPC843885022534
Versions
Part # Configuration UPC
1613801 Kit, Front Upper 843885022534
1649839 Single Arm, Front Upper 843885028659

Warranty, shipping & returns

  • Warranty

    TeraFlex covers its control arms and IR bushings for life against defects in materials and workmanship. Alpine control arm bushings other than IR carry 1 year, and paint and powder coat finishes 90 days (defects only).
    • TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
    • Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
    • For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
    • Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
    • Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
    • Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.

  • Free shipping

    Ships free to the lower 48 states, with no minimum order.
    • Order by 5 PM ET on a business day and it starts processing the same day.
    • Most orders arrive within 1-5 business days.
    • We email your tracking number as soon as it ships.

  • Inspect on delivery

    Control arms ship boxed with their hardware. Check each arm, bushing and joint, plus any brackets, against the part list in the TeraFlex instructions before you start. Check it as soon as it arrives.
    • Look for crushed ends, punctures or tears in the carton.
    • If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
    • Open the box and check the parts against the parts list before you install.
    • Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.

  • 30-day returns

    Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.
    • Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
    • Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
    • Changed your mind: you pay return shipping. No restocking fee.
    • Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
