TeraFlex Suspension System with Control Arms (2-Door) for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Complete suspension system: Springs plus control arms, front track bar and rear bracket.

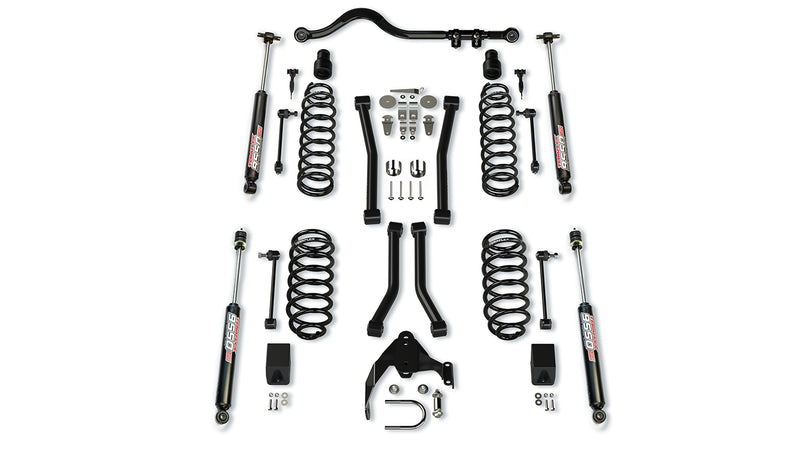

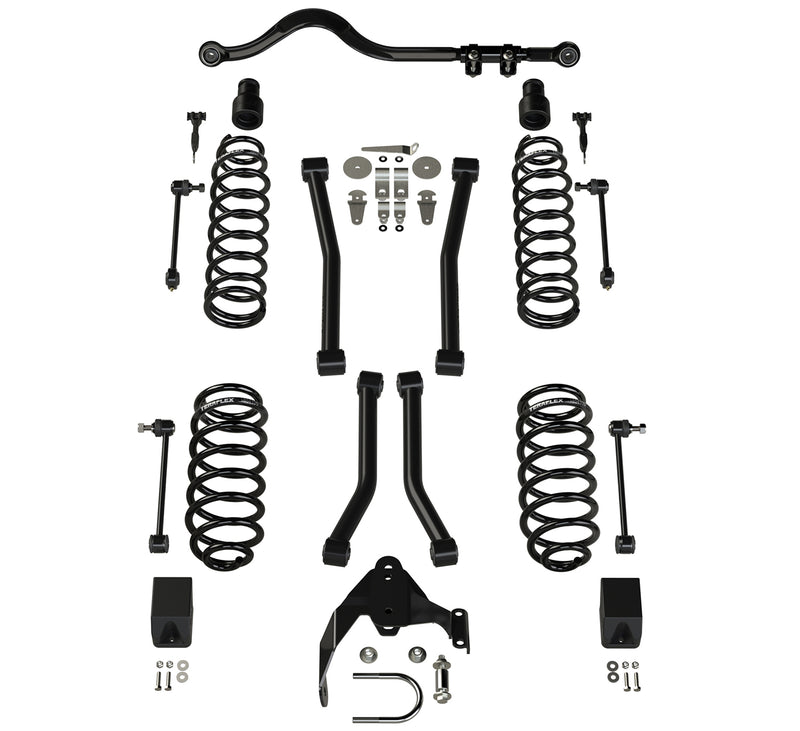

- 3" with 4 Sport arms: Preset front lower and rear upper Sport Control Arms.

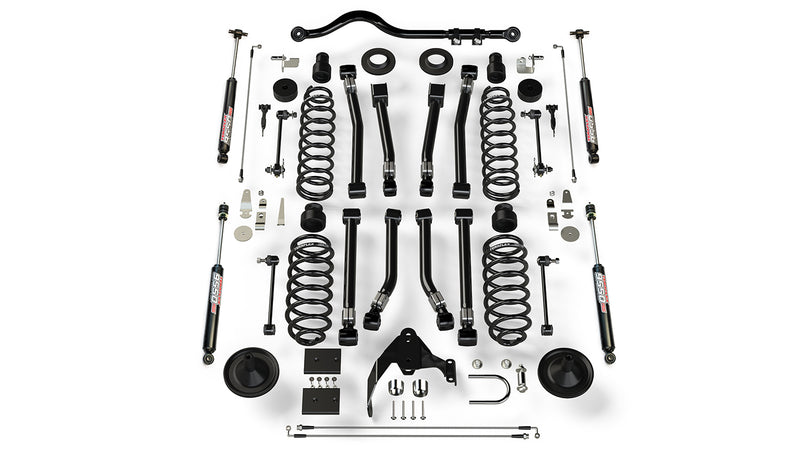

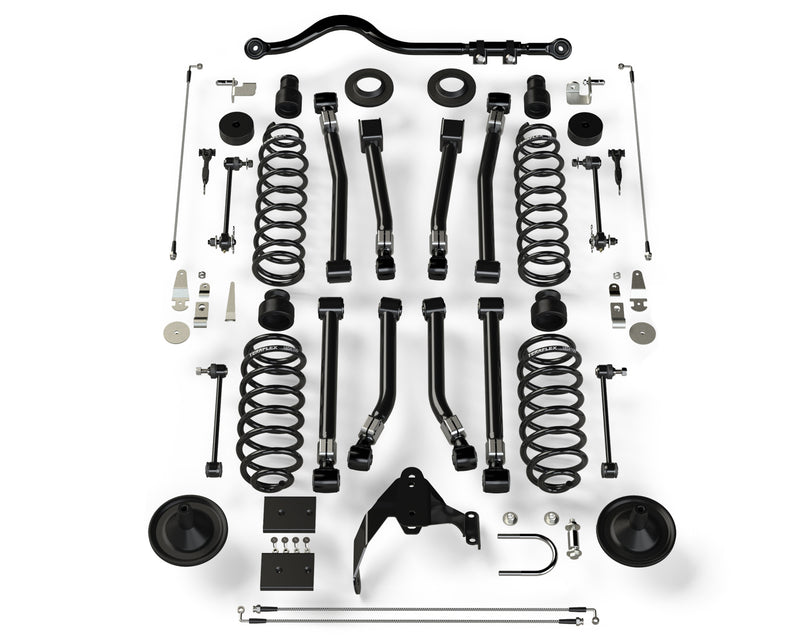

- 4" with 8 Alpine arms: A full set of adjustable Alpine Short Control Arms.
- HD forged front track bar: Adjustable front track bar and rear track bar bracket included.
- With or without shocks: Each height offered with 9550 VSS Twin-Tube shocks or without.
- Stability controls kept: TeraFlex says factory stability controls stay functional.
Description & Fitment
TeraFlex's Suspension System for the 2-door 2007-2018 Jeep Wrangler JK includes the parts needed to lift the Jeep, not just the springs. The 3" version uses four preset Sport Control Arms (front lower and rear upper), an HD Forged Adjustable Front Track Bar and a rear track bar bracket, built for weekend trails and the weekday commute. The 4" version steps up to a complete set of eight adjustable Alpine Short Control Arms with the same track bar and bracket, made for harder trails. Each comes with or without 9550 VSS Twin-Tube shocks, and 2007-2011 JKs need extended front brake lines (4353300).
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 2-door only; 3"-4" lift |
Check your Jeep: Wrangler JK 2-door 2007-2018; wheels with 4.75" or less backspacing or 1055000 adapters.
Not for: JK Unlimited 4-door (1156224 group); TJ or JL models.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it fit a 4-door JK Unlimited?
No. This is the 2-door system; the JK Unlimited versions are 1156224, 1156401, 1256224 and 1451401.
What's the difference between the 3" and 4" systems?
The 3" uses four preset Sport Control Arms; the 4" uses a full set of eight adjustable Alpine Short Control Arms, and TeraFlex recommends adding an adjustable rear track bar.
Will I need driveshaft or brake line changes?
TeraFlex says driveshaft modifications may be necessary (Rzeppa High Angle CV Kit 1744014), and 2007-2011 JKs need Extended Length Front Brake Lines (4353300).
What warranty does TeraFlex give?
TeraFlex covers its coil springs and 9550 VSS shocks for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days. Contact us to confirm coverage on other parts of your kit or to start a claim.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right kit before I order?
Yes. Contact us with your VIN or year, model, doors and trim, plus your wheels, tires and any lift parts already fitted, and we'll check it against TeraFlex's fitment information before it ships.
Installation
- Ratchets (1/4" and 1/2")
- 1/4" drive sockets (5/16", 10mm and 7/16")
- 1/2" drive sockets
- Swivel sockets (18mm, 21mm and 3/4")
- 12" extension
- Allen wrenches (3/16" and 5mm)
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Lift the Jeep by the frame, remove the wheels, support the front axle, loosen (do not remove) all control arm bolts, remove the exhaust skid plate/cross member (not reused), front driveline at the axle and sway bar links, free the ABS lines and breather tube, then lower the axle and remove the springs.
- Fit the new front springs driver side first, rotating each until fully seated, and add the speedbumps or bump stop extensions your kit includes per their TeraFlex instructions.
- Install the front shocks (top nut 20 ft-lbs, lower bolt loose for the brake line anchor), the quick disconnect sway bar links (75 ft-lbs), the kit's front control arms and track bar, then the brake line anchors and the front driveline with thread locker at 15 ft-lbs (p6-p7).
- Loosen the Y-pipe clamp, chisel off the intermediate pipe's indexing stop, and fit the exhaust flange spacers (longer one on the passenger side) with the supplied bolts, checking alignment and clearance.
- Rear: support the axle, remove the shocks, track bar, sway bar links and driveline at the axle, free the breather and ABS lines, then fit the springs and upper and lower spring retainers (30 ft-lbs and 50 ft-lbs, p10), the kit's rear arms, the track bar bracket on its U-bolts (p11), bump stops and sway bar links at 75 ft-lbs (p12).
- With the Jeep at ride height torque all suspension and track bar bolts, check every component, center the steering with the drag link, and re-torque after the first 500 miles and every 3,000.
- 999296 07-17 JK 3 Inch Suspension Lift Kit (PDF)
- 999044 JK Forged Front Monster Track Bar (PDF)
- 999300 JK 2.5-3 Inch Front and Rear Bump Stops Extension Instructions (PDF)
- 999173 JK Fixed Front Lower Rear Upper Arm Installation (PDF)
- 999253 JK Alpine Short Control Arms (PDF)
- 999298 07-17 JK 4-6 Inch Suspension Lift Kit (PDF)
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Product Type | Suspension system |
| Doors | 2-door |
| Lift Height | 3" or 4" (by version) |
| Control Arms | 3": 4 preset Sport arms (front lower, rear upper); 4": 8 adjustable Alpine Short arms |
| Includes | HD Forged Adjustable Front Track Bar, rear track bar bracket |
| Shocks | 9550 VSS Twin-Tube on 1256223/1451403; none on 1156223/1156403 |
| Wheel Requirement | 4.75" or less backspacing, or Offset Wheel Adapters 1055000 (not included) |
| 2007-2011 Models | Extended Length Front Brake Lines 4353300 required |
| Part number | 1156223 |
| UPC | 843885044345 |
| Part # | Version | UPC |
|---|---|---|
| 1156223 | 3", 4 Sport Arms, No Shocks | 843885044345 |
| 1156403 | 4", 8 Alpine Short Arms, No Shocks | 843885044284 |
| 1256223 | 3", 4 Sport Arms & 9550 VSS Shocks | 843885044338 |
| 1451403 | 4", 8 Alpine Short Arms & 9550 VSS Shocks | 843885044277 |
Warranty, shipping & returns
-
Warranty
TeraFlex covers its coil springs and its 9550 VSS shocks for life against defects in materials and workmanship, and paint and powder coat finishes for 90 days (defects only). TeraFlex's warranty list names no separate term for the coil spring spacers in the Gladiator 2.5" kit, so contact us if you need that term before ordering.- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Check that every spring, spacer and shock matches the part list in the TeraFlex instructions, and that springs are marked for the right axle, before you start. Contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
