TeraFlex Tera CRD60 HD Rear Axle for 1997-2006 Jeep Wrangler TJ & Wrangler Unlimited LJ
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Constant Radius Design: TeraFlex's CRD housing keeps ground clearance high whatever the pinion angle.

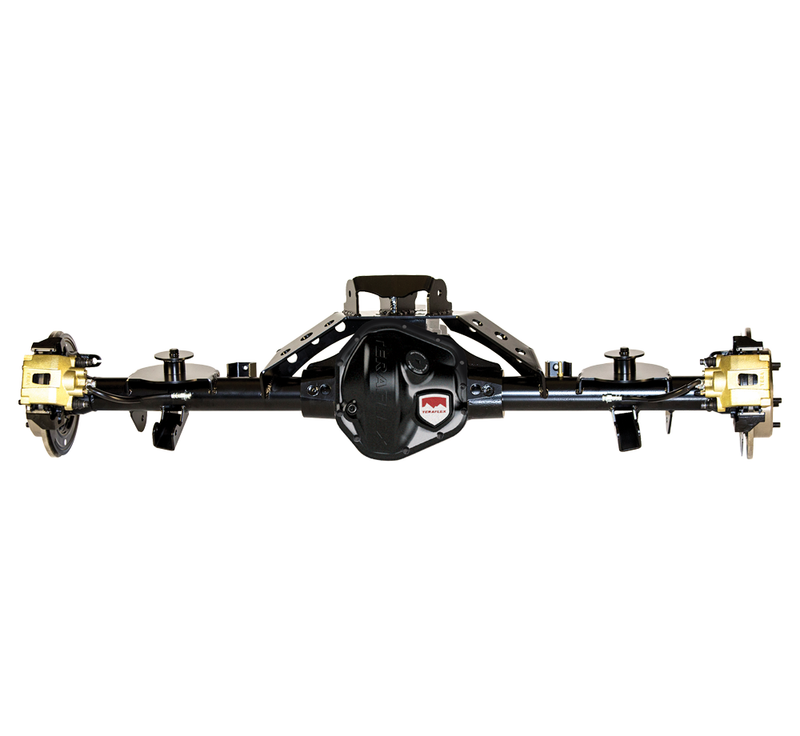

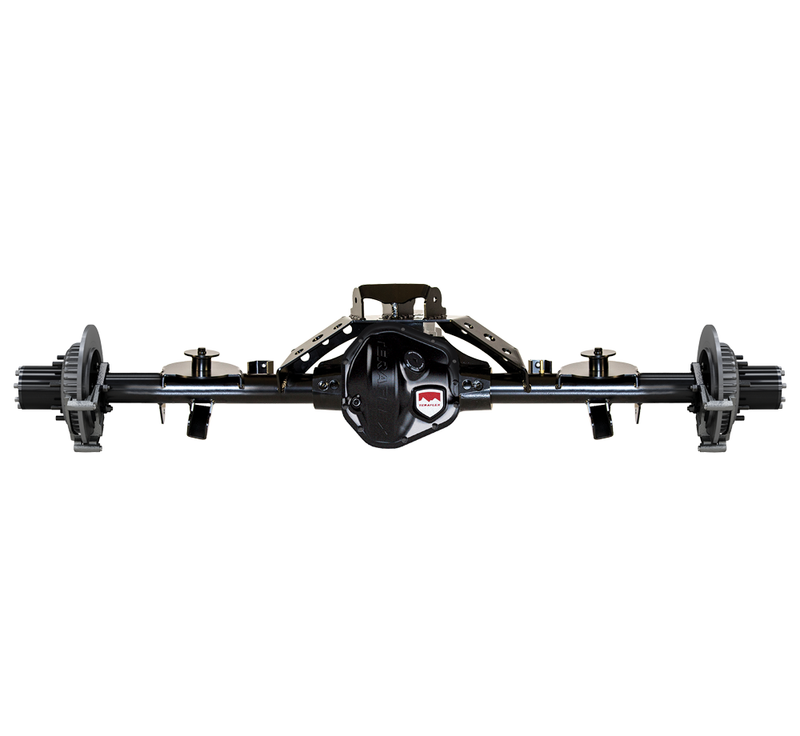

- Semi-float or full-float: 63.5" semi-float (5x5.5") or 67" full-float (8x6.5") versions.
- Bare or fully loaded: Order it without gears, or with an ARB locker and 4.30 to 5.38 gears.
- 35-spline shafts, 1350 yoke: 35-spline inner and outer shafts and a 1350-series pinion yoke.
- Tough cast housing: Ductile iron housing with extra ribs, HD bearing caps and a 3.25" x 0.375" DOM tube.
- Ready for lifted TJs: Pinion angle set for lifted TJs, with ABS, ESP and speedometer sensors retained.
Description & Fitment
The TeraFlex Tera CRD60 HD Rear Axle is a complete heavy-duty rear axle for the TJ Wrangler and LJ Wrangler Unlimited, Rubicon included. It comes as a 63.5" semi-float axle with a 5x5.5" bolt pattern and a rear disc brake conversion, or a 67" full-float axle with an 8x6.5" pattern and 13.5" big rotors (listed for 3"-6" lift). Each is offered bare (no ring and pinion, locker or carrier) or loaded with an ARB locker and your gear ratio.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ/LJ |
Fits: 1997-2006 Jeep Wrangler TJ and LJ Unlimited (full-float versions listed for 3"-6" lift)
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Do I need other parts?
TeraFlex says 3"-6" of lift requires adjustable control arms for caster, and the full-float versions require driveshaft changes.
What does the bare version include?
The no-gear versions include the outer axles, bearings, inner shafts and sensors; you add the ring and pinion, locker and carrier.
How do I pick the right part number?
Each listing names the axle, size, spline count, side and lift range TeraFlex lists for that part number. Match it to your Jeep and current setup, or send us your VIN and build details and we'll check before you order.
Who should install it?
TeraFlex recommends a certified mechanic. Follow the TeraFlex instructions for the part, and take any torque values from those instructions or your service manual.
What if it arrives damaged?
Check the packaging and the part before you sign, note any damage on the delivery receipt, and contact us right away. We will sort out a replacement with you.
Is this genuine TeraFlex?
Yes. We are an authorized TeraFlex dealer, so every part ships new and genuine.
Installation
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Category | Axle assemblies & components |
| Versions | 63.5" semi-float: 3320100 no R&P/locker/carrier, 3321430 4.30, 3321456 4.56, 3321488 4.88, 3321513 5.13, 3321538 5.38 (with ARB); 67" full-float: 3916430 4.30, 3916488 4.88, 3916538 5.38 (with ARB), 3980000 no R&P/locker/carrier |
| Tube | 3.25" O.D. x 0.375" wall DOM |
| Width | 63.5" WMS-WMS (semi-float) / 67" WMS-WMS (full-float) |
| Pattern | 5x5.5" (semi-float) / 8x6.5" (full-float) |
| Brakes | Rear disc brake conversion (semi-float) / 13.5" big rotor kit (full-float) |
| Axle Shafts | 35-spline inner and outer |
| Labor Time | 6-8 hours depending on version |
| Part number | 3320100 |
| UPC | 843885003786 |
| Part # | Configuration | UPC |
|---|---|---|
| 3320100 | 63.5" Semi-Float, No Gears | 843885003786 |
| 3321430 | 63.5" Semi-Float, 4.30 ARB | 843885038665 |
| 3321456 | 63.5" Semi-Float, 4.56 ARB | 843885003809 |
| 3321488 | 63.5" Semi-Float, 4.88 ARB | 843885003816 |
| 3321513 | 63.5" Semi-Float, 5.13 ARB | 843885003823 |
| 3321538 | 63.5" Semi-Float, 5.38 ARB | 843885003830 |
| 3916430 | 67" Full-Float, 4.30 ARB | 843885040606 |
| 3916488 | 67" Full-Float, 4.88 ARB | 843885040620 |
| 3916538 | 67" Full-Float, 5.38 ARB | 843885040637 |
| 3980000 | 67" Full-Float, No Gears | 843885040583 |
