TeraFlex Tera CRD60 HD Rear Axle for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Constant Radius Design: TeraFlex's CRD housing keeps ground clearance high whatever the pinion angle.
- Three widths and floats: 67" semi-float, 67" full-float or 70" full-float.
- Bare or fully loaded: Order it without gears, or with Super 60 gears and an ARB air locker.
- 35-spline shafts, 1350 yoke: 35-spline inner and outer shafts and a 1350-series pinion yoke.
- Tough cast housing: Ductile iron housing with extra ribs, HD bearing caps and a 3.25" x 0.375" DOM tube.
- Built for 4"-6" lifts: Raised pinion angle and, where applicable, a raised track bar bracket; skid-plated lower arm mounts.
Description & Fitment

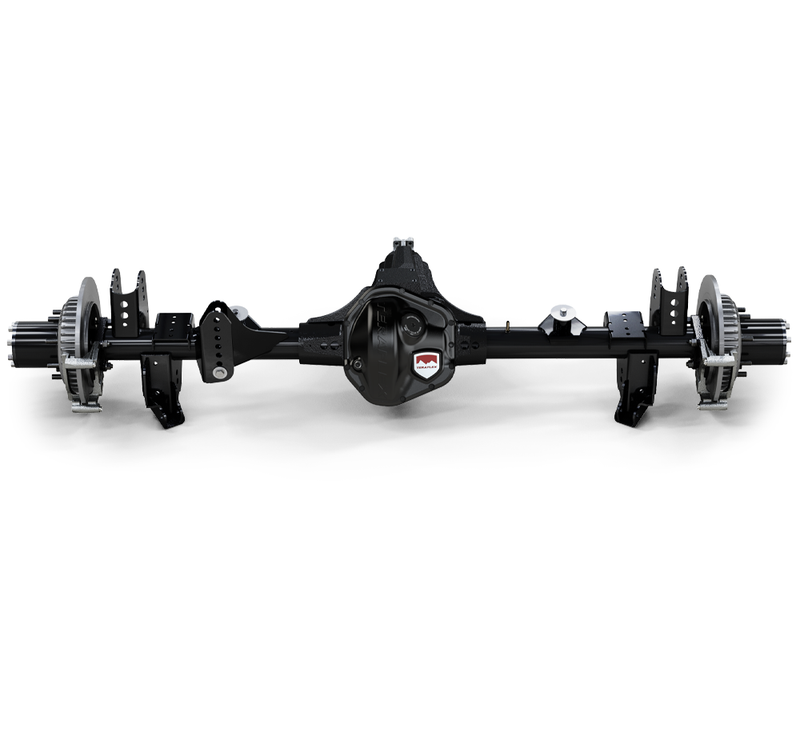

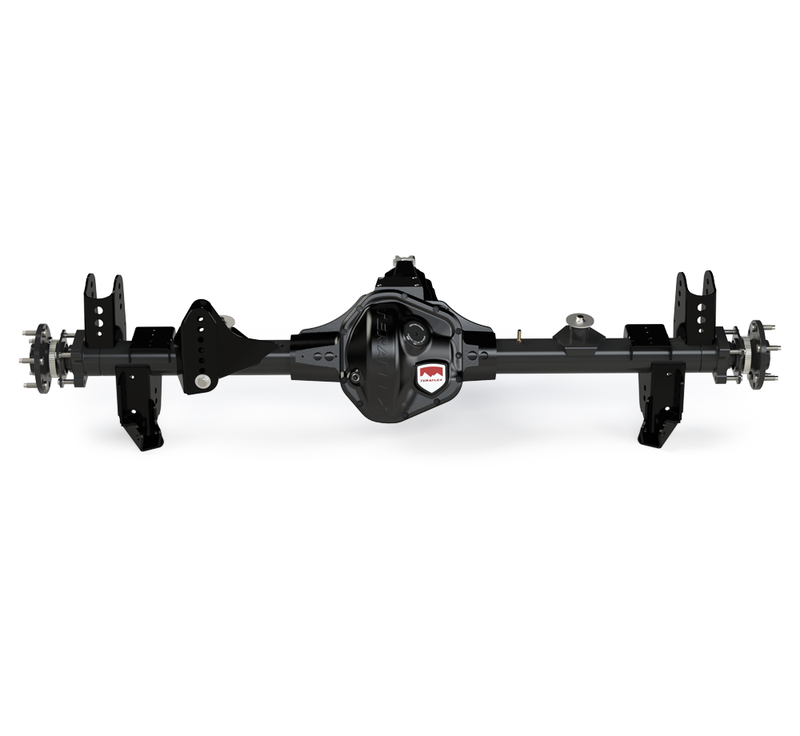

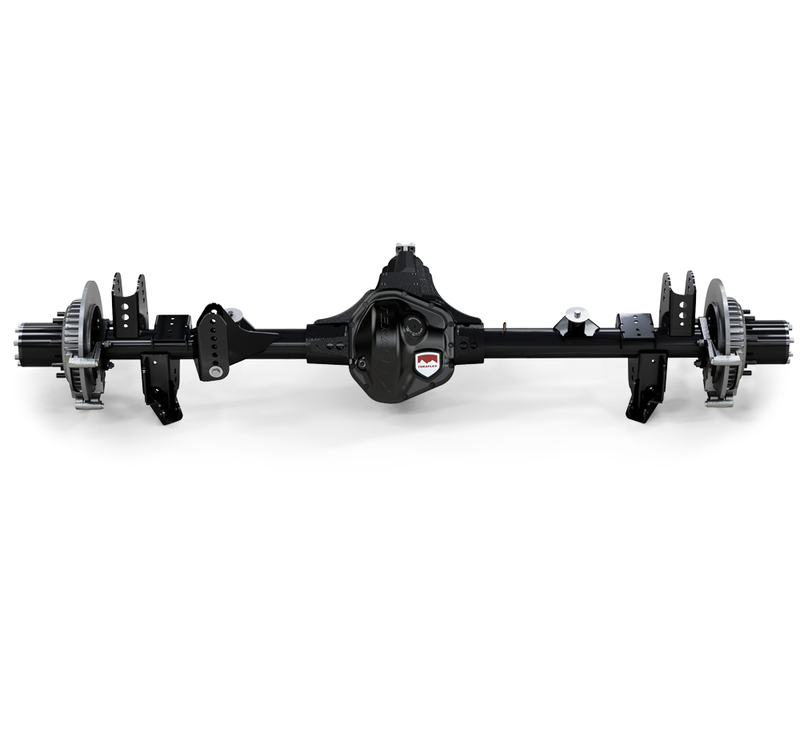

The TeraFlex Tera CRD60 HD Rear Axle is a complete heavy-duty rear axle for the JK Wrangler and Wrangler Unlimited, Rubicon included, built for 4"-6" of lift. Choose a 67" semi-float axle (5x5" pattern), a 67" full-float axle or a 70" full-float axle (8x6.5" pattern with 13.5" vented big rotors). Each comes bare (no ring and pinion, locker or carrier) or loaded with Super 60 gears in 4.30, 4.88 or 5.38 and an ARB air locker.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 4"-6" lift |
Fits: 2007-2018 Jeep Wrangler JK and JK Unlimited, 4"-6" lift
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it fit a Rubicon?
Yes. TeraFlex lists JK Wrangler and Wrangler Unlimited models, Rubicon included, for 4"-6" of lift.
Do the full-float versions include brakes?
Yes. TeraFlex includes its Rear Performance Big Rotor Kit with 13.5" vented rotors on the full-float versions.
How do I pick the right part number?
Each listing names the axle, size, spline count, side and lift range TeraFlex lists for that part number. Match it to your Jeep and current setup, or send us your VIN and build details and we'll check before you order.
Who should install it?
TeraFlex recommends a certified mechanic. Follow the TeraFlex instructions for the part, and take any torque values from those instructions or your service manual.
What if it arrives damaged?
Check the packaging and the part before you sign, note any damage on the delivery receipt, and contact us right away. We will sort out a replacement with you.
Is this genuine TeraFlex?
Yes. We are an authorized TeraFlex dealer, so every part ships new and genuine.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Front Tera60: mount the axle to the control arms, track bar and sway bar links, then fit the tie rod (63 ft-lbs), drag link (77 ft-lbs pitman side, 63 ft-lbs axle side), shocks, wheel speed sensors and brake lines (banjo bolt 23 ft-lbs with copper washers), and bleed the brakes.
- Rear full float CRD60: fit the park brake backing plate (45 ft-lbs), greased hub seals, hub and outer bearing, and set the inner spindle nut at 50 ft-lbs while turning the hub, back it off 1/4 turn and index the pin in the lock washer.
- Torque the outer spindle nut to 160-205 ft-lbs, seal the hub face with silicone, fit the axle shaft (7/16" bolts 95 ft-lbs crisscross), rotor, caliper bracket (thread locker, 55 ft-lbs) and caliper (26 ft-lbs), then the arms, track bar, links, shocks, sensors and park brake cables.
- Mount the tires (135 ft-lbs for 8-lug) and, without springs or bump stops and with the arm and track bar bolts loose, cycle the suspension through full compression and articulation to check clearances and measure for bump stop extensions and limit straps.
- Fit the bump stops, limit straps and springs and torque the arm bolts at ride height; fill the front with 80W-90 to the fill hole, fill the rear to the cover's level plug, then lift each rear wheel 6" for a minute to flood the hubs and top off after each side.
- Plan for new drive shafts (length depends on the yokes used), align the vehicle, check all torque before driving, re-torque after 100 miles and every 3,000 miles or after four-wheeling.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Category | Axle assemblies & components |
| Versions | 67" full-float: 3406430 4.30, 3406488 4.88, 3406538 5.38 (ARB), 3470000 no gears; 67" semi-float: 3446430 4.30, 3446488 4.88, 3446538 5.38 (ARB), 3460000 no gears; 70" full-float: 34064304 4.30, 34064884 4.88, 34065384 5.38 (ARB), 34700004 no gears |
| Tube | 3.25" O.D. x 0.375" wall DOM |
| Pattern | 8x6.5" (full-float) / 5x5" (semi-float, 5x5.5" optional per TeraFlex) |
| Brakes | 13.5" vented big rotor kit (full-float versions) |
| Axle Shafts | 35-spline inner and outer |
| Labor Time | 6-8 hours depending on version |
| Part number | 3406430 |
| UPC | 843885034681 |
| Part # | Configuration | UPC |
|---|---|---|
| 3406430 | 67" Full-Float, 4.30 ARB | 843885034681 |
| 3406488 | 67" Full-Float, 4.88 ARB | 843885035190 |
| 3406538 | 67" Full-Float, 5.38 ARB | 843885033714 |
| 3446430 | 67" Semi-Float, 4.30 ARB | 843885035022 |
| 3446488 | 67" Semi-Float, 4.88 ARB | 843885035596 |
| 3446538 | 67" Semi-Float, 5.38 ARB | 843885034452 |
| 3460000 | 67" Semi-Float, No Gears | 843885033653 |
| 3470000 | 67" Full-Float, No Gears | 843885034841 |
| 34064304 | 70" Full-Float, 4.30 ARB | 843885035343 |
| 34064884 | 70" Full-Float, 4.88 ARB | 843885033837 |
| 34065384 | 70" Full-Float, 5.38 ARB | 843885034483 |
| 34700004 | 70" Full-Float, No Gears | 843885035046 |
