TeraFlex Tera30 HD Front Axle Housing, Bare for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Bare housing, ready to build: Tubes, brackets, forged inner knuckles, inner seals and upper arm bushings installed; move your own parts over.
- 3.25" x 0.25" wall tubes: Larger tubes add torsional strength to resist bending with little added weight.
- Tough cast housing: Ductile iron housing with extra rib gussets, an HD ductile iron cover and an asymmetric design for long-tube strength.
- Built for the trail: Smooth radius bottom glides over rocks; lower control arm mounts have integrated skid plates.
- 0"-3" or 4"-6" lift: The 4"-6" versions have a raised pinion angle and, where applicable, a raised track bar bracket.
- Factory electronics kept: Retains all JK ESP, ABS and speedometer sensor functions.
Description & Fitment

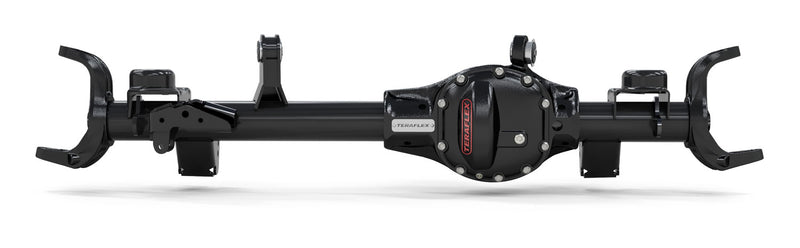

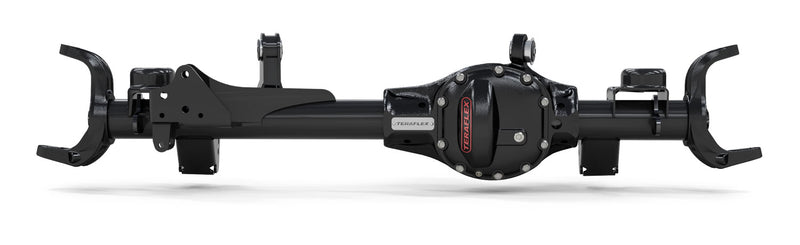

The TeraFlex Tera30 HD Front Axle Housing is a bare heavy-duty replacement for a bent, broken or tired JK Dana 30 front housing, Rubicon models included. It arrives with axle tubes, brackets, forged inner knuckles, inner seals and upper control arm bushings installed; you move your differential, ring and pinion, shafts, outer knuckles, ball joints, unit bearings, brakes and sensors across. Choose 3503000 for 0"-3" of lift or 3503004 for 4"-6".
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK |
Fits: 2007-2018 Jeep Wrangler JK and JK Unlimited
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
What do I reuse from my old axle?
Your differential, ring and pinion, axle shafts, stub shafts, knuckle assemblies, ball joints, unit bearings, brakes and sensors.
Which lift version do I need?
3503000 is for 0"-3" of lift and 3503004 for 4"-6"; the taller version raises the pinion angle.
How do I pick the right part number?
Each listing names the axle, size, spline count, side and lift range TeraFlex lists for that part number. Match it to your Jeep and current setup, or send us your VIN and build details and we'll check before you order.
Who should install it?
TeraFlex recommends a certified mechanic. Follow the TeraFlex instructions for the part, and take any torque values from those instructions or your service manual.
What if it arrives damaged?
Check the packaging and the part before you sign, note any damage on the delivery receipt, and contact us right away. We will sort out a replacement with you.
Is this genuine TeraFlex?
Yes. We are an authorized TeraFlex dealer, so every part ships new and genuine.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Prepare the housing using the factory service manual: ring and pinion setup is the same as a factory axle, and ball joints are not included, so swap in the factory ones or fit new (TeraFlex recommends new HD ball joints).
- Fit any extras the build needs: the Locker Sensor and Airline Plug kit (4350550) for an ARB RD157 or OX locker in the R44, and the larger 360044 inner seals for 35-spline shafts.
- Install the axle without springs or bump stops, leave the track bar and control arm bolts loose, mount the tires and cycle the suspension through full compression and articulation to check every clearance.
- Fit the bump stop extensions, limit straps and springs, then with the Jeep at ride height torque the track bar and lower control arm bolts to 125 ft-lbs and the front upper control arm bolts to 75 ft-lbs.
- Route the brake lines and ABS wiring clear of moving parts, set the steering stops, fill the differential with 80W-90 gear oil and align the vehicle.
- Break the gears in: stay under 60 mph for about the first 100 miles, let the differential cool after the first 20 miles (repeat a few times), avoid towing for 500 miles and change the oil at 500 miles.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Category | Axle assemblies & components |
| Versions | 3503000 0"-3" lift, 3503004 4"-6" lift |
| Tube | 3.25" O.D. x 0.25" wall |
| Brackets | 1/4" CNC laser-cut |
| Finish | UV-protected triple-stage powder coat |
| Labor Time | 8 hours |
| Part number | 3503000 |
| UPC | 843885031260 |
| Part # | Lift Height | UPC |
|---|---|---|
| 3503000 | 0"-3" | 843885031260 |
| 3503004 | 4"-6" | 843885031338 |
