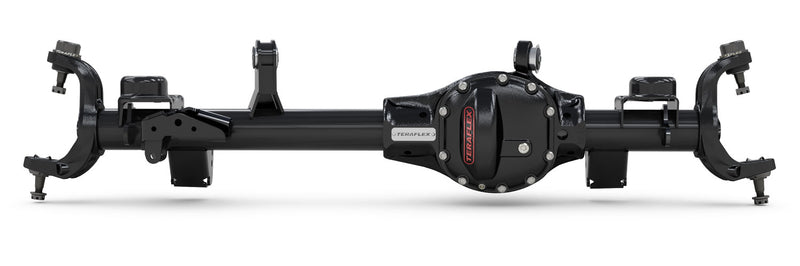

TeraFlex Tera30 HD Front Axle Housing With R&P & ARB Locker for 2007-2018 Jeep Wrangler JK
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Gears and ARB installed: Ring and pinion, ARB air locker and TeraFlex HD ball joints come pre-installed.
- 3.25" x 0.25" wall tubes: Larger tubes add torsional strength to resist bending with little added weight.
- Tough cast housing: Ductile iron housing with extra rib gussets, an HD ductile iron cover and an asymmetric design for long-tube strength.
- Built for the trail: Smooth radius bottom glides over rocks; lower control arm mounts have integrated skid plates.

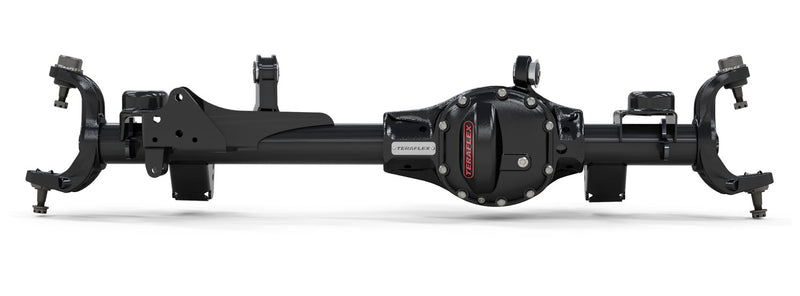

- 0"-3" or 4"-6" lift: The 4"-6" versions have a raised pinion angle and, where applicable, a raised track bar bracket.
- Factory electronics kept: Retains all JK ESP, ABS and speedometer sensor functions.
Description & Fitment
This TeraFlex Tera30 HD Front Axle Housing comes loaded with ring and pinion gears, an ARB air locker and TeraFlex HD ball joints already installed, for a JK Wrangler or Wrangler Unlimited, Rubicon models included. You transfer your inner and outer axle shafts, outer knuckles, unit bearings, brakes and sensors to finish the axle. Gear ratios run 4.10, 4.56, 4.88 or 5.13, each for 0"-3" or 4"-6" of lift.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK |
Fits: 2007-2018 Jeep Wrangler JK and JK Unlimited
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
What do I move from my old axle?
Inner axle shafts, outer stub shafts, outer knuckles, unit bearings, brakes and sensors.
Which ratio and lift do I pick?
Pick the gear ratio for your tire size and the lift range of your build: 0"-3" or 4"-6".
How do I pick the right part number?
Each listing names the axle, size, spline count, side and lift range TeraFlex lists for that part number. Match it to your Jeep and current setup, or send us your VIN and build details and we'll check before you order.
Who should install it?
TeraFlex recommends a certified mechanic. Follow the TeraFlex instructions for the part, and take any torque values from those instructions or your service manual.
What if it arrives damaged?
Check the packaging and the part before you sign, note any damage on the delivery receipt, and contact us right away. We will sort out a replacement with you.
Is this genuine TeraFlex?
Yes. We are an authorized TeraFlex dealer, so every part ships new and genuine.
Installation
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Category | Axle assemblies & components |
| Versions | 0"-3" lift: 3503410 4.10, 3503456 4.56, 3503488 4.88, 3503513 5.13; 4"-6" lift: 3534410 4.10, 3534456 4.56, 3534488 4.88, 3534513 5.13 (all with ARB locker) |
| Tube | 3.25" O.D. x 0.25" wall |
| Locker | ARB air locker (pre-installed) |
| Labor Time | 8 hours |
| Part number | 3503410 |
| UPC | 843885037187 |
| Part # | Configuration | UPC |
|---|---|---|
| 3503410 | 4.10, ARB, 0"-3" Lift | 843885037187 |
| 3503456 | 4.56, ARB, 0"-3" Lift | 843885037200 |
| 3503488 | 4.88, ARB, 0"-3" Lift | 843885037224 |
| 3503513 | 5.13, ARB, 0"-3" Lift | 843885037248 |
| 3534410 | 4.10, ARB, 4"-6" Lift | 843885037354 |
| 3534456 | 4.56, ARB, 4"-6" Lift | 843885037378 |
| 3534488 | 4.88, ARB, 4"-6" Lift | 843885037392 |
| 3534513 | 5.13, ARB, 4"-6" Lift | 843885037415 |
