TeraFlex Tera60 HD Front Axle (3"-6" Lift) for 1997-2006 Jeep Wrangler TJ & Wrangler Unlimited LJ
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Loaded or unloaded: Pick gears with an ARB air locker, or no gears to add your own.

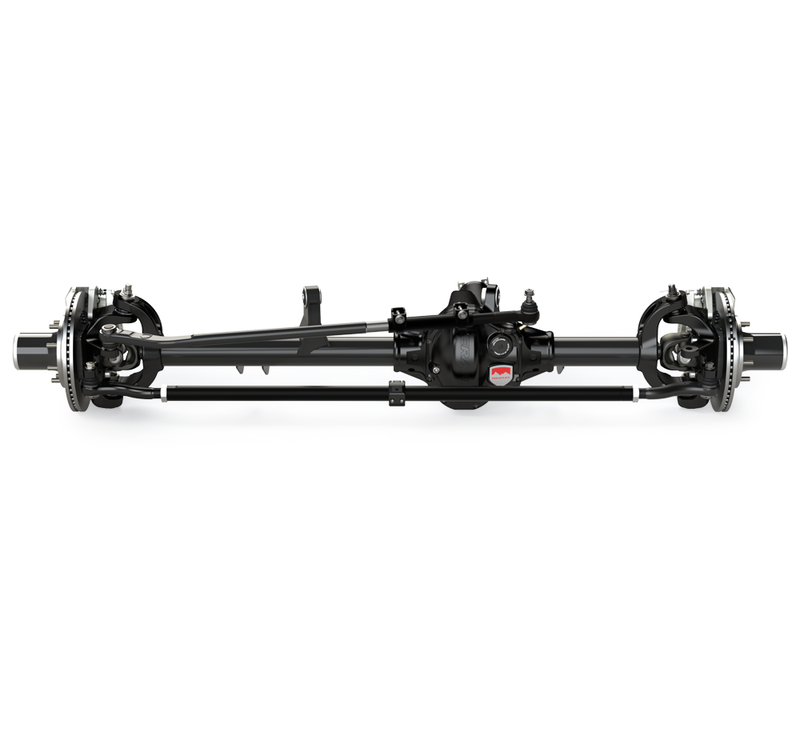

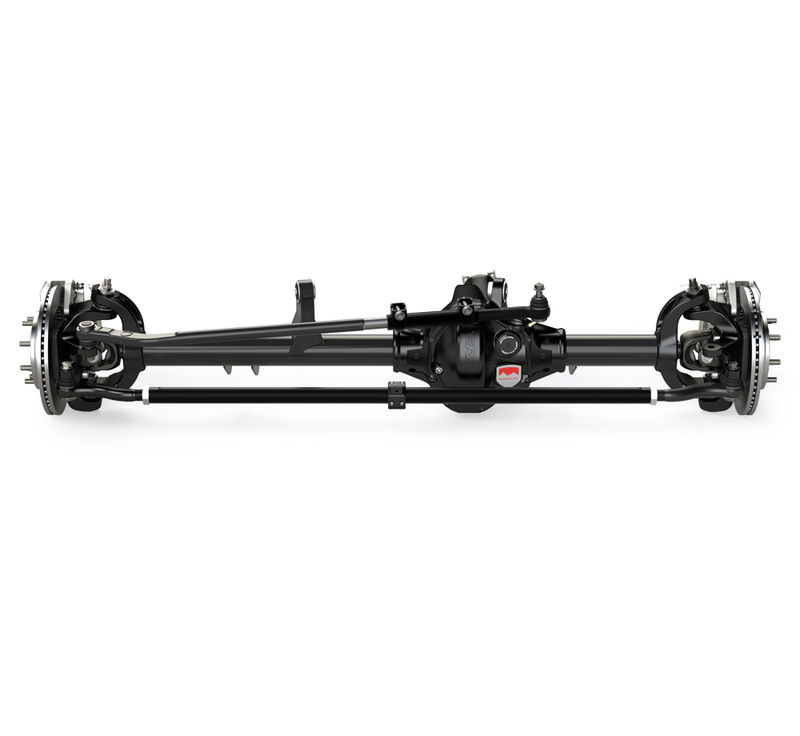

- Locking hubs or unit bearings: 67" SlimLock hub axle (8x6.5") or 63.5" unit-bearing axle (5x5.5").
- Full trail hardware: Knuckles, ball joints, inner and outer shafts and sensors come installed.
- 3.25" x 0.375" DOM tubes: Heavy-wall DOM tubes with 35-spline inner and outer shafts and a 1350 pinion yoke.
- 13.3" big brakes included: A front big brake kit with 13.3" vented rotors comes with the axle.
- Factory electronics kept: Retains TJ ESP, ABS and speedometer sensor functions.
Description & Fitment
The TeraFlex Tera60 HD Front Axle for the TJ and LJ is a complete 60-series front axle for 3"-6" of lift; TeraFlex lists the TJ Wrangler and LJ Wrangler Unlimited. Choose a 67" axle with sealed SlimLock locking hubs (8x6.5") or a 63.5" unit-bearing axle (5x5.5"), loaded with an ARB air locker and Super 60 gears from 4.30 to 5.38, or unloaded with no ring and pinion, locker or carrier. Every version has big brakes, knuckles, shafts and sensors.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2006 | Wrangler | TJ/LJ; 3"-6" lift |
Fits: 1997-2006 Jeep Wrangler TJ and 2004-2006 Wrangler Unlimited LJ, 3"-6" lift
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Do I need a new driveshaft?
Yes. TeraFlex says the Tera60 front axle requires driveshaft modifications; contact us for options.
What lift does it need?
TeraFlex lists it for TJ Wrangler and LJ Wrangler Unlimited models with 3"-6" of lift.
How do I pick the right part number?
Each listing names the axle, size, spline count, side and lift range TeraFlex lists for that part number. Match it to your Jeep and current setup, or send us your VIN and build details and we'll check before you order.
Who should install it?
TeraFlex recommends a certified mechanic. Follow the TeraFlex instructions for the part, and take any torque values from those instructions or your service manual.
What if it arrives damaged?
Check the packaging and the part before you sign, note any damage on the delivery receipt, and contact us right away. We will sort out a replacement with you.
Is this genuine TeraFlex?
Yes. We are an authorized TeraFlex dealer, so every part ships new and genuine.
Installation
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Category | Axle assemblies & components |
| Versions | 67" locking hub: 3806430 4.30, 3806488 4.88, 3806538 5.38, 3870000 no gears; 63.5" unit bearing: 3816430 4.30, 3817456 4.56, 3816488 4.88, 3817513 5.13, 3816538 5.38, 3860000 no gears (geared versions with ARB) |
| Tube | 3.25" O.D. x 0.375" wall DOM |
| Pattern | 8x6.5" (locking hub) / 5x5.5" (unit bearing) |
| Brakes | Front big brake kit, 13.3" vented rotors |
| Requires | Driveshaft modifications |
| Labor Time | 6 hours (geared), 8 hours (no gears) |
| Part number | 3806430 |
| UPC | 843885040392 |
| Part # | Configuration | UPC |
|---|---|---|
| 3806430 | 67" Locking Hub, 4.30 ARB | 843885040392 |
| 3806488 | 67" Locking Hub, 4.88 ARB | 843885040408 |
| 3806538 | 67" Locking Hub, 5.38 ARB | 843885040415 |
| 3816430 | 63.5" Unit Bearing, 4.30 ARB | 843885040668 |
| 3816488 | 63.5" Unit Bearing, 4.88 ARB | 843885040682 |
| 3816538 | 63.5" Unit Bearing, 5.38 ARB | 843885040705 |
| 3817456 | 63.5" Unit Bearing, 4.56 ARB | 843885040675 |
| 3817513 | 63.5" Unit Bearing, 5.13 ARB | 843885040699 |
| 3860000 | 63.5" Unit Bearing, No Gears | 843885040651 |
| 3870000 | 67" Locking Hub, No Gears | 843885038191 |
