Warn M15 Self-Recovery Winch, 15,000 lb, 90' of 7/16" Steel Rope (47801)
$2,677.49
Regular price
$3,569.99
Save $892.50
Verify fitment with your vehicle
GO
Clear
$40 OFFOrders $500+
Apply at checkout. One use per customer.
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Large frame, heavy-duty drum supports: The M12 and M15 are built on Warn's large Heavyweight frame, with stout supports at both drum ends and carrier plates Warn engineered for the gear-train stress of a full-capacity pull. Both models share one 24.08" x 10.53" x 9.79" body.
- 4.6 hp series-wound motor: A 12V, 4.6 hp series-wound motor turns a 3-stage planetary geartrain. Warn charts the M12 at 30 ft/min with no load and the M15, geared deeper at 315:1 against the M12's 261:1, at 22.2 ft/min.
- Cone brake holds full load: An automatic direct-drive cone brake takes over when you let go of the switch and holds the full rated load: 12,000 lb on the M12, 15,000 lb on the M15.
- Remote-mountable control pack: The Albright contactor sits in a removable control pack. It can ride on the winch or be moved off it when bumper space is tight, using the bracket and instructions that come with Warn's mounting kit.
- Argent Gray powder coat: The housing is finished in Argent Gray powder coat, which Warn picked for chip resistance and to keep corrosion at bay on a winch that faces road spray all year.
- Lifetime mechanical warranty coverage: Warn covers the mechanical parts for the life of the winch and the electrical parts for 7 years, both as limited warranties. Your Prestige Truck receipt is the proof of purchase Warn asks for.
Description & Fitment

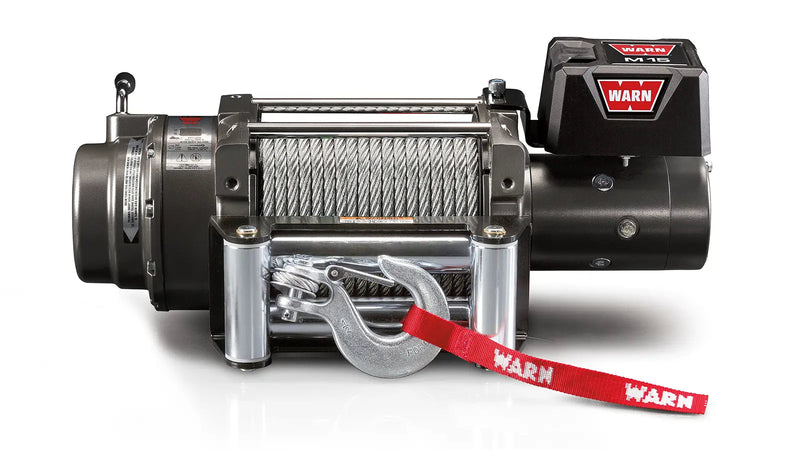

Part 47801 is the steel-rope M15, rated at 15,000 lb on the first layer. It carries 90' of 7/16" aircraft-grade wire rope with a latched hook and a roller fairlead, on the same 24.08" Heavyweight frame as the M12 but geared deeper at 315:1 for the extra 3,000 lb.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1994-2010 | 2500 | — | |
| 1994-2010 | 3500 | — | |
| 1981-1993 | D250 | — | |
| 1990-1993 | D350 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1999-2027 | F-450 Super Duty | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2011-2027 | 2500 | — | |
| 2011-2027 | 3500 | — |
Choose the right version: this is the M15 with steel wire rope. Synthetic rope and a hawse fairlead: M15-S (97730). 12,000 lb with 125' of steel rope: M12 (17801). Warn's 24V CE M15 is a different part (478022).
Not included: the winch mount or mounting plate (with the bracket Warn uses for a remote-mounted control pack) and the vehicle battery, both sold separately.
About Warn
WARN.
Warn Industries is a winch and recovery equipment maker headquartered in Clackamas, Oregon. Its range covers truck and SUV winches such as ZEON and the Heavyweight series, the AXON, VRX and R-Series powersports winches, the HUB Wireless Receiver and the portable Drill Winch.
Heavyweight is Warn's large-frame truck winch series, and the M12 and M15 are long-running members of it. Warn says both are designed, engineered and assembled in the USA.
Buying Warn from Prestige Truck. Warn asks for proof of purchase, a dated sales receipt showing the Warn product, with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
How much pull on each layer?

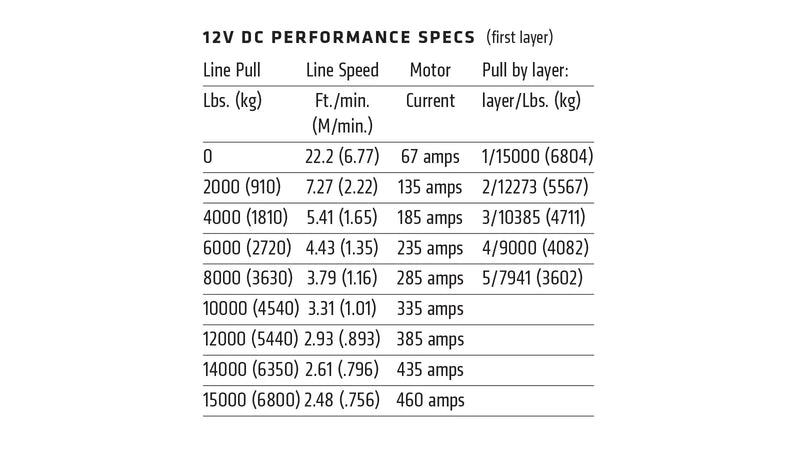

Warn's chart gives 15,000 lb on layer 1, 12,273 lb on layer 2, 10,385 lb on layer 3, 9,000 lb on layer 4 and 7,941 lb on layer 5.
What does it draw at full load?
460 amps at 15,000 lb, with the line moving 2.48 ft/min. With no load Warn charts 22.2 ft/min at 67 amps.
What do I mount it to?
Warn's Heavyweight guide shows the winch on a smooth, flat plate drilled to the standard 10" x 4.5" four-bolt pattern. The plate or bumper is not part of this listing, so plan on a Warn mounting kit or a compatible mount with that pattern.
What bolts and torque are specified?
Use 7/16-14 class 8.8 metric (grade 5) or better bolts tightened to 50-55 ft. lbs. (68-75 Nm). Warn's bolt-length table calls for 1.5" bolts on a 5/16" or 3/8" plate and 1.75" bolts on a 1/2" plate. Never weld the bolts.
When does the wiring go on?
Last. Warn says to finish bolting down the winch and attach the hook first. Keep the red power and black ground cables clear of sharp edges, hot parts and moving parts, and put the supplied boots on every terminal.
How do the M12 and M15 differ?
They share the frame, motor, drum and 10" x 4.5" pattern. The M15 adds 3,000 lb of rated pull through its 315:1 gearing, so it is slower: Warn charts 22.2 ft/min with no load against 30 ft/min for the M12.
Installation
Install time
Not printed in Warn's manual
DifficultyNot printed in Warn's manual
TypeBolt-on to a mounting plate or winch mount (sold separately) on the 10" x 4.5" four-bolt pattern, 7/16-14 class 8.8 metric (grade 5) or better bolts at 50-55 ft. lbs. (68-75 Nm), per Warn's Heavyweight Winch Installation Guide
ToolsNot printed in Warn's manual
Stuck on a step?
Specifications
| Brand | Warn |
|---|---|
| Part Number | 47801 |
| Series | Heavyweight (M12 / M15) |
| Voltage | 12V DC |
| Motor | 12V DC, 4.6 hp series wound |
| Geartrain | 3-stage planetary |
| Brake | Automatic direct-drive cone |

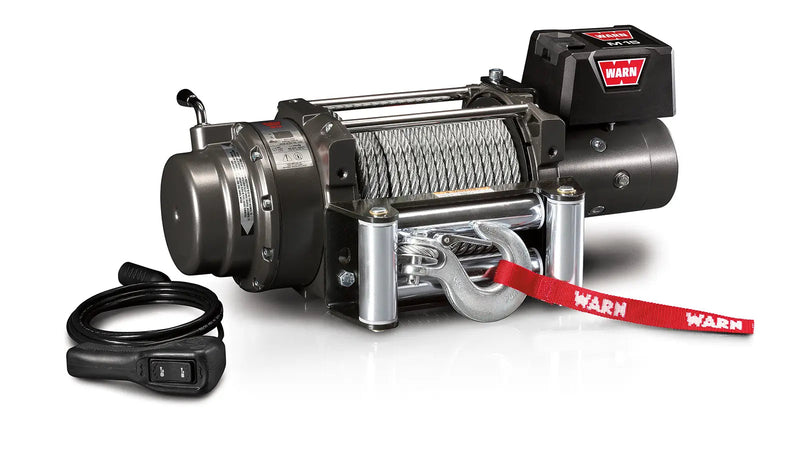

| Clutch | Rotating ring gear free-spool |
| Electrical controls | Removable control pack with Albright contactor |
| Remote control | Remote switch, 12' (3.7m) lead |
| Drum diameter and length | 3.5" / 8.2" (9cm / 21cm) |

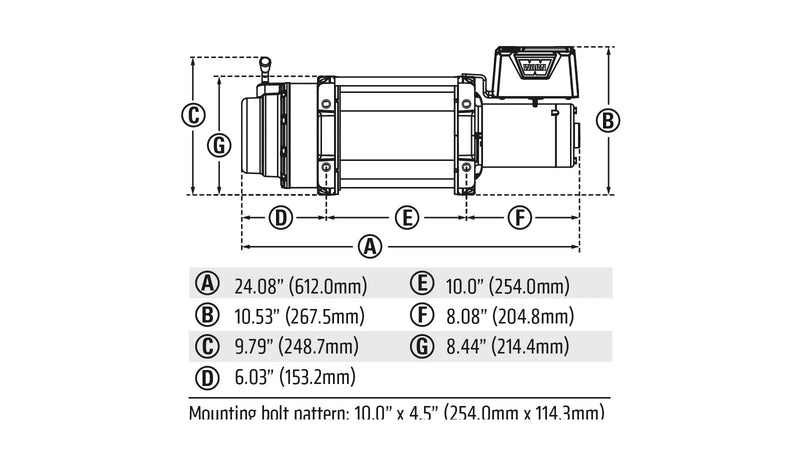

| Overall dimensions | 24.08" x 10.53" x 9.79" (612mm x 267.5mm x 248.7mm) |
| Mounting bolt pattern | 10" x 4.5" (254mm x 114.3mm) |
| Mounting hardware | 7/16-14 class 8.8 metric (grade 5) or better, 50-55 ft. lbs. (68-75 Nm) |
| Battery leads | 2 gauge, 72" (1.83m) |
| Recommended battery | 650 CCA minimum for winching |
| Finish | Argent Gray powder coat |
| Country of origin | USA |
| Model | M15 (M15000) |
| Rated line pull | 15,000 lb (6,804 kg) single line, first layer |
| Gear ratio | 315:1 |
| Rope | 90' of 7/16" (27m, 11mm) aircraft-grade wire rope with latched hook |
| Fairlead | Roller |
| Line speed no load | 22.2 ft/min (6.77 m/min), 67 amps |
| Line speed at 15000lb | 2.48 ft/min (0.756 m/min), 460 amps |
| Pull by layer | Layer 1: 15,000 lb · Layer 2: 12,273 lb · Layer 3: 10,385 lb · Layer 4: 9,000 lb · Layer 5: 7,941 lb |
| Lubrication | Molylube #1 or Aeroshell #17 |
| Winch weight | About 136 lb (62 kg) |
| Shipping weight | 136 lb |
| Warranty | Limited lifetime mechanical, limited 7 year electrical |
| UPC | 012748478010 |
