Warn Semi-Hidden Winch Mount for 2019-2021 Subaru Forester (106413)
Free gifts included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Low-profile winch mount: On the 2019-2021 Subaru Forester, the low-profile mount keeps the factory style, improves approach angle and adds front-end protection.
- Powersports winches to 6,000 lb: Warn tests it with the AXON 45, AXON 55, VRX 45 and other powersports winches up to 6,000 lb (bolt pattern 3" x 6.59").
- 3/16" steel, 408-hour coat: Made from 3/16" steel with a powder coat that Warn says passes 408-hour salt-spray testing, on the 2019-2021 Subaru Forester.
- Airbags, sensors and skid plates: Warn lists it as compatible with the 2019-2021 Subaru Forester's airbag and driver-aid systems and sensors, and it works with skid plates.
- D-ring eyelets: Welded eyelets for D-rings (5/8" pin) add recovery points to the 2019-2021 Subaru Forester.
- Minimal trimming, light bar option: It installs with minimal cutting along the lower plastic fascia (plastic trimming only) and no metal cutting, welding or grinding. Warn notes a 20" light bar can go in place of the winch.
Description & Fitment

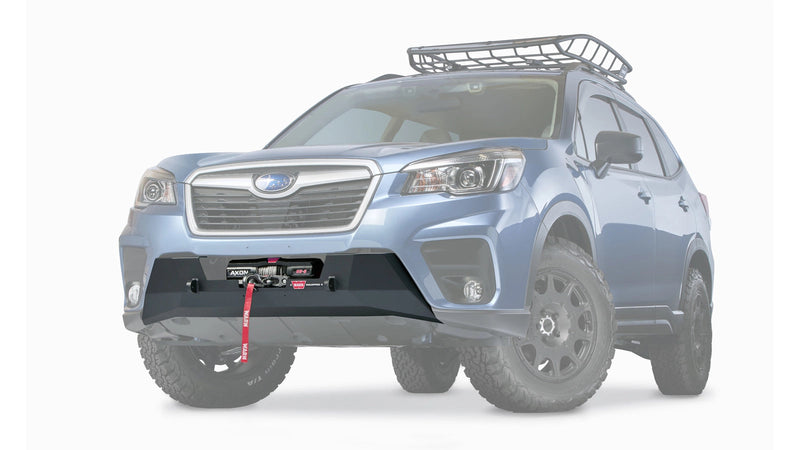

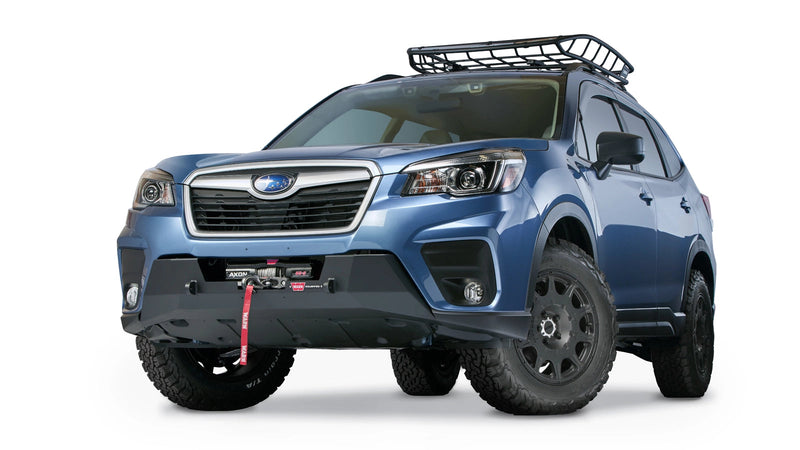

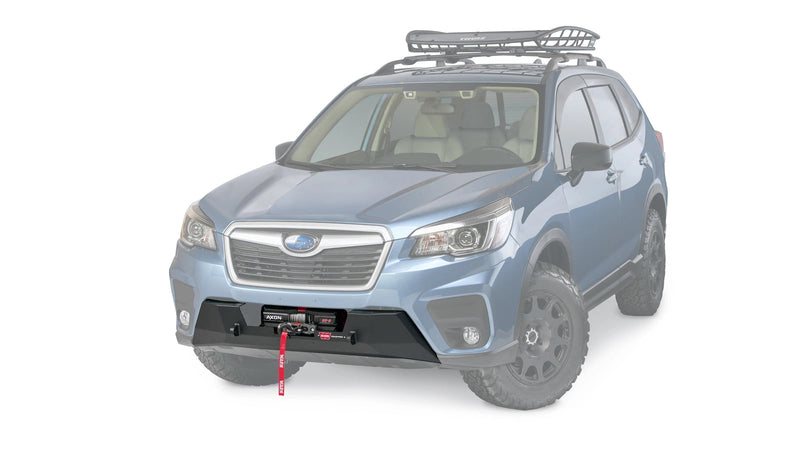

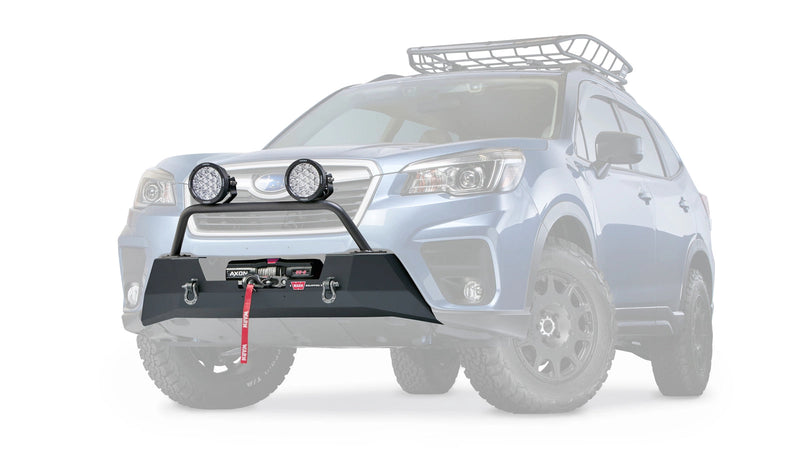

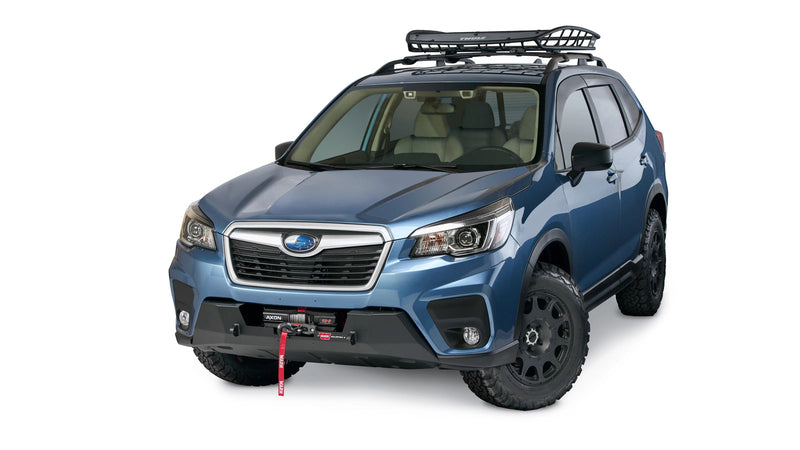

Warn's Semi-Hidden winch mount, part 106413, fits the 2019-2021 Subaru Forester. It adds a low-profile winch mount rated for AXON, VRX and other powersports winches up to 6,000 lb, with welded D-ring eyelets, in 3/16" powder-coated steel. An add-on grille guard tube is optional.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2019-2021 | Forester | Semi-Hidden Mount Kit - (Axon) |
Choose the right part: this is the Semi-Hidden Winch Mount (106413).
Not included: The winch, the grille guard tube and lights, sold separately.
About Warn
Warn Industries is a winch and recovery equipment maker headquartered in Clackamas, Oregon. Its range covers truck and SUV winches such as ZEON and the Heavyweight series, the AXON, VRX and R-Series powersports winches, the HUB Wireless Receiver and the portable Drill Winch.
Warn builds vehicle-specific steel bumpers in several lines: the Ascent and heavier Ascent HD front bumpers for full-size and mid-size pickups, the Elite series, and low-profile Semi-Hidden winch mounts. Warn says every one of its bumpers goes through field and pull testing for rigidity, and most are designed, tested and built in the USA.
Buying Warn from Prestige Truck. Warn asks for proof of purchase, a dated sales receipt showing the Warn product, with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Which winch can I mount?
Warn lists the AXON 45, AXON 55, VRX 45 and other powersports winches up to 6,000 lb with a 3" x 6.59" bolt pattern. The winch is sold separately.
Does it work with a skid plate?
Yes. Warn says it works with skid plates and is compatible with the airbag and driver-aid systems and sensors.
Can I run a light bar instead of a winch?
Yes. Warn says a 20" light bar can be mounted in place of the winch.
Does it need metal cutting?
No. It installs with plastic trimming only along the lower fascia and no metal cutting, welding or grinding.
Does it add recovery points?
Yes. Welded eyelets take D-rings with a 5/8" pin.
How is it covered?
Warn gives its mounts a one-year limited warranty. Keep your order receipt and contact us to start a claim.
Specifications
| Brand | Warn |
|---|---|
| Part Number | 106413 |
| Product type | Winch mounting system |
| Winch included | No |
| Line | Warn Semi-Hidden |
| Type | Semi-hidden winch mount |
| Winch compatibility | Powersports winches up to 6,000 lb (AXON 45, AXON 55, VRX 45); bolt pattern 3" x 6.59" |
| Material | 3/16" steel |
| Finish | Powder coat, 408-hour salt spray |
| Recovery points | Welded D-ring eyelets, 5/8" pin |
| UPC | 012748080558 |
